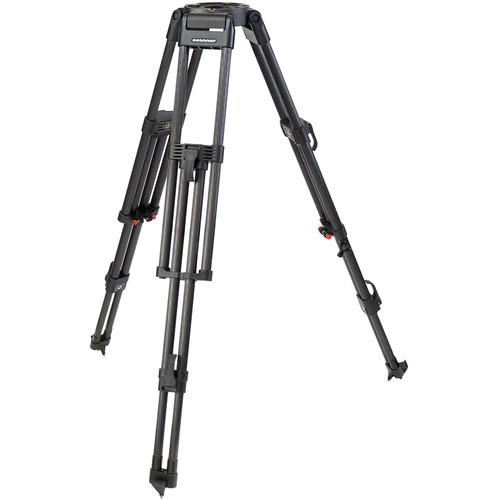

User Manual for OConnor 60L 2-Stage Carbon Fiber Tripod Legs with Mitchell Top Plate Click to enlarge the picture
Contents of the user manual for the OConnor 60L 2-Stage Carbon Fiber Tripod
- Product category: Tripod Legs OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Tripod Legs
|
User manual for the OConnor 60L 2-Stage Carbon Fiber Tripod contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description The OConnor 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl support tripod heads that have a 150mm leveling ball. The legs feature 2-stages and weigh only 9 pounds; however, they can support 209 pounds and extend from a minimum height of 22.8" to a maximum height of 60.6" when using the available mid-level spreader.
Each leg extends or retracts independently and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The Mitchell plate incorporates a leveling bubble, allowing you to level the legs with or without a head attached. The dual spikes at the end of each leg provide extra grip when working on soft ground and the design of the spikes also provide a solid mounting surface for the optional rubber feet/spike protectors.
The legs are designed for use with an available mid-level spreader for stability on uneven terrain. It also features OConnor's Smart Quick clamping system that provides a visible clamp lockdown. A small accessory hook under the Mitchell plate allows you to hang various available tools and items such as a walkie-talkie, tape measure, or even a foam rubber pad for shouldering the legs during camera position changes. - The legs support over 200 pounds of head and accessories, allowing you to mount a heavy-duty fluid head and accessories.
- The legs feature spiked feet that provide solid purchase in soft surfaces when not using a spreader.
- The independent leg spread and height adjustment allows you to use the legs on oddly shaped areas as well as steps.
In the Box OConnor 60L 2-Stage Carbon Fiber Tripod Legs with Mitchell Top Plate Limited 1-Year Warranty, Extendable to 2-Years with Product Registration Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor 60L 2-Stage Carbon Fiber Tripod Legs with Mitchell Top Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor C1255-0002 Specs | | | Head Mount Type | Mitchell Flat Base | | Load Capacity | 209 lb / 95 kg | | Maximum Working Height | 60.6" / 153.9 cm | | Minimum Working Height | 22.8" / 57.9 cm | | Folded Length | 29.9" / 75.9 cm | | Materials | Aluminum, Carbon Fiber | | Weight | 9 lb / 4.1 kg | | | | Leg Lock Type | Flip Lock | | Independent Leg Spread | Yes | | Leg Sections | 3 | | Feet Features | Spiked | | Spreader | Mid-Level | | | | Package Weight | 14.1 lb | | Box Dimensions (LxWxH) | 35.3 x 9.5 x 9.4" |
