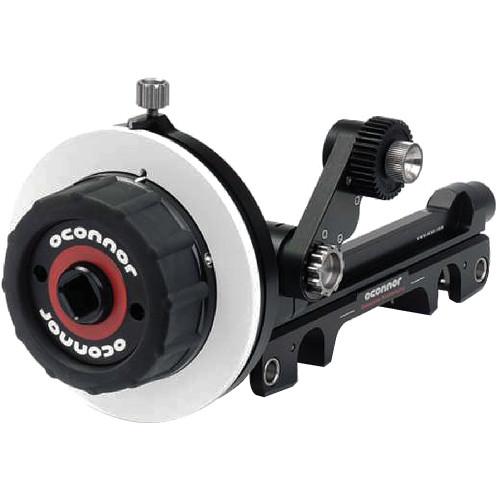

User Manual for OConnor Basic Cine Follow Focus One Unit with One Drive Gear Click to enlarge the picture
Contents of the user manual for the OConnor Basic Cine Follow Focus One
- Product category: Follow Focus Systems OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Follow Focus Systems
|
User manual for the OConnor Basic Cine Follow Focus One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description As an introductory studio follow focus unit that can accept optional drive gears the Basic Cine Follow Focus One Unit with One Drive Gear from OConnor mounts onto either 15mm or 19mm studio rod systems, making this a flexible unit that you can build up as your needs increase. Its low clearance enables the follow focus to work with large diameter lenses such as the Angenieux 24-290mm, Red 18-85mm, Fujinon 18-85mm, and Fujinon 75-400mm. The follow focus is compatible with accessories such as whips, gears, and cranks. This basic unit includes a single drive gear with 43 teeth, and a 0.8 Mod compatible with most film style geared lenses. Numerous mounting options for specialty setups are possible as the main bridge slides independent of the support bridge dovetail. The swing arm of the Cine Follow Focus One can be mounted on either side of the bridge for better integration with all lens and matte box configurations. The horizontal sliding makes it easy for the user to adjust the focus drive gear for a clear line of sight. Eccentric adjustments on handwheels allow flexible positioning, and the custom-cut, low-runout gears (Minimal Backlash Mechanism) ensure high accuracy. - Minimal Backlash Mechanism and low-runout gears provide smooth operation and precise focus adjustment.
- Mounting on either 15mm or 19mm studio style rods does not require you to change the mounting clamps, or add adapters.
- Snaps onto 19mm studio rods, and slides onto 15mm studio rods.
- The unit's design allows it to work with large diameter lenses such as the Angenieux 24-290mm, Red 18-85mm, Fujinon 18-85mm, and Fujinon 75-400mm.
- Compatible with accessories like whips, gears, and cranks.
- Offers numerous mounting options for specialty setups as the main bridge slides independent of the support bridge dovetail
- Mounts swing arm on either side of bridge for better integration with all lens and matte box configurations
- Horizontal sliding adjustment allows you to adjust the drive gears contact point on the lens.
- Allows flexible positioning with the help of eccentric adjustments on handwheels
- Constructed of lightweight, durable, black anodized aluminum
In the Box OConnor Basic Cine Follow Focus One Unit with One Drive Gear Main Bridge xrtsqucueq Swing Arm for CFF-1 Follow Focus Handwheel for CFF-1 Follow Focus Studio Rod Bridge Lens Drive Gear for CFF-1 Follow Focus (0.8M, 43 Teeth) 1 Year Warranty Table of Contents
|
