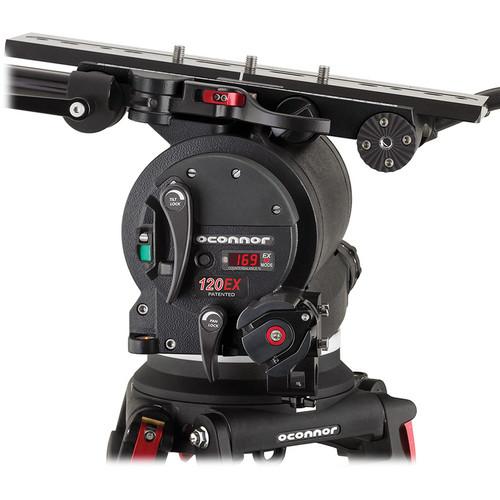

User Manual for OConnor C12250001 120EX Standard Film Fluid Head Click to enlarge the picture
Contents of the user manual for the OConnor C12250001 120EX Standard Film Fluid
- Product category: Video Tripod Heads OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Video Tripod Heads
|
User manual for the OConnor C12250001 120EX Standard Film Fluid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description The OConnor 120EX Standard Assembly C12250001 is the flagship of fluid head design. With a payload capacity of 120 lbs it is the right choice for larger format film and video cameras. This device features 90 to 90 degree tilt with a folding crank handle with numerical readout for repeatable counterbalance adjustments. This head features the EX Mode which allows extended weight capacity. - Counterbalance System
- The fluid head features a counterbalance system that will keep the camera from falling forward or backward when it is tilted. With the correct counterbalance, the camera will stay where you put it, throughout the entire +/-90° tilt range.
- Infinitely Adjustable True Fluid Drag
- Fluid drag allows you to pan and tilt smoothly, without shake or vibration. The high viscosity fluid acts as a buffer, adding an adjustable level of resistance to the camera movement.
- Unmatched Versatility
- The fluid head employs a modular design concept that allows you to choose different mounting bases (150mm, Mitchell, Sachtler/Vinten), quick release platforms (Oconnor, 120mm Euro, Panavision Dovetail and Arriflex Plates) and handles for added flexibility.
- EX-Technology
- EX fluid heads can go far beyond that maximum payload by slowly limiting tilt range as the payload is increased. With the example of the 120EX, the payload for a 90° tilt range is between 30-120 lbs (14-54 kg), but in EX mode the 120EX can counterbalance up to incredible 240 lbs (109 kg) at a tilt range of 60°; all based on a 8" center of gravity.
In the Box OConnor C12250001 120EX Standard Film Fluid Head (Black) Limited 1-Year Warranty Extendable to 2-Years with Product Registration User Manual PDF 456.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor C12250001 120EX Standard Film Fluid Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor 120EX Specs | | | Camera Plate Features | Sliding Balance Plate, Quick Release | | Camera Plate Type | 120 mm Euro Plate, ARRI Dovetail Plate, OConnor Plate, Panavision Dovetail Plate | | | | Base Mount | Mitchell Flat Base | | | | Drag Control | Tilt: Continuous | | Vertical Tilt | +90
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
