User Manual for OConnor C1245-1001 Universal Baseplate Click to enlarge the picture
Contents of the user manual for the OConnor C1245-1001 Universal Baseplate
- Product category: Camcorder Supports & Rigs OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Camcorder Supports & Rigs
|
User manual for the OConnor C1245-1001 Universal Baseplate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|

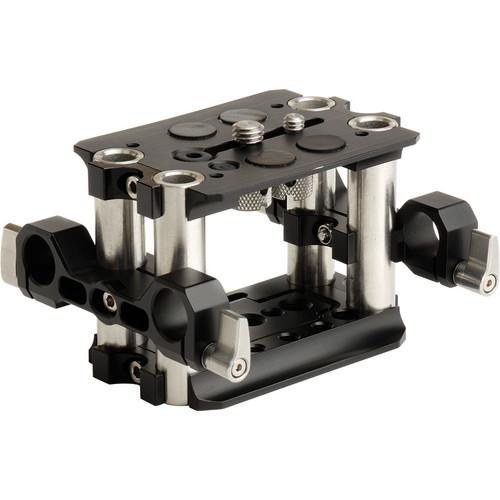

Product description The OConnor C1245-1001 Universal Baseplate adapts small and medium-sized video cameras for use with both cine-style accessories and lenses. This sturdy support system connects your DSLR, mirrorless MFT camera, or camcorder to a 15mm or 19mm studio bridge plate, providing proper optical axis–centering even when using even larger, heavier cine lenses. The Universal Baseplate also supports a pair of industry-standard lightweight 15mm rods (not included). The 15mm LWS support rods can be adjusted both vertically and horizontally, offering precision support for cine-style accessories such as lens supports, follow focus and wireless F/I/Z systems, matte boxes, on-board monitors, etc.This Universal Baseplate includes four 2.7" upright rods, top and bottom camera plates, two 1/4” and one 3/8” 3-way camera screws, and dual 15mm LWS horizontal rod brackets. The 3-way camera screws can be tightened by hand, with a tool, or by inserting a slotted screwdriver through the flip-up bottom plate access panel. - Adapts small and medium-sized digital video cameras for use with cine-style accessories and lenses
- Provides sturdy support for 15mm LWS rods (not included) with horizontal and vertical adjustment
- Remove the four upright rods to support any camera on standard a 15mm or 19mm studio bridge plate
- The included 1/4"-20 and 3/8"-16 camera screws can be tightened by hand, with a tool or by inserting a screwdriver through the bottom plate's flip-up access panel
In the Box OConnor C1245-1001 Universal Baseplate 4 x 2.7" Vertical Rods (15mm Diameter) 3/8" Camera Screw 2 x 1/4" Camera Screws 2 x Dual 15mm LWS Rod Brackets Top Camera Plate Bottom Camera Plate Limited 1-Year Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor C1245-1001 Universal Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor C1245-1001 Specs | Vertical Rods | Height: 2.7" (67.4 mm) | | Horizontal Rod Support | 15mm | | Camera Mounting Screw | 2 x 1/4"-20
1 x 3/8"-16 | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.1 x 6.1 x 4.7" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 48 owners. Add your rating and experience with the product.
