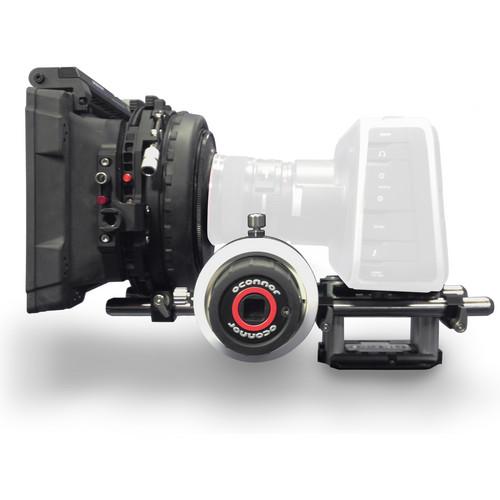

OConnor Genuine Accessory Cinema Camera Bundle

User Manual for OConnor Genuine Accessory Cinema Camera Bundle

• Product category: Camcorder Supports & Rigs OConnor
• Brand: OConnor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OConnor Camcorder Supports & Rigs

Product description

• OConnor C1245-1001 Universal Baseplate The OConnor C1245-1001 Universal Baseplate adapts small and medium-sized video cameras for use with both cine-style accessories and lenses. This sturdy support system connects your DSLR, mirrorless MFT camera, or camcorder to a 15mm or 19mm studio bridge plate, providing proper optical axis–centering even when using even larger, heavier cine lenses. The Universal Baseplate also supports a pair of industry-standard lightweight 15mm rods (not included). The 15mm LWS support rods can be adjusted both vertically and horizontally, offering precision support for cine-style accessories such as lens supports, follow focus and wireless F/I/Z systems, matte boxes, on-board monitors, etc.This Universal Baseplate includes four 2.7" upright rods, top and bottom camera plates, two 1/4” and one 3/8” 3-way camera screws, and dual 15mm LWS horizontal rod brackets. The 3-way camera screws can be tightened by hand, with a tool, or by inserting a slotted screwdriver through the flip-up bottom plate access panel.
  • Adapts small and medium-sized digital video cameras for use with cine-style accessories and lenses
  • Provides sturdy support for 15mm LWS rods (not included) with horizontal and vertical adjustment
  • Remove the four upright rods to support any camera on standard a 15mm or 19mm studio bridge plate
  • The included 1/4"-20 and 3/8"-16 camera screws can be tightened by hand, with a tool or by inserting a screwdriver through the bottom plate's flip-up access panel
• OConnor 15mm Rods (18") Mount accessories to your rig with this pair of 18" OConnor 15mm Rods. These rods will attach to rigs, rod clamps, baseplates, or cameras that support the 15mm LWS or 15mm studio standards, allowing the attachments of industry standard equipment including follow focuses, lens supports, lens control motors, and more.
• OConnor O-BOX WM Set (15mm LWS) The OConnor O-BOX WM Set (15mm LWS) is a package that includes the O-Box WM matte box, a wide mini sunshade, top flag, two 4 x 4" filter frames, two 4 x 5.65" filter frames, and a 15mm LWS rod bracket. You are provided with the sunshade that is manufactured using OConnor's rugged composite that provides augmented rigidity and impact resistance resulting in reduced sunshade replacements in professional production environments. A top flag fitting into the integrated top flag mounting bracket shields the lens from excessive sunlight. Also included are two 4 x 4" and two 4 x 5.65" filter frames that act as fixed as well as 360° rotatable filter holders allowing the matte box to accept two filters. You are also provided with a rod interface for the 15mm LWS standard.
  • Includes the O-Box WM matte box, a wide mini sunshade, top flag, two 4 x 4" filter frames, two 4 x 5.65" filter frames, and a 15mm LWS rod bracket
  • Wide mini sunshade - offers augmented rigidity and impact resistance resulting in reduced sunshade replacements in professional production environments
  • Shields the lens from excessive sunlight via top flag fitting into the integrated top flag mounting bracket
  • Includes two 4 x 4" and two 4 x 5.65" filter frames that act as fixed as well as 360° rotatable filter holders allowing the matte box to accept two filters
  • Provides rod interface for the 15mm LWS standard
• OConnor 150-114mm Threaded Bellows Ring This OConnor Bellows Ring is a 150-114mm threaded ring that reduces the opening of an OConnor O-Box WM, enabling you to use lenses with a 114mm outer diameter. A threaded retaining ring supports mounting 138mm round filters.
• OConnor O-Focus Dual Mini Photo Set The OConnor O-Focus Dual Mini Photo Set is a follow focus system equipped with a Hard Stop Handwheel and designed double-sided to optionally also accommodate a Cine Handwheel.

  The Dual Mini attaches to a lens by sliding dovetail and is adjustable thus to various lens diameters. Its main bridge is very low-profile and has a gear drive ratio of 1:0.75, which produces 270° of rotation for every 360° that the handwheel is turned, and which hence affords longer, more exacting pull on limited rotation still lenses.

  The Hard Stop wheel features a transmission ratio of 1:1 and so maintains the gear driver's longer pull. The wheel offers also the benefit of setting minimum and maximum focus points for infinite rotation lenses, and of performing hard stop pulls, and, moreover, of an on/off switch it has that at the employ of a hand instantly disengages end stops so that important adjustments can be made during sudden moments in a scene.

  The Dual Mini is made of lightweight, durable black anodized aluminum. Its bridge can be used with an included LWS rod bridge or optionally with 15/19mm studio rod systems. It can also be used with interchangeable gears and with a handwheel extension. Its low-profile design with no swing arm and with a direct-drive gear box is ideal for large barrel diameter lenses.

  Dual Mini

  • Equipped with a Hard Stop Handwheel for photo lenses.
  • Double-sided to optionally also accommodate a Cine Handwheel.
  • Adjustable to various lens diameters by way of a sliding dovetail design.
  • The main bridge is low-profile and has a direct-drive gear box and no swing arm.
  • The bridge's gear ratio is 1:0.75, which produces a 270° output for every 360° of input.

  Hard Stop Handwheel

  • Achieves longer, more exacting pull with limited rotation still lenses.
  • Features a 1:1 transmission ratio that maintains the Dual Mini's 270° of output.
  • Allows minimum and maximum focus points to be set and hard stop pulls to be performed.
  • Equipped with an on/off switch that disengages end stops so important adjustments can be made.
  UPC: 825494030711
• OConnor Reduction Ring for OConnor O-Box WM Matte Box (114-110mm) The OConnor Reduction Ring (114-110mm) enables a lens with an outside front diameter of 110mm to fit into an OConnor Obox WM Matte Box equipped with a bellows ring (not included). This configuration prevents light from leaking from behind the matte box and flaring filters in front of your lens; this ring is not suitable for use as a clamp-on ring.
  • Snaps into your OConnor O-Box WM matte box outfitted with a bellows ring (not included)
  • Prevents light from behind the camera leaking between your lens and matte box and degrading your image
• Chrosziel Flex-Ring Flexible Step-Down Ring (110 to 75-98mm) The Chrosziel Flexi-Ring Flexible Step-Down Ring is a 110 to 75-98mm adjustable step-down ring. The ring is designed to work with the MB-450 matte box series and will fit a variety of wide angle attachment lenses.
  • Compatible with MB-450 matte box system for wide angle attachment lenses between 75-98mm.
  • Flexible material makes it easily adjustable.

• C1245-1001 Universal Baseplate sdaaffequczw
• 4 x 2.7" Vertical Rods (15mm Diameter)
• 3/8" Camera Screw
• 2 x 1/4" Camera Screws
• 2 x Dual 15mm LWS Rod Brackets
• Top Camera Plate
• Bottom Camera Plate
• Limited 1-Year Year Warranty

• 15mm Rods (18")

• O-BOX WM Set (15mm LWS)

• 150-114mm Threaded Bellows Ring

• O-Focus Dual Mini Photo Set sdaaffequczw

• Reduction Ring for OConnor O-Box WM Matte Box (114-110mm)

• Chrosziel - Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• OConnor C1245-1001 Universal Baseplate

  Vertical Rods	Height: 2.7" (67.4 mm)
  Horizontal Rod Support	15mm
  Camera Mounting Screw	2 x 1/4"-20 1 x 3/8"-16

  Box Dimensions (LxWxH)	7.1 x 6.1 x 4.7"

• OConnor 15mm Rods (18")

  Length	18" (45.7 cm)
  Diameter	15 mm

  Box Dimensions (LxWxH)	18.5 x 1.7 x 0.9"

• OConnor O-BOX WM Set (15mm LWS)

  Box Dimensions (LxWxH)	14.3 x 8.3 x 6.1"

• OConnor 150-114mm Threaded Bellows Ring

  Material of Construction	Aluminum and rubber
  Step-Down	150 to 114 mm
  Filter Attachment	138 mm round

  Box Dimensions (LxWxH)	6.5 x 6.4 x 3.3"

• OConnor O-Focus Dual Mini Photo Set

  Lens Diameter	Max Diameter (with LWS Rods Included): 11.6mm
  Transmission Ratio	Main Bridge: 1:0.75 Handwheel: 1:1 Coupled: 1:0.75
  Positioning of Driver Gear	Main Bridge Interlock (Back/Front)
  Module Coupling System	Backlash-Free
  Drive Gear Coupling	Standard Serrated Star
  Compatibility	15 mm LWS Studio 15 mm/19 mm Rod Systems
  Dimensions	Unit Excluding Handwheel: 7.2 x 2.2 x 1.5" / 18.2 x 5.7 x 3.7 cm Hard Stop Handwheel: 3.2 x 3.7" / 8.2 x 9.4 cm
  Total Weight	1.23 lb / 0.56 kg

  Box Dimensions (LxWxH)	9.4 x 7.4 x 5.1"

• OConnor Reduction Ring for OConnor O-Box WM Matte Box (114-110mm)

  Diameter

  Outer: 114 mm Inner: 110 mm

  Box Dimensions (LxWxH)	4.0 x 4.0 x 0.1"

• Chrosziel Flex-Ring Flexible Step-Down Ring (110 to 75-98mm)

  Front Lens Diameter	110mm
  Rear Mount	75-98mm

  Box Dimensions (LxWxH)	5.6 x 4.7 x 0.6"
