User Manual for OConnor LWS Height Adapter Click to enlarge the picture
Contents of the user manual for the OConnor LWS Height Adapter
- Product category: Rod Brackets & Clamps OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Rod Brackets & Clamps
|
User manual for the OConnor LWS Height Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|

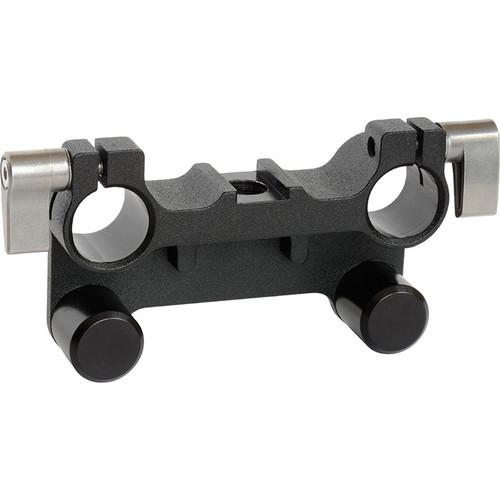

Product description The OConnor LWS Height Adapter is a riser that allows you to mount most rod mount follow focus units or matteboxes, such as the OConnor O-Focus or O-Box, for use with the Canon C300/C500 Cinema EOS cameras that have a taller lens center than standard. Slide the adapter into the rod supports for the mattebox, tighten in place, then the mattebox with adapter slides onto your 15mm light weight support rods; the same process applies to follow focus units.
This allows you to use your current accessories with your standard 15mm rod support system when using the C300/C500 cameras, and saves you from having to buy a whole new rod support system, mattebox or follow focus unit. The LWS adapter also features an O-Grip mount on the bottom of the unit. The adapter only mounts one accessory at a time, requiring one adapter for each accessory. - Allows rotating 4 x 5 filter stages in matteboxes to rotate without hitting the support bars.
- Enables you to use the OConnor O-Box mattebox or O-Focus follow focus unit with the Canon C300 and C500 Cinema EOS cameras, while using the 15mm light weight support rods.
In the Box OConnor LWS Height Adapter Limited 1-Year Warranty (extends to 2 years with registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor LWS Height Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor C1245-1002 Specs | Rod Support | 2 x 15 mm rod clamps
2 x 15 mm bosses | | Mounting Threads | 1 x 3/8"-16 mounting hole on bottom of the unit | | Dimensions (H x W x D) | 2 x 4 x 0.75" (50.8 x 101.6 x 19 mm) | | Weight | Approximately 2 oz (56.7 g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
