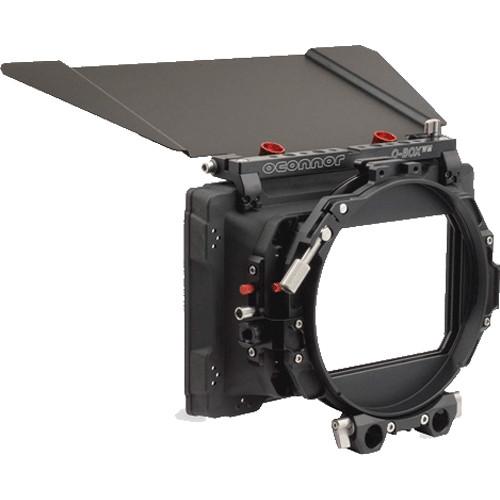

Product description Video: Hands-On Review of O'Connor Video Accessories Read More xssfbewcrztwvxszddwvbauvvdzarwd The OConnor O-Box WM Matte Box Deluxe Set is a lightweight, wide-angle, mini-matte box system that will accommodate lenses designed for full-sized sensors as wide as 18mm. The matte box has two filter stages that accept either 4 x 4" or 4 x 5.65" filter trays, and the rear stage rotates a full 360 degrees which is useful when working with polarizers or graduated filters. The O-Box deluxe set includes four filter trays, two each of the 4 x 4" and 4 x 5.65" trays, as well as the bellows ring that allows you to mount a 138mm filter as well. In addition to the standard eyebrow (top flag), the deluxe kit features lens siders and brackets to attach them to the matte box, providing increased control over lens flares. The matte box comes with a 15mm LWS bracket, and there are available brackets for 15mm studio rods, 19mm rods, and adapter rings allowing you to use this as a clip-on matte box.
A distinguishing feature of the O-box system is that it incorporates 3/8"-16 threaded mounting holes into the matte box itself. This allows you to attach available O-Grips to the matte box for added stability when hand holding the camera, or other available accessories. Also included with the O-Box are two universal lens rings made from aluminum with a seamless flexible material that stretches over a range of lenses and prevents light leaks from behind the lens, which can reflect off filters ruining your image. The two rings cover lenses ranging from 55 to 134mm in diameter. Rounding out the deluxe kit is a reduction ring that works with the included bellows ring. - O-Box WM Side Flag Bracket Set (2 Brackets) The OConnor O-Box WM Side Flag Bracket Set (2 Brackets) is a pair of side flag brackets that is used with the O-Box WM Matte Box to hold the side flags, which shield the lens from excessive sunlight.
- Pair of side flag brackets
- Used with the O-Box WM Matte Box to hold the side flags, which shield the lens from excessive sunlight
- O-Box WM Side Flag Set (2 Flags) The OConnor O-Box WM Side Flag Set (2 Flags) is a pair of side flags that is used with the O-Box WM Matte Box. Designed to fit into the side flag brackets, the side flags shield the lens from excessive sunlight. Requires Side Flag Brackets for use with the O-Box WM. Note: Note: Requires Side Flag Brackets for use with the O-Box WM
- Pair of side flags that is used with the O-Box WM Matte Box
- Fits into the side flag brackets
- Shields the lens from excessive sunlight
- Reduction Ring for OConnor O-Box WM Matte Box (114-110mm) The OConnor Reduction Ring (114-110mm) enables a lens with an outside front diameter of 110mm to fit into an OConnor Obox WM Matte Box equipped with a bellows ring (not included). This configuration prevents light from leaking from behind the matte box and flaring filters in front of your lens; this ring is not suitable for use as a clamp-on ring.
- Snaps into your OConnor O-Box WM matte box outfitted with a bellows ring (not included)
- Prevents light from behind the camera leaking between your lens and matte box and degrading your image
- 150-114mm Threaded Bellows Ring This OConnor Bellows Ring is a 150-114mm threaded ring that reduces the opening of an OConnor O-Box WM, enabling you to use lenses with a 114mm outer diameter. A threaded retaining ring supports mounting 138mm round filters.
- 114-55mm Threaded Universal Step-Down Ring The OConnor 114-55mm Threaded Universal Step-Down Ring is a threaded step-down ring compatible with the OConnor O-Box WM matte box. Use this versatile ring to replace multiple reduction rings when shooting with lenses of varying sizes. Its flexible fabric inner ring reduces the outer 114mm diameter and adapts to any lens with a front barrel diameter from 55mm to 104mm.
- Use in place of multiple reduction rings when using lenses of varying sizes with the OConnor O-Box WM matte box
- Flexible inner fabric ring accommodates lenses with a front barrel diameter from 55mm to 104mm
- Lightweight, sturdy aluminum construction
- Universal Ring 150-80mm The OConnor Universal Ring 150-80mm is an aircraft grade aluminum donut ring for the OConnor O-Box Mattebox. It features a high-tech composite flex material that seamlessly supports any lens from 134mm to 80mm in diameter.
In the Box Bundle Items O-BOX WM Set (15mm LWS) xssfbewcrztwvxszddwvbauvvdzarwd O-Box WM Side Flag Bracket Set (2 Brackets) xssfbewcrztwvxszddwvbauvvdzarwd O-Box WM Side Flag Set (2 Flags) Reduction Ring for OConnor O-Box WM Matte Box (114-110mm) 150-114mm Threaded Bellows Ring 114-55mm Threaded Universal Step-Down Ring Universal Ring 150-80mm - 1-Year Limited Warranty (Extendable to 2 Years with Registration)
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor O-Box WM Matte Box Deluxe Set - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - O-Box WM Side Flag Bracket Set (2 Brackets)
| | | Box Dimensions (LxWxH) | 8.8 x 5.9 x 1.5" | - O-Box WM Side Flag Set (2 Flags)
| | | Box Dimensions (LxWxH) | 8.0 x 6.2 x 0.3" | - Reduction Ring for OConnor O-Box WM Matte Box (114-110mm)
| Diameter | Outer: 114 mm
Inner: 110 mm | | | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 0.1" | - 150-114mm Threaded Bellows Ring
| Material of Construction | Aluminum and rubber | | Step-Down | 150 to 114 mm | | Filter Attachment | 138 mm round | | | | Box Dimensions (LxWxH) | 6.5 x 6.4 x 3.3" | - 114-55mm Threaded Universal Step-Down Ring
| Material of Construction | Aircraft-grade aluminum, flexible fabric | | | | Box Dimensions (LxWxH) | 5.4 x 5.1 x 1.0" | - Universal Ring 150-80mm
| | | Box Dimensions (LxWxH) | 8.4 x 8.0 x 0.5" |
