User Manual for OConnor O-Grips Deluxe Set - Open Box Click to enlarge the picture
Contents of the user manual for the OConnor O-Grips Deluxe Set - Open
- Product category: Handles & Grips OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Handles & Grips
|
User manual for the OConnor O-Grips Deluxe Set - Open contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|

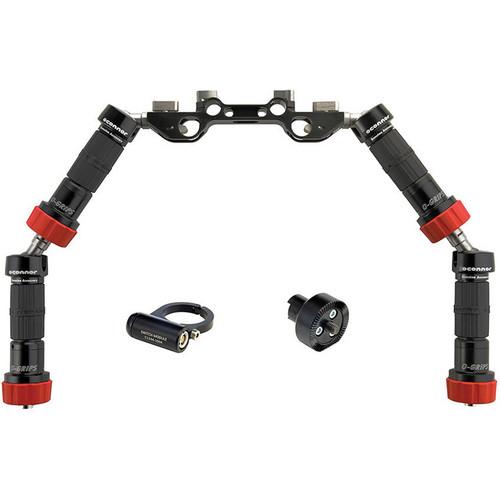

Product description The OConnor O-Grips Deluxe Set is a camera support kit featuring four OConnor O-Grip modules, the O-Grips Rod Bridge, two ARRI rosette adapters, and a start/stop switch module. Each O-Grip module can support up to 44 lb and is made from a titanium core with stainless steel, 3/8"-16 top screw, and bottom thread. The top screw articulates 90°, and the O-Grip can rotate around the top screw in a half sphere. You secure the top screw by using a 5mm Allen wrench, and then you can set the O-Grip's position with one hand.
The O-Grip modules screw into each other, allowing you to stack them and lock them into a comfortable position. The Deluxe Set includes the O-Grips Rod Bridge that clamps onto 19mm rod supports and both 15mm Studio and LWS rod systems. The Rod Bridge has three threaded holes—two on the side and one in the middle—which allow you to attach three O-Grips directly to the Rod Bridge for a variety of handgrip positions. You can connect an O-Grip to a camera (or any device) with an ARRI-style rosette by using the two included adapters. The O-Switch module is made specifically to fit on an O-Grip, features a 4-pin LEMO connector, and facilitates remote start/stop functionality. - Rosette Adapter 60-Tooth Arri Compatible The OConnor Rosette Adapter 60-Tooth Arri Compatible will let you attach an OConnor O-Grip Handgrip to any piece of gear with an Arri-standard 60-tooth rosette.
- O-Grips Start/Stop Switch Module The OConnor O-Grips Start/Stop Switch Module clamps onto an OConnor O-Grip handgrip to provide remote start stop capability to the handgrip. It features a push button start/stop switch and a 4-pin female Lemo connector.
- The O-Grips Start/Stop module fits perfectly on an available O-Grips module, allowing you to add a push button start stop switch to any O-Grip.
- The 4-pin lemo connector is an industry standard connector providing durability and a secure connection.
- Requires a cable with a 4-pin Lemo on one end and appropriate connector for your specific camera on the other end. Cable not included.
- O-Grips Double Jointed Set
In the Box Bundle Items O-Grips Double Jointed Set tsxqqedtvfryuwbctt 2 x Rosette Adapter 60-Tooth Arri Compatible O-Grips Start/Stop Switch Module - Limited 1-Year Warranty, Extendable to 2-Years with Product Registration.
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor O-Grips Deluxe Set - Open Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Rosette Adapter 60-Tooth Arri Compatible
| | | Box Dimensions (LxWxH) | 1.89 x 1.732 x 1.2" | - O-Grips Start/Stop Switch Module
| Material of Construction | Aluminum | | Attachment | Clamps onto OConnor O-Grip
Secured by M4 cap screw that takes a 3 mm Allen key (not included) | | Connector | 1 x 4-pin female Lemo | | On/Off Push Button | Push Button | | Dimensions | Clamping Diameter: 1.18" (30 mm) | - O-Grips Double Jointed Set
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
