User Manual for OConnor O-Rig Baseplate Set Click to enlarge the picture
Contents of the user manual for the OConnor O-Rig Baseplate Set
- Product category: Camcorder Supports & Rigs OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Camcorder Supports & Rigs
|
User manual for the OConnor O-Rig Baseplate Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|

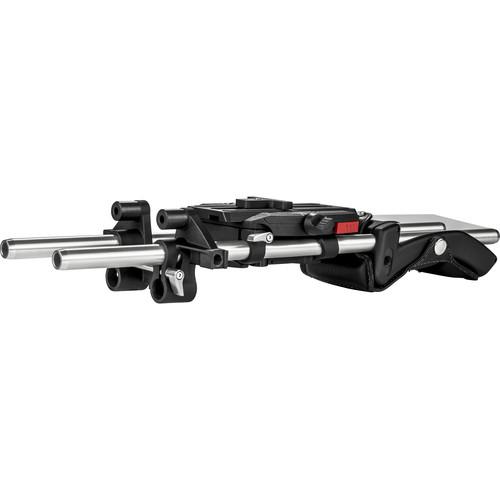

Product description The O-Rig Baseplate Set from OConnor is a 15mm LWS rod support system designed to work with nearly any camera and lens combination, from compact DSLRs to larger cinema cameras. It features a universal baseplate that enables quick and easy camera and lens changes. A height adapter lets you adjust your camera and lens to the appropriate height for use with follow focuses and matte boxes. Designed for convenient and comfortable operation, the O-Rig Baseplate set includes an O-Rig Body Mount, which is a rod-mounted shoulder pad with hand-stitched leather construction that lets users to quickly switch between shoulder-mounted and tripod-mounted shooting. - Key Features
-
- Universal baseplate works with virtually all camera and lens combinations
- Tool-less and intuitive lens / camera changes
- Height adapter that not only provides a solid anchor for the O-Grips, but used in conjunction with baseplate gives cover for all camera bodies, provides rotation of wide angle filters, and increases lens coverage of an optional O-Focus to cover 65 to 166mm lens diameters
- The baseplate allows simple docking of camera rig on a tripod and quick lens and camera body changes
- Shoulder pad with aluminum and leather finishing
- 2x 15mm rods (18")
In the Box OConnor O-Rig Baseplate Set O-Rig Body Mount O-Rig Height Adapter 2 x 15mm Rods (18") Limited 1-Year Warranty (Extendable to 2-Years with Product Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor O-Rig Baseplate Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor C1257-0003 Specs | Load Capacity | 45 lb (20.45 kg) | | Camera Fixing | Standard wedge plate with 3/8"-16 and 1/4"-20 screws | | Sliding Travel of Plate | 4.7" (12 cm) | | Camera Support | Camera Body Size (Lens Center to Base of Camera): 1.26 to 4.21" (32 to 107 mm) | | 15mm Rods | 2 x 18" (45.7 cm) | | Operating Temperature | -22 to 158°F (-30 to 70°C) | | Weight | 2.77 lb (1.71 kg) | | | | Package Weight | 4.95 lb | | Box Dimensions (LxWxH) | 19.2 x 7.6 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 76 owners. Add your rating and experience with the product.
