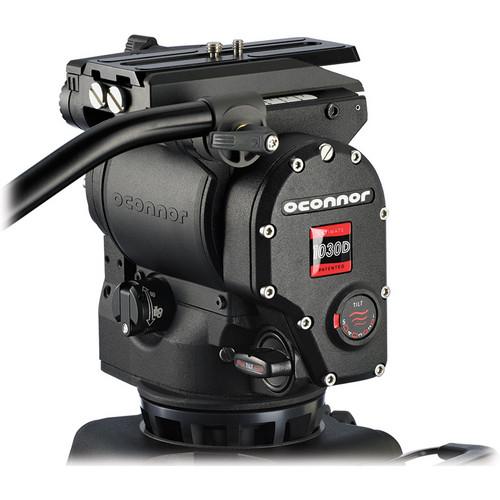

OConnor Ultimate 1030D Fluid Head

User Manual for OConnor Ultimate 1030D Fluid Head

• Product category: Video Tripod Heads OConnor
• Brand: OConnor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OConnor Video Tripod Heads

Product description

Payload & Counterbalance
• The 1030D supports cameras and accessories up to 30 pounds at a C.O.G. of 6 inches. This is what the counterbalance can cancel out and keep the head neutral in any position in the tilt range. Lighter camera systems can be mounted with a taller C.O.G., while heavier camera systems are required to be mounted closer to the fluid head's camera platform so that the counterbalance can do its job. OConnor specs out 24 pounds at a C.O.G. above platform of 8 inches and 39 pounds at 4 inches. These are the maximum weights, and the stepless counterbalance can be set all the way down to zero to accommodate lightweight cameras.

Camera Platform
• The included springloaded sideload camera platform allows you to more easily insert and remove the camera when mounted on a the sliding baseplate, similar to what is available with touch and go plates. However with the sideload platform you get the advantages of a touch and go quick release system, while still being able to use the base plate to balance the camera. Additional the sideload camera platform includes its own forward and back sliding adjustment. This provides you with additional balancing adjustment than just using the sliding baseplate alone.

Tilt Range
• The 1030D provides 90 degrees of forward and back tilt, while supporting camera packages weighing up to 30 pounds (6" C.O.G.) This very wide tilt range is accomplished while supporting camera packages that vary from very lightweight up to 30 pounds.

Pan and Tilt Controls
• The head features independent controls on the pan and tilt for lock and drag. The pan and tilt locks are easy to operate, requiring only the squeeze of a single hand. The pan lock has also been re-designed from earlier versions of the 1030 fluid head, and now matches the arrangement found on other heads in the Ultimate fluid head line.

Ball Leveling
• The included 100mm ball base provides a side support base that easily accommodates the heavy loads this fluid head can support. The ball allows you to quickly level your shot without having to adjust the tripod legs. The ball base is also removable and available options include either a Mitchell base or 150mm ball base.

Illuminated Bubble Level
• The built-in bubble level aids you in leveling your shot. A press of the button, and the bubble level will light up for approximately 25 seconds for working in dim lighting conditions. The battery is easily replaceable, and the head comes with a battery installed and tested at the factory.

Front Box & Accessory Mounting
• The included front box mounting points allow you to attach an available front box with front box bracket to your fluid head, providing you with high end accessory mounting features. There are also accessory mounting points on the rear of the fluid head that allow you to attach available accessories such as an eyepiece leveler bracket.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

OConnor Ultimate 1030D Specs

Drag Control	Tilt: Continuous Pan: Continuous
Vertical Tilt	+90 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 56 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
