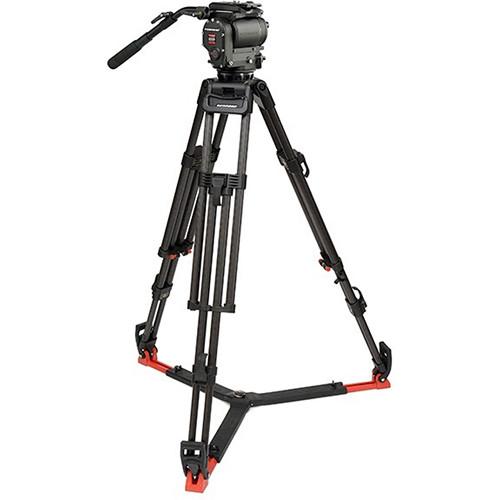

User Manual for OConnor Ultimate 1030Ds Fluid Head & 30L CF Tripod with Floor Spreader & Case Click to enlarge the picture
Contents of the user manual for the OConnor Ultimate 1030Ds Fluid Head &
- Product category: Tripod Systems OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Tripod Systems
|
User manual for the OConnor Ultimate 1030Ds Fluid Head & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description The Ultimate 1030Ds Fluid Head & 30L Tripod System from OConnor is a package comprising of the Ultimate 1030D fluid head, 30L carbon fiber tripod, floor spreader, and soft carrying case. The fluid head supports up to 41 lb at 6" center of gravity with a ±60° tilt range. Without the head attached, the carbon fiber tripod adjusts from 22 to 61.8" and folds down to 29.5" for storage and transport. The tripod on its own can support payloads up to 209 lb. The floor spreader holds the tripod legs in position providing system stability. The tripod system packs into the soft carrying case for easy transportation. - Ultimate 1030Ds Fluid Head Package OConnor's Ultimate 1030Ds Fluid Head Package is an updated version of the previous Ultimate 1030Ds Fluid Head Package, with the difference being a change in top platforms. The new package includes a sideload quick release top platform. The previous package was offered with a mini European quick release top platform. The sideload platform affords an extended range of movement for balancing front-heavy setups. The remaining components of the package are: the 1030Ds head with a 100mm ball base, a 100mm tie down for the base, a 12" pan handle, and an 11.5" handle extension. The ball base is compatible with 100mm tripod bowls and is interchangeable for optional 1030-compatible 150mm bases and with Mitchell flat bases. The handle has a 30° bend.
The head features a +/- 60° tilt range and within this range supports payloads of 53 lbs at 4" above the platform, 41 lbs at 6", and 33 lbs at 8". Tilt drag is stepless. Counterbalance reaches all the way down to zero, useful for lighter cameras. Counterbalance adjusts by a crank-style control that pulls out of the rear of the head. Pan and tilt unlock through a single-handed squeeze. The package is compatible with many 1030 accessories. -
- Updated version of the previous Ultimate 1030Ds Fluid Head Package
- Updated with a sideload quick release top platform
30L Two-Stage Carbon Fiber Tripod Legs (100mm Bowl, Standard) The OConnor 30L Two-Stage Carbon Fiber Tripod is designed to work with tripod heads that have a 100mm ball, such as OConnor's 1030D and 1030Ds. The legs weigh just under 9 pounds, yet can support a payload of up to 209 pounds, and extend from a minimum height of 22" to a maximum height of 62" when using a mid-level spreader (available separately).
Each leg extends or retracts independently, and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The dual spikes at the end of each leg provide extra grip when working on softer ground.
The OConnor 30L's legs feature lever locks for quick and secure clamping. The tripod also incorporates a carrying handle in its design. These features simplify transporting the 30L legs to or from a shoot. Features - Dual-stage, carbon fiber, 100mm bowl tripod
- Weighs only 8.8 pounds but supports up to 209 pounds
- For OConnor 1030D/1030Ds and other 100mm-ball heads
Floor Spreader for 30L / 60L Tripod The Floor Spreader for 30L / 60L Tripod from OConnor is a floor spreader designed for use with an OConnor 30L or 60L tripod. The floor spreader is also compatible with all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine). - Compatible with 30L and 60L OConnor tripods, as well as all Sachtler 100 and 150 bowl tripods (with exception of DA 100 K, DA 150K, and Cine)
Soft Carrying Case for 1030 Systems with 30L Tripod (Black) Store, protect, and transport your 1030 systems with 30L tripods in this black Soft Carrying Case from OConnor. The case features a padded interior, zipper closure and dual carry handles. In the Box Bundle Items Ultimate 1030Ds Fluid Head Package zuuyxzwesacvczzedz - 08365 100mm Ball Base Adapter
- 1030-246 12" Pan Handle with 30 degree bend
- 2575-135 Bottom Extension of Telescoping Pan Handle
- Sideload Quick Release Top Platform with Camera Plate
30L Two-Stage Carbon Fiber Tripod Legs (100mm Bowl, Standard) zuuyxzwesacvczzedz - Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
Floor Spreader for 30L / 60L Tripod - Limited 1-Year Warranty; Extendable to 2 Years with With Registration
Soft Carrying Case for 1030 Systems with 30L Tripod (Black) - Limited 1-Year Warranty, Extendable to 2-Years with Registration
Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor Ultimate 1030Ds Fluid Head & 30L CF Tripod with Floor Spreader & Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ultimate 1030Ds Fluid Head Package
| | | Camera Plate Features | Sliding Balance Plate | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | 5-Step | | Vertical Tilt | +60
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
