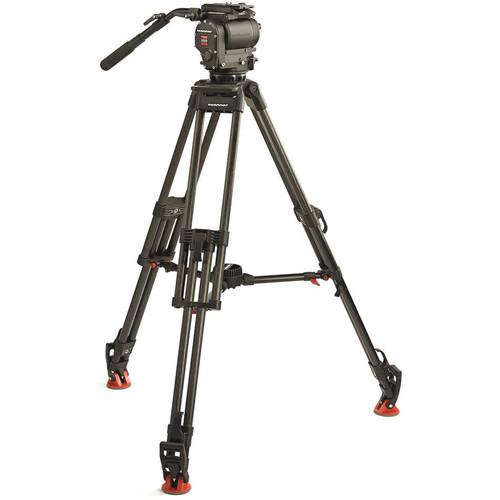

User Manual for OConnor Ultimate 1030Ds Fluid Head & 30L CF Tripod with Mid-Level Spreader & Case

• Product category: Tripod Systems OConnor
• Brand: OConnor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OConnor Tripod Systems

Product description

• Ultimate 1030Ds Fluid Head Package OConnor's Ultimate 1030Ds Fluid Head Package is an updated version of the previous Ultimate 1030Ds Fluid Head Package, with the difference being a change in top platforms. The new package includes a sideload quick release top platform. The previous package was offered with a mini European quick release top platform. The sideload platform affords an extended range of movement for balancing front-heavy setups. The remaining components of the package are: the 1030Ds head with a 100mm ball base, a 100mm tie down for the base, a 12" pan handle, and an 11.5" handle extension. The ball base is compatible with 100mm tripod bowls and is interchangeable for optional 1030-compatible 150mm bases and with Mitchell flat bases. The handle has a 30° bend.

  The head features a +/- 60° tilt range and within this range supports payloads of 53 lbs at 4" above the platform, 41 lbs at 6", and 33 lbs at 8". Tilt drag is stepless. Counterbalance reaches all the way down to zero, useful for lighter cameras. Counterbalance adjusts by a crank-style control that pulls out of the rear of the head. Pan and tilt unlock through a single-handed squeeze. The package is compatible with many 1030 accessories.
  • • Updated version of the previous Ultimate 1030Ds Fluid Head Package
    • Updated with a sideload quick release top platform
• 30L Carbon Fiber Tripod System The OConnor 30L Carbon Fiber Tripod System consists of their 30L 2 stage carbon fiber tripod legs, a removable mid level spreader and 3 rubber feet that snap over the legs' dual foot spikes. The system works with tripod heads that have a 100 mm ball, such as OConnor's 1030D and 1030DS. The tripod legs weigh only 8.8 pounds, yet they can support 209 pounds of weight and extend from a minimum height of 22.0" to a maximum height of 61.8" when using the included mid level spreader.

  The mid level spreader and individually adjustable legs allow you to set up the tripod on rocky, uneven terrain and even on stairs, and the mid level spreader design avoids the stresses and instability that a ground spreader can cause when working on uneven surfaces. When working situations require it, the spreader can be detached individually from each leg and the dual spikes at the end of each leg provide a solid anchor point when working on soft ground. The removable rubber feet snap onto the dual spikes for working inside or on slippery surfaces.

  The legs feature lever locks for quick and secure clamping. A built-in leg clip on an elastic cord pulls out and wraps around the legs to secure them together when the legs are not in use, then retracts out of the way when the legs are in use. The legs also incorporate a carry handle into its design. These features simplify transporting the 30L tripod system to or from a shoot.
• Soft Carrying Case for 1030 Systems with 30L Tripod (Black) Store, protect, and transport your 1030 systems with 30L tripods in this black Soft Carrying Case from OConnor. The case features a padded interior, zipper closure and dual carry handles.

• 1030Ds Head

• 08365 100mm Ball Base Adapter

• 08395 100mm-Tie Down

• 1030-246 12" Pan Handle with 30 degree bend

• 2575-135 Bottom Extension of Telescoping Pan Handle

• Sideload Quick Release Top Platform with Camera Plate

• Limited 1-Year Warranty

• Mid-Level Spreader

• Rubber Feet for Select OConnor & Sachtler Tripods (Set of 3)

• Limited 1-Year Warranty

• Limited 1-Year Warranty, Extendable to 2-Years with Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ultimate 1030Ds Fluid Head Package

  Camera Plate Features	Sliding Balance Plate

  Base Mount	100 mm Half Ball

  Drag Control	5-Step
  Vertical Tilt	+60 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 59 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
