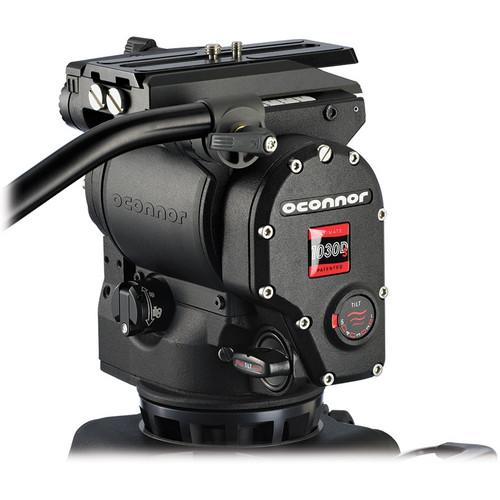

User Manual for OConnor Ultimate 1030Ds Fluid Head Package Click to enlarge the picture
Contents of the user manual for the OConnor Ultimate 1030Ds Fluid Head Package
- Product category: Video Tripod Heads OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Video Tripod Heads
|
User manual for the OConnor Ultimate 1030Ds Fluid Head Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description OConnor's Ultimate 1030Ds Fluid Head Package is an updated version of the previous Ultimate 1030Ds Fluid Head Package, with the difference being a change in top platforms. The new package includes a sideload quick release top platform. The previous package was offered with a mini European quick release top platform. The sideload platform affords an extended range of movement for balancing front-heavy setups. The remaining components of the package are: the 1030Ds head with a 100mm ball base, a 100mm tie down for the base, a 12" pan handle, and an 11.5" handle extension. The ball base is compatible with 100mm tripod bowls and is interchangeable for optional 1030-compatible 150mm bases and with Mitchell flat bases. The handle has a 30° bend.
The head features a +/- 60° tilt range and within this range supports payloads of 53 lbs at 4" above the platform, 41 lbs at 6", and 33 lbs at 8". Tilt drag is stepless. Counterbalance reaches all the way down to zero, useful for lighter cameras. Counterbalance adjusts by a crank-style control that pulls out of the rear of the head. Pan and tilt unlock through a single-handed squeeze. The package is compatible with many 1030 accessories. -
- Updated version of the previous Ultimate 1030Ds Fluid Head Package
- Updated with a sideload quick release top platform
In the Box OConnor Ultimate 1030Ds Fluid Head Package 1030Ds Head 08365 100mm Ball Base Adapter 08395 100mm-Tie Down 1030-246 12" Pan Handle with 30 degree bend 2575-135 Bottom Extension of Telescoping Pan Handle Sideload Quick Release Top Platform with Camera Plate Limited 1-Year Warranty User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor Ultimate 1030Ds Fluid Head Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOConnor Ultimate 1030Ds Specs | | | Camera Plate Features | Sliding Balance Plate | | | | Base Mount | 100 mm Half Ball | | | | Drag Control | 5-Step | | Vertical Tilt | +60
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 50 owners. Add your rating and experience with the product.
