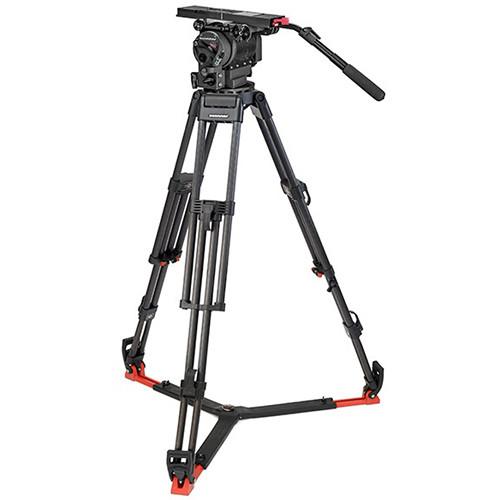

User Manual for OConnor Ultimate 2560 Fluid Head & 60L 150mm Bowl Tripod with Floor Spreader

• Product category: Tripod Systems OConnor
• Brand: OConnor
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OConnor Tripod Systems

Product description

• Ultimate 2560 Fluid Head Package The Ultimate 2560 Fluid Head Package from OConnor is designed for use with the current crop of digital cinema cameras. Weighing less than 18 pounds, 2560 is capable of supporting camera payloads up to 66 pounds at a 6" center of gravity above the platform, making it well suited for cameras such as the ARRI Alexa in a portable configuration or any lightweight digital cinema camera in a full studio configuration. The head comes packaged with both a Mitchell base and a 150mm ball base adapters with tie-downs for expanded tripod compatibility. It also comes with a large Euro-style quick release for rapid mounting and dismounting of large camera rigs, a pan handle, and a pan handle extension.

  Crafted for cine-style shooting, the head design delivers cinema standard positioning of controls, including brakes and rosettes, for easy and intuitive use. The 2560 fluid head also features OConnor's patented sinusoidal counterbalance system for accurate balance at any point in the tilt range. In combination with the step-less, smooth pan and tilt fluid drag, the 2560 delivers control and stability for digital cinema shooters.
  Key Features
  • • Supports up to 66 pounds at 6" center of gravity above the platform
    • Magnesium frame and carbon fiber cover keeps weight under 18 lb
    • Cinema standard positioning of controls, including brakes and rosettes
    • Sinusoidal counterbalance system
    • Stepless pan and tilt fluid drag
    • Mitchell base and 150mm ball base adapter with tiedowns
    • Euro-style quick release
    • Pan handle with pan handle extension
• 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl The OConnor 60L 2-Stage Carbon Fiber Tripod Legs with 150mm Bowl support tripod heads that have a 150mm leveling ball. The legs feature 2-stages and weigh only 9 lb, however they can support 209 lb and extend from a minimum height of 22.8" to a maximum height of 60.6" when using the available mid-level spreader.

  Each leg extends or retracts independently and when detached from a spreader each leg can pivot without affecting the other legs. This is especially useful when working on rough or uneven terrain. The dual spikes at the end of each leg provide extra grip when working on soft ground and the design of the spikes also provide a solid mounting surface for the optional rubber feet/spike protectors.

  The legs are designed to for use with an available mid-level spreader for stability on uneven terrain. It also features OConnor's smart quick clamping system that provides a visible clamp lockdown. A small accessory hook under the 150mm bowl allows you to hang various available tools and items such as a walkie talkie, tape measure or even a foam rubber pad for shouldering the legs during camera position changes.
• Floor Spreader for 30L / 60L Tripod The Floor Spreader for 30L / 60L Tripod from OConnor is a floor spreader designed for use with an OConnor 30L or 60L tripod. The floor spreader is also compatible with all Sachtler 100 and 150 bowl tripods (excluding the DA 100 K, DA 150K, and Cine).
  • Compatible with 30L and 60L OConnor tripods, as well as all Sachtler 100 and 150 bowl tripods (with exception of DA 100 K, DA 150K, and Cine)
  • Adjustable spreader legs

• Ultimate 2560 Fluid Head

• Euro-Style Quick Release Platform with Touch & Go Plate

• 2575-137 Top Half of Telescoping Pan Handle (30° Bend)

• 2575-135 Bottom Extension of Telescoping Pan Handle

• 08281 Mitchell Base

• 08402 Mitchell Base Tiedown

• 08414 150mm Ball Base Adapter

• 08417 Tiedown

• Limited 1-Year Warranty (Extendable to 2-Year with Product Registration)

• Limited 1-Year Warranty, Extendable to 2 Years with Product Registration

• Limited 1-Year Warranty; Extendable to 2 Years with With Registration

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Ultimate 2560 Fluid Head Package

  Camera Plate Features	Sliding Balance Plate
  Camera Plate Type	OConnor 2575-120

  Base Mount	150 mm Half Ball Mitchell Flat Base

  Drag Control	9-Step
  Vertical Tilt	+90 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 30 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
