User Manual for OConnor Ultimate 2575D Fluid Head Package Click to enlarge the picture
Contents of the user manual for the OConnor Ultimate 2575D Fluid Head Package
- Product category: Video Tripod Heads OConnor
- Brand: OConnor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OConnor Video Tripod Heads
|
User manual for the OConnor Ultimate 2575D Fluid Head Package contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OConnor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OConnor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OConnor product will considerably shorten its lifespan!
|
Product description The OConnor Ultimate 2575D Fluid Head Package includes the Ultimate 2575D Fluid Head, Euro Style Quick Release, Pan Handle, Pan Handle Extension, Mitchell Base and Tiedown, and 150mm Ball Base and Tiedown.
The Ultimate 2575D Fluid Head includes the sinusoidal counterbalance system for true, accurate balance at any point in the tilt range and holds cameras up to 90 lb. It provides stepless, ultra-smooth pan and tilt fluid drag for improved control and stability for film-style shooting.
The 2575-120 Large European Quick Release with 120mm camera mounting plate is for use with the OConnor 2060, 2575C and 2575CV fluid heads.
The Mitchell base adapter allows mounting all Oconnor's Ultimate Series fluid heads (except Ultimate Digital 50-200 head) on Mitchell base tripods.
The 08402 Mitchell Base Tiedown is the five-lobed retaining nut used with gear and fluid heads with Mitchell threaded post mounts.
The 150mm ball base adapter allows mounting the Ultimate 2060, 2575C and 2575CV on 150mm bowl tripods. Requires 150mm ball tiedown.

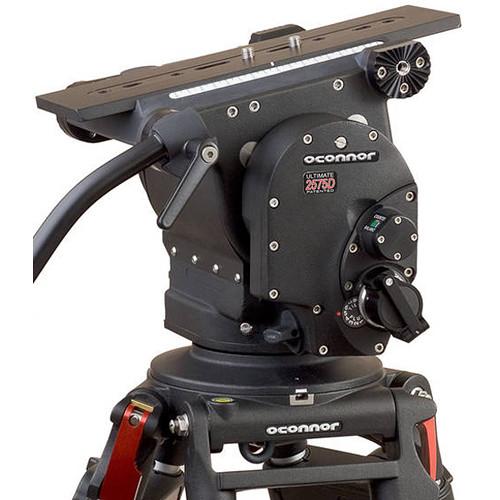

The 150mm Tiedown is for the attachment of 150mm bowl-mounted fluid heads to OConnor tripods with 150mm receivers. - Ultimate 2575D Fluid Head The OConnor Ultimate 2575D Fluid Head includes the sinusoidal counterbalance system for true, accurate balance at any point in the tilt range and holds cameras up to 90 lb. It provides stepless, ultra-smooth pan and tilt fluid drag for improved control and stability for film-style shooting. The head comes with platform controls on the operator’s side of the head. The platform release lever with a one touch finger actuated safety release catch allows for one “finger” or hand action to undo the safety catch and open the lever.
- Platform with 4 handle rosettes
- Soft hand rest on left hand side
- Infinitely adjustable counterbalance from 0 to 90 lb that can be altered easily with a collapsible counterbalance crank knob and numerical readout
- Stepless, ultra-smooth pan and tilt fluid drag
- Controls located on the left-hand side of the head for intuitive cine-style shooting
- Euro-Style Quick Release Platform with Touch & Go Plate The Euro-Style Quick Release Platform from OConnor can accommodate heavy camera rigs and is designed for use with the OConnor 2575D, 120EX, 2560, and 2065 series of fluid heads. The included large European-style touch and go plate enables rapid mounting and demounting of your camera. A two-step lever at the rear of the platform locks the touch and go plate securely in place.
- 2575-137 Top Half of Telescoping Pan Handle (30° Bend) This OConnor 2575-137 Top Half of Telescoping Pan Handle is compatible with the OConnor 2065, 2575, and 120EX fluid heads. Use its lever-based screw to connect the handle to a rosette on either side of the head for right or left-handed use. A separately available, cushioned bottom handle component is required to properly use this telescoping handle. The 30°-angled pan handle can rotate within its clamp for locking at your preferred orientation.
- 2575-135 Bottom Extension of Telescoping Pan Handle The OConnor 2575-135 Bottom Handle Extension is designed to work with both 1030-246 and 2575-137 telescoping pan handles. This extension fastens onto the pan handle via a locking lever. It features a padded bottom grip for increased operating comfort.
- 08281 Mitchell Base Mitchell base adapter allows mounting all Oconnor's Ultimate Series fluid heads (except Ultimate Digital 50-200 head) on Mitchell base tripods. Requires Mitchell base tiedown.
- 08402 Mitchell Base Tiedown The OConnor 08402 Mitchell Base Tiedown is the five-lobed retaining nut used with gear and fluid heads with Mitchell threaded post mounts.
- 08417 Tiedown The OConnor 150 mm Tiedown is for the attachment of of 150 mm bowl-mounted fluid heads to OConnor tripods with 150mm receivers.
- 08414 150mm Ball Base Adapter
In the Box Bundle Items Ultimate 2575D Fluid Head ezcfzyrwtarudadqvsfffsbdrwwttx Euro-Style Quick Release Platform with Touch & Go Plate 2575-137 Top Half of Telescoping Pan Handle (30° Bend) 2575-135 Bottom Extension of Telescoping Pan Handle 08281 Mitchell Base ezcfzyrwtarudadqvsfffsbdrwwttx 08402 Mitchell Base Tiedown - 5-Year Parts and Labor Warranty
08414 150mm Ball Base Adapter 08417 Tiedown Table of Contents
|
Upload User Manual
Have you got an user manual for the OConnor Ultimate 2575D Fluid Head Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Ultimate 2575D Fluid Head
| | | Camera Plate Features | Sliding Balance Plate | | Camera Plate Type | 120 mm Euro Plate, ARRI Dovetail Plate, OConnor Plate, Panavision Dovetail Plate | | | | Drag Control | 9-Step | | Drag Type | Fluid | | Vertical Tilt | +90
