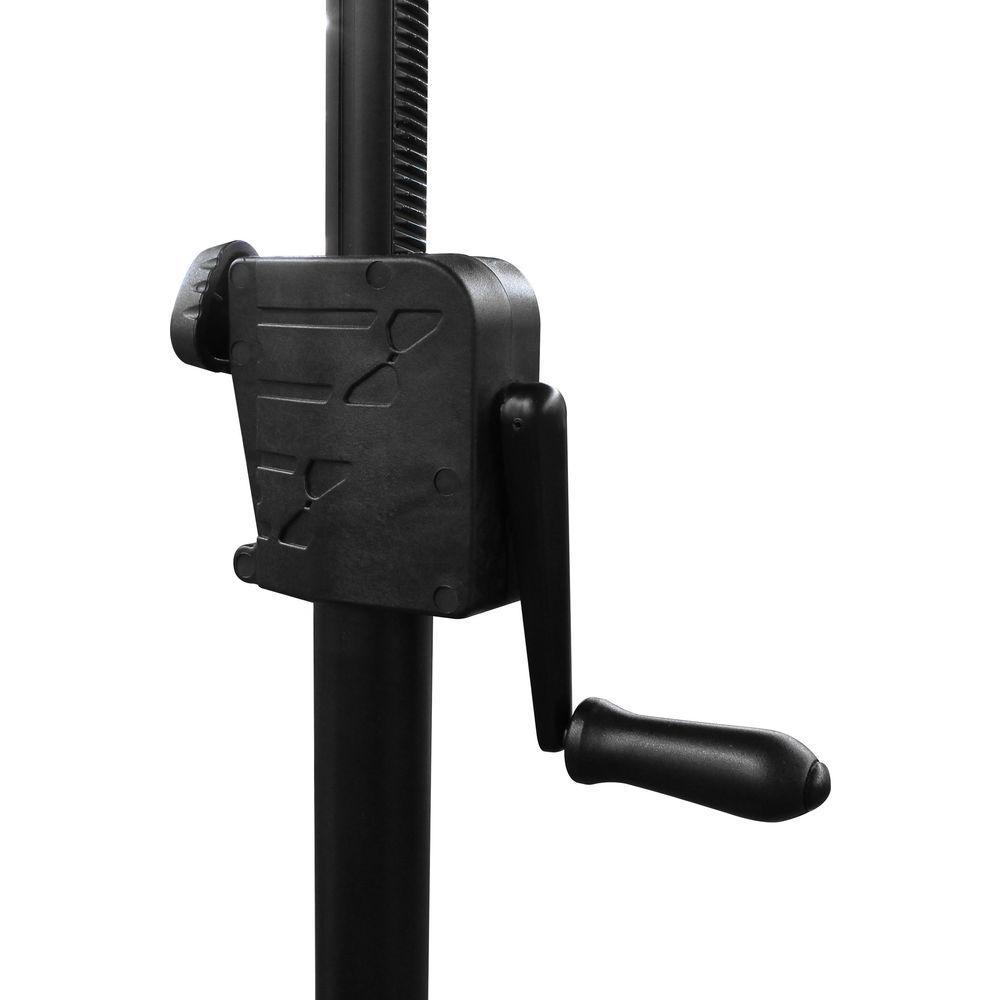

Product description Capable of holding an evenly spread 200 lb of gear across its main truss and an evenly spread 110 lb acroos its Halo rings, this black Mobile Lighting Truss System with Adjustable Halos from Odyssey Innovative Designs is a portable support system that is quick to set up and requires no tools for installation. It is composed of six separate parts, which come together to result in a total width of 12.3' and an approximate weight of 75 lb.Two light stands are used as a base and come equipped with rotating levers for making adjustments, each reaching a maximum height of 10.25' and collapsing to a minimum height of 7.4'. The I-beam comes separated into two 5' pieces, for a truss width of 10', and easily slides onto the two supports once connected. Finally, two circular Halo rings go on the top of the stands and can be tilted and rotated with the use of knobs, featuring a diameter of 30". All parts are made of aluminum alloy for increased durability. -
- Six-part support system made of aluminum alloy, with a mounted width of 12.3' and a weight of 75 lb

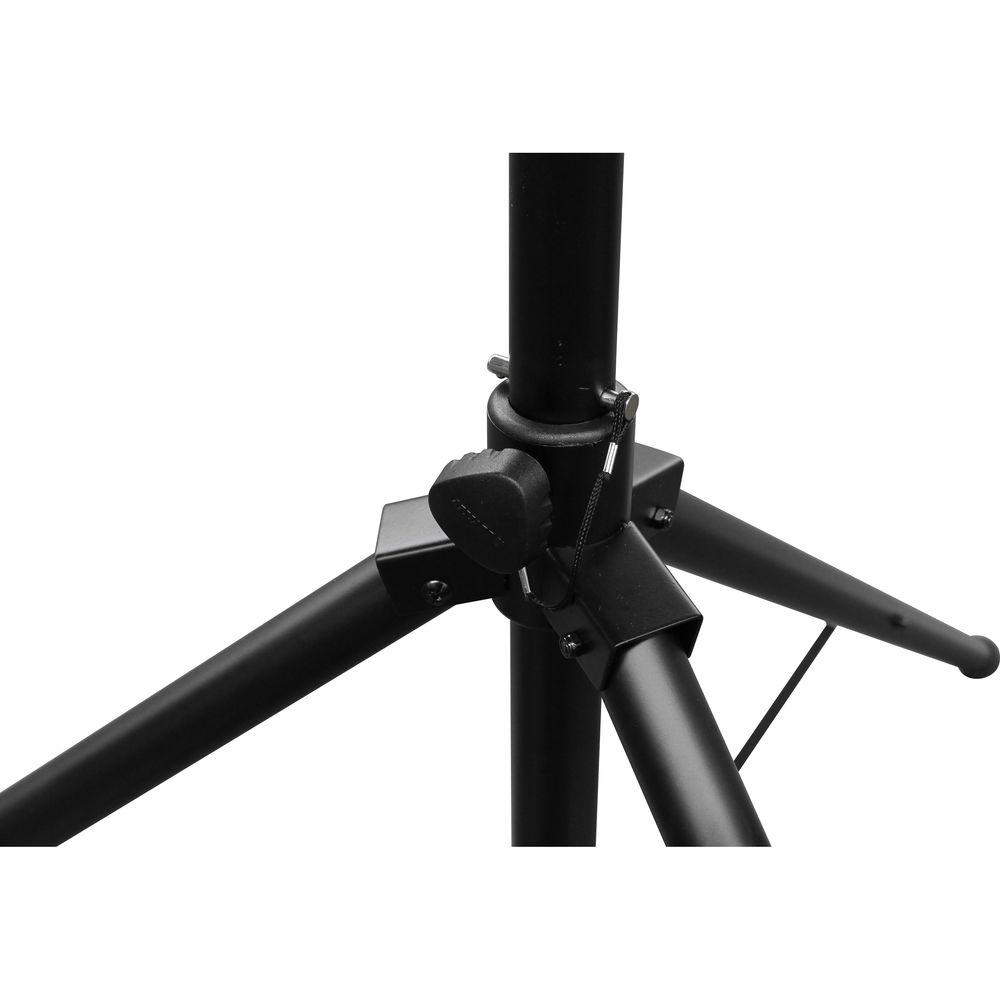

- Two light stands extend to a maximum height of 10.25' and collapse down to 7.4'

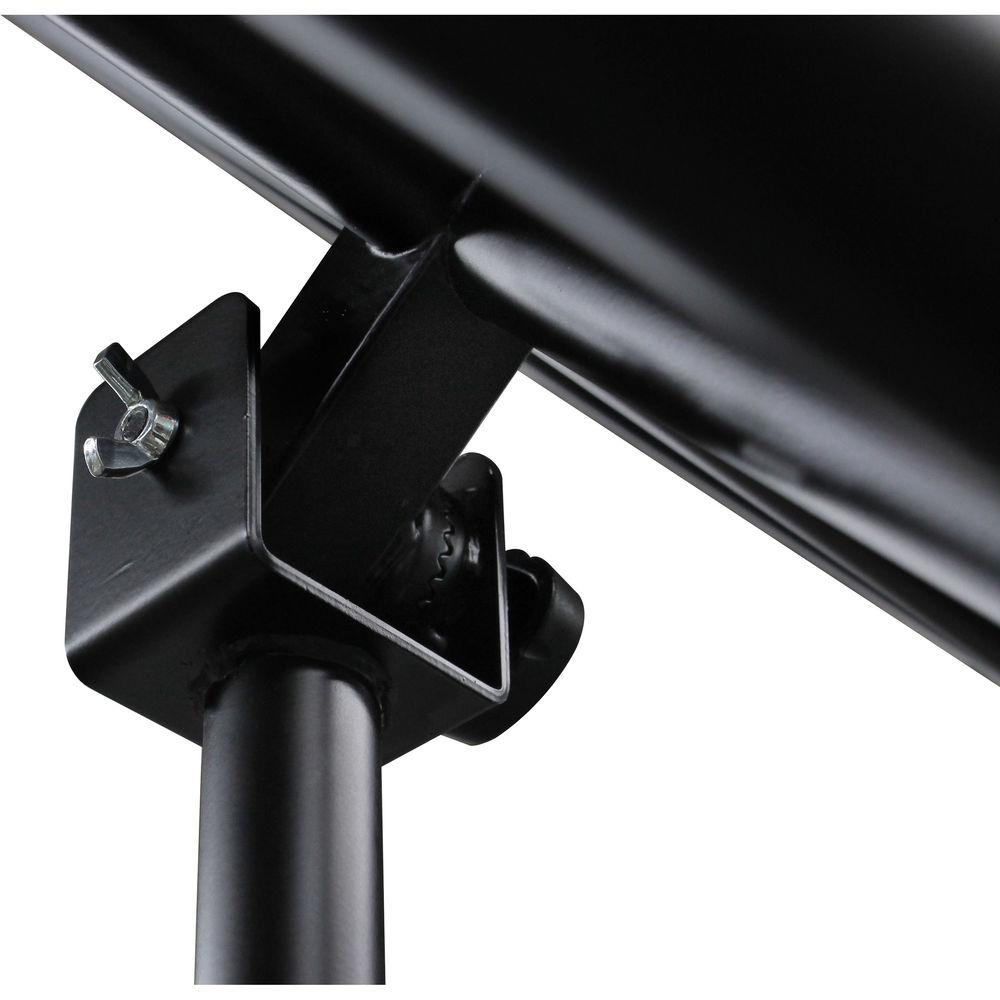

- Two 5' I-beam sections that connect to each other, for a total truss width of 10'

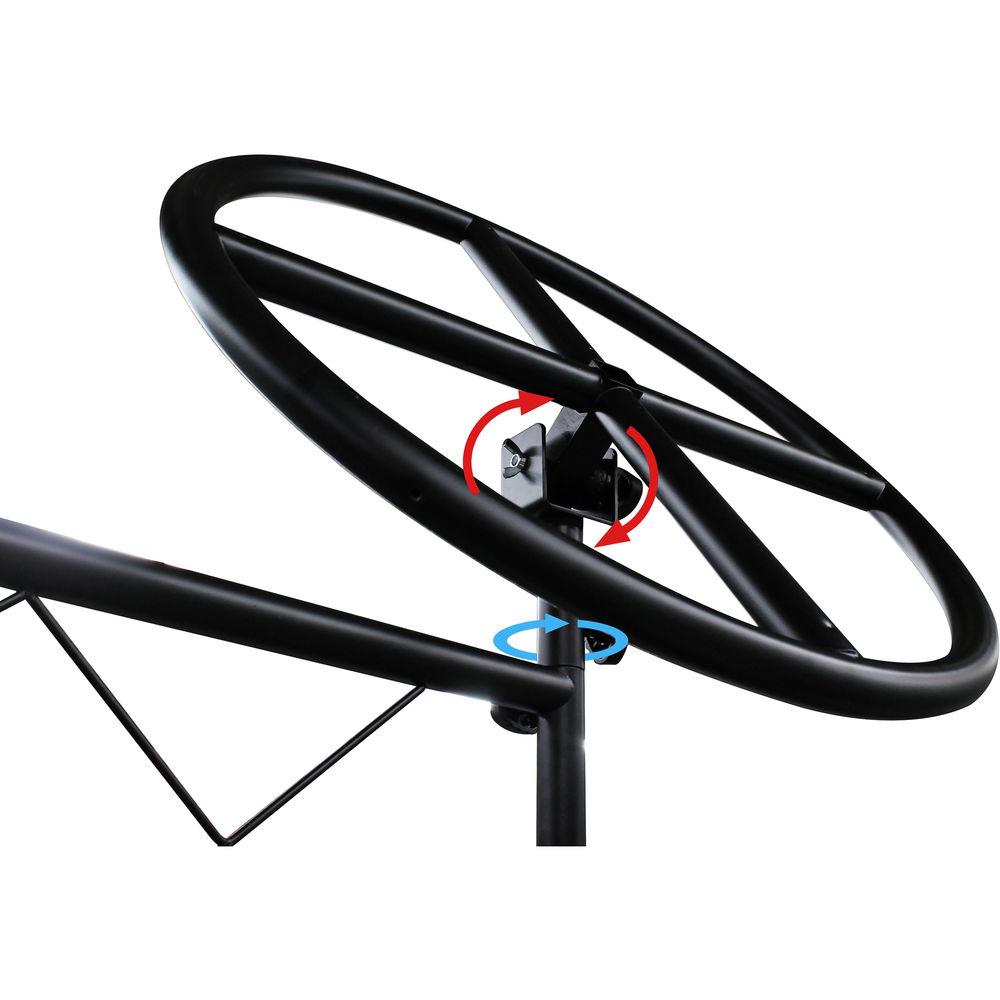

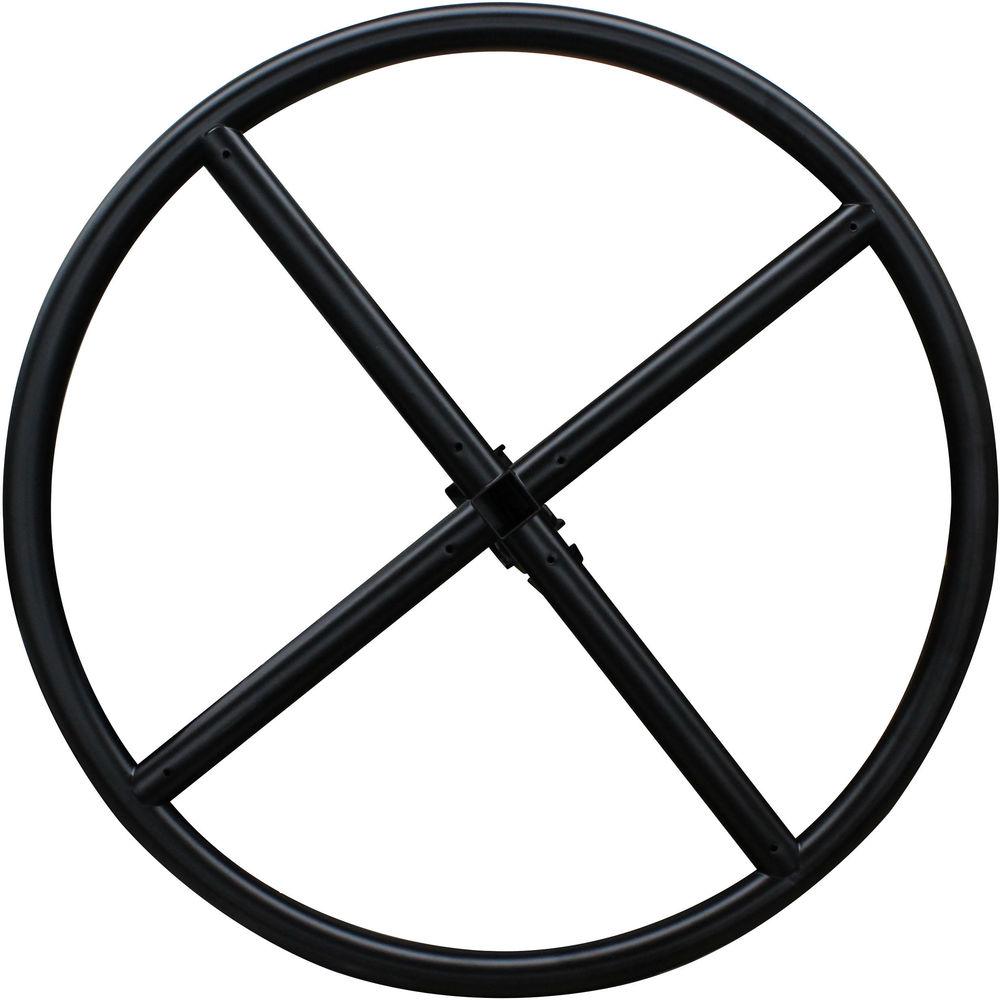

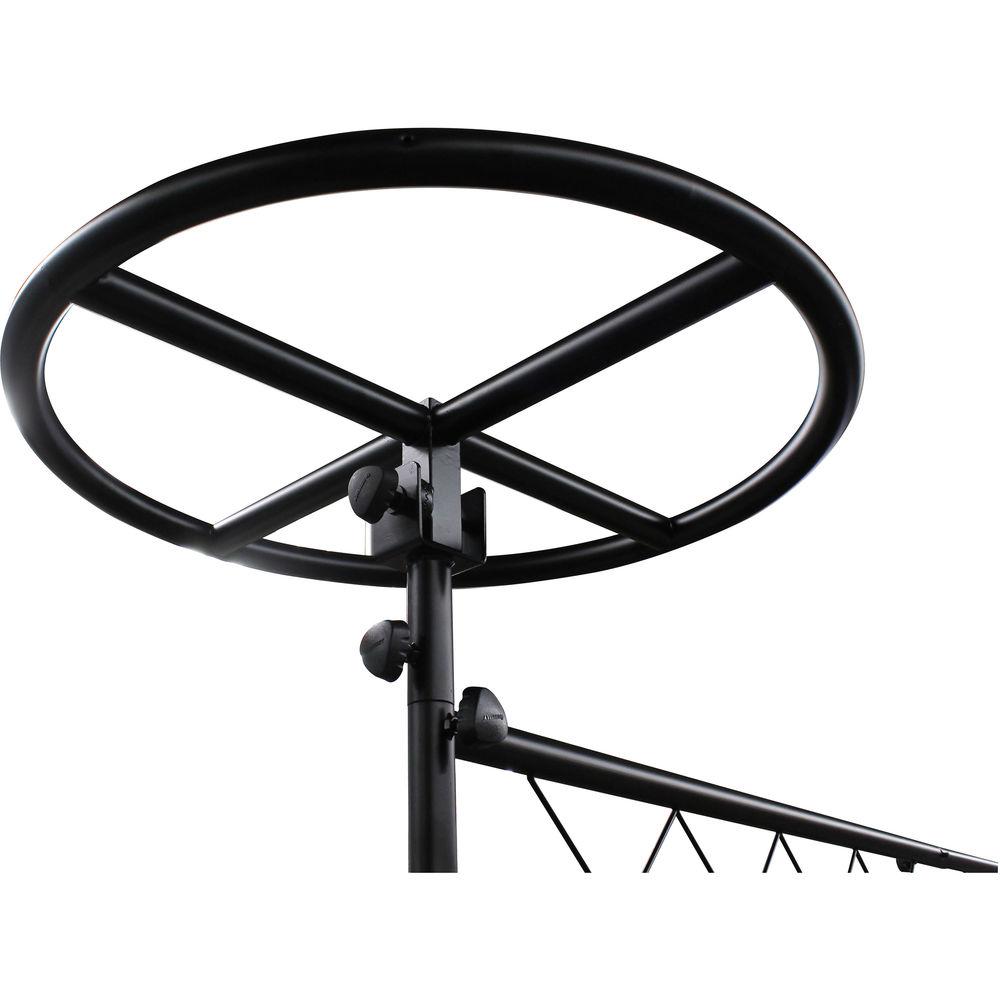

- Two adjustable Halo rings, each with a diameter of 30", attach to the top of the stands and can be tilted or rotated with the use of a knob
- The I-beam can support 200 lb of gear when evenly loaded, while the Halos can hold up to 110 lb when evenly loaded
UPC: 807822040753 In the Box Odyssey Innovative Designs Mobile Lighting Truss System with Adjustable Halos (Black) 2 x Light Stands 2 x I-Beam Sections 2 x Adjustable Halo Rings Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Odyssey Innovative Designs Mobile Lighting Truss System with Adjustable Halos in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOdyssey Innovative Designs LTMTS10HPRO Specs | Material | Aluminum alloy | | Load Capacity | I-Beam: Evenly spread 200 lb (90.7 kg)
Halos: Evenly spread 110 lb (49.9 kg) | | Maximum Height | 10.25' (3.1 m) | | Minimum Height | 7.4' (2.3 m) | | Width | Without Halos: 10' (3 m)
With Halos: 12.3' (3.8 m) | | Diameter | Halos: 30" (76.2 cm) | | Maximum Leg Spread | 5' (1.5 m) | | Tube Diameter | Stand Bottom Tube: 1-5/8"
Stand Top Tube: 1-1/4"
Halos and I-Beam: 1-3/8" | | Weight | 75 lb (34 kg) | | | | Package Weight | 56.6 lb | | Box Dimensions (LxWxH) | 66.0 x 12.0 x 9.5" |
