User Manual for Odyssey Innovative Designs Mobile Lighting Truss System with Fixed Halos Click to enlarge the picture
Contents of the user manual for the Odyssey Innovative Designs Mobile Lighting Truss
- Product category: Truss Systems Odyssey Innovative Designs
- Brand: Odyssey Innovative Designs
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Odyssey Innovative Designs Truss Systems
 |
User manual for the Odyssey Innovative Designs Mobile Lighting Truss contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Odyssey Innovative Designs product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Odyssey Innovative Designs user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Odyssey Innovative Designs product will considerably shorten its lifespan!
|

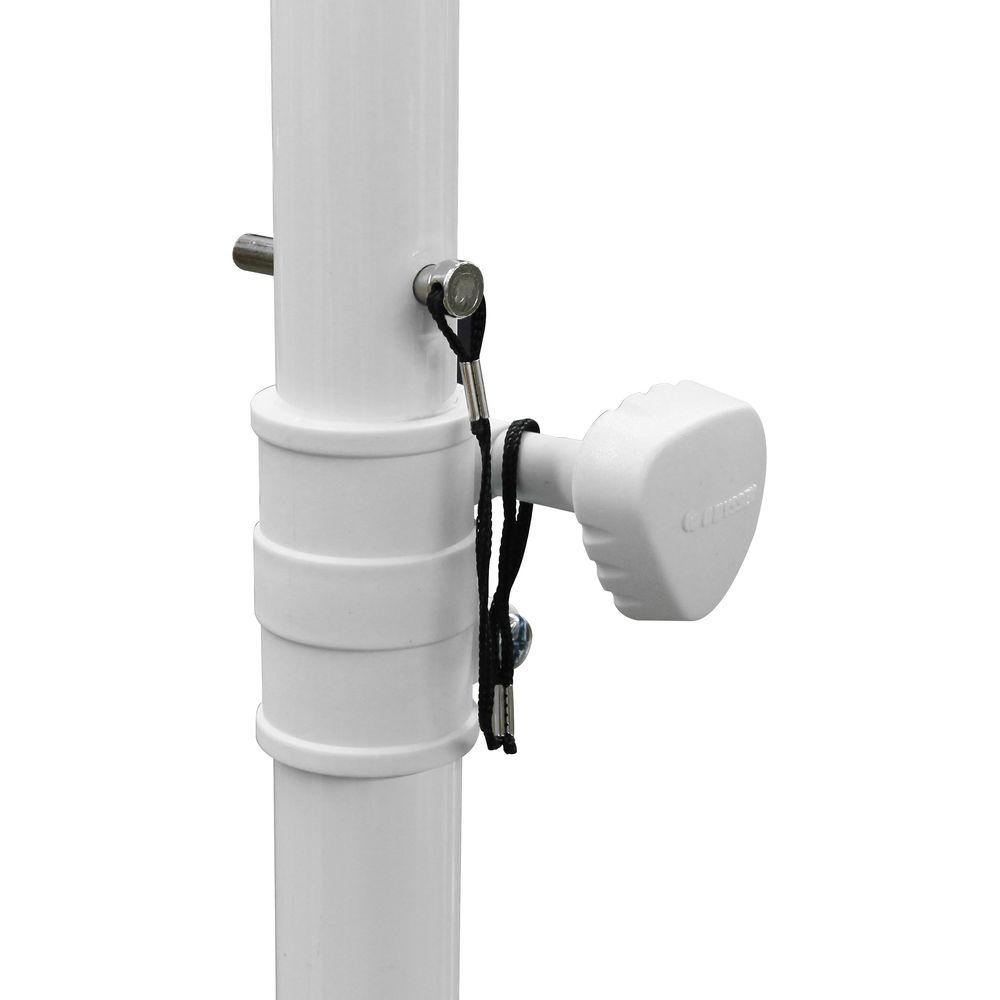

Product description Capable of holding an evenly spread load of 200 lb of gear in its main truss and 110 lb in its Halo rings, this white Mobile Lighting Truss System with Fixed Halos from Odyssey Innovative Designs is a portable support system that is quick to set up and requires no tools for installation. It is composed of six separate parts, which come together to result in a total width of 12.3' and an approximate weight of 62 lb.Two light stands are used as a base and come equipped with rotating levers for making adjustments, each reaching a maximum height of 9.5' and collapsing to a minimum height of 6.25'. The I-beam comes separated in two 5' pieces, for a truss width of 10', and easily slides onto the two supports once connected. Finally, two circular Halo rings can be affixed to the top of the stands, featuring a diameter of 30". All parts are made of aluminum alloy for increased durability. -
- Six-part support system made of aluminum alloy, with a mounted width of 12.3' and a weight of 62 lb

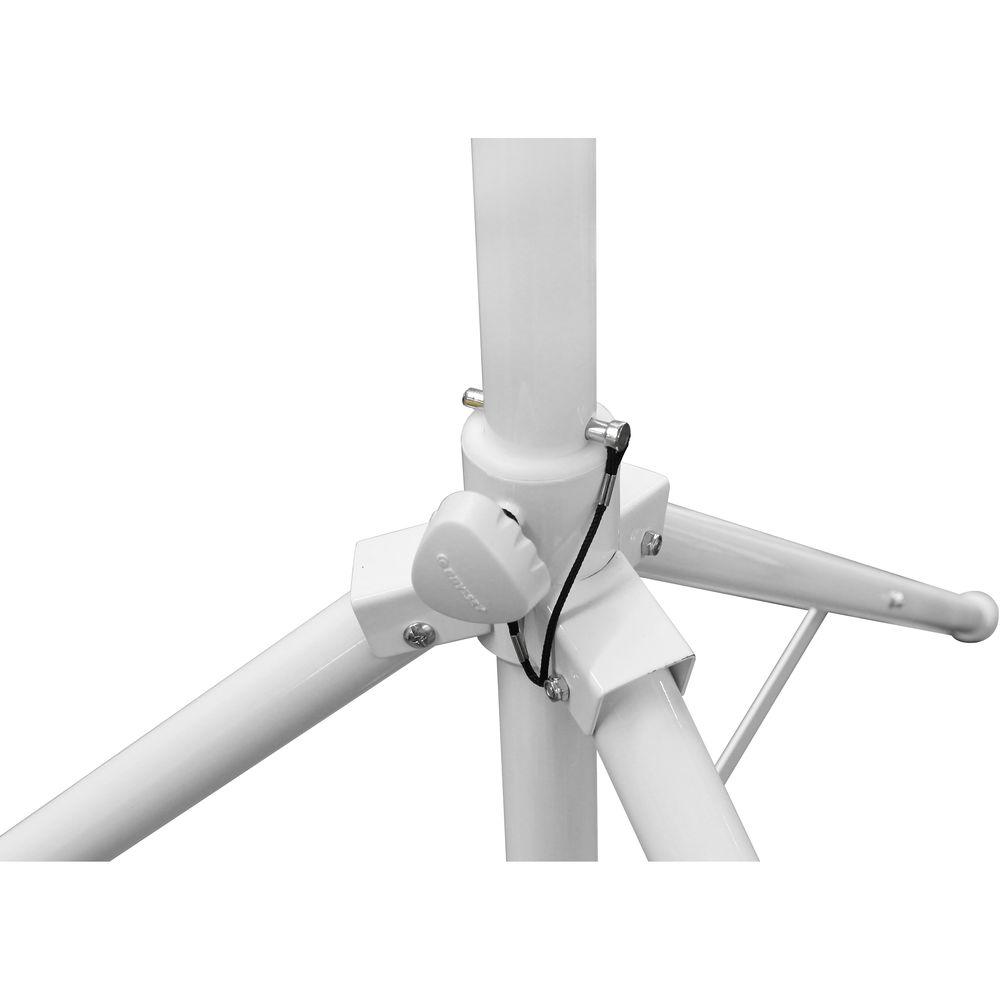

- Two light stands extend to a maximum height of 9.5' and collapse down to 6.25'
- Two 5' I-beam sections connect to each other and to the stands, for a total truss width of 10'

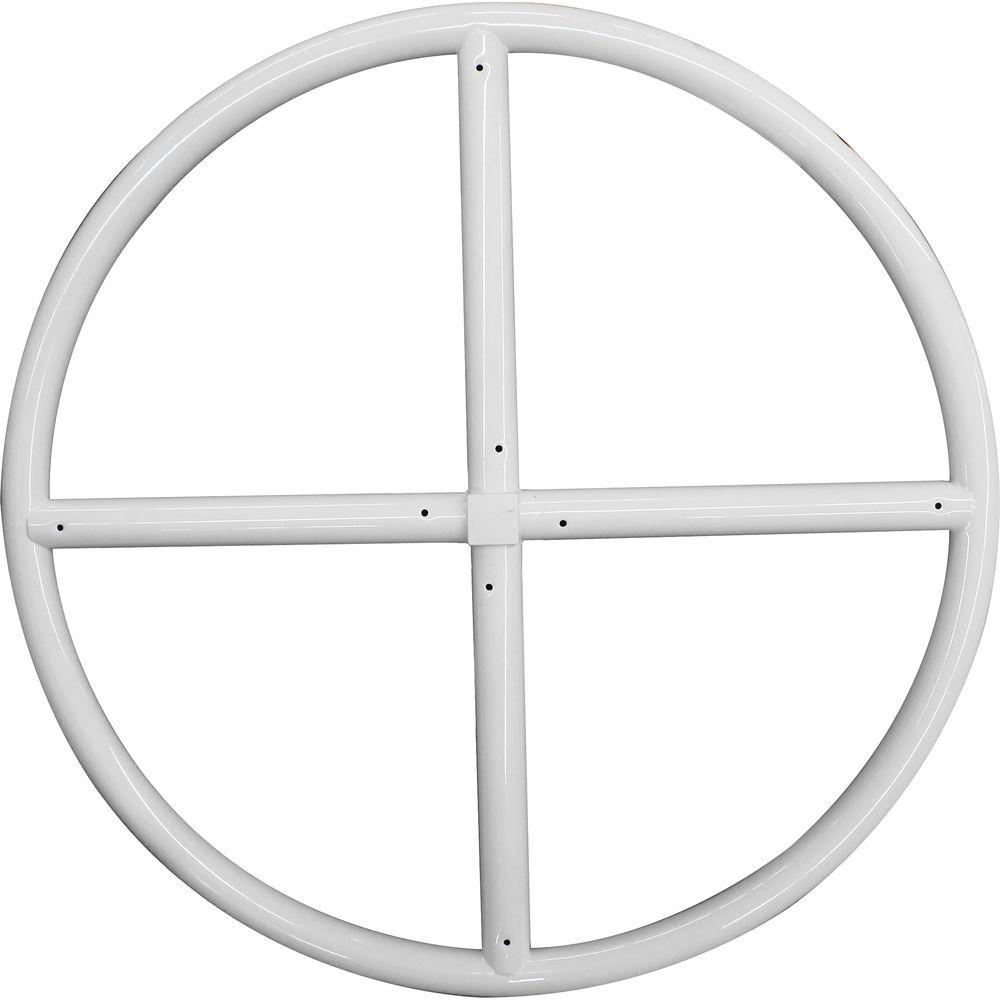

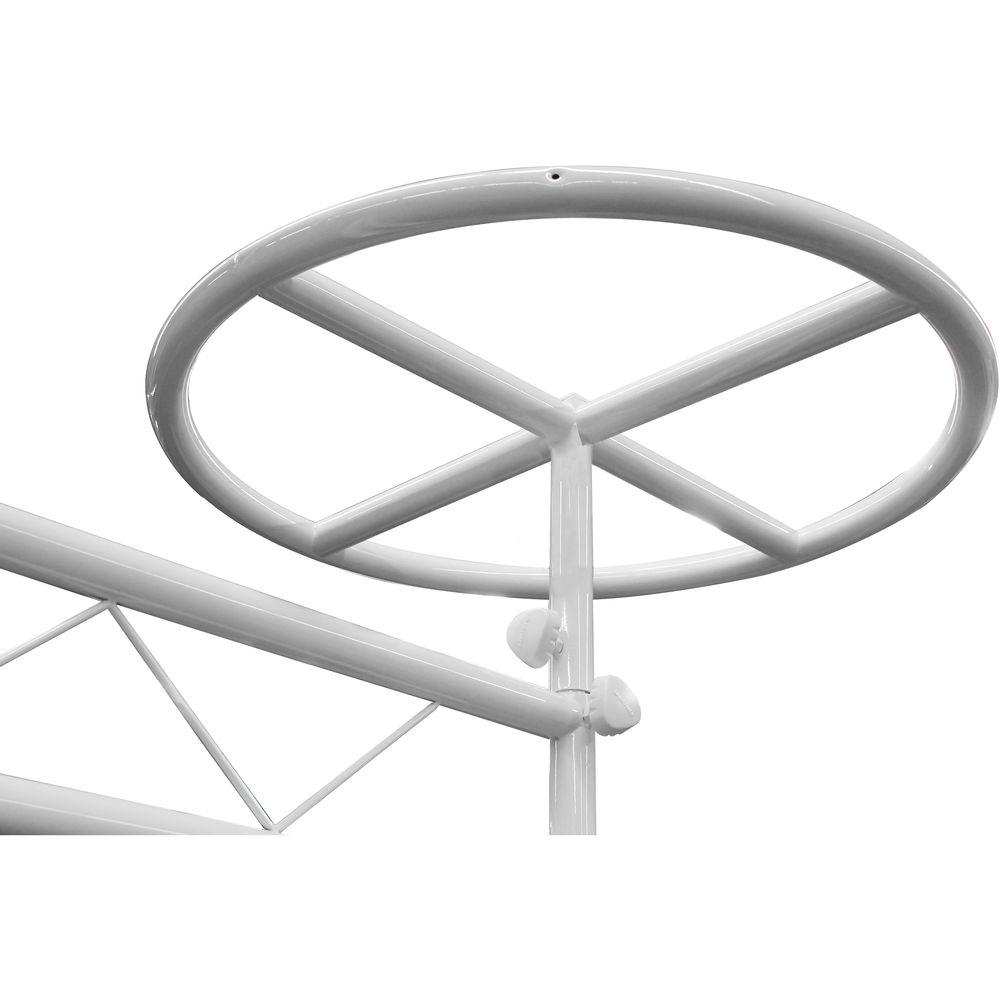

- Two fixed Halo rings, each with a diameter of 30", attach to the top part of each side of the support
- The I-beam can support 200 lb of gear when evenly loaded, while the Halos can hold up to 110 lb
UPC: 807822040722 In the Box Odyssey Innovative Designs Mobile Lighting Truss System with Fixed Halos (White) 2 x Light Stands 2 x I-Beam Sections 2 x Fixed Halo Rings Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Odyssey Innovative Designs Mobile Lighting Truss System with Fixed Halos in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOdyssey Innovative Designs LTMTS10HWHT Specs | Material | Aluminum alloy | | Load Capacity | I-Beam: Evenly spread 200 lb (90.7 kg)
Halos: 110 lb (49.9 kg) | | Maximum Height | 9.5' (2.9 m) | | Minimum Height | 6.25' (1.9 m) | | Width | Without Halos: 10' (3 m)
With Halos: 12.3' (3.8 m) | | Diameter | Halos: 30" (76.2 cm) | | Maximum Leg Spread | 5' (1.5 m) | | Tube Diameter | Stand Bottom Tube: 1-5/8"
Stand Top Tube: 1-1/4"
Halos and I-Beam: 1-3/8" | | Weight | 62 lb (28.1 kg) |
Rating70% users recommend this product to others. And what about you?
