User Manual for OKI B721dn Monochrome LED Printer Click to enlarge the picture
Contents of the user manual for the OKI B721dn Monochrome LED Printer
- Product category: Laser Printers OKI
- Brand: OKI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OKI Laser Printers
|
User manual for the OKI B721dn Monochrome LED Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OKI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OKI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OKI product will considerably shorten its lifespan!
|

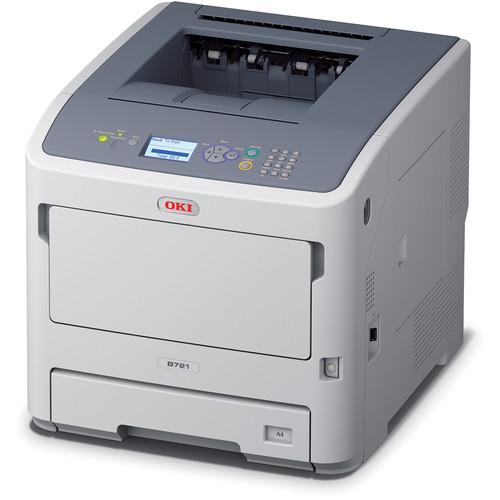

Product description Delivering crisp documents at a rate up to 49 ppm, the B721dn Monochrome LED Printer from OKI is designed to handle the needs of a high-volume workgroup. The speed translates to start up with a 5 second first print out time as well as automatic duplex printing which is possible up to 40 ipm. Additionally, a USB host port allows users to quickly and easily walk up to the unit and start printing.
Paper handling benefits from the inclusion of both a standard 530-sheet main tray and a 100-sheet multipurpose tray which allows for documents from 3 x 5" to 8.5 x 14". Also, it can handle long banners up to 52" long. Along with these capabilities, the printer is designed with a monthly duty cycle of 250,000 pages for longevity and it has a five-line backlit LCD to check status. For connecting to a computer or network, both USB 2.0 and Ethernet are available. - 256MB standard memory is upgradable to 768MB
- Paper capacity can be expanded to 3,160 sheets with optional trays
- High-capacity toner cartridges are available
UPC: 051851164991 In the Box OKI B721dn Monochrome LED Printer Print Cartridge Power Cord Software DVD-ROM Limited 1-Year Warranty Limited 5-Year Warranty Brochure PDF 670.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the OKI B721dn Monochrome LED Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOKI B721DN Specs | | | Printing Technology | LED | | Maximum Resolution | 1200 x 1200 dpi | | Print Speed | Simplex: 49 ppm
Duplex: 40 ipm | | First Print Out Speed | 5 seconds | | Print Color | Black | | Duplex Printing | Automatic | | Printer Duty Cycle | Monthly: 250,000 pages
Recommended Monthly Print Volume: 3,000-20,000 pages | | | | Paper Handling | Input tray
Multipurpose tray
Output tray | | Paper Sizes | 3 x 5" to 8.5 x 14" (7.6 x 12.7 cm to 21.6 x 35.6 cm)
Banners up to 52" (132.1 cm) long | | Media Weight | 17 lb bond to 140 lb index bristol (64 to 253 gsm) | | Paper Capacity | Input Tray: 530 sheets
Multipurpose Tray: 100 sheets
Output Tray: 500 sheets face down; 100 sheets face up
Maximum: 3,160 sheets with optional trays | | | | Interface | USB 2.0
10/100/1000Base-TX Ethernet | | OS Compatibility | Windows 8, 7, Vista, XP, Server 2012, Server 2008 R2, Server 2008, Server 2003
Mac OS X 10.4-10.8 | | Direct Print Capable | 1 x USB host port | | Processor | 800 MHz | | Memory | Standard: 256 MB
Maximum: 768 MB | | Hard Drive | Optional 160 GB hard drive | | Printer Language | PCL 5e, PCL 6, PostScript 3, PDF v1.8, XPS, IBM ProPrinter, Epson FX | | Fonts | Scalable: 90 PCL fonts, 136 PostScript fonts
Barcords: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved 2of5, Code39, Code128, EAN/UCC-128, CODABAR, ZIP+4 POSTNET, PDF417, 2D QR Barcode | | | | Control Panel | Alphanumeric keypad
5-line backlit graphical display | | Power Requirements | 120 VAC | | Power Consumption | Peak: 1,400 W
Average: 800 W
Standby: 95 W
Power Save: 17 W
Deep Sleep: 1.5 W | | Typical Power Consumption | TEC: 4.04 kWh/w | | Certifications | ENERGY STAR compliant | | Acoustic Noise | Operating: 55 dB(A) or less
Quiet Mode: 53 dB(A) or less
Standby: 30 dB(A) or less | | Dimensions | 17.1 x 19.6 x 16.1" (435 x 498 x 410 mm) | | Weight | 59.5 lb (27 kg) | | | | Package Weight | 69.9 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 19.6" |
