User Manual for OKI C332dn Color LED Printer Click to enlarge the picture
Contents of the user manual for the OKI C332dn Color LED Printer
- Product category: Laser Printers OKI
- Brand: OKI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OKI Laser Printers
 |
User manual for the OKI C332dn Color LED Printer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OKI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OKI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OKI product will considerably shorten its lifespan!
|

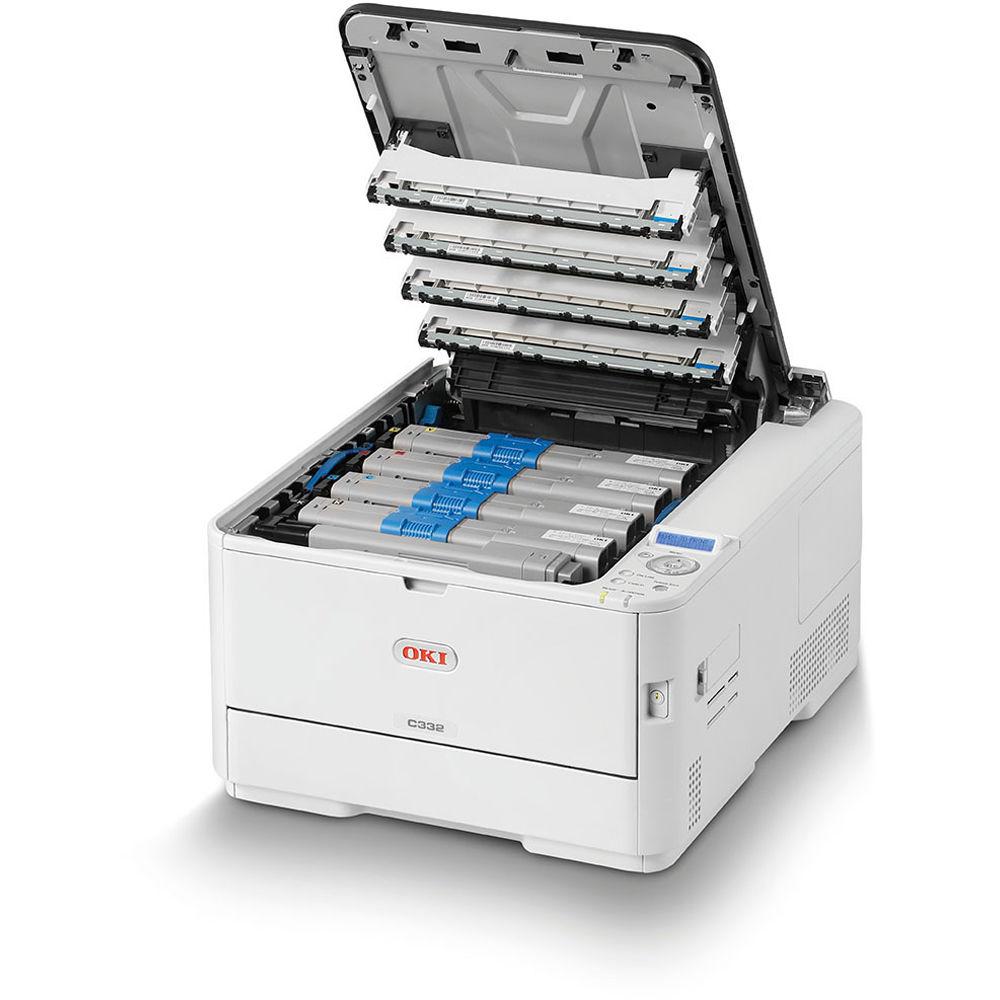

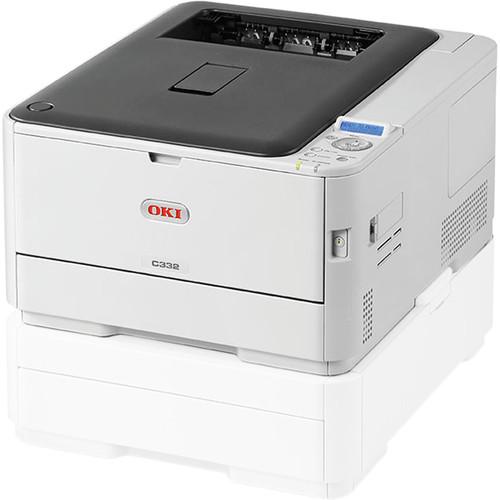

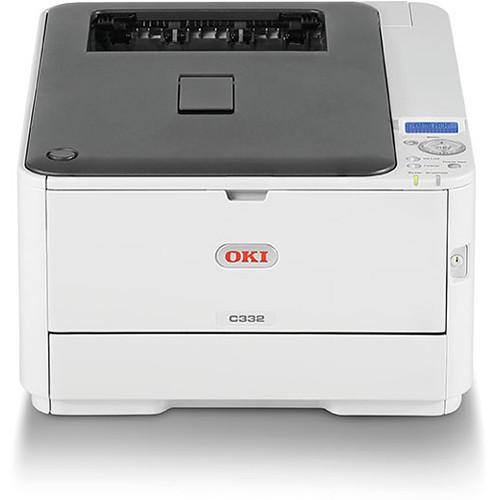

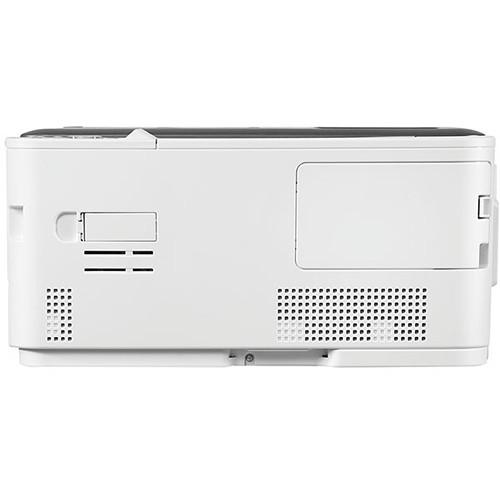

Product description Quickly and efficiently produce documents, brochures, and other graphics-rich printouts with the C332dn Color LED Printer from OKI. Using LED printing technology, the C332dn ensures high reliability with a monthly duty cycle of 45,000 pages as well as high quality with a print resolution of 1200 x 600 dpi. The unit is also quite fast as it is able to deliver 31 ppm in monochrome and 27 ppm in color with a first print out time of faster than 9 seconds. Users will enjoy automatic duplexing as a standard feature and when connected to a network via Ethernet it offers multiple mobile printing methods.

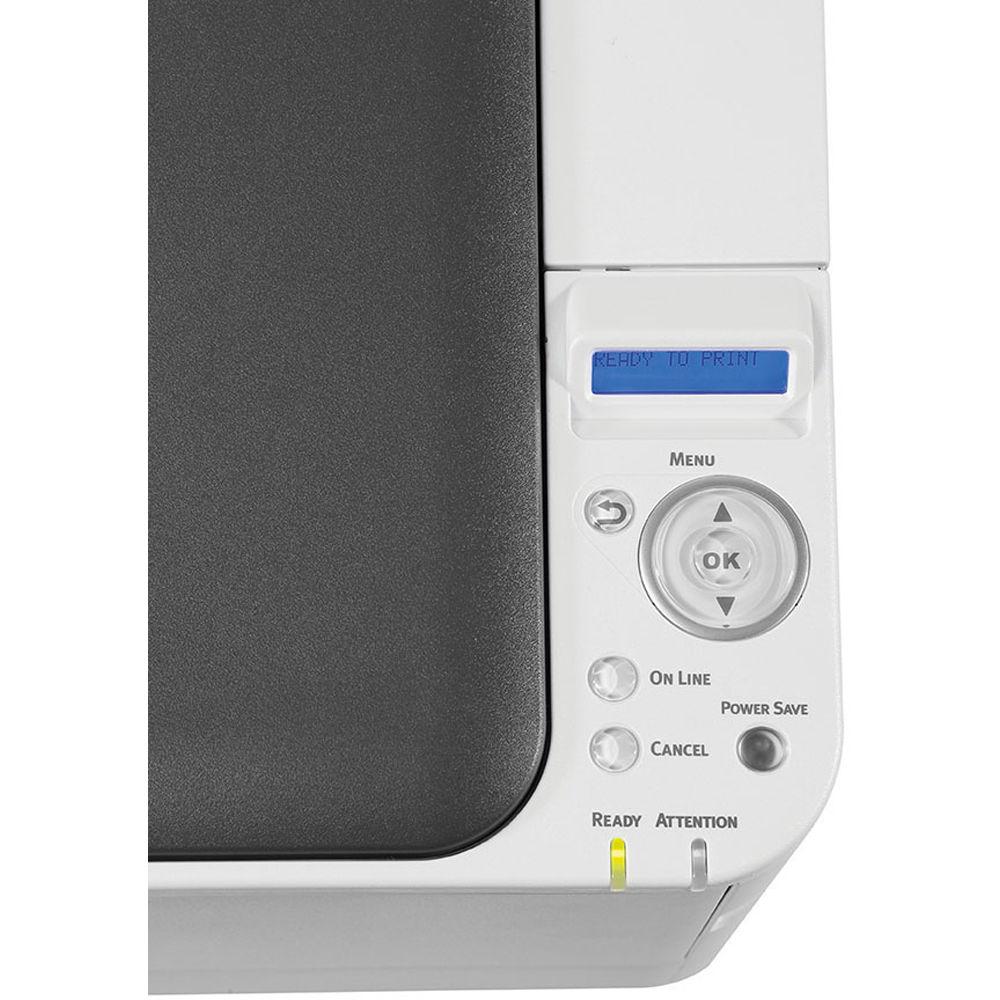

Users will be able to work with a large variety of media using the 250-sheet main input tray. Also, the 100-sheet multipurpose tray can enable the creation of other documents sized from 2.5 x 5" up to 8.5 x 52". Additionally, a two-line LCD screen is present to check print status and a USB 2.0 connection is present for a standard wired setup. - HD Color LED print technology ensures high reliability with sharp output using resolutions of up to 1200 x 600 dpi.
- Works with a variety of standard media types up to 8.5 x 14" as well as banners up to 52" long.
- Automatic duplex printing is a standard feature that can help conserve paper usage.
- 1GB of built-in memory helps ensure smooth printing of larger documents.
- When connected to a network, users can use Google Cloud Print 2.0, Apple AirPrint, and the OKI Mobile Print App to print directly from their mobile devices.
- Toner Save Mode can reduce costs and use of consumables.
- Save power with Deep Sleep and Auto-Off modes.
- Quiet mode to limit disturbances in small environments.
- Optional paper trays can expand the input capacity to 880 sheets.
- An optional Wi-Fi module is available for wireless connectivity.
UPC: 051851186740 In the Box OKI C332dn Color LED Printer Cyan Starter Toner Cartridge Magenta Starter Toner Cartridge Yellow Starter Toner Cartridge Black Starter Toner Cartridge Image Drum Power Cord Limited 2-Year Warranty Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OKI C332dn Color LED Printer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOKI C332dn Specs | | | Printing Technology | LED | | Maximum Resolution | 1200 x 600 dpi | | Print Speed | Monochrome: 31 ppm
Color: 27 ppm | | First Print Out Speed | Monochrome: 8.5 seconds
Color: 9 seconds | | Print Color | Cyan
Magenta
Yellow
Black | | Duplex Printing | Yes | | Printer Duty Cycle | Monthly: 45,000 pages
Recommended Monthly Volume: 5000 pages | | | | Paper Handling | Input Tray
Multipurpose Tray
Output Tray | | Paper Sizes | Input Tray: 3.9 x 5.8" to 8.5 x 14" / 9.9 x 14.7 cm to 21.6 x 35.6 cm
Multipurpose Tray: 2.5 x 5" to 8.5 x 52" / 6.4 x 12.7 cm to 21.6 x 132.1 cm
Duplex Mode: 5.8 x 8.3" to 8.5 x 14" / 14.7 x 21.1 cm to 21.6 x 35.6 cm | | Media Weight | Input Tray: 16-47 lb bond / 64-176 gsm
Multipurpose Tray: 16-58 lb bond / 64-220 gsm | | Paper Capacity | Input Tray: 250 sheets
Multipurpose Tray: 100 sheets
Output Tray: 150 sheets | | | | Interface | USB 2.0
Ethernet | | Mobile Printing Features | OKI Mobile Print App
Apple AirPrint
Google Cloud Print 2.0 | | Processor | 667 MHz | | Memory | 1 GB RAM
3 GB eMMC | | Fonts | Scalable: 87 PCL, 80 PostScript
Bitmap: 4 PCL
Barcodes: 10 types with 26 variations: UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, Interleaved 2 of 5, Code 39, Code 128, EAN/UCC-128, CODABAR, ZIP+4POSTNET; 2 types of two dimensions: PDF417, QR code | | Printer Language | PCL 6 (XL 3.0)
PCL 5c
Adobe PostScript 3
IBM-PPR
Epson-FX
XPS
PDF v1.7 | | OS Compatibility | Windows
Mac OS X, macOS
Linux | | | | Control Panel | 2-line monochrome LCD | | Power Requirements | 120 VAC | | Power Consumption | Maximum: 1170 W
Typical: 540 W
Idle: 90 W
Power Save: <14 w
Deep Sleep: <1.1 W
Off: 0.5 W | | Acoustic Noise | Operating: 54 dB(A)
Standby: 37 dB(A)
Power Save: Inaudible | | Dimensions (WxDxH) | 16.1 x 19.8 x 9.5" / 41 x 50.4 x 24.2 cm | | Weight | 48.5 lb / 22 kg | | | | Package Weight | 53.5 lb | | Box Dimensions (LxWxH) | 24.3 x 21.1 x 15.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
