User Manual for Oklahoma Sound 711-MO LWM-6 Prestige Sound Lectern with LWM-6 Wireless Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Oklahoma Sound 711-MO LWM-6 Prestige Sound
- Product category: Lecterns & Podiums Oklahoma Sound
- Brand: Oklahoma Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Oklahoma Sound Lecterns & Podiums
 |
User manual for the Oklahoma Sound 711-MO LWM-6 Prestige Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Oklahoma Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Oklahoma Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Oklahoma Sound product will considerably shorten its lifespan!
|

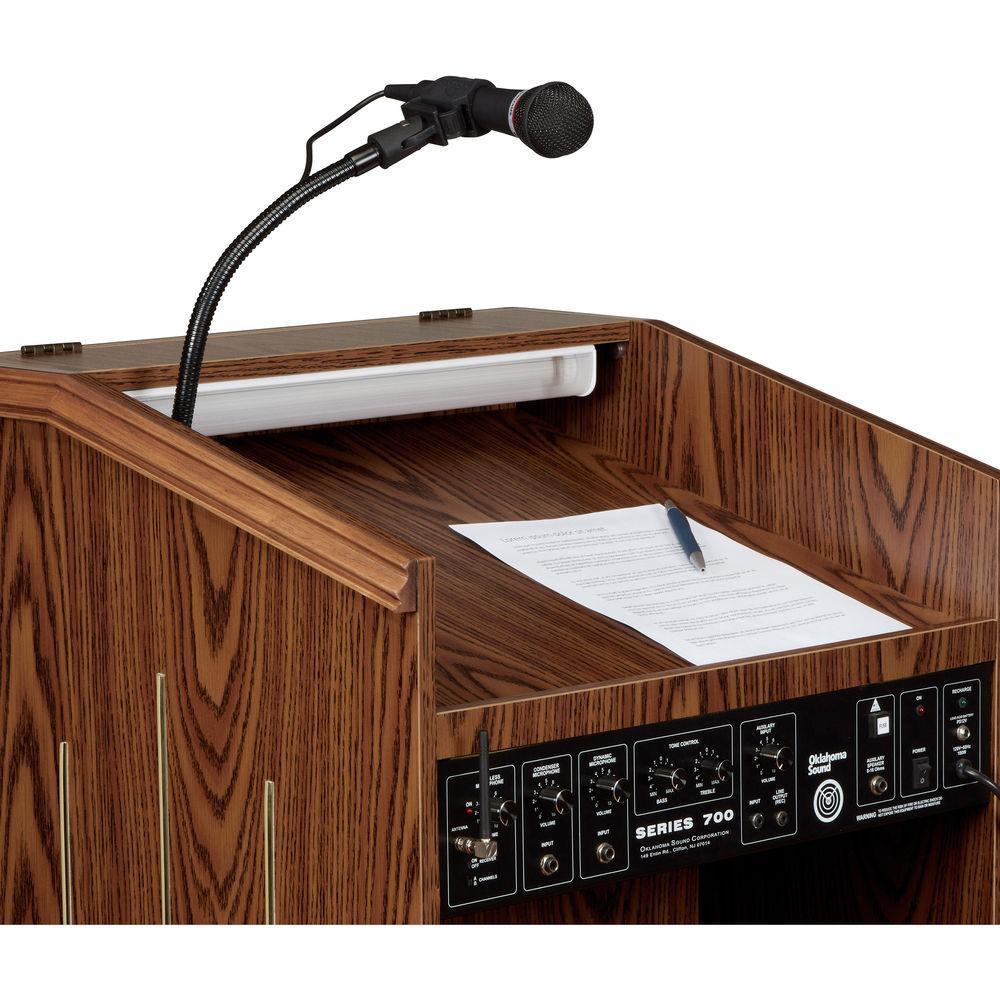

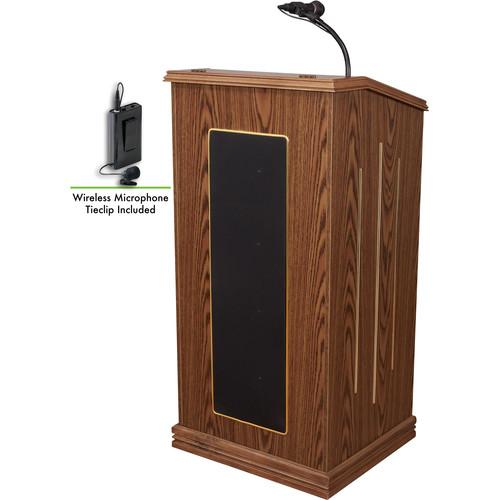

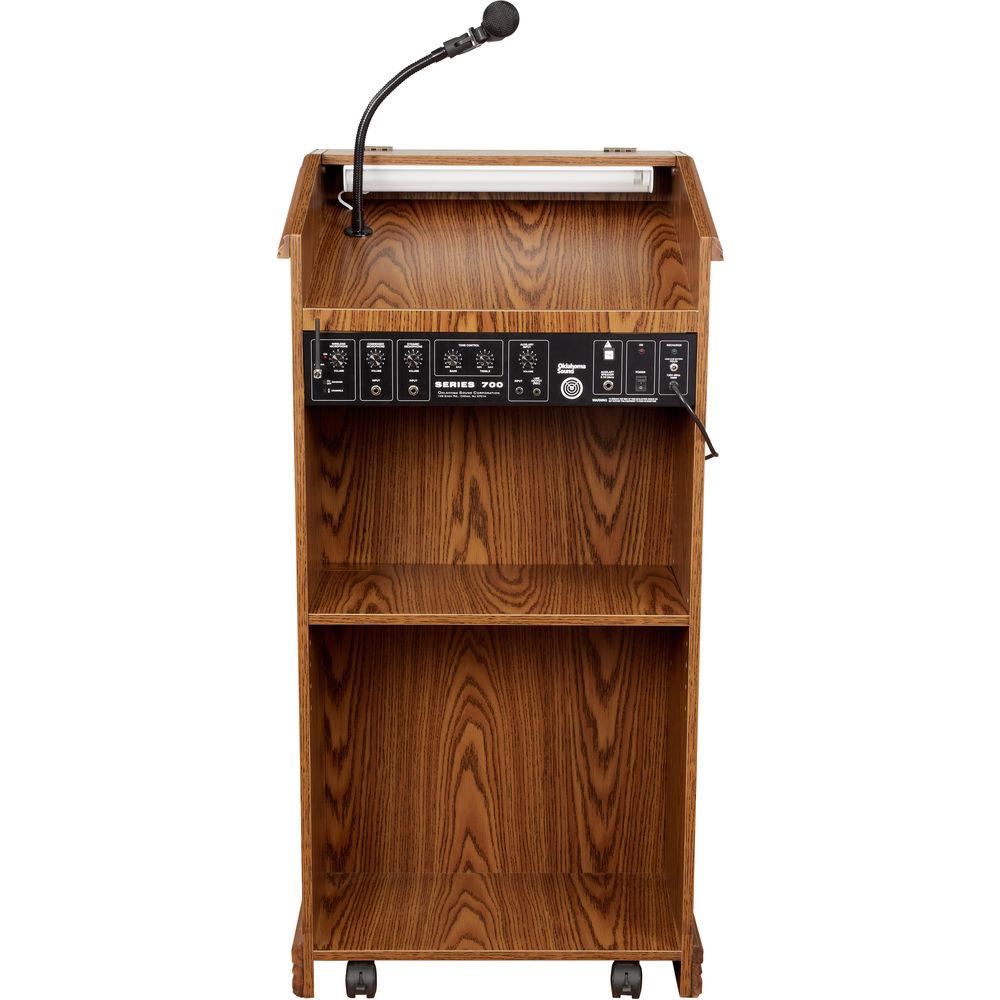

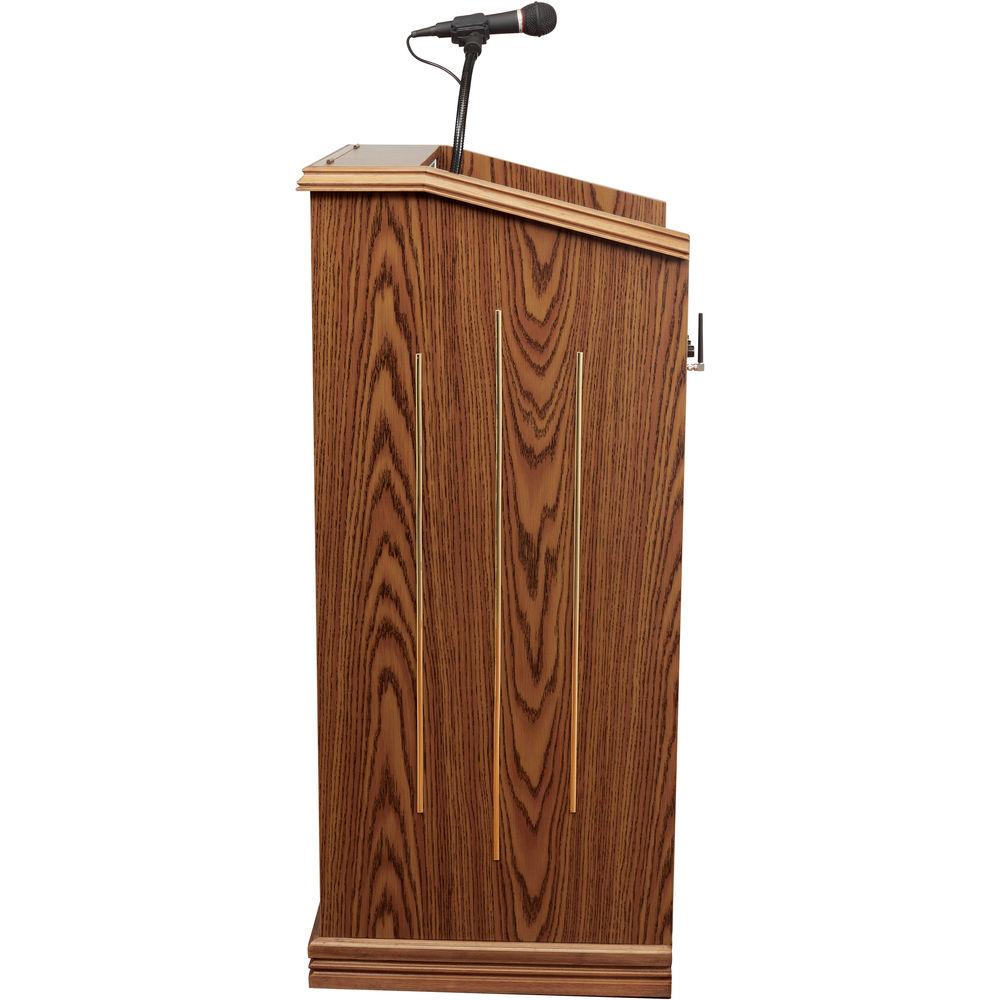

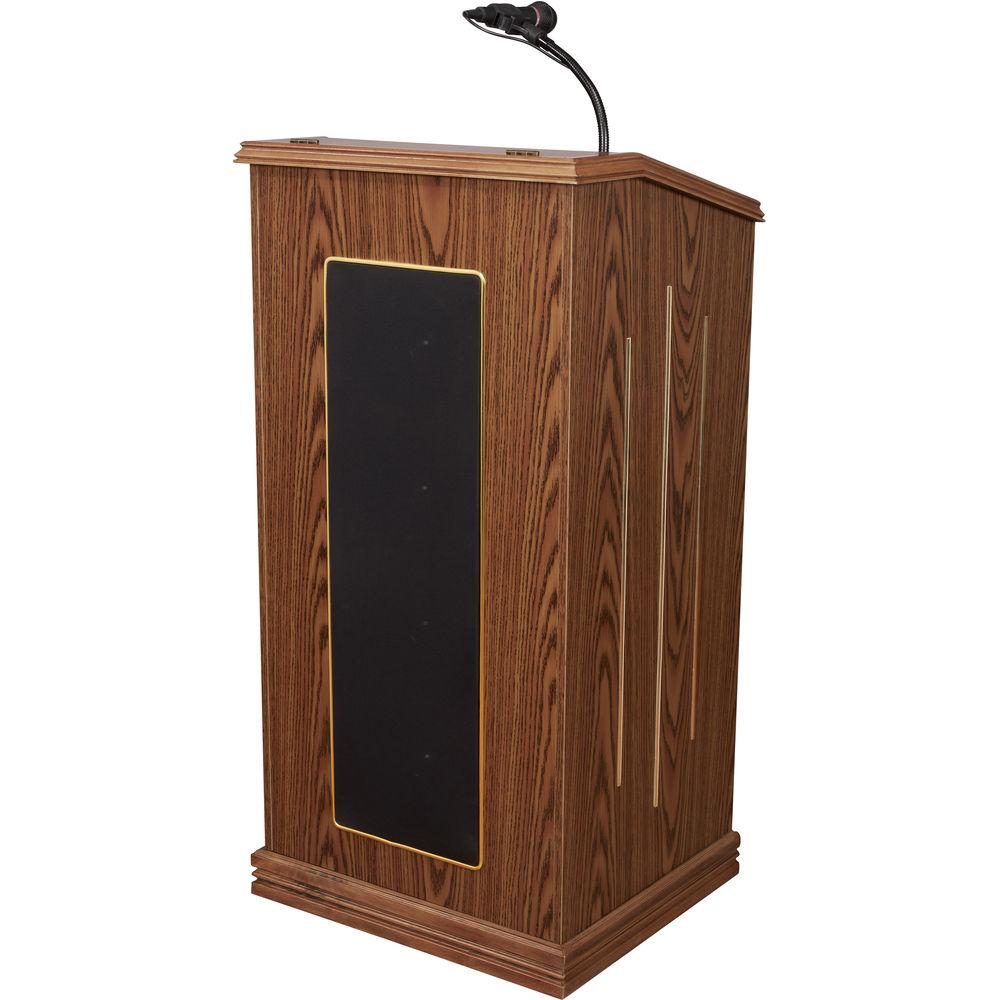

Product description The medium oak Oklahoma Sound 711-MO/LWM-6 Prestige Sound Lectern is an elegant, handcrafted podium designed to command a dignified presence. It features a wide reading surface illuminated by a recessed fluorescent lamp, a surface-mounted digital time piece, and a flexible gooseneck arm with an upgraded shockmount holder to prevent feedback. Equipped with a self-contained 50W amplifier and four 8" speakers, the lectern is ideal for addressing audiences up to 3000 in conference rooms, auditoriums, houses of worship, and more. The 711-MO/LWM-6 comes with an LWM-6 wireless lavalier mic and a bodypack transmitter, which allow users to speak while moving freely around the podium area, at a distance up to 200'. The lectern also comes with a handheld microphone and a wired lavalier mic, ideal for speakers who prefer to remain stationary. The unit's amplifier offers two mic inputs and a variety of line inputs and outputs to connect media players, extension speakers, or for recording and playing MP3 files. The lectern can easily be moved on its four concealed easy-roll casters, with two locking casters. It ships fully assembled. - Key Features
-
- Elegant sound lectern with medium oak finish and handcrafted moldings
- Includes LWM-6 tie-clip wireless lavalier mic with bodypack transmitter
- Ideal for audiences of up to 3000 in conference rooms, auditoriums, houses of worship, and more
- Built-in sound with four 8" speakers and 50W amplifier

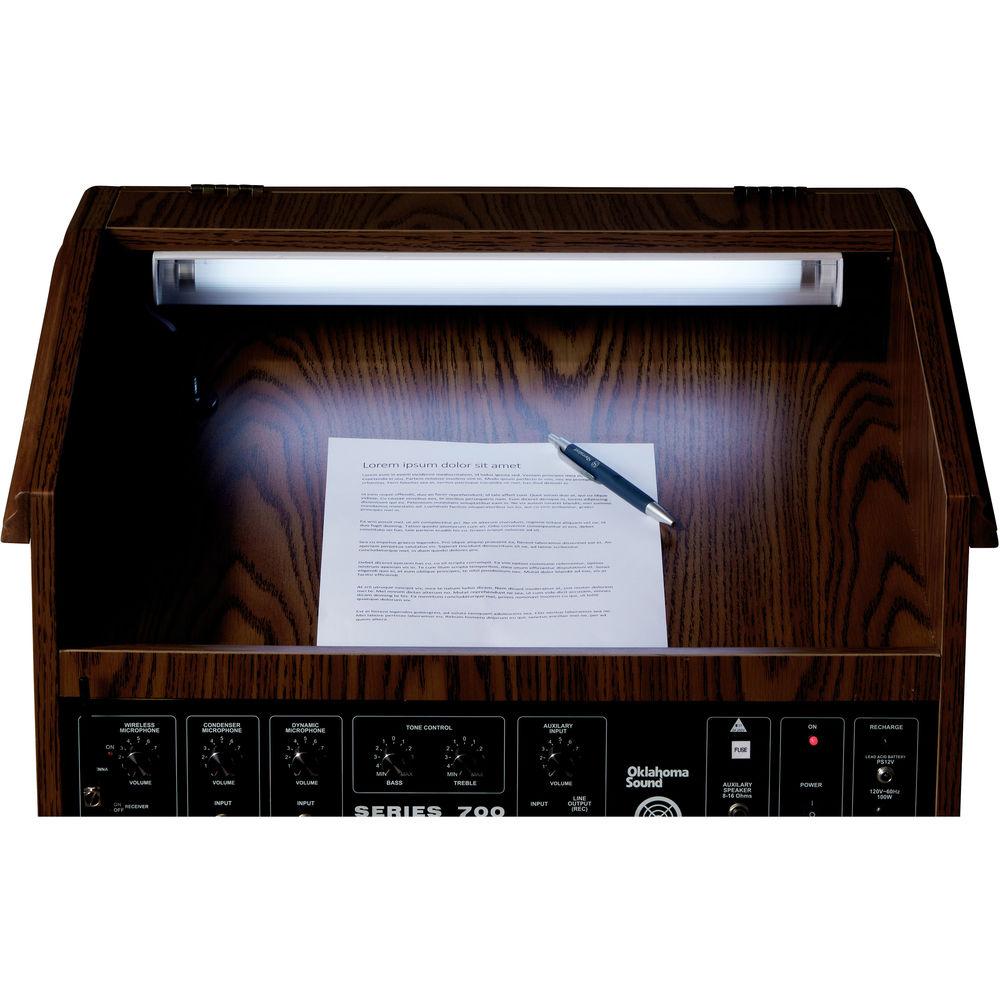

- Wide reading surface illuminated by a recessed fluorescent lamp
- Two large shelves (one adjustable) provide ample storage space
- One handheld microphone with 9’ cable
- One wired lavalier microphone with tie clip and 10’ cable
- Flexible gooseneck arm
- Digital time piece
- Upgraded shockmount holder to prevent feedback
- Two mic inputs for dynamic and condenser microphones

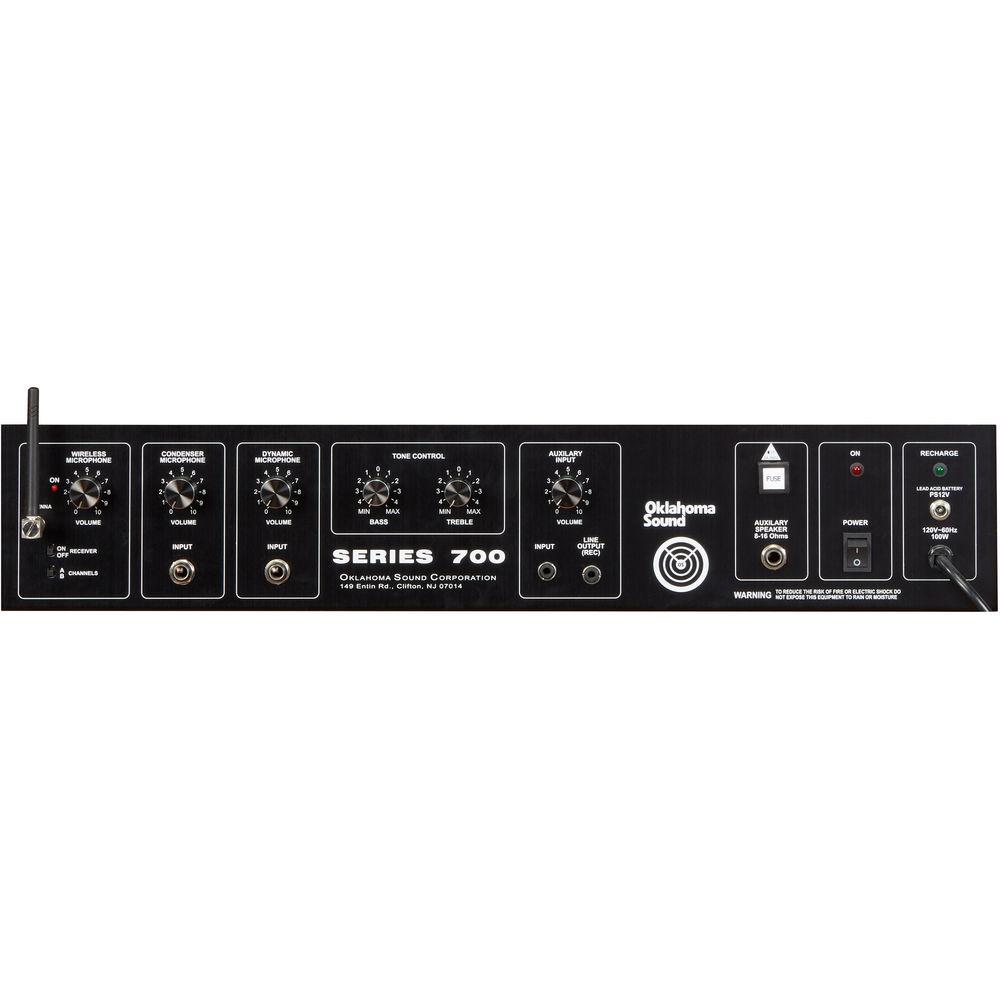

- Input/output lines to connect media players, extension speakers, and recording and playing MP3 files
- Moves easily on four concealed easy-roll casters, with two locking casters
- High-pressure thermal-fused laminate on a MDF core
- Durable scratch-resistant surface
- Built-in wireless mic receiver
- Built-in battery charger for use with optional rechargeable battery
- Ships fully assembled
UPC: 604747711610 In the Box Oklahoma Sound 711-MO/LWM-6 Prestige Sound Lectern with LWM-6 Wireless Lavalier Microphone (Medium Oak) LWM-6 Wireless Lapel Microphone Handheld Microphone with 9' Cable Lavalier Microphone with Tie Clip and 10' Cable Flexible Gooseneck Arm Shockmount Mic Holder Digital Time Piece Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oklahoma Sound 711-MO LWM-6 Prestige Sound Lectern with LWM-6 Wireless Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOklahoma Sound 711-MO/LWM-6 Specs | Speakers | 4 x 8" drivers | | Power Output | 50 W RMS at 10% THD | | Frequency Response | 100 Hz to 25 kHz | | Aux | 150 mV > 220K | | Microphones | Wired Handheld: Electret condenser, 9' / 2.7 m cable
Wired Lavalier: Electret condenser, 10' / 3.0 m cable
Wireless Lavalier: LWM-6 mic with bodypack transmitter | | Wireless | Receiver: Built-in
Bodypack Transmitter: Uses 9 V battery
Frequencies: 187.8275, 187.190 MHz, switchable
Range: 200' / 61 m | | Inputs | 1 x Condenser mic
1 x Dynamic mic
1 x 1/8" / 3.5 mm aux | | Outputs | Line out 1, to auxiliary speaker
Line out 2, to media recorder | | Output Impedance | 8 Ohms | | Controls | 4 x Volume
1 x Bass
1 x Treble
1 x On/off | | Power Supply | 117 VAC
12 VDC with optional rechargeable battery | | Fuse | 2 A, internally mounted | | Recharger | Internally mounted, with LED indicator | | Dimensions | Overall (H x W x D): 47.0 x 22.0 x 18.0" / 119.4 x 55.9 x 45.7 cm
Shelf (W x D): 20.5 x 11.0" / 52.1 x 27.9 cm | | Weight | 102.0 lb / 46.3 kg |
