User Manual for Oklahoma Sound 950 901 Tabletop and Base Combo Sound Lectern with LWM-7 Headset Wireless Microphone

• Product category: Lecterns & Podiums Oklahoma Sound
• Brand: Oklahoma Sound
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Oklahoma Sound Lecterns & Podiums

Product description

• Tabletop and Base Combo Sound Lectern (Mahogany on Walnut) The Tabletop and Base Combo Sound Lectern from Oklahoma Sound is suitable for audiences of up to 7500 people, or 75,000 sq. ft, and features a 75 watt amplifier, and two wired microphones - handheld and lavalier. There is a gooseneck shock holder for the handheld mic. The lavalier mic can be clipped to your clothing. The amplifier is MP3 compatible through its media aux 1/8" input.Additionally, there are four built-in 4" speakers with radius-style grilles, two line outs, three inputs, and controls for on/off, four volume levels, as well as bass/treble, plus a digital clock. This lectern is also switchable for wireless control on two frequencies. There are two locking doors with fingertip indents for easy opening. Three sizable storage spaces and two adjustable shelves in the base provide room for collateral and personal material. The lectern also features a halogen reading lamp with dimmer.If you purchase Oklahoma's optional 12 VDC battery, you can use the internally mounted recharger that features an LED indicator. This battery provides up to 24 hours of power. For mobility, there are four concealed casters. The unit ships assembled.

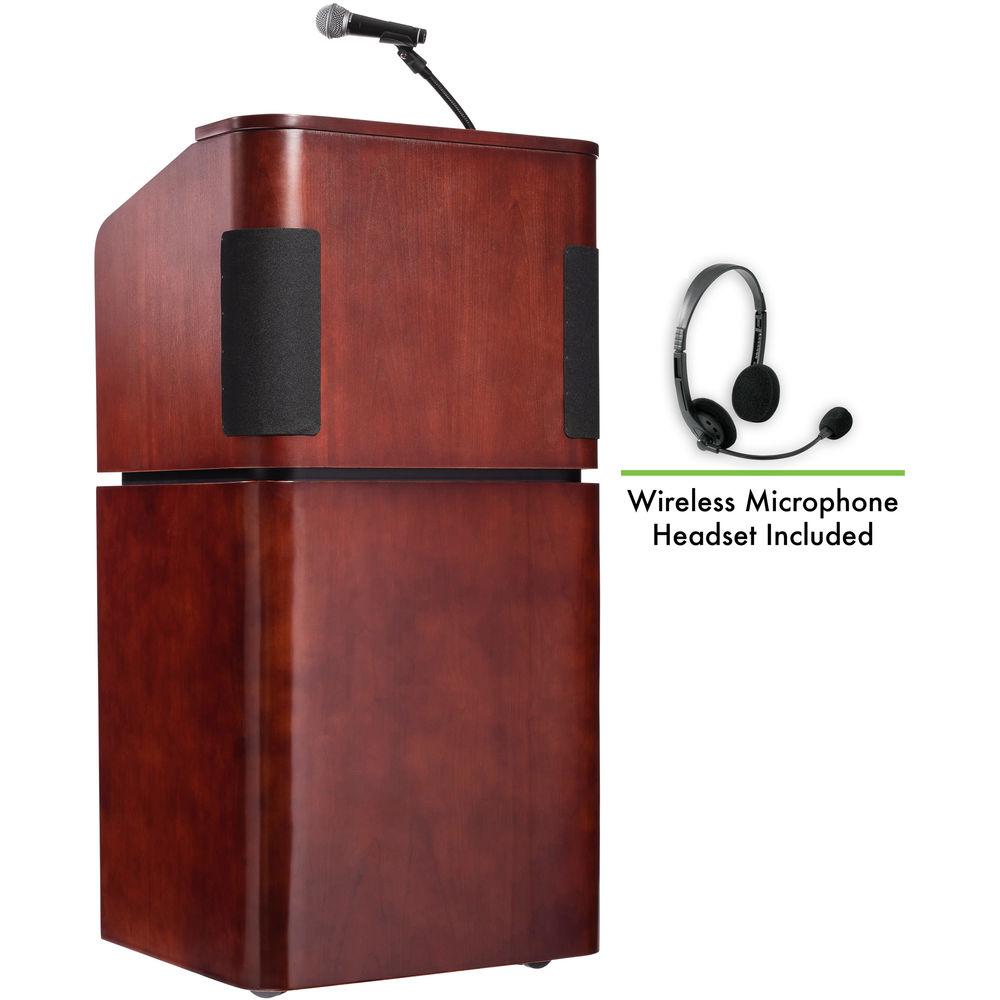

• LWM-7 Wireless Head-Worn Microphone The Oklahoma Sound LWM-7 is a rugged body-pack microphone transmitter and head-worn microphone intended for use with wireless ready Oklahoma Sound lectern systems. The VHF body-pack transmitter and head-worn microphone are worn by the user to provide reliable, cable-free operation and control during speeches, presentations, ceremonies, etc. UPC: 604747504014

• 75 Watt Amplifier

• 2 x Handheld Microphones

• Lavalier Microphone

• Limited 5-Year Warranty

• 2 Year Warranty

Also Includes

• Limited 5-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Tabletop and Base Combo Sound Lectern (Mahogany on Walnut)

  Construction	Plywood
  Finish	Mahogany on walnut
  Amplifier	75 watts Switchable to wireless MP3 compatible Media aux 1/8" input
  Fuse	Internally mounted, 2 amps
  Microphone	Handheld condenser type with 9' (274.3 cm) cord Tie clip lavalier with 10' (304.8 cm) cord Gooseneck mount with shock holder
  Speakers	Four 4" (10.2 cm)
  Wireless	Switchable to two frequencies
  Inputs	2 x mics 1 x aux
  Outputs	Line Out 1: Extension speaker Line Out 2: Tape recorder
  Electrical Components	Internally mounted recharger with LED indicator for use with optional 12 VDC battery
  Lamp	Halogen reading lamp with dimmer
  Controls	Volume: 4 levels Bass/treble On/off
  Adjustments	Two adjustable shelves in base
  Shelves	Two; 22 x 11 x 16" (56 x 28 x 41 cm)
  Reading Surface	22 x 14" (56.0 x 35.6 cm)
  Casters	Four concealed
  Power Requirements	117 VAC, 60 Hz
  Dimensions (WxHxD)	24 x 28 x 20" (61 x 71 x 51 cm)
  Weight	950 Top: 62 lb (28 kg) 901 Base: 70 lb (32 kg)

• LWM-7 Wireless Head-Worn Microphone

  Box Dimensions (LxWxH)	9.6 x 7.8 x 6.8"
