Product description - #800X The Orator Sound Lectern

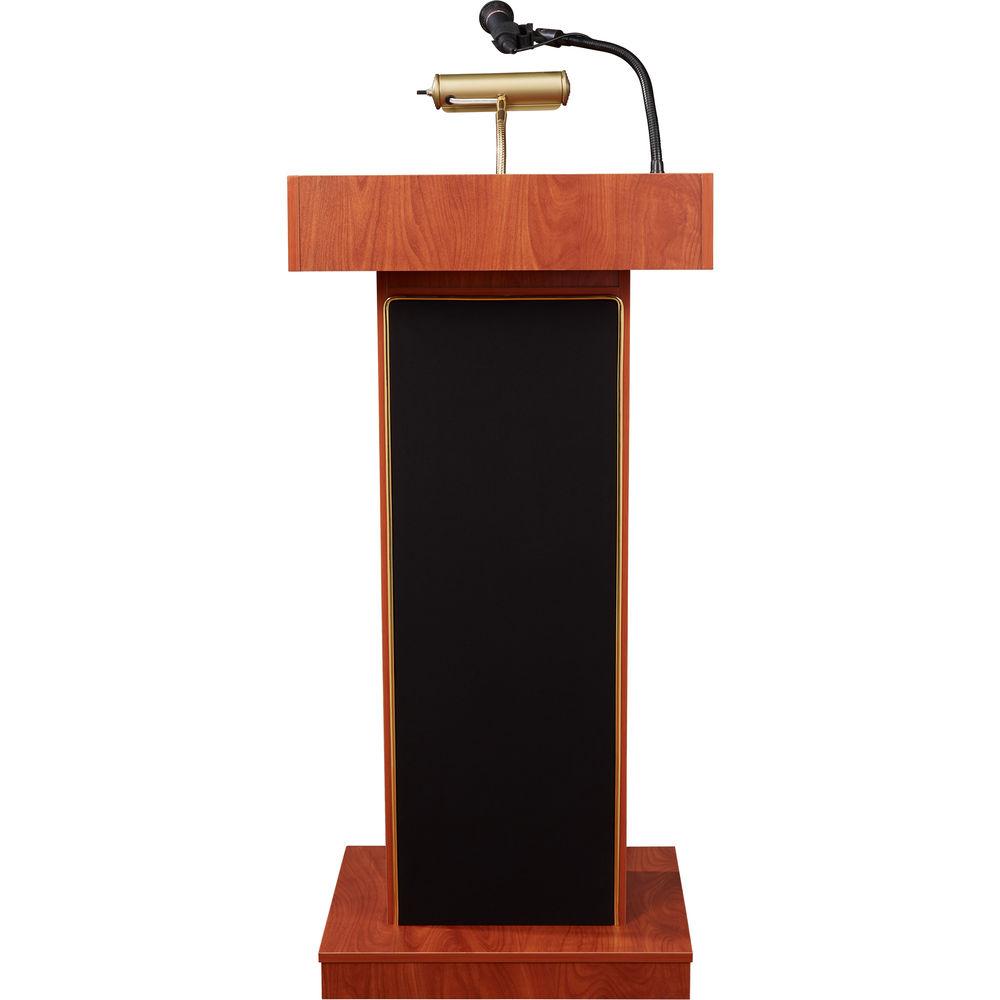

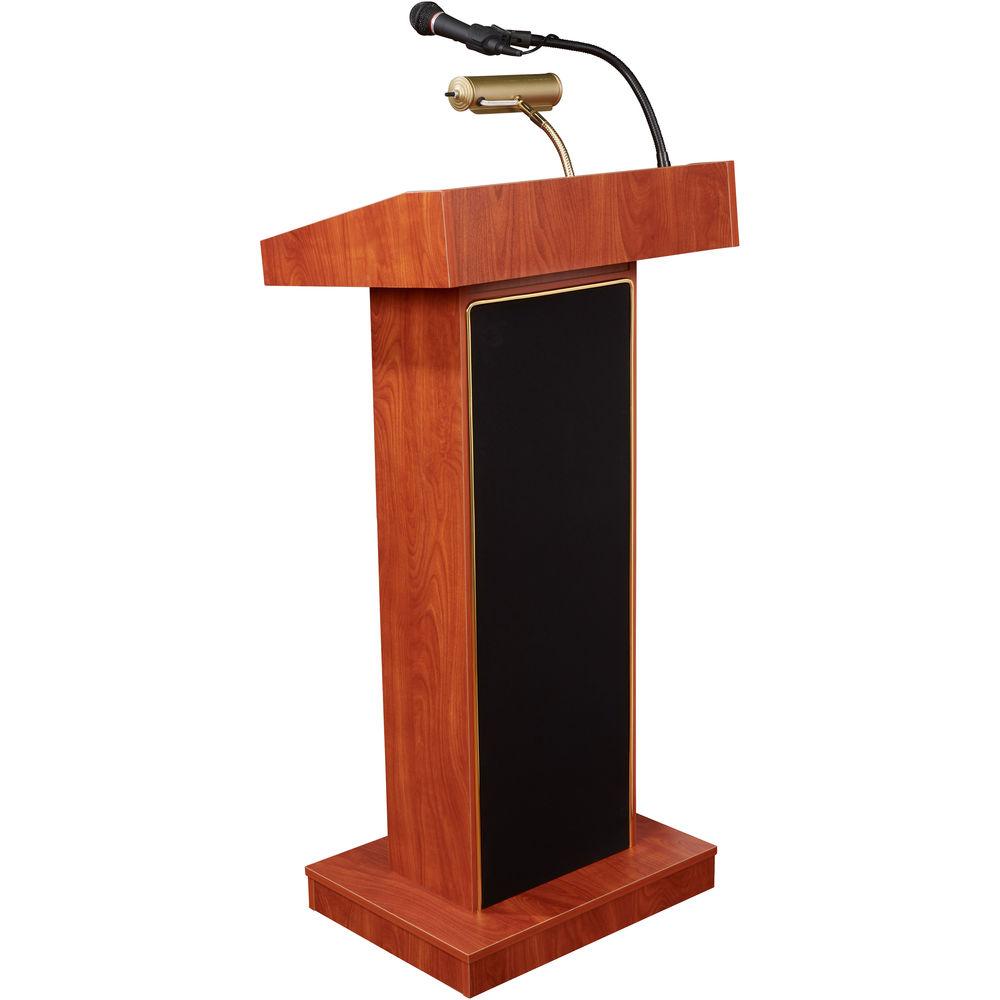

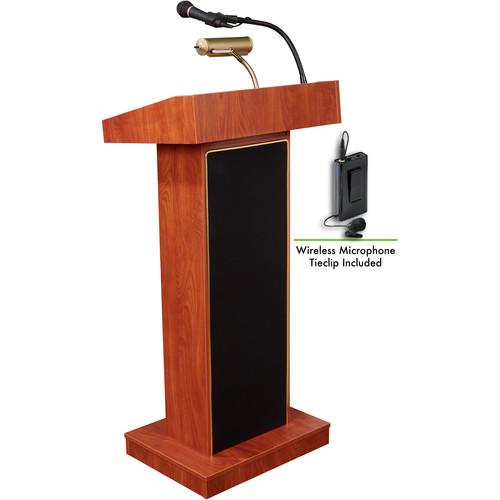

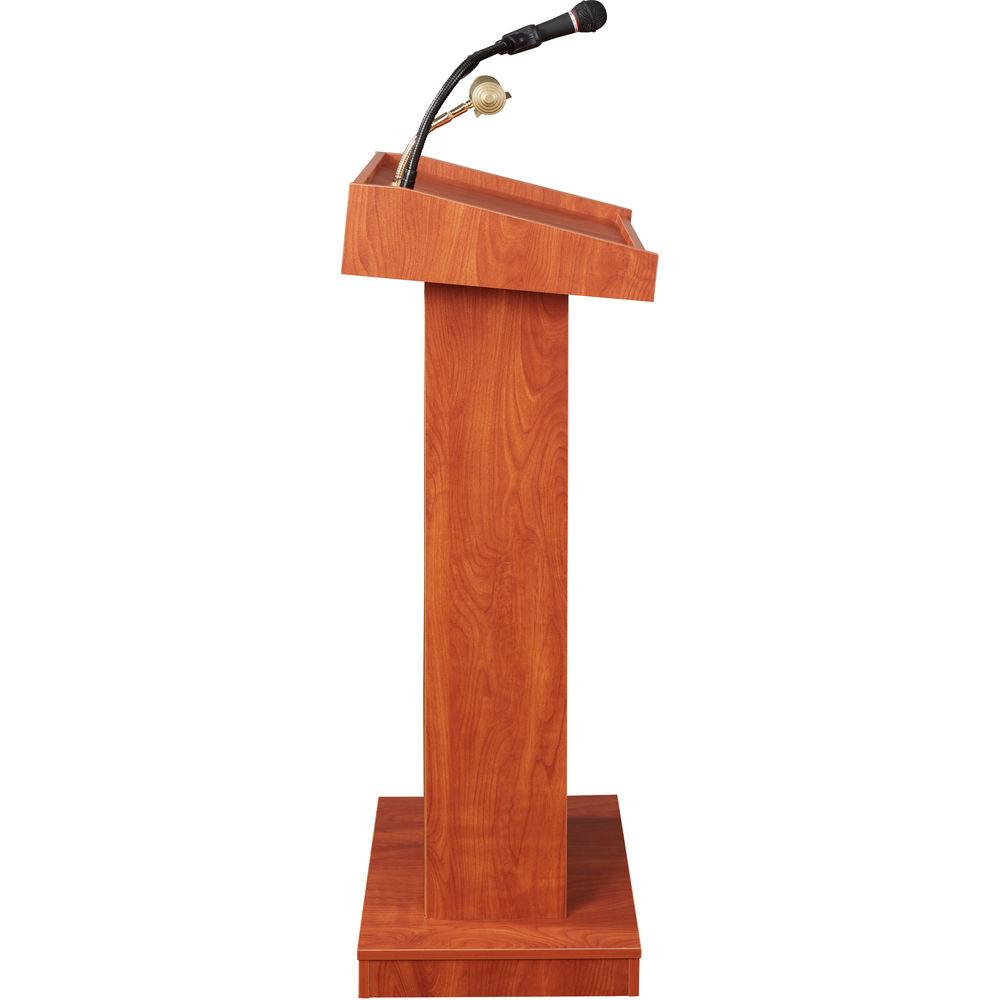

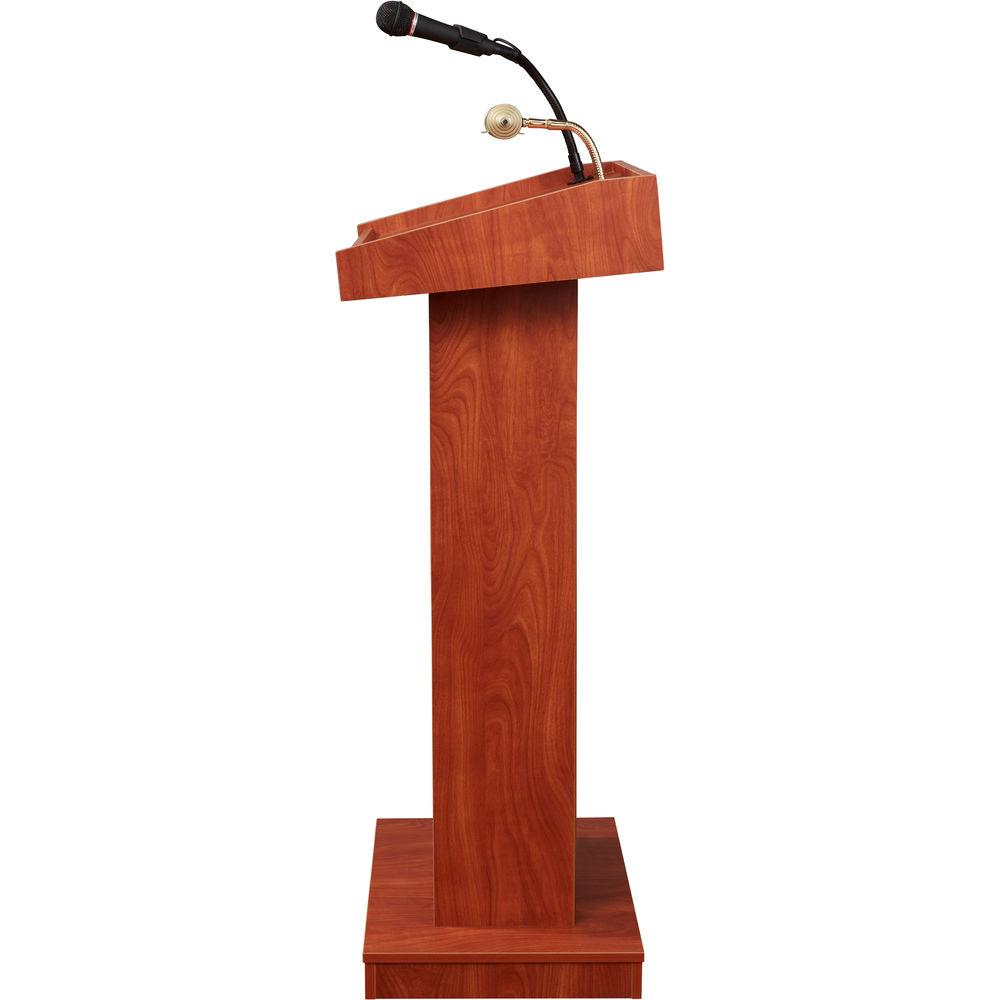

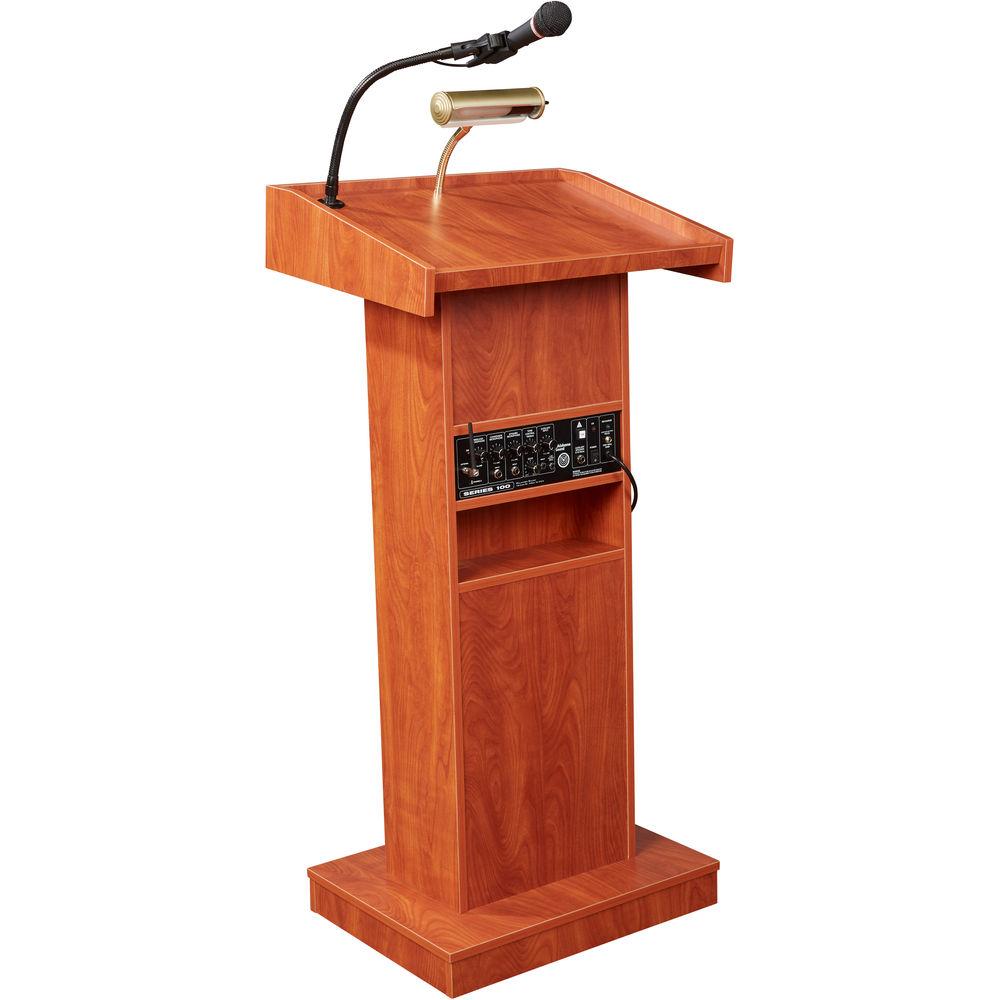

The Orator Lectern with Sound System and Wireless Lavalier Microphone from Oklahoma Sound features a fixed height with wild cherry finish, 40 watt amplifier, and two microphones - a handheld and a lavalier that can be clipped to your clothing. There is also a holder for the handheld microphone. The amplifier is MP3 compatible through its media aux 1/8" input. This amp is also switchable for the wireless lavalier mic that works on two frequencies.

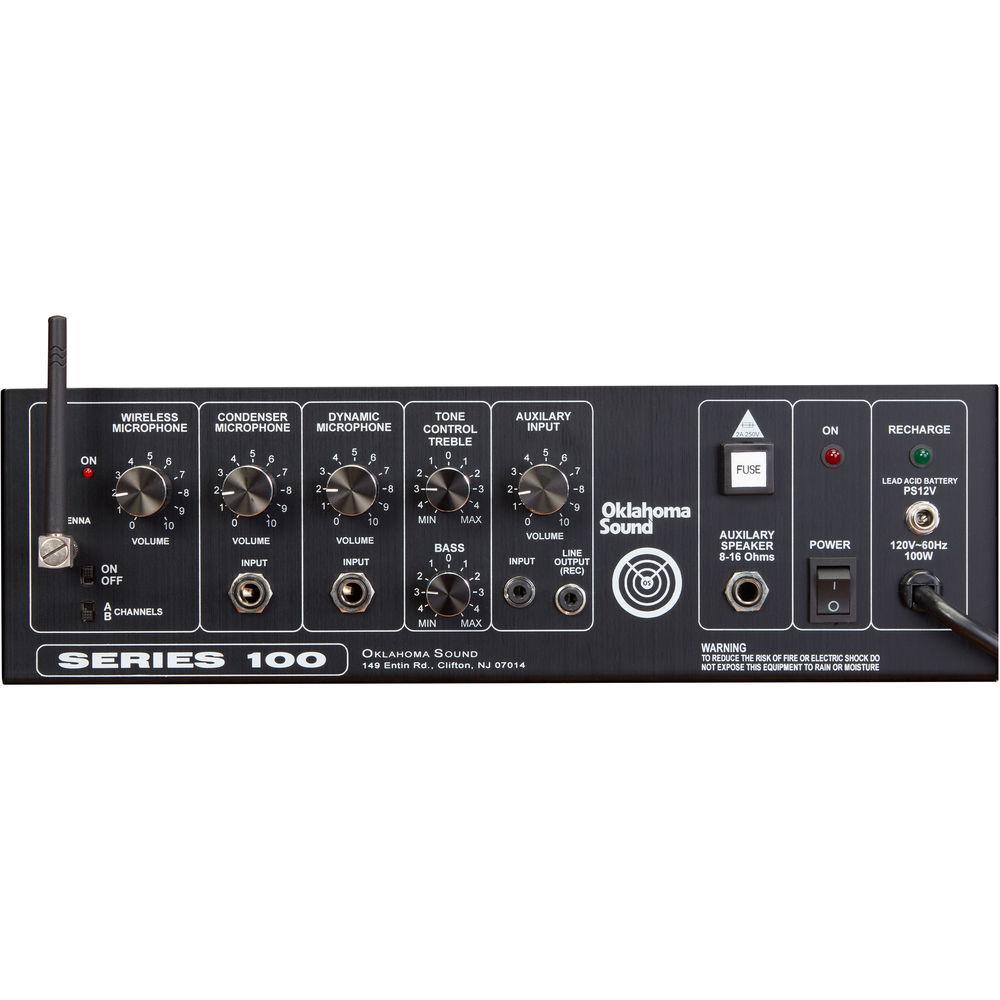

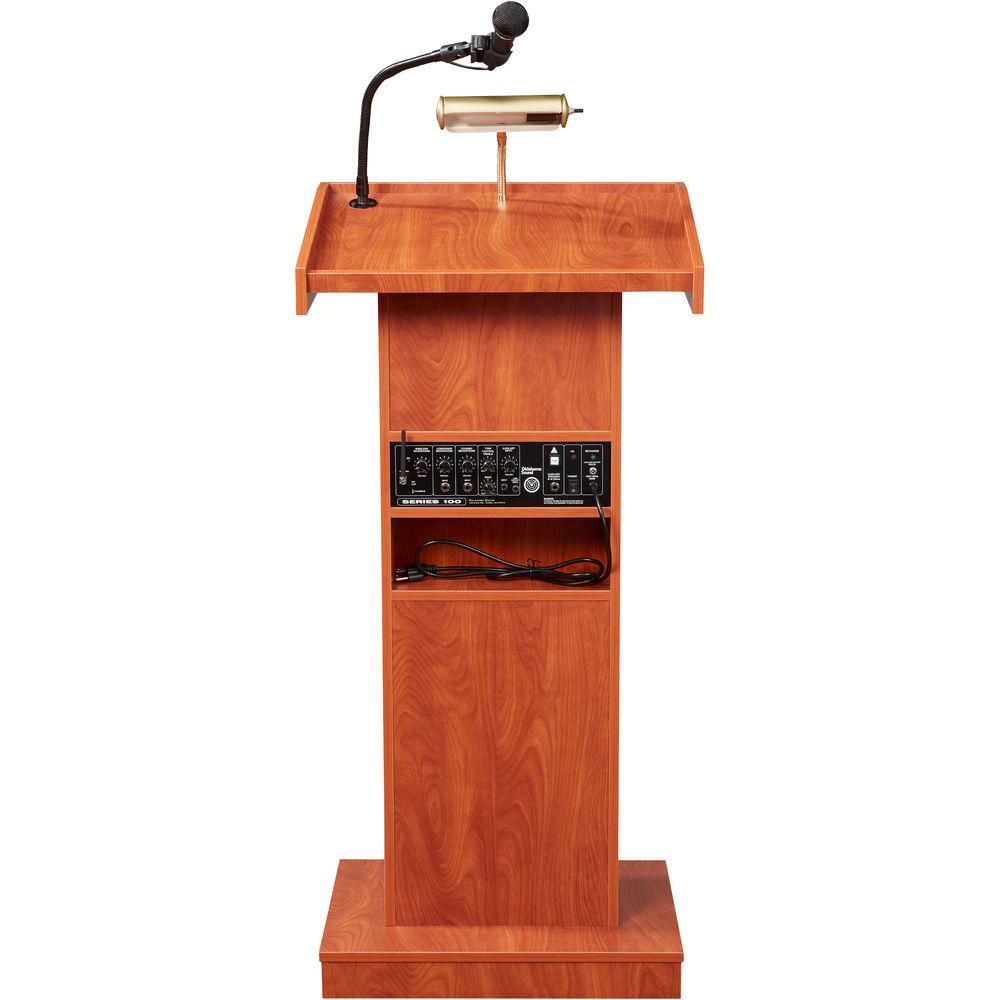

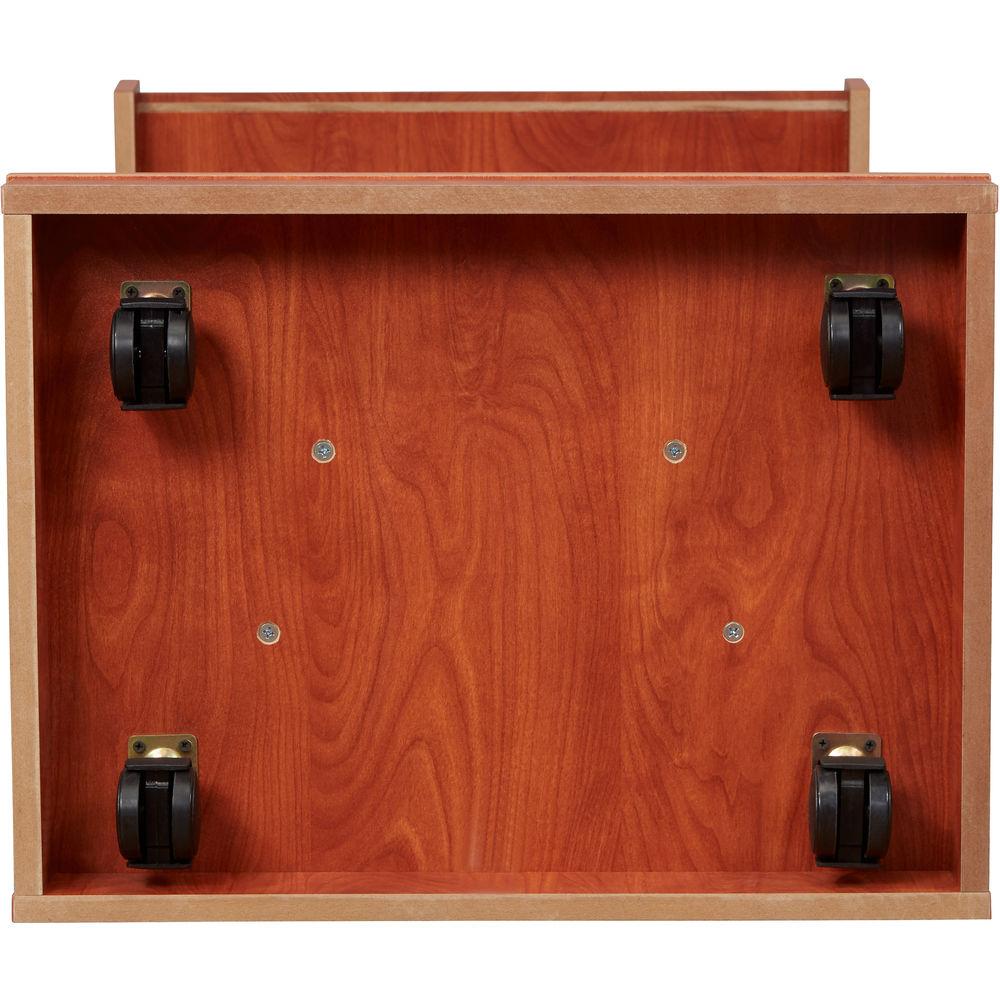

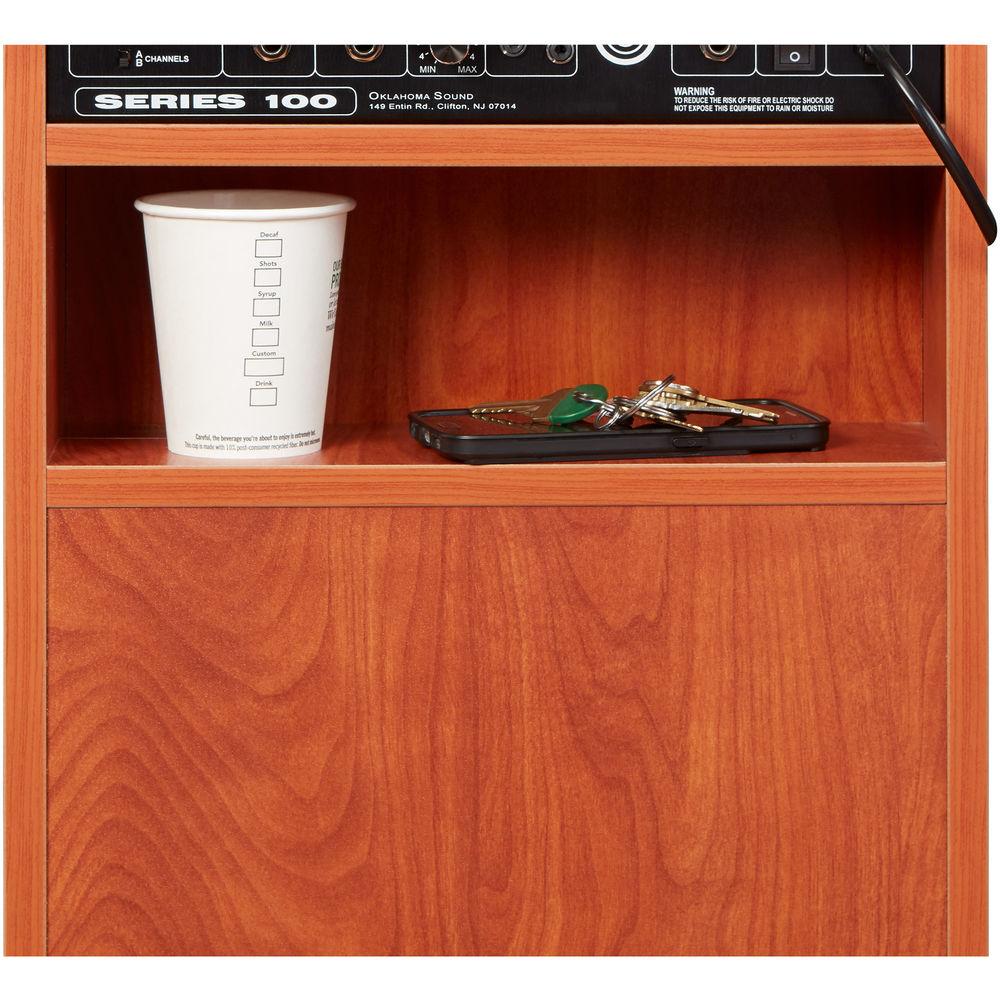

Additionally, there are four built-in 6" speakers, two line outs, and controls for on/off, four volume levels, as well as bass/treble. One storage shelf is supplied for collateral material and personals. If you purchase Oklahoma's optional 12V DC battery that provides up to 24 hours of power, you can use the internally mounted recharger that features an LED indicator. The unit is made from a high-pressure thermal-fused laminate on an MDF core. For mobility, there are four concealed casters. - Upgraded Shock Mount holder to prevent feedback
- Includes minor assembly hardware
UPC: 604747802813 In the Box Oklahoma Sound Orator Lectern with Sound System and Wireless Lavalier Microphone (Wild Cherry Laminate) 40 Watt Amplifier Handheld Microphone Lavalier Microphone Brass Lamp Assembly Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oklahoma Sound Orator Lectern with Sound System and Wireless Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOklahoma Sound 800X Specs | Construction | High-pressure thermal-fused laminate on an MDF core | | Finish | Wild cherry | | Amplifier | 40 watts
Switchable to wireless mode
MP3 compatible
Media aux 1/8" input | | Fuse | Internally mounted; 2 amps | | Microphone | 1 x handheld condenser type with 9' (274.3 cm) cords
Tie clip lavalier with 10' (304.8 cm) cords | | Speakers | Four 6" (15.2 cm) | | Wireless | Switchable to two frequencies | | Inputs | 2 x mics
1 x aux | | Electrical Components | Internally mounted recharger with LED indicator for use with optional 12V DC battery | | Connectors | Line out 1: Extension speaker
Line out 2: Tape recorder | | Controls | Volume: 4 levels
Bass/treble
On/off | | Adjustments | None | | Shelf | One; 12 x 4" (30.5 x 10.2 cm) | | Casters | Four concealed | | Power Requirements | 117 VAC, 60 Hz | | Dimensions (WxHxD) | 22 x 46 x 17" (56 x 117 x 43 cm) | | Weight | 63 lb (28.6 kg) | | | | Package Weight | 72.0 lb | | Box Dimensions (LxWxH) | 45.5 x 20.0 x 20.0" |
