Product description - #800X The Orator Sound Lectern

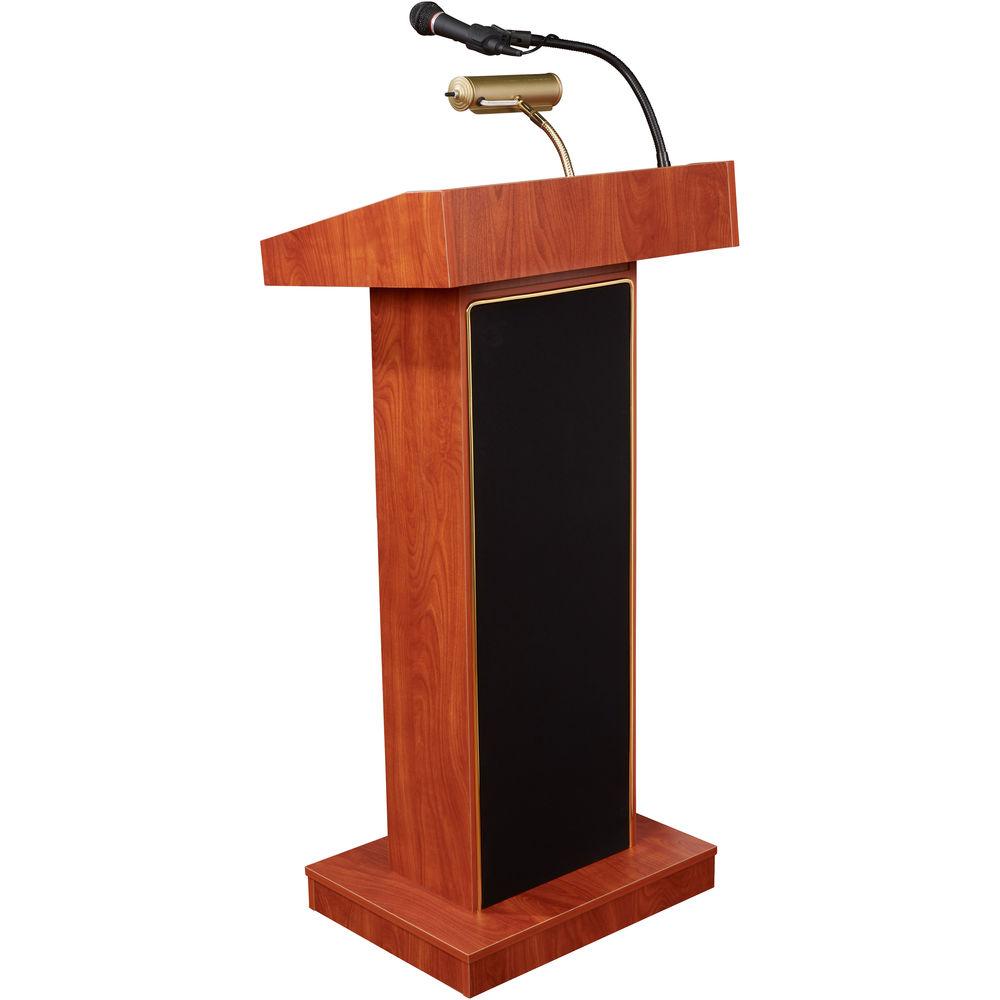

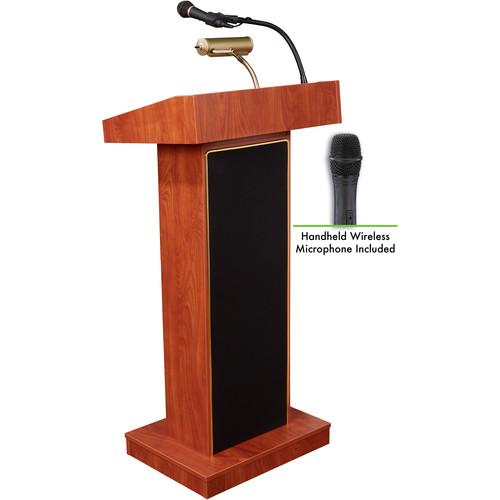

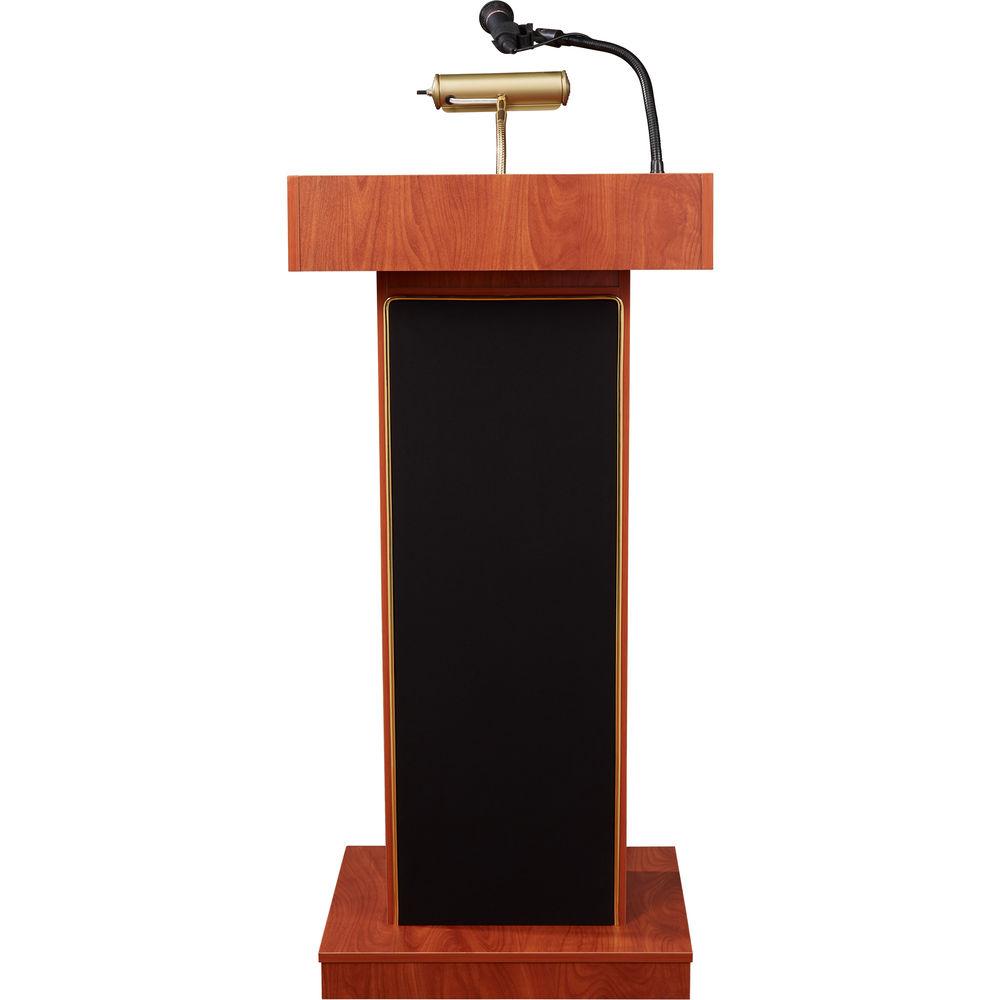

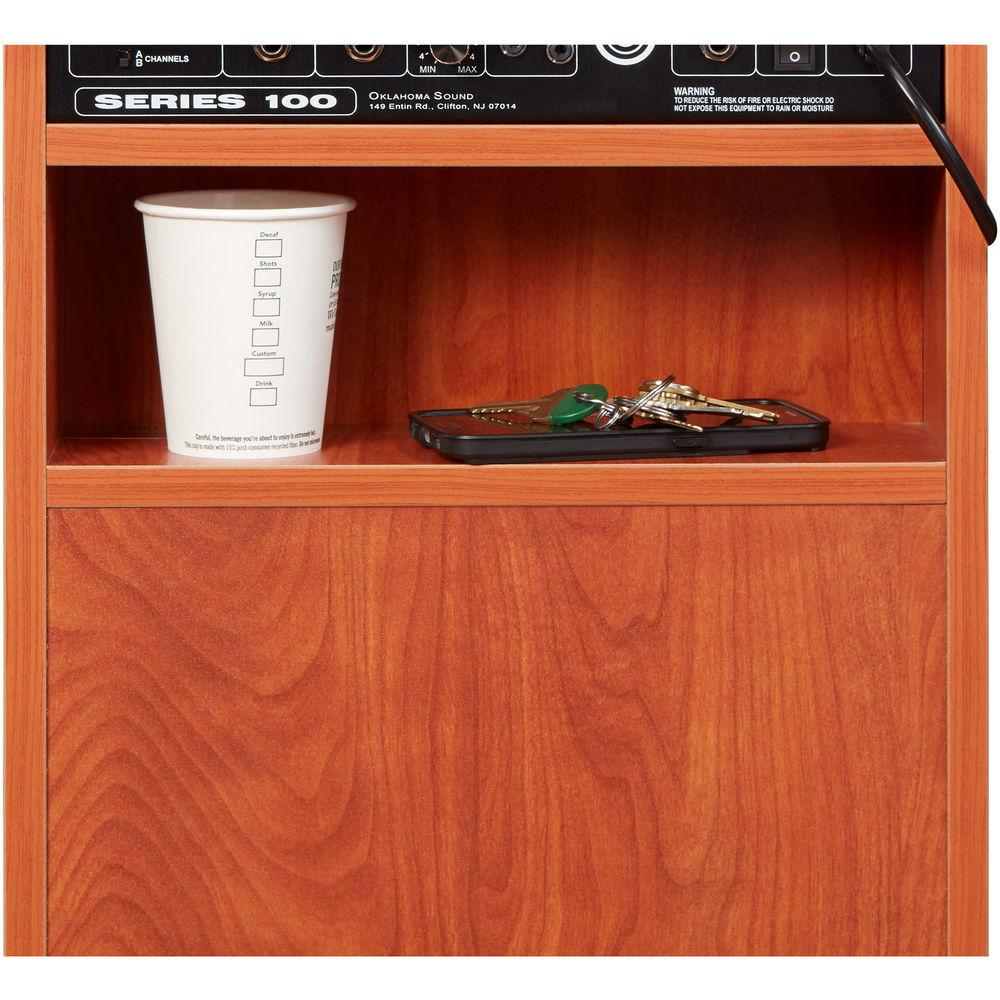

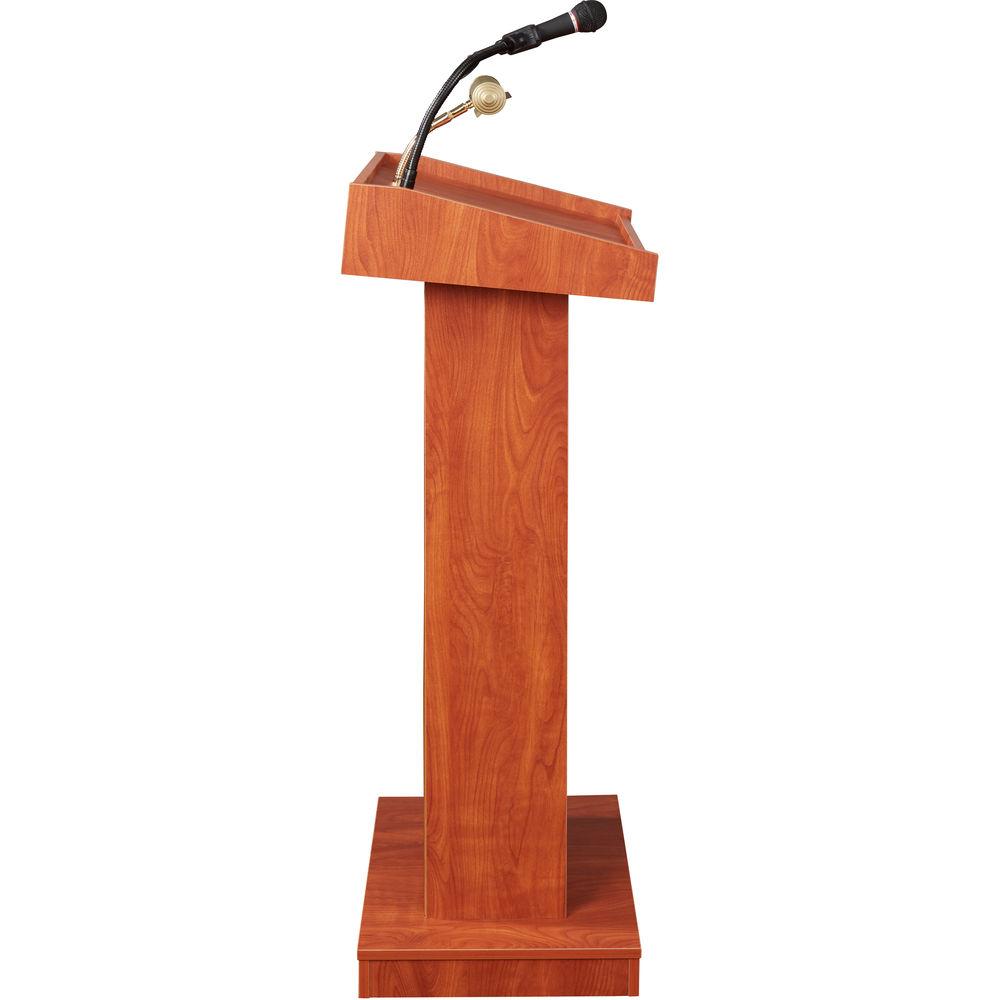

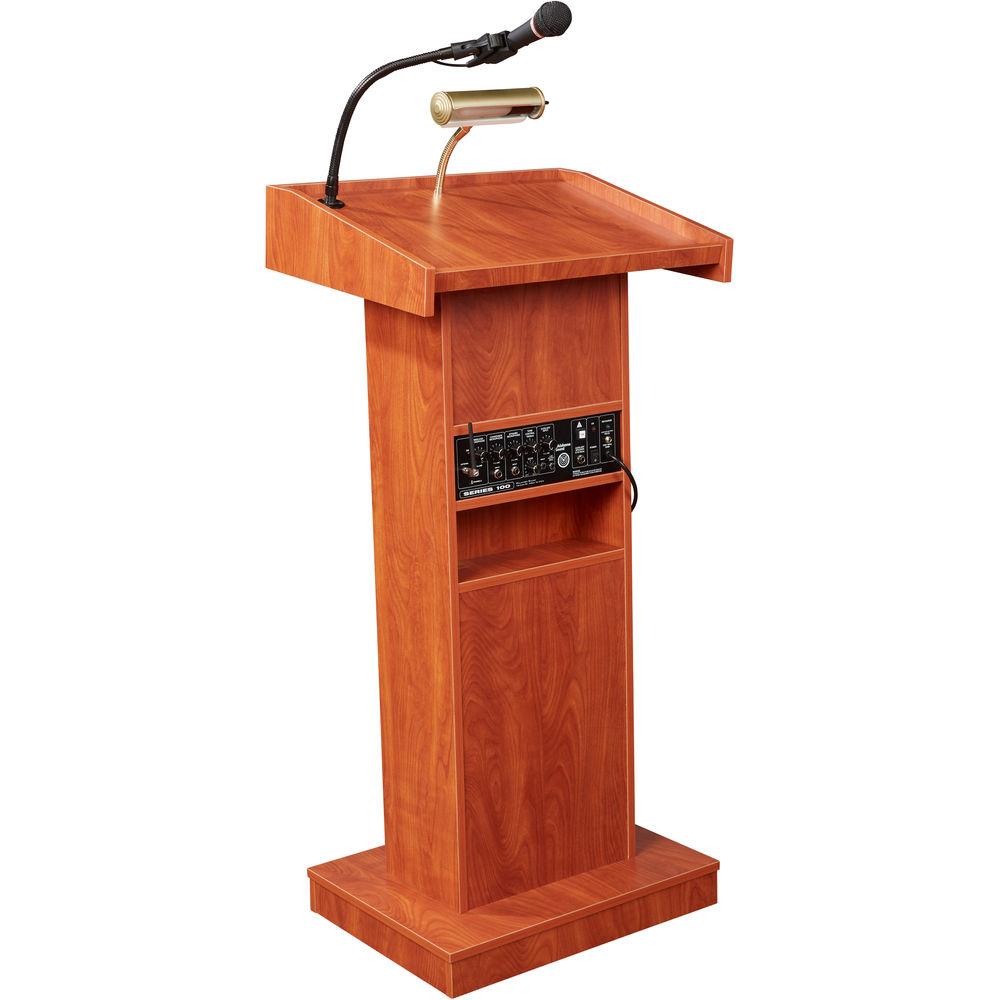

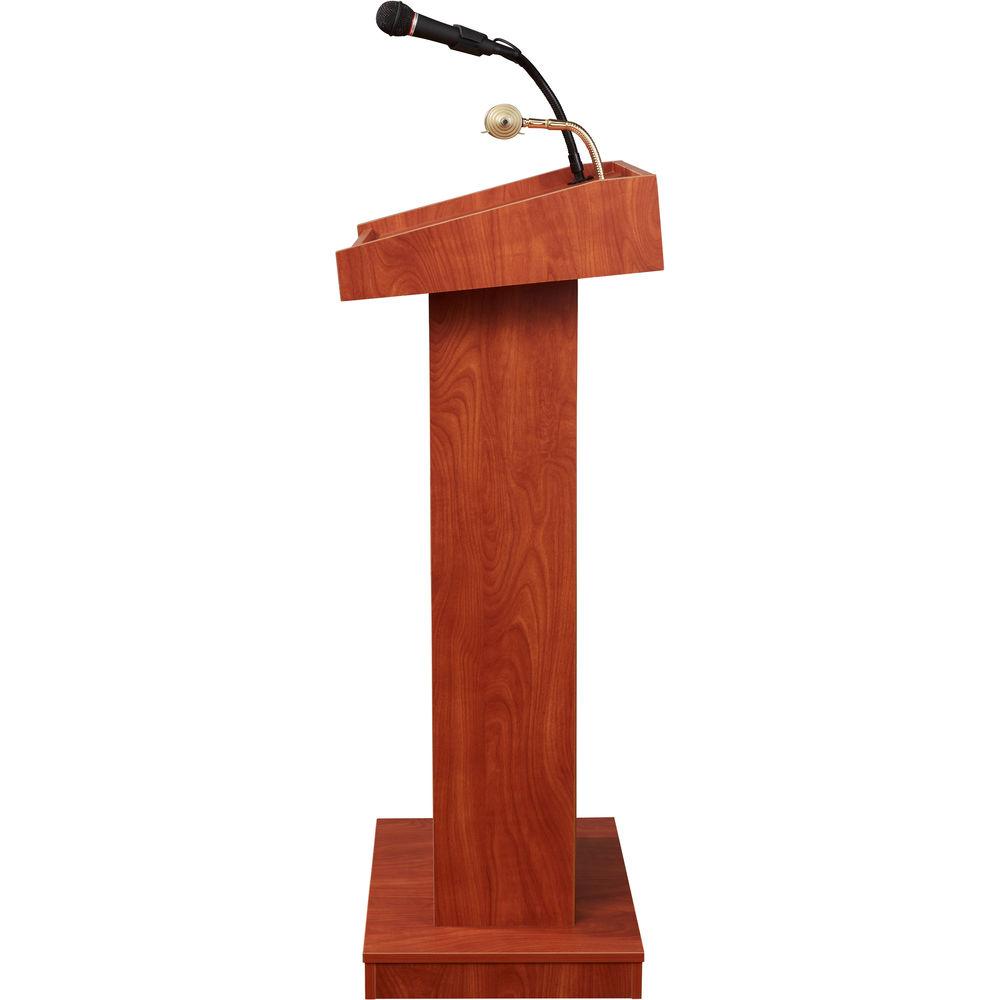

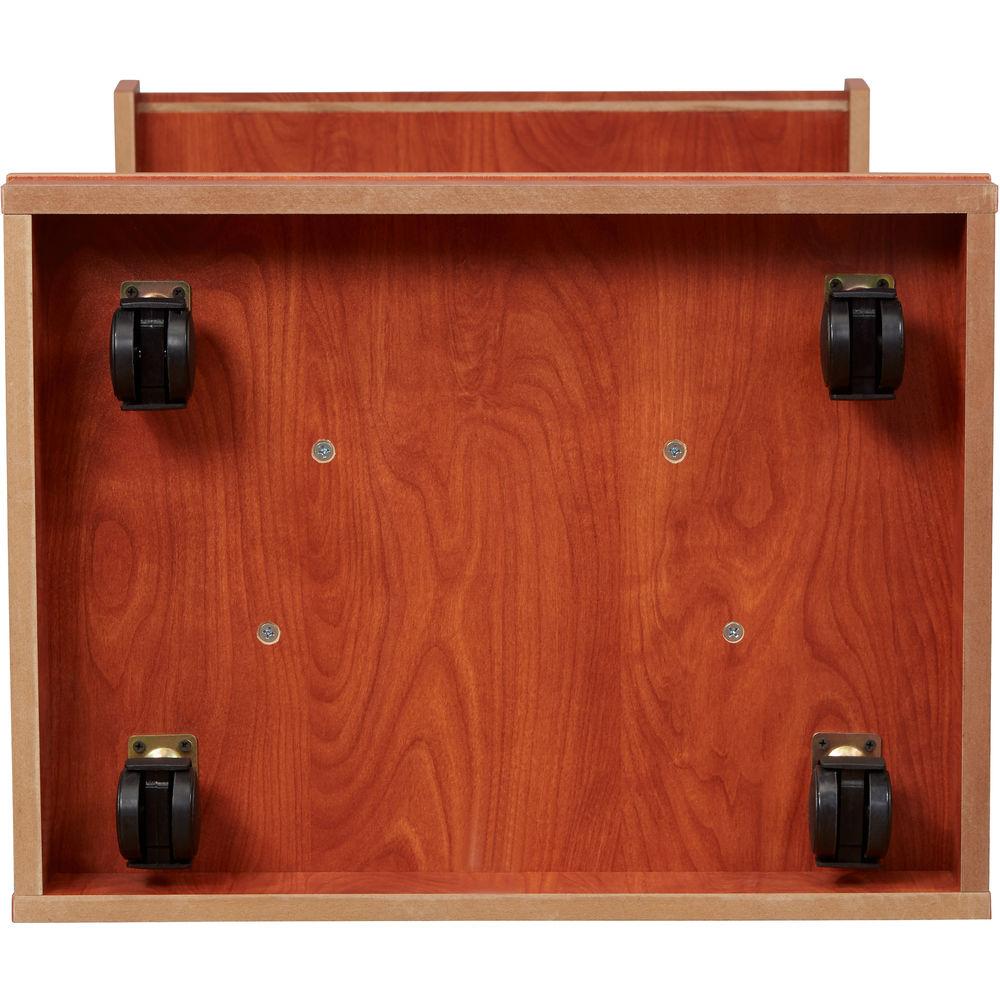

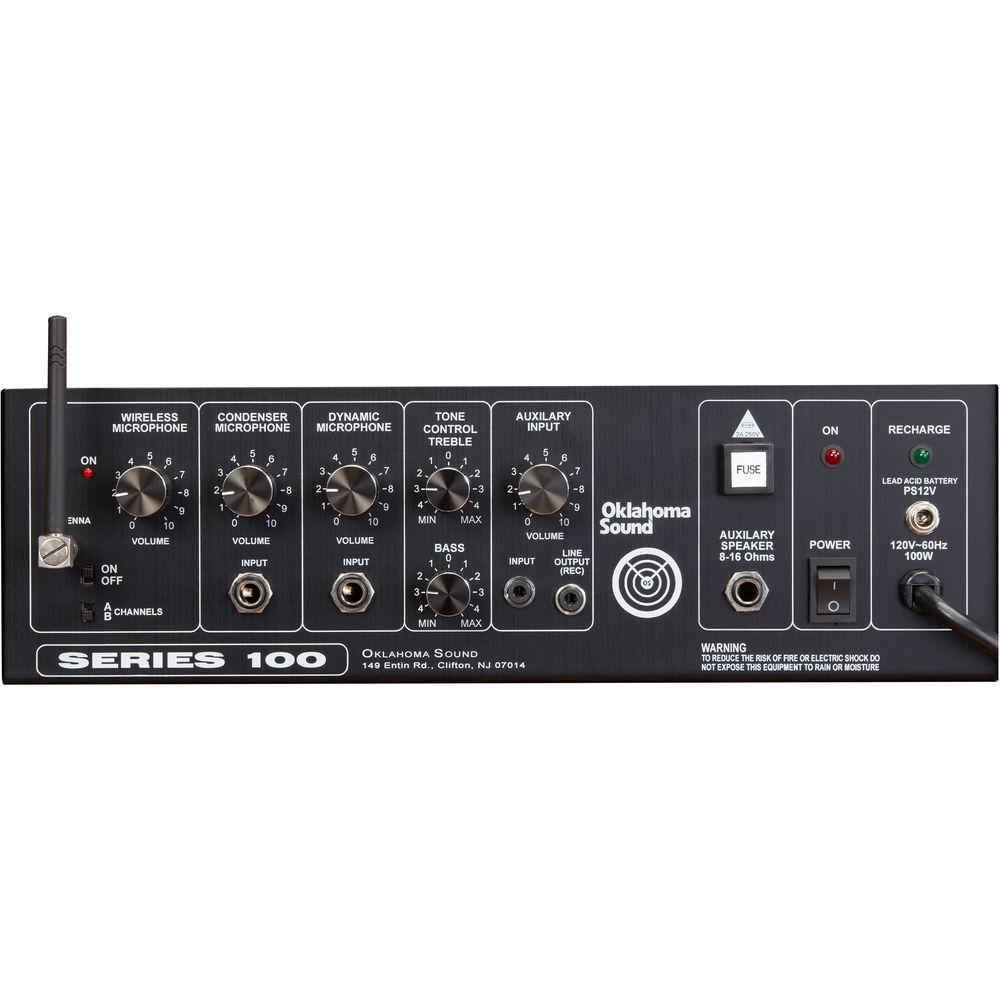

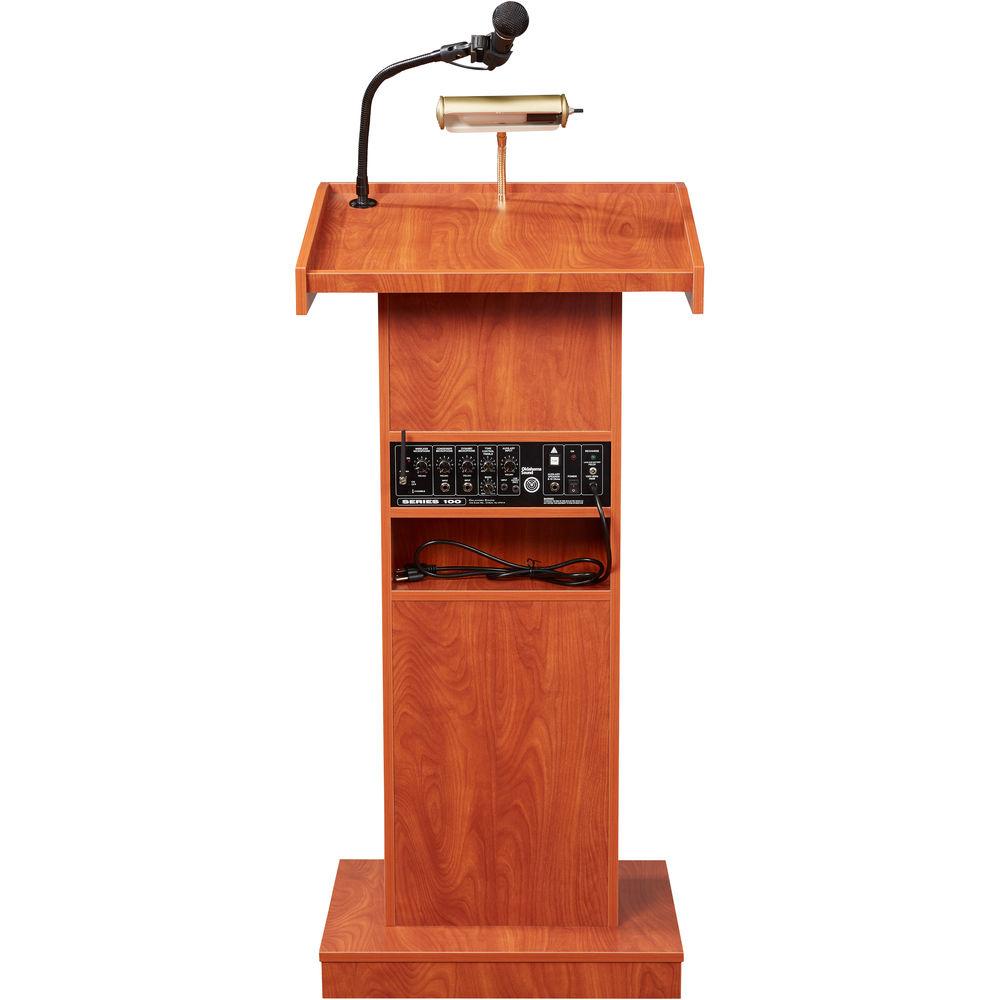

The The Orator Lectern with Sound System and Wireless Handheld Microphone from Oklahoma Sound features a fixed height with wild cherry laminate finish, 40 watt amplifier, and three microphones - two handheld and one lavalier. One handheld is wired while the other is wireless. There is a holder for the handheld mic. The lavalier mic can be clipped to your clothing. The amplifier is MP3 compatible through its media aux 1/8" input. This amp is also switchable for wireless handheld mic control on two frequencies.Additionally, there are four built-in 6" speakers, two line outs, and controls for on/off, four volume levels, as well as bass/treble. A digital clock is also provided. One storage shelf is supplied for collateral material and personals. If you purchase Oklahoma's optional 12V DC battery, you can use the internally mounted recharger that features an LED indicator. This battery provides up to 24 hours of power. For mobility, there are four concealed casters. This lectern is made from a high-pressure thermal-fused laminate on an MDF core, and includes minor assembly hardware. UPC: 604747800154 In the Box Oklahoma Sound The Orator Lectern with Sound System and Wireless Handheld Microphone (Wild Cherry Laminate) 40 Watt Amplifier 2 x Handheld Microphones Lavalier Microphone Brass Lamp Assembly Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Oklahoma Sound The Orator Lectern with Sound System and Wireless Handheld Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOklahoma Sound 800X Specs | Construction | High-pressure thermal-fused laminate on an MDF core | | Finish | Wild cherry | | Amplifier | 40 watts
Switchable to wireless mode
MP3 compatible
Media aux 1/8" input | | Fuse | Internally mounted; 2 amps | | Microphone | Two Handheld Condenser Type with 9' (274.3 cm) cords (One Wired, One Wireless)
Tie Clip Lavalier with 10' (304.8 cm) cord | | Speakers | Four 6" (15.2 cm) | | Wireless | Switchable to two frequencies | | Inputs | 2 x mics
1 x aux | | Outputs | Line out 1: Extension speaker
Line out 2: Tape recorder | | Electrical Components | Internally mounted recharger with LED indicator for use with optional 12V DC battery | | Controls | Volume: 4 levels
Bass/treble
On/off | | Adjustments | None | | Shelf | One; 12 x 4" (30.5 x 10.2 cm) | | Casters | Four concealed | | Power Requirements | 117 VAC, 60 Hz | | Dimensions (WxHxD) | 22 x 46 x 17" (56 x 117 x 43 cm) | | Weight | 71 lb (32 kg) | | | | Box Dimensions (LxWxH) | 48.0 x 21.0 x 21.0" |
