User Manual for Olight H16 Wave Rechargeable Headlamp Click to enlarge the picture
Contents of the user manual for the Olight H16 Wave Rechargeable Headlamp
- Product category: Headlamps Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Headlamps
 |
User manual for the Olight H16 Wave Rechargeable Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

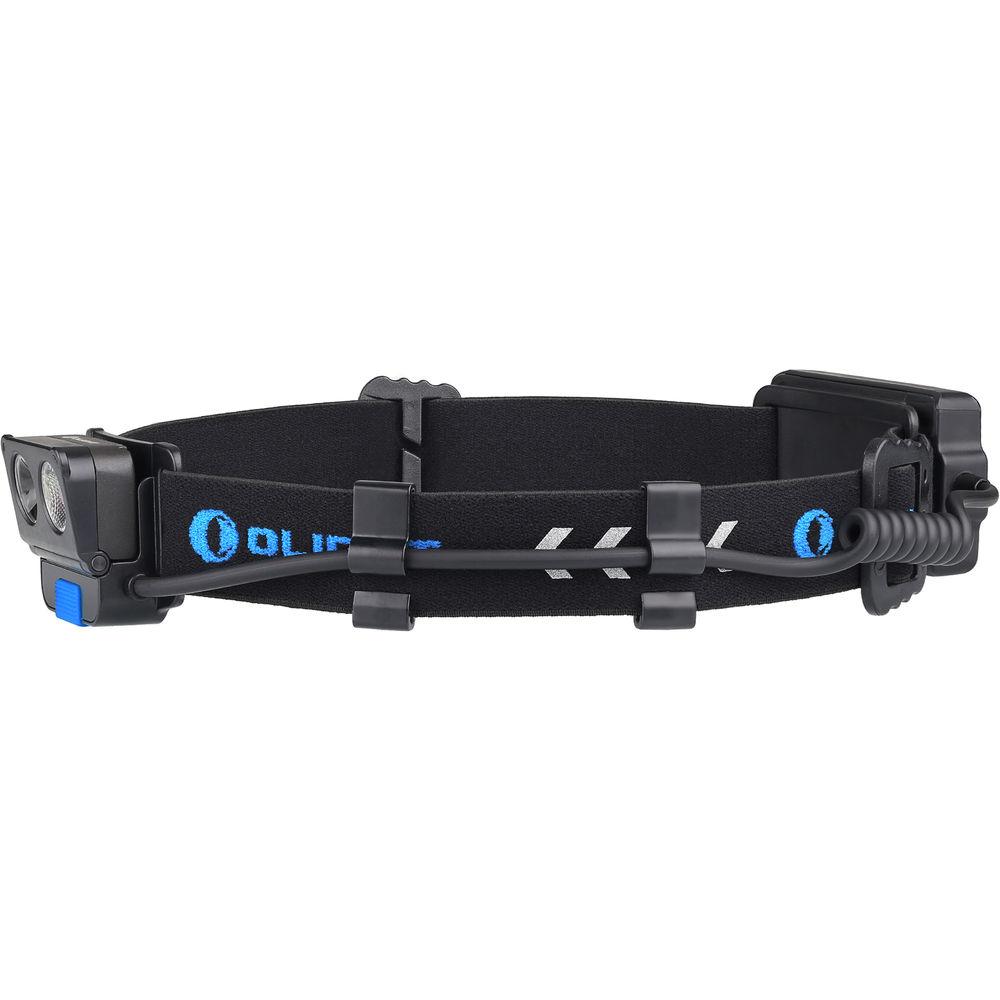

Product description Designed for hands-free lighting, the H16S Wave LED Headlamp from Olight utilizes two Cree XP-G3 LEDs for near and far illumination. There's no fumbling for a switch with this headlamp; it has an infrared sensor, so all you need to do is wave your hand to turn it on or off. There's also a physical push-button switch for on/off and cycling through the 5, 100 and 500-lumen brightness settings. A full charge of the 2000mAh battery pack yields runtimes of 2 hours on high, 9.5 hours on medium and 160 hours on low power.The separate battery pack distributes the 4.2-ounce weight of the headlamp evenly on your head for comfort. The light can be tilted up to 45 degrees in three pre-set positions, to put the beam exactly where you need it. The dual-LED design assures bright light up close for manual tasks and a wide beam for longer-range illumination. The H16 is IPX4-rated for water-resistance and drop-resistant to 3.3 feet. - Performance
-
- Low: 5 lumens
- Medium: 100 lumens
- High: 500 lumens

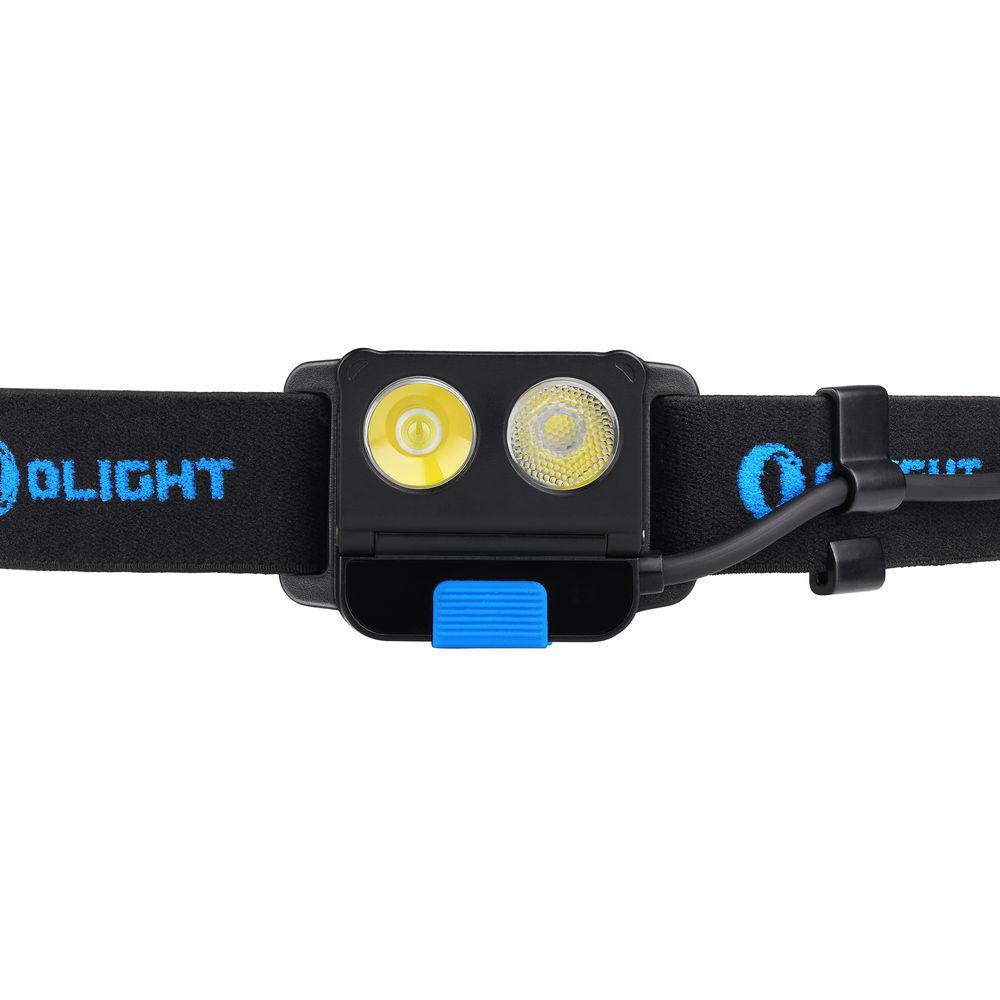

- Dual Cree XP-G3 white LEDs
- Switching
-
- Infrared sensor: When activated, wave hand in front of light to turn on and off
- Physical switch: Push-button
- Location: Bottom of light
- Constant-on activation only
- Construction
-

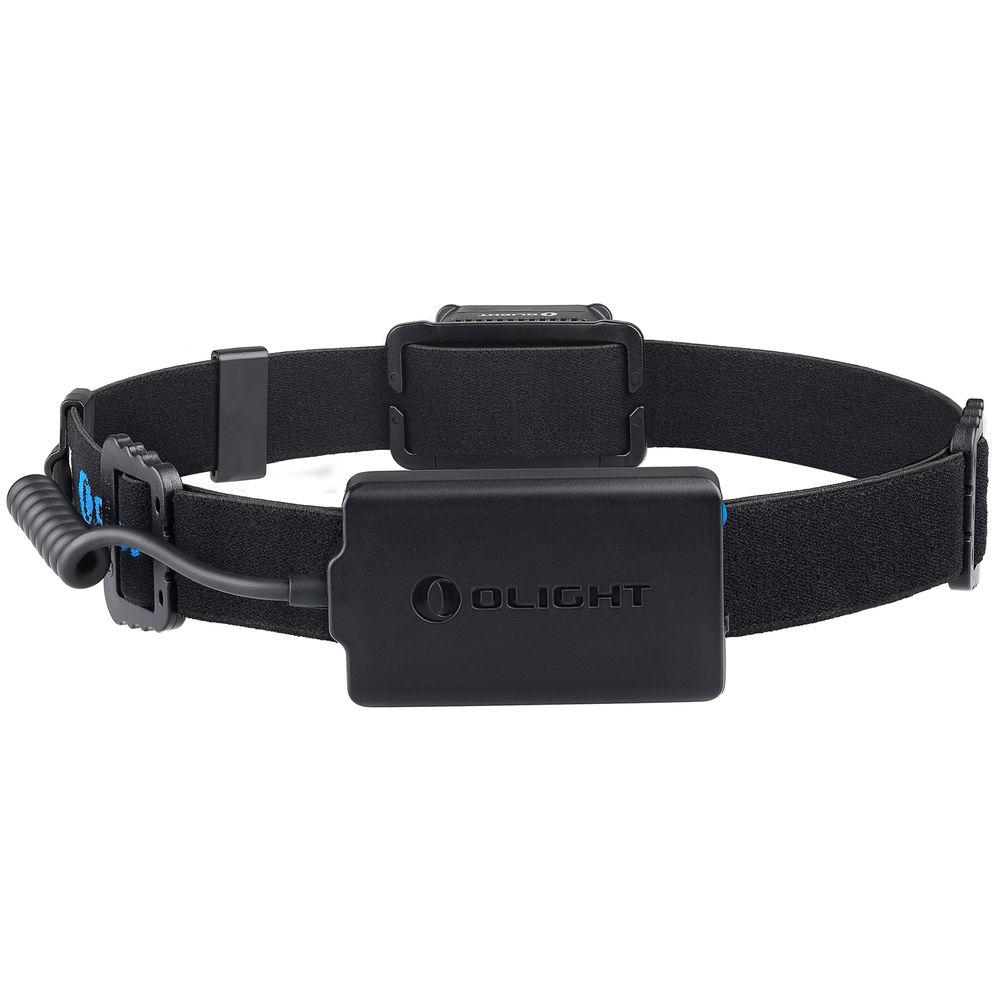

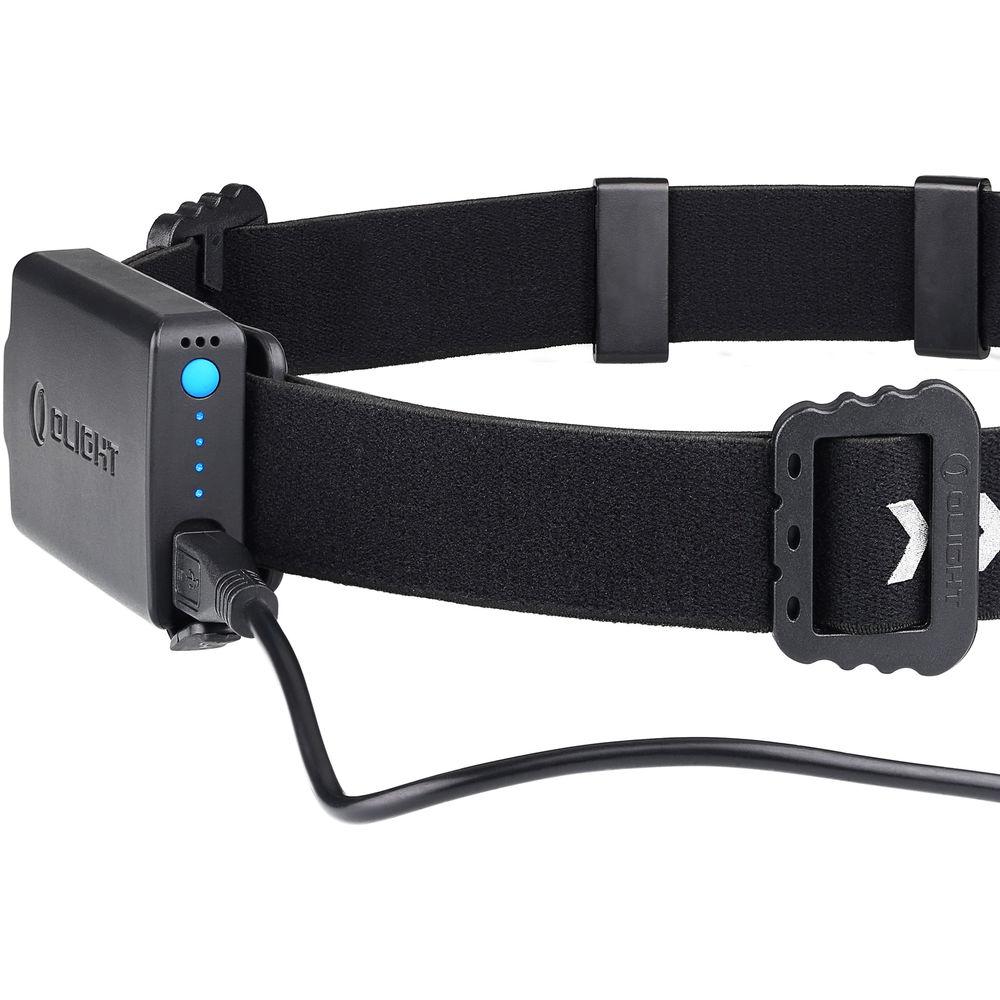

- Rear-mounted rechargeable power pack
- 2000mAh capacity

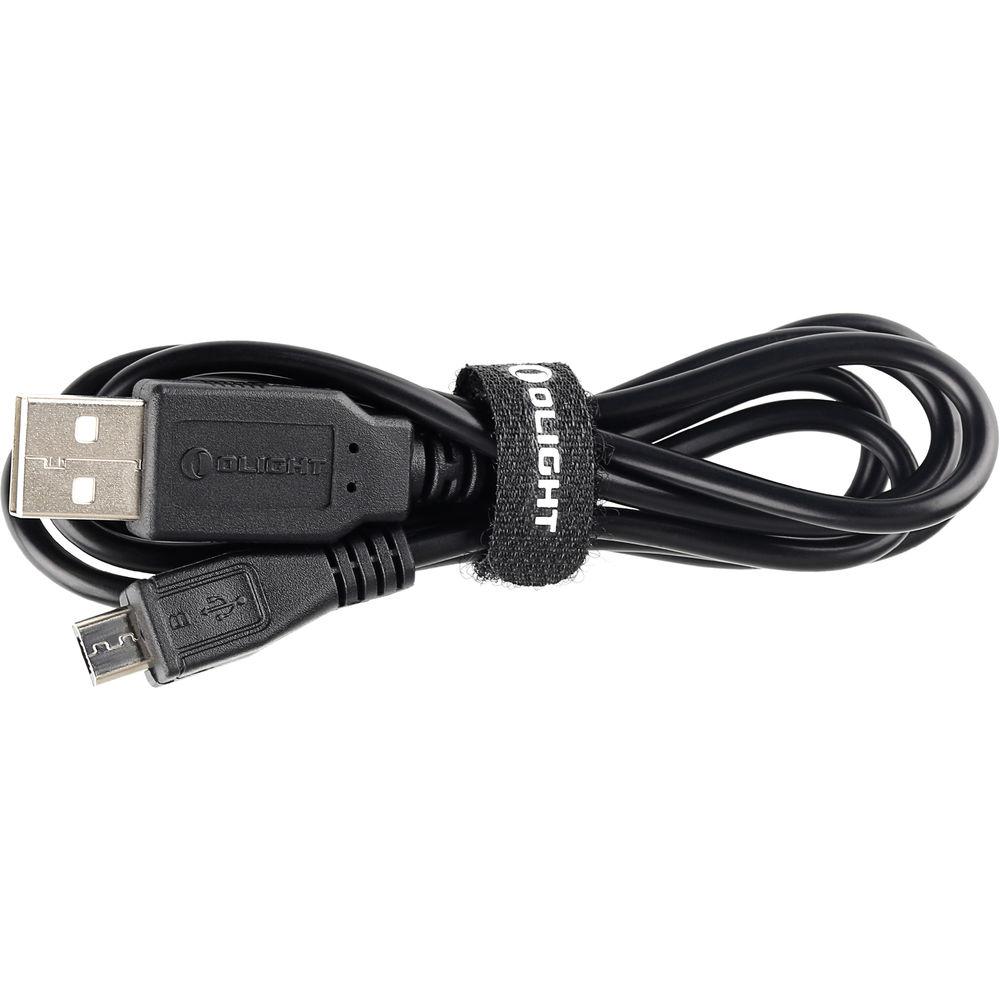

- Micro-USB charging cable
- Maximum runtime 160 hours
- Head tilts 45° for precise beam placement
- Reflective stripes on headband
- IPX4-rated, water-resistant
In the Box Olight H16 Wave Rechargeable Headlamp Head Band Lithium Battery Pack (3.7V, 2000mAh) Micro-USB Charging Cable Replacement Cable Clip Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight H16 Wave Rechargeable Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight H16 Specs | | | Lumen Output | High: 500 Lumens
Medium: 100 Lumens
Low: 5 Lumens | | Illumination Source | 2 x LED | | Estimated Runtime | High: 2 Hours
Medium: 9.5 Hours
Low: 160 Hours | | Battery Type | 1 x Built-In | | Internal Battery Capacity | 2000 mAh | | Output Voltage | 3.7 VDC | | | | Water Resistance | Water Resistant, IPX4 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.3 x H: 1.5 x D: 0.9" / W: 5.8 x H: 3.8 x D: 2.4 cm
W: 2.8 x H: 1.7 x D: 0.8" / W: 7.1 x H: 4.2 x D: 1.9 cm (Battery Pack) | | Weight | 4.2 oz / 120 g | | | | Package Weight | 0.47 lb | | Box Dimensions (LxWxH) | 8.0 x 2.3 x 2.0" |
