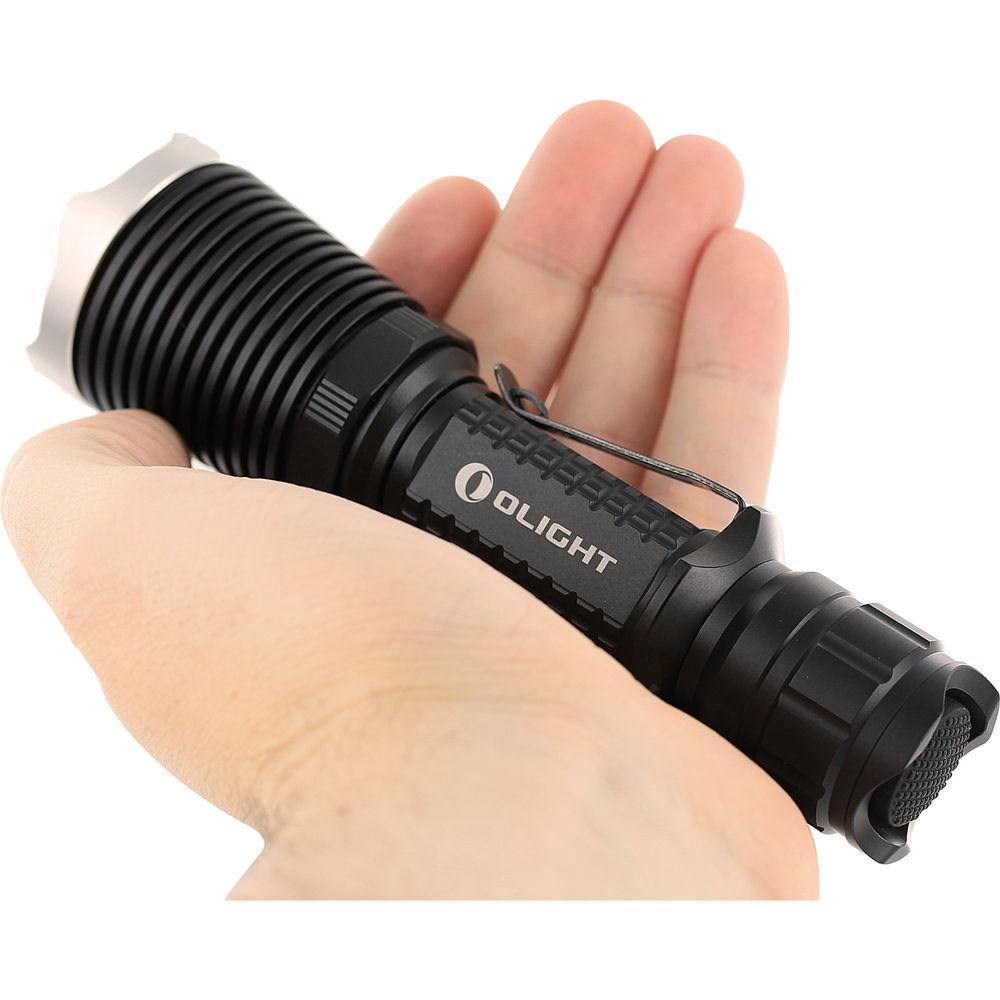

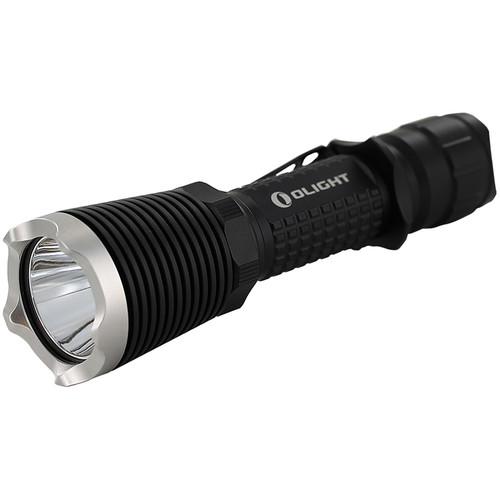

Product description Olight developed their M23 Javelot Black Bezel LED Flashlight for tactical professionals who require a compact yet powerful EDC illumination tool. Its CREE XP-L LED produces outputs from a low 20-lumen to a darkness-piercing 1020 lumen high. The low output is ideal for performing tasks such as reading, while the high output allows for lighting and searching large areas. Because of the heat generated from the high output, thermal regulation circuitry automatically steps down the output from 1020 to 600 lumens after five minutes to protect the light from heat damage. Complimenting the outputs is a disorientating strobe mode. All outputs are controlled from a single pushbutton tailcap switch for simple activation with momentary and constant-on modes available.Built to withstand the rigors of daily duty, the M23 features a lightweight and durable aluminum alloy housing with a corrosion and scratch-resistant Type III hard anodized finish. The emitter window is made of scratch and impact-resistant tempered glass with anti-reflection coatings on both sides to maximize light transmission. Protecting the window and bezel is a black anodized stainless steel retainer ring. The housing is impact-resistant to 5' and O-ring sealed to provide an IPX8 rating, making it waterproof and submersible to a depth of 6.6'. A removable handle ring can be mounted to help facilitate various tactical light/pistol grip techniques. The M23 can run on one user-supplied 18650 rechargeable or two CR123A disposable batteries. - Performance
-
- Low: 21 lumen
- Med: 350 lumen
- High: 1020 lumen
- One CREE XP-L LED emitter
- Disorientating strobe mode
- After 5 minutes on High, output slowly ramps down to 600 lumen - 60% power
- Switching
-
- Location: Tailcap
- Type: Two-stage pushbutton
- Momentary and constant-on activation
- Shrouded tailcap prevents accidental activation
- Multi-function switch: One switch provides access to all outputs and modes
- Construction
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant Type III hard anodized finish
- Black anodized stainless steel retainer ring protects bezel and window from drops and impacts
- Anti-reflection coated, scratch and impact-resistant tempered glass window
- Machined heat-dissipating fins on head for passive over-heat protection
- IPX8-rated, submersible to 6.6'
- Impact resistant to 5'
- Deeply textured slip-resistant grenade-grip handle
- Removable tactical ring to facilitate multiple pistol/flashlight grip techniques
- Tail-stand capability
- Electronics
-
- Reverse polarity protection to prevents improper battery installation
- Thermal management circuitry automatically steps down output to prevent heat damage
- Runs on one user-supplied 18650 rechargeable or two CR123A disposable batteries

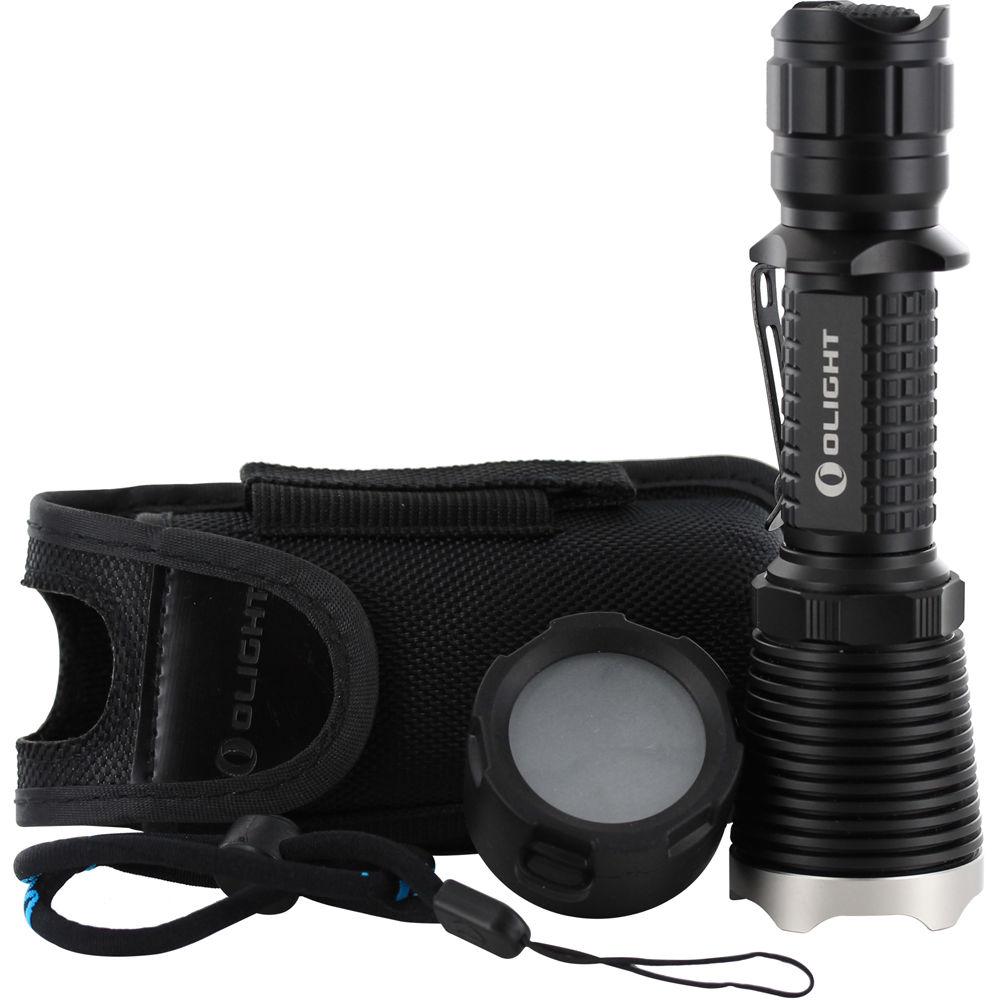

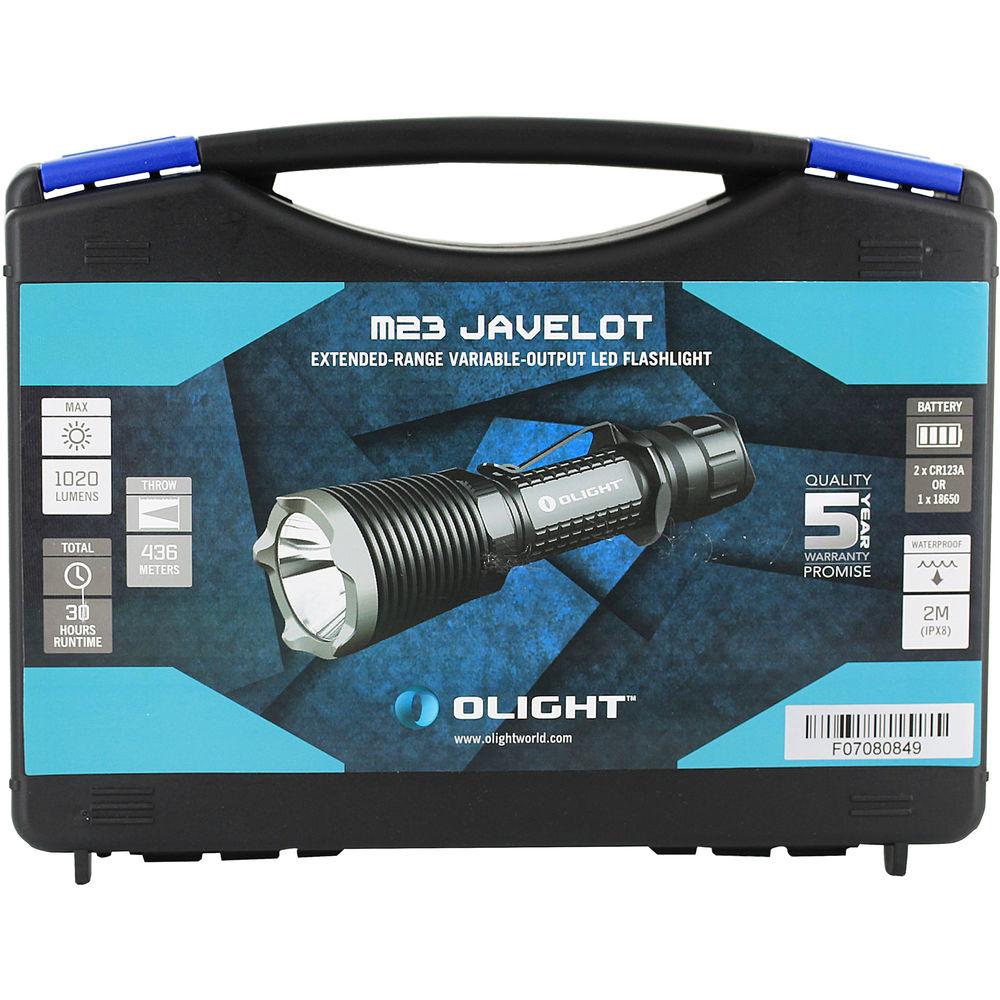

In the Box Olight M23 Javelot Black Bezel LED Flashlight Lanyard Holster Diffuser Tactical Ring Removable Pocket Clip 2 x Spare O-Rings Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight M23 Javelot Black Bezel LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight M23 Specs | | | Lumen Output | High: 1020 Lumens
Medium: 350 Lumens
Low: 21 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1 Hour
Medium: 2 Hours
Low: 30 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions | L: 5.7" / L: 14.5 cm | | Weight | 5.4 oz / 152.0 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 9.1 x 6.4 x 2.0" |
