User Manual for Olight M23 Javelot Kit LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight M23 Javelot Kit LED Flashlight
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight M23 Javelot Kit LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

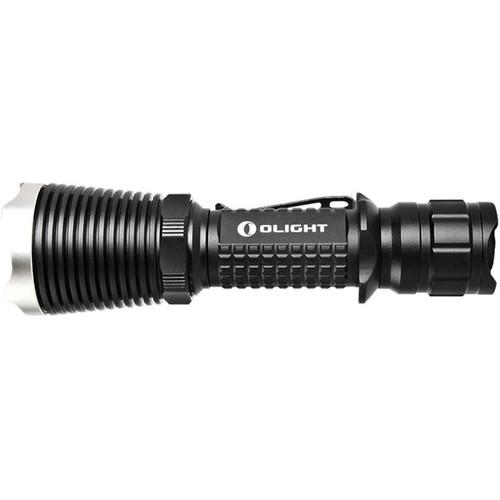

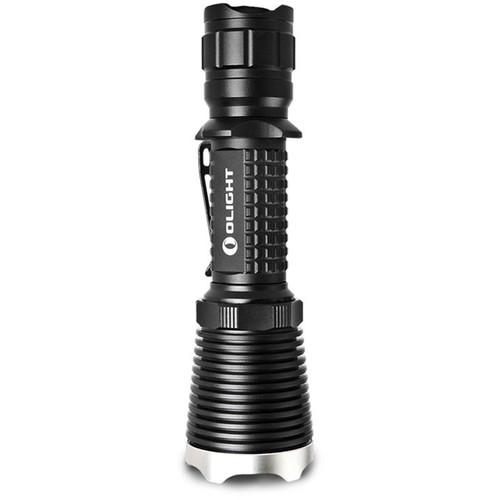

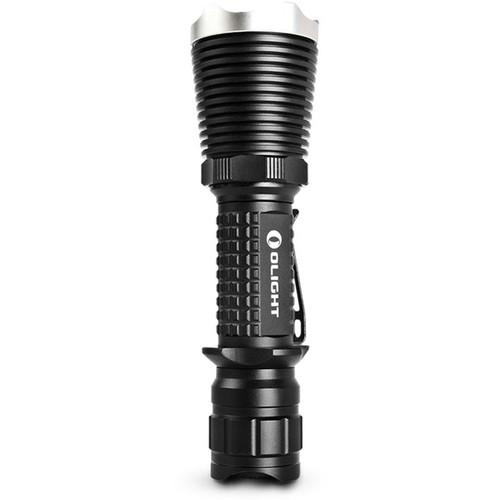

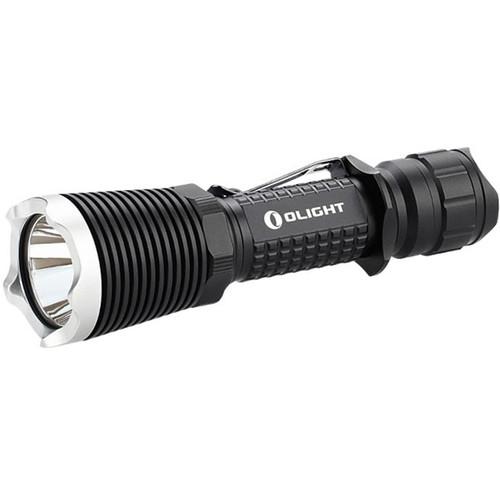

Product description Olight developed their M23 Javelot Kit LED Flashlight for tactical professionals who require a compact yet powerful EDC illumination tool. Its CREE XP-L LED produces outputs from a low 20-lumen to a darkness-piercing 1020 lumen high. The low output is ideal for performing tasks such as reading, while the high output allows for lighting and searching large areas. Because of the heat generated from the high output, thermal regulation circuitry automatically steps down the output from 1020 to 600 lumens after five minutes to protect the light from heat damage. Complimenting the outputs is a disorientating strobe mode. All outputs are controlled from a single pushbutton tailcap switch for simple activation with momentary and constant-on modes available.Built to withstand the rigors of daily duty, the M23 features a lightweight and durable aluminum alloy housing with a corrosion and scratch-resistant Type III hard anodized finish. The emitter window is made of scratch and impact-resistant tempered glass with anti-reflection coatings on both sides to maximize light transmission. Protecting the window and bezel is a stainless steel retainer ring. The housing is impact-resistant to 5' and O-ring sealed to provide an IPX8 rating, making it waterproof and submersible to a depth of 6.6'. A removable handle ring can be mounted to help facilitate various tactical light/pistol grip techniques. To assist users in maintaining a 100% duty cycle, Olight includes with this version of the M23 two 18650 rechargeable batteries and the Omni-Dok Battery Charger. Including two batteries and a charger allows one battery to be in the light and another charging so there is very little down-time. - Performance
-
- Low: 21 lumen
- Med: 350 lumen
- High: 1020 lumen
- One CREE XP-L LED emitter
- Disorientating strobe mode
- After 5 minutes on High, output slowly ramps down to 600 lumen - 60% power
- Switching
-
- Location: Tailcap
- Type: Two-stage pushbutton
- Momentary and constant-on activation
- Shrouded tailcap prevents accidental activation
- Multi-function switch: One switch provides access to all outputs and modes
- Construction
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant Type III hard anodized finish
- Stainless steel retainer ring protects bezel and window from drops and impacts
- Anti-reflection coated, scratch and impact-resistant tempered glass window
- Machined heat-dissipating fins on head for passive over-heat protection
- IPX8-rated, submersible to 6.6'
- Impact resistant to 5'
- Deeply textured slip-resistant grenade-grip handle
- Removable tactical ring to facilitate multiple pistol/flashlight grip techniques
- Tail-stand capability
- Electronics
-
- Reverse polarity protection to prevents improper battery installation
- Thermal management circuitry automatically steps down output to prevent heat damage
- Runs on one 18650 rechargeable or four CR123A disposable batteries
- Includes two 18650 rechargeable batteries and the Omni-Dok battery charger

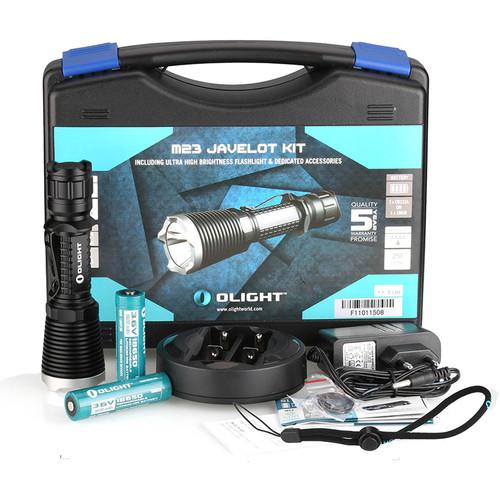

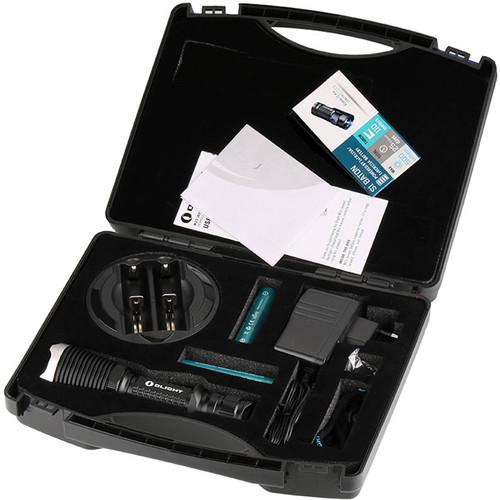

In the Box Olight M23 Javelot Kit LED Flashlight Lanyard Holster Diffuser Tactical Ring Removable Pocket Clip 2 x Spare O-Rings 2 x 18650 Rechargable Battery Omni-Dok Universal Battery Charger Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight M23 Javelot Kit LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight M23 Specs | | | Lumen Output | High: 1020 Lumens
Medium: 350 Lumens
Low: 21 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1 Hour
Medium: 2 Hours
Low: 30 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions | L: 5.7" / L: 14.5 cm | | Weight | 5.4 oz / 152.0 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.8 x 7.8 x 2.7" |
