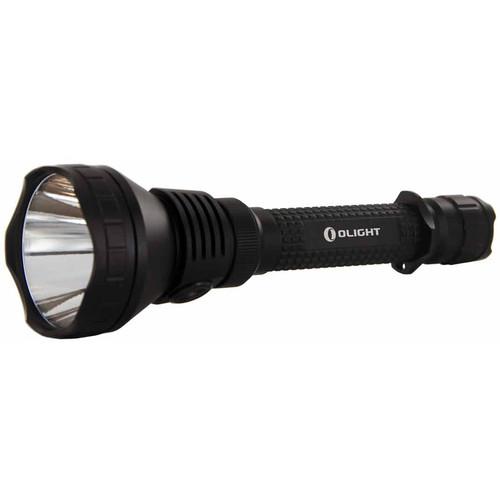

User Manual for Olight M3XS-UT Javelot LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight M3XS-UT Javelot LED Flashlight
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
|
User manual for the Olight M3XS-UT Javelot LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|
Product description The M3XS-UT Javelot LED Flashlight from Olight is an extended-range, variable output flashlight featuring a CREE XP-L LED to provide a maximum output of 1200 lumens. Five brightness settings are available, including an ultra-low moonlight and disorientating strobe modes. The durable aluminum alloy housing features a MIL-STD Type III anodized finish and is impact-resistant and IPX8-rated. The dual-switch design, with one side switch and one tailcap switch, permits easy access to momentary and constant-on activation, and output and mode selection including instant access to Moonlight and strobe modes and the 1200-lumen turbo output. While the light normally runs on three user-supplied CR123A batteries, this kit comes with a battery extender tube that allows it to accept four CR123A or two 18650 batteries. - Performance
-
- Minimum (Moonlight): 3 lumens
- Low: 80 lumens
- Med: 600 lumens
- High: 720 lumens
- Turbo: 1200 lumens
- High-intensity CREE XP-L LED
- Disorientating 1200-lumen strobe, flashes at 10 Hz
- Switching
-
- Type: Pushbutton
- Location: Side and tailcap switches
- Tailcap switch controls On/Off; Side switch controls output and mode selection
- Momentary and constant-on activation
- Runtime of up to 360 hours at minimum brightness setting
- Instant access to turbo (double-click tailcap), strobe (triple-click tailcap), moonlight (press and hold side switch to turn on at 3 lumens)
- Last mode memory switch automatically returns to last selected output when turned on
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant MIL-STD Type III hard-anodized finish
- IPX8-rated waterproof and submersible to 6.6'
- Impact-resistant to 3.3'
- Slip-resistant "Grenade" grip handle
- Milled heat-dissipating fins on head help cool the light to avoid overheating
- Runs on three user-supplied CR123A batteries
- Included extender tube allows light to run on four user-supplied CR123A or two 18650 batteries to increase runtime
In the Box Olight M3XS-UT Javelot LED Flashlight Holster Battery Magazine Battery Extender Tube 2 x Spare O-Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight M3XS-UT Javelot LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight M3XS-UT JAVELOT Specs | | | Lumen Output | High: 720 Lumens
Medium: 600 Lumens
Low: 80 Lumens
Turbo: 1200 Lumens
Strobe: 1200 Lumens
Minimum: 3 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 0.9 Hour
Medium: 1.5 Hours
Low: 12 Hours
Minimum: 360 Hours
Turbo: 0.1 Hour | | Battery Type | 3 x CR123A or
2 x 18650 or
4 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 2.5" / 6.3 cm | | Dimensions |
