User Manual for Olight Omni-Dok Universal Battery Charger Click to enlarge the picture
Contents of the user manual for the Olight Omni-Dok Universal Battery Charger
- Product category: Universal Batteries & Chargers Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Universal Batteries & Chargers
 |
User manual for the Olight Omni-Dok Universal Battery Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

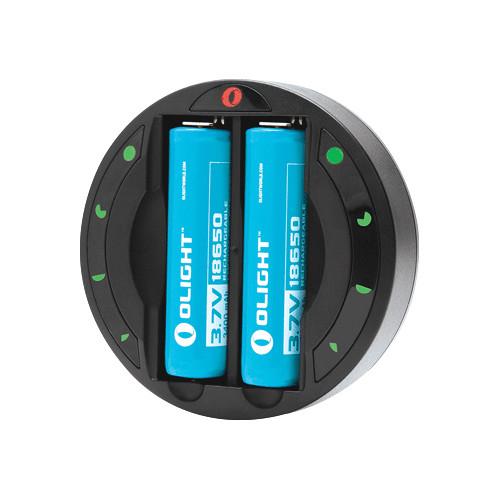

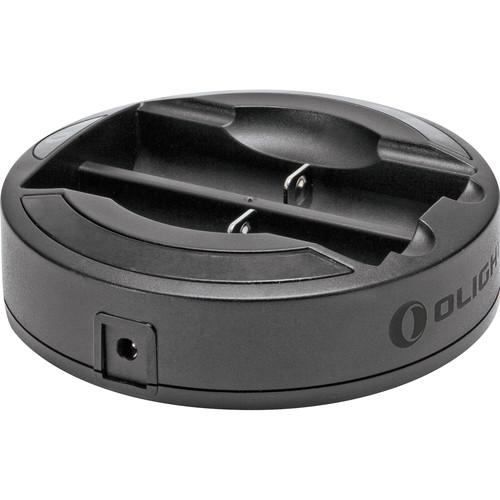

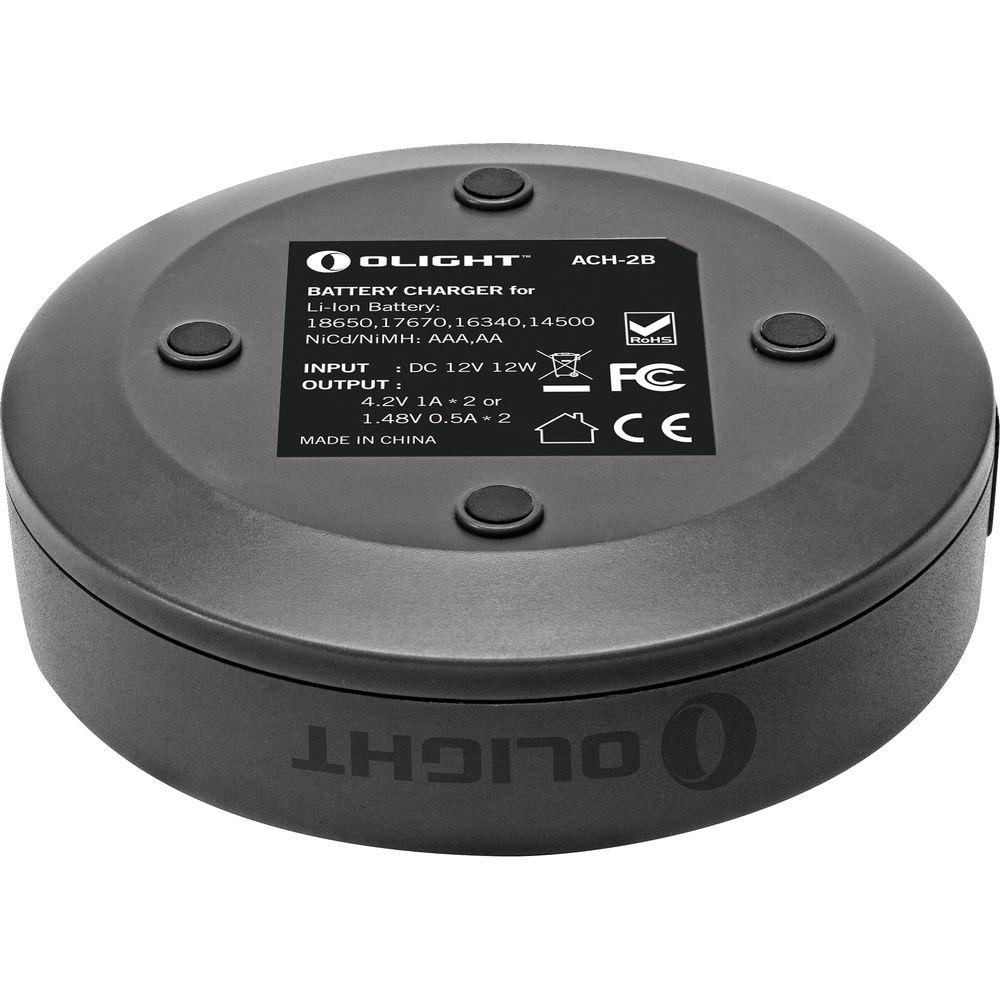

Product description Capable of charging a variety of common battery types simultaneously, the Omni-Dok Universal Battery Charger from Olight is an intelligent two-bay charging system that accepts different battery sizes from AAA to 18650, as well as lithium-ion, NiCad, and NiMH chemistries. Each of the charging bays features its own charge status indicator and overcharge protection automatically halts charging once a cell is fully charged. Additionally, the charger will automatically shut off after 8 hours of use and will not begin charging if a cell has been installed improperly, if it is not a supported battery type, or if there is a short between positive and negative ports. Designed for efficiency and the ability to seamlessly charge a variety of batteries at once, the Omni-Dok is a versatile accompaniment for small electronics, cameras, and flashlights. - Battery Compatibility
-
- Lithium-ion with 3.6V or 3.7V nominal voltage: 18650, 17670, 16340, RCR123, 14500 (100mA, 4.2V each channel)
- Nickel-cadmium and nickel-metal hydride: AA, AAA (500mA, 1.47V each channel)
- Omni-Dok Features
-
- Intelligent two-bay charger for simultaneously charging multiple battery types common to smaller electronics, cameras, remotes, and flashlights
- Independent power status indicators display the charge level of each battery, with LEDs showing 25%, 50%, 75%, and 100% values
- Automatic shutoff after 8 hours conserves energy consumption without having to unplug the charger
- Overcharge protection automatically stops a bay from charging once the cell has been fully charged
- Power indicators will blink three times and charging will not begin if a battery has been improperly installed, if there is a short between the positive and negative ports, or if attempting to charge an unsupported battery type
- A charge time of approximately 4 hours is needed for an 18650 battery
- Rubber feet at the base prevent the charger from slipping
In the Box Olight Omni-Dok Universal Battery Charger AC Power Adapter Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight Omni-Dok Universal Battery Charger in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight OMNI-DOK Specs | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Charging Bays | 2 x AA, AAA, 14500, 16340, 17670, 18650, RCR123 (16340) | | Charging Voltage | 1.48 VDC
4.2 VDC | | Charging Amperage | 500 to 1000 mA | | DC Input Power | 12 VDC at 1000 mA | | Charger Dimensions | 3.8 x 1.2" / 96.5 x 30.5 mm | | Charger Weight | 3.6 oz / 102 g | | | | Package Weight | 0.52 lb | | Box Dimensions (LxWxH) | 8.0 x 4.05 x 1.3" |
