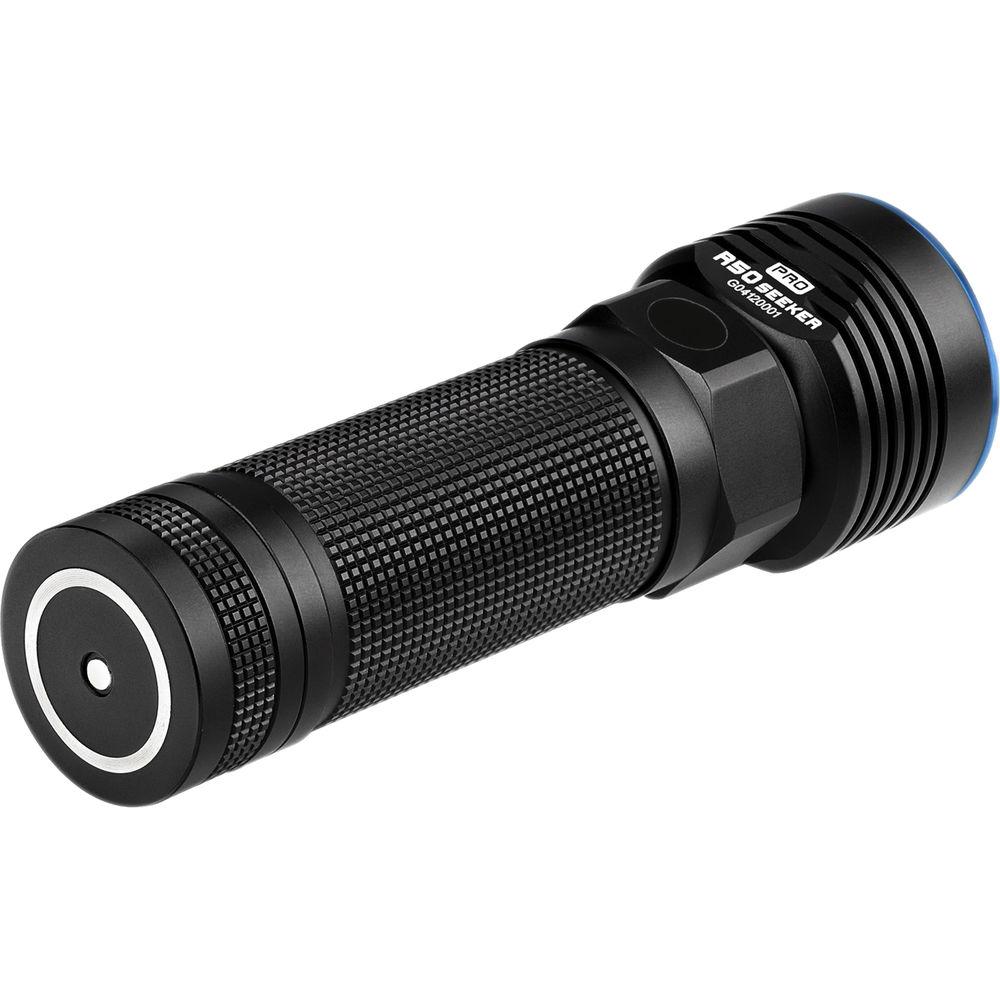

User Manual for Olight R50 Pro Seeker LE Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight R50 Pro Seeker LE Rechargeable
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight R50 Pro Seeker LE Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

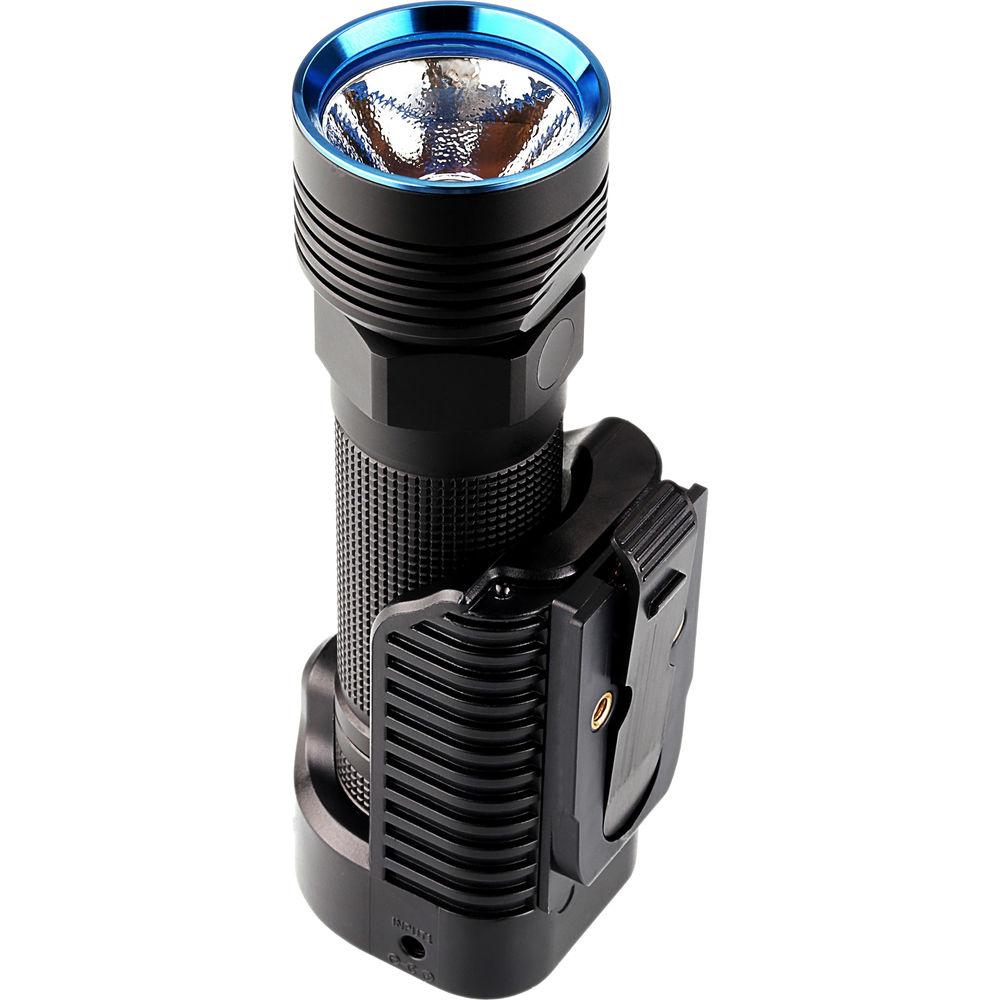

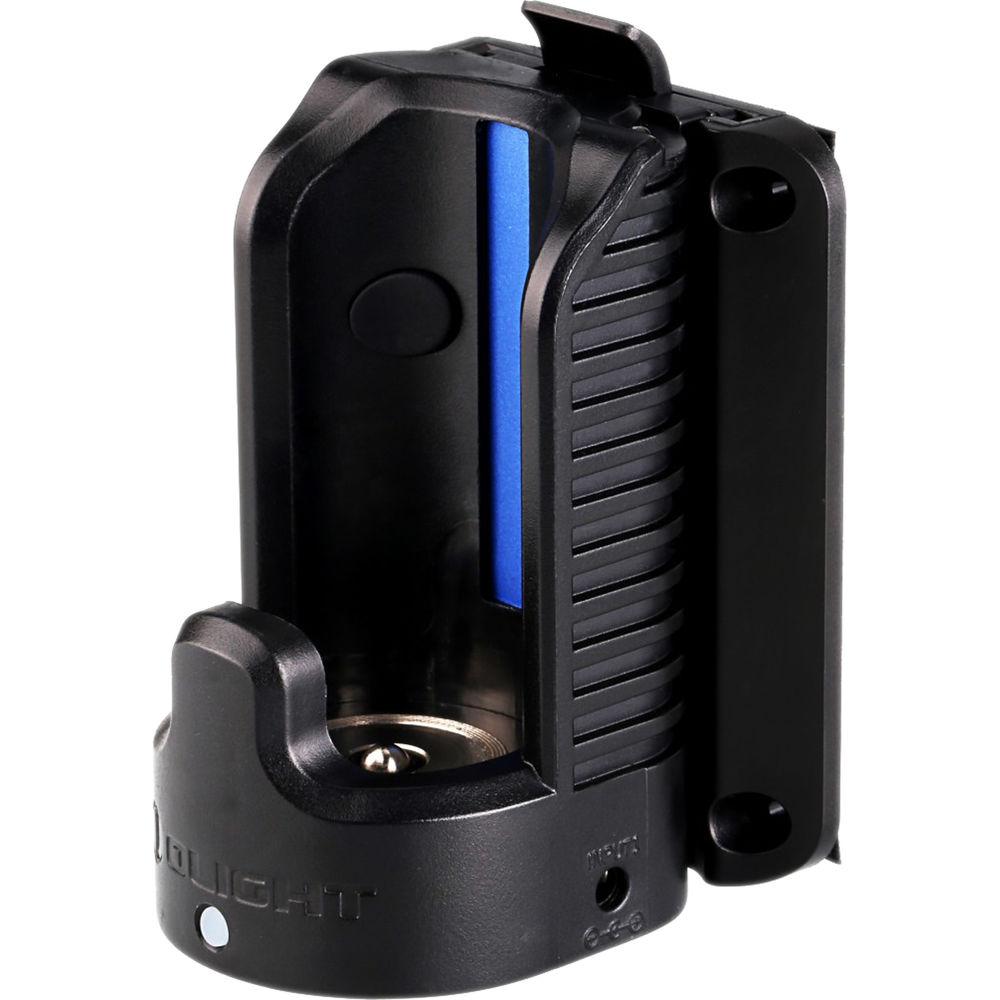

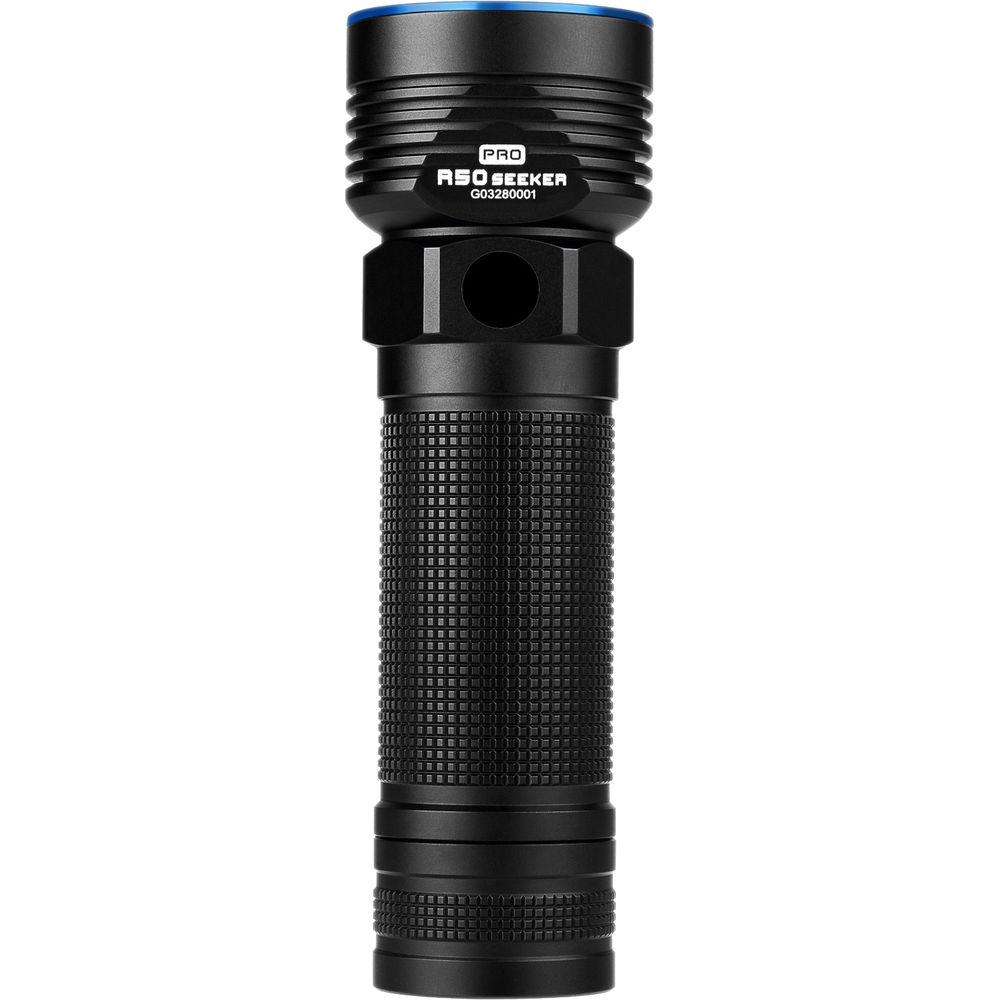

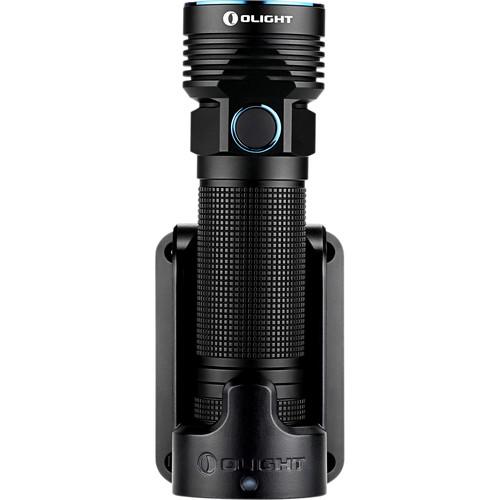

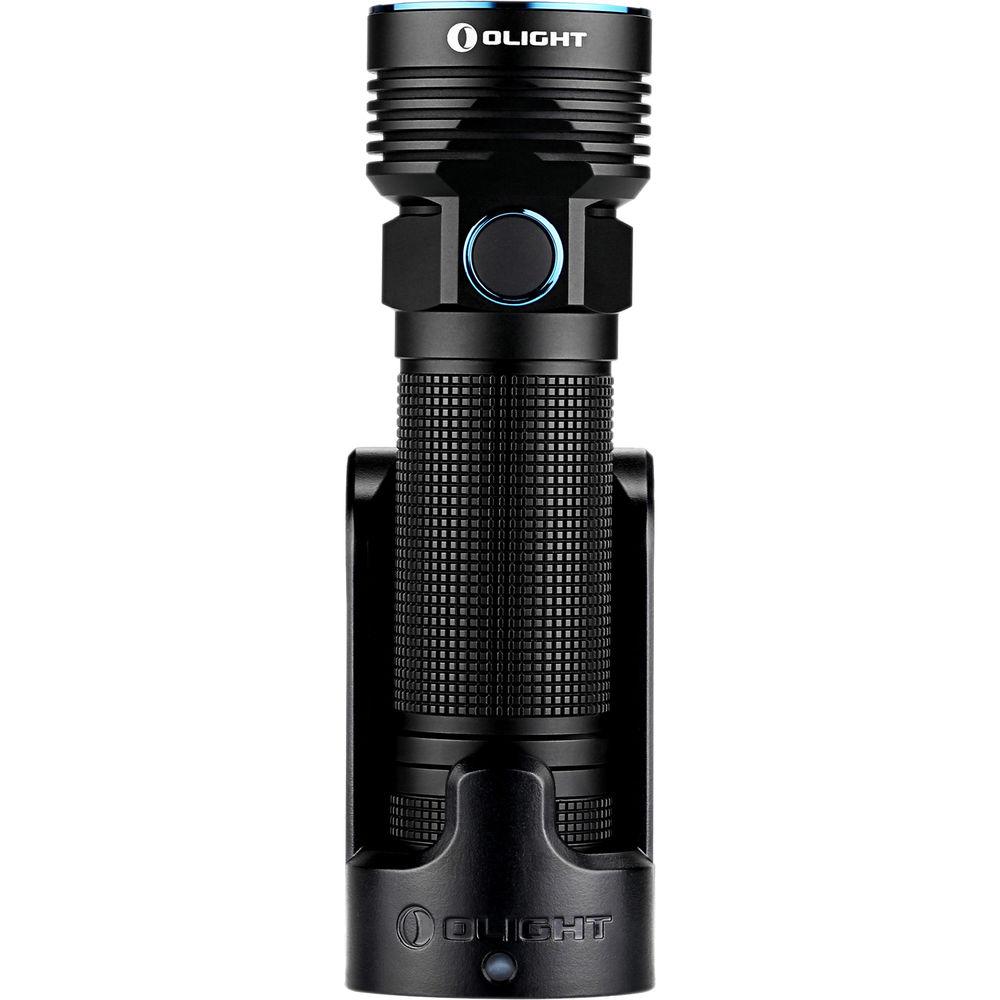

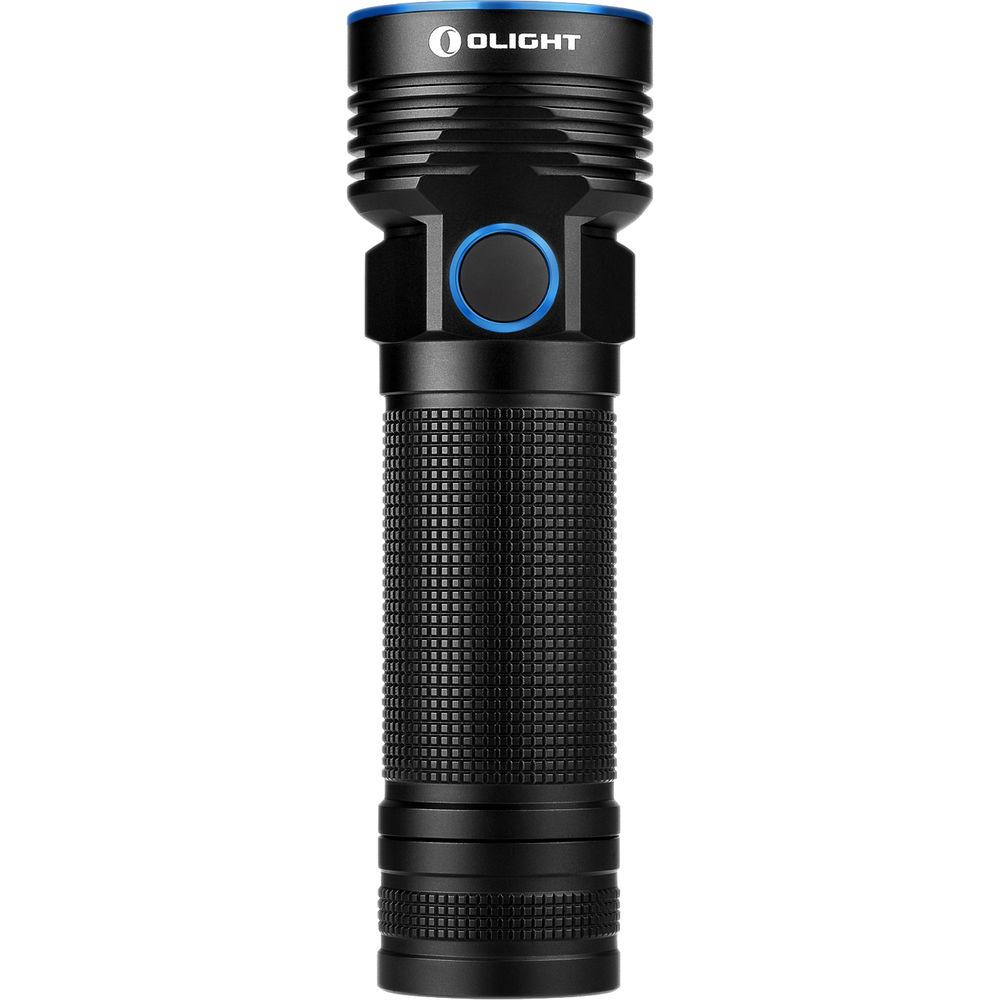

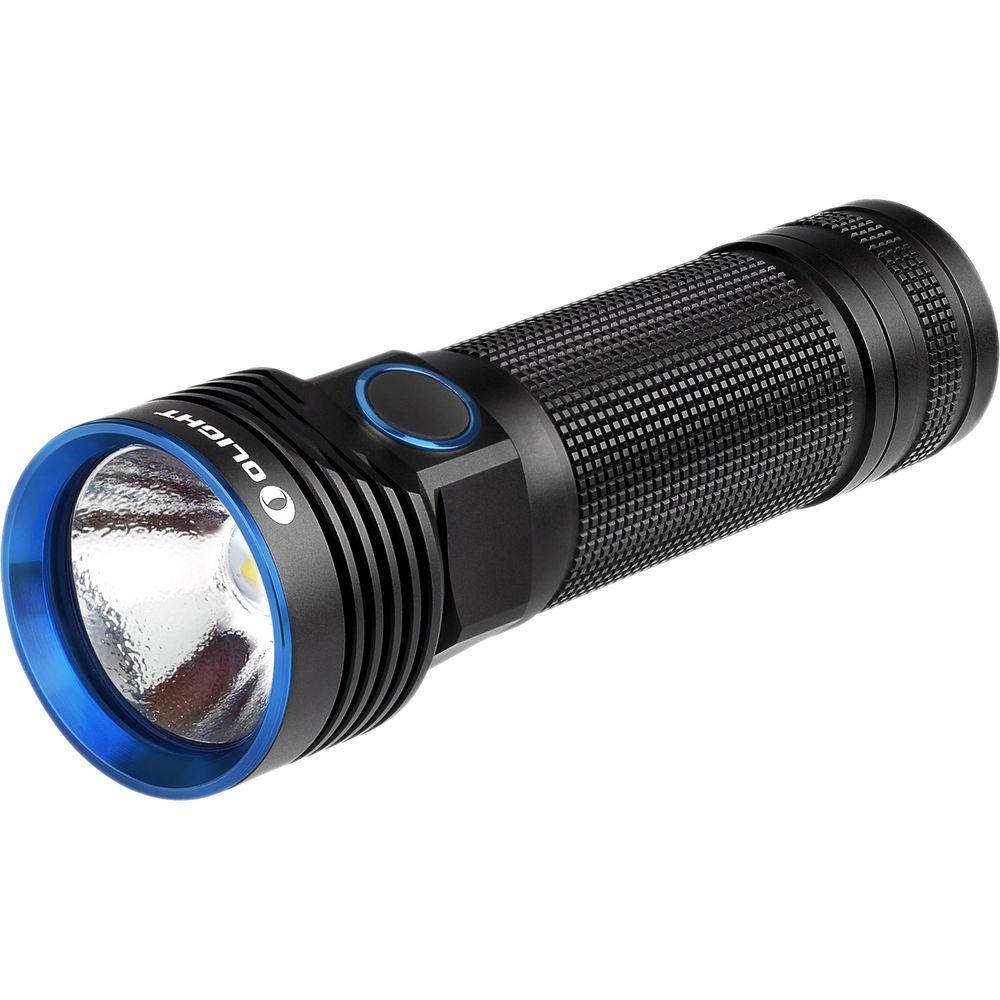

Product description Combining a powerful maximum output with a fast AC/DC charging dock, the R50 Pro Seeker Rechargeable LED Flashlight from Olight is a versatile torch suited for law enforcement, first responder, emergency preparedness, and general home use. Its Cree XHP70 LED can produce a blazing 3200 lumen beam, maximized by an orange-peel reflector paired with a slightly concave, coated lens. The R50 Pro Seeker LE's charging dock can run on AC wall or 12 VDC vehicle power, and can provide an 80% charge in as little as 90 minutes. In the event of a power outage, the R50 in the wall-mounted dock automatically becomes an emergency light that shuts off when the power comes back on. A single push button on the body controls access to all intensities and modes, as well as the lockout function that prevents accidental activation. The switch is also the low-power indicator. Built to withstand the rigors of daily use, the body is made of a lightweight and durable aluminum alloy with a Type III hard anodized finish that is resistant to both scratches and corrosion. The body is gasket and O-ring sealed to provide an IPX8-rating, making it submersible to a depth of almost 7 feet. A textured handle provides a sure and secure grip in cold and wet weather. - Performance
-
- Output:
- Low: 60 lumen
- Med: 400 lumen
- High: 1500 lumen
- Turbo: 3200 lumen

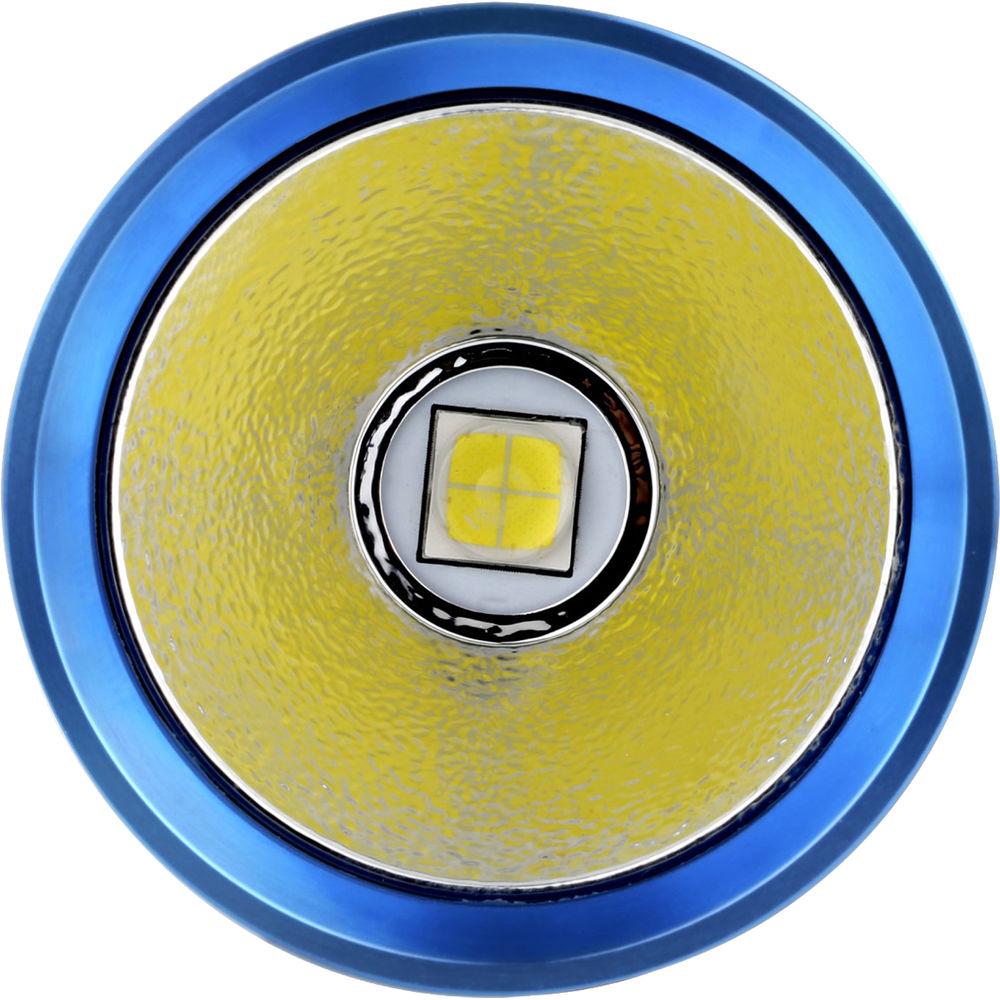

- One white Cree XHP70 LED
- "Orange peel" micro-textured reflector
- Produces a smooth even beam without holes or hot spots
- Tight, bright center cone of light
- Wide, dimmer peripheral ring of light to maintain situational awareness
- Disorientating strobe mode
- Switching
-
- Type: Push-button
- Location: Body
- Constant-on activation only
- Single switch provides access to all output intensities and modes
- Last output memory returns the light to the last selected intensity level
- Lockout function prevents accidental activation
- Built-in low-battery indicator
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- IPX8-rated, waterproof and submersible to 6.6'
- Slip-resistant textured handle
- Built-in 26650 rechargeable lithium-ion battery
- AC or vehicle power charging dock / emergency lamp
In the Box Olight R50 Pro Seeker LE Rechargeable LED Flashlight Holster Charging Dock 26650 Battery (4500mAh) Set of Mounting Hardware DC 12V 1.5A Car Charger AC Adapter Cable with Plug Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight R50 Pro Seeker LE Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight Pro Seeker LE Specs | | | Lumen Output | High: 1500 Lumens
Medium: 400 Lumens
Low: 60 Lumens
Turbo: 3200 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 0.17 Hour
Medium: 7.5 Hours
Low: 50 Hours
Turbo: 1.5 Minutes | | Battery Type | 1 x 26650 | | Internal Battery Capacity | 4500 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.7" / 43.2 mm | | Dimensions | L: 5.0" / L: 12.7 cm | | Weight | 9.2 oz / 260.8 g | | | | Package Weight | 2.735 lb | | Box Dimensions (LxWxH) | 7.15 x 6.8 x 4.6" |
