User Manual for Olight S1 Baton LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight S1 Baton LED Flashlight
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight S1 Baton LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

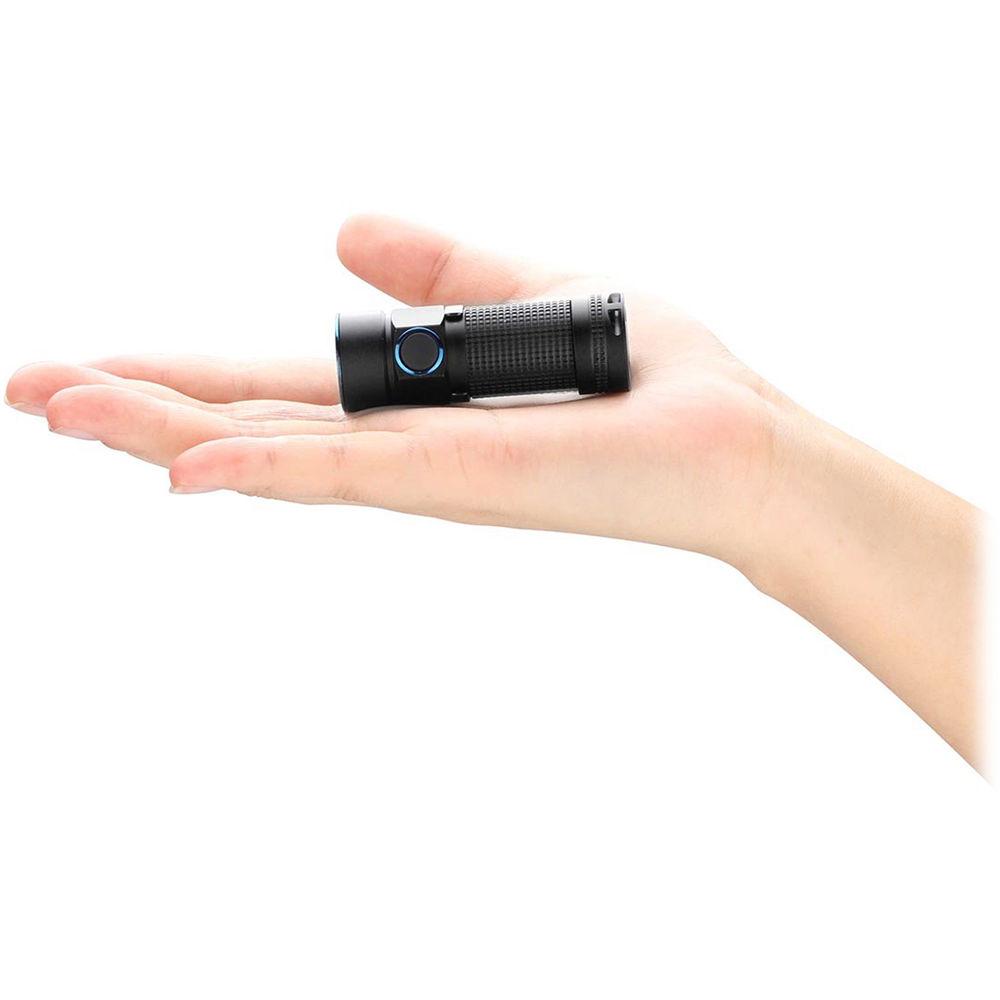

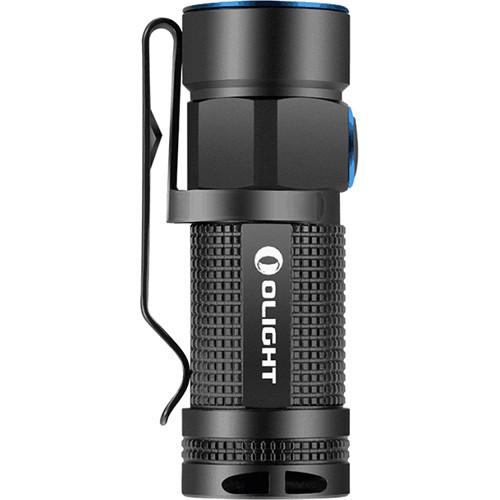

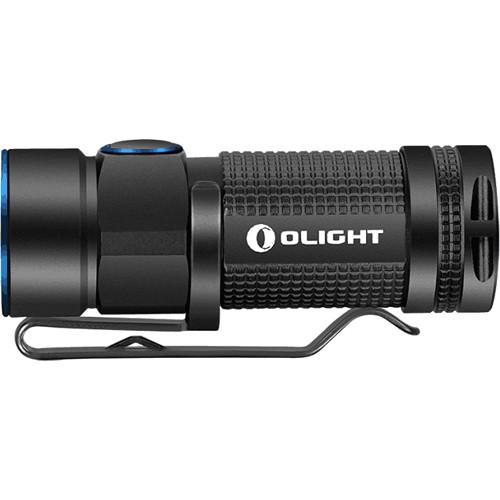

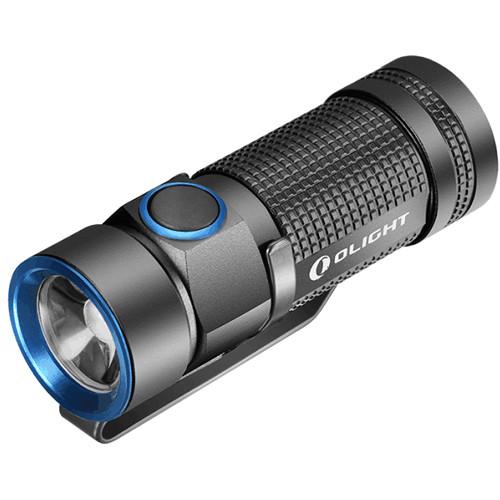

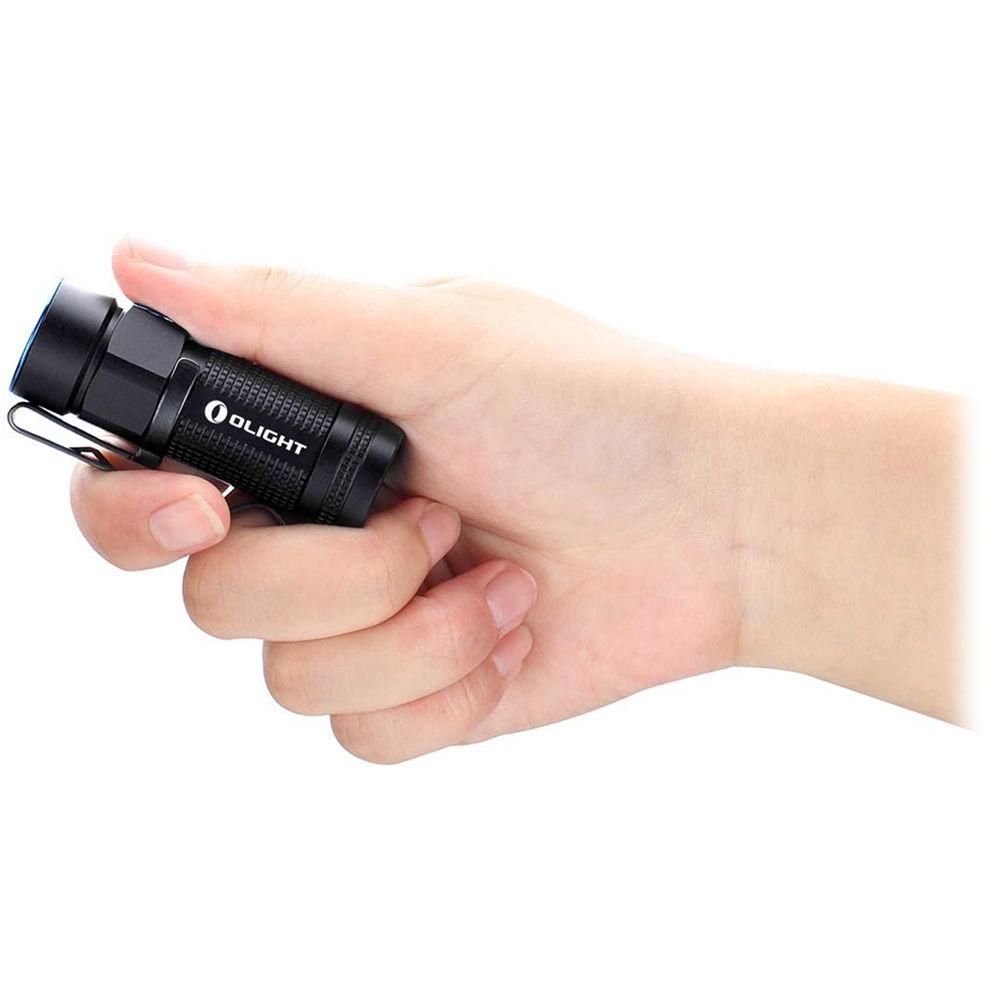

Product description A useful addition to your tool crib, professional, or outdoor gear, the lightweight and durable Olight S1 Baton LED Flashlight is an ultra-compact flashlight featuring a powerful 500-lumen XM-L2 CW LED plus a Total Internal Reflection (TIR) optic that collimates light and provides light transmission of 90%. With four output settings from 0.5 to 500 lumens of bright white light, you can illuminate your mission, trail, or campsite. The conveniently located side switch powers the light on or off and signals your friends or rescue teams with a strobe or momentary on mode. The switch is recessed to prevent accidental activation, and if your application requires, use the built-in timer with range from 3 to 5 minutes. The light also offers Reverse Polarity Protection to protect its circuit and prevent the LED lamp from burning out when batteries are inserted incorrectly.
The black housing is made of lightweight and durable 6061-T6 aluminum and a stainless steel head with impact resistance rating to 6.6'. It is sealed to offer waterproof performance and ensure flawless operation in adverse weather conditions. To offer comfort and versatility, the light also features a non-slip textured rubberized handle. A strong magnet under the tailcap allows you to attach this flashlight to metal surfaces for hands-free operation. For stability on slanted surfaces, the flashlight has a built-in anti-roll feature. Also included are a lanyard and steel pocket clip. Light Performance -
- 0.5/8/80/500 lumen
- White CREE XM-L2 CW LED
- Four light modes and a defense strobe
- Total internal reflection (TIR) optic shapes beam and transmits 90% of light
- Heat management function reduces output to 50% after 1 minute
- Turbo mode auto off after 1.5 minutes
Switching and Electronic Details -
- Recessed side switch helps to prevent accidental on
- Operates on one CR-1213A or RCR-1213A battery
- Last light used mode memory function
- Power lock function prevents accidental on
Construction Details -
- 6061-T6 aluminum housing with type III anodized finish
- Strong tailcap magnet allows hands-free operation
- Waterproof and impact-resistant to 6.6'
- Textured handle provides a secure grip
- Steel head
- Anti-roll ring
- Pocket clip
In the Box Olight S1 Baton LED Flashlight (Black/Blue) - Lanyard
- Steel Clip
- Limited Five-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight S1 Baton LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight S1 BATON Specs | | | Lumen Output | High: 500 Lumens
Medium: 80 Lumens
Low: 8 Lumens
Minimum: 0.5 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | CR123A
High: 1.5 Hours
Medium: 6 Hours
Low: 40 Hours
Turbo: 1.5 Minutes | | Battery Type | 1 x CR123A or
1 x RCR123A | | Internal Battery Capacity | 1500 mAh | | | | Material of Construction | Aluminum, Stainless Steel | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions |
