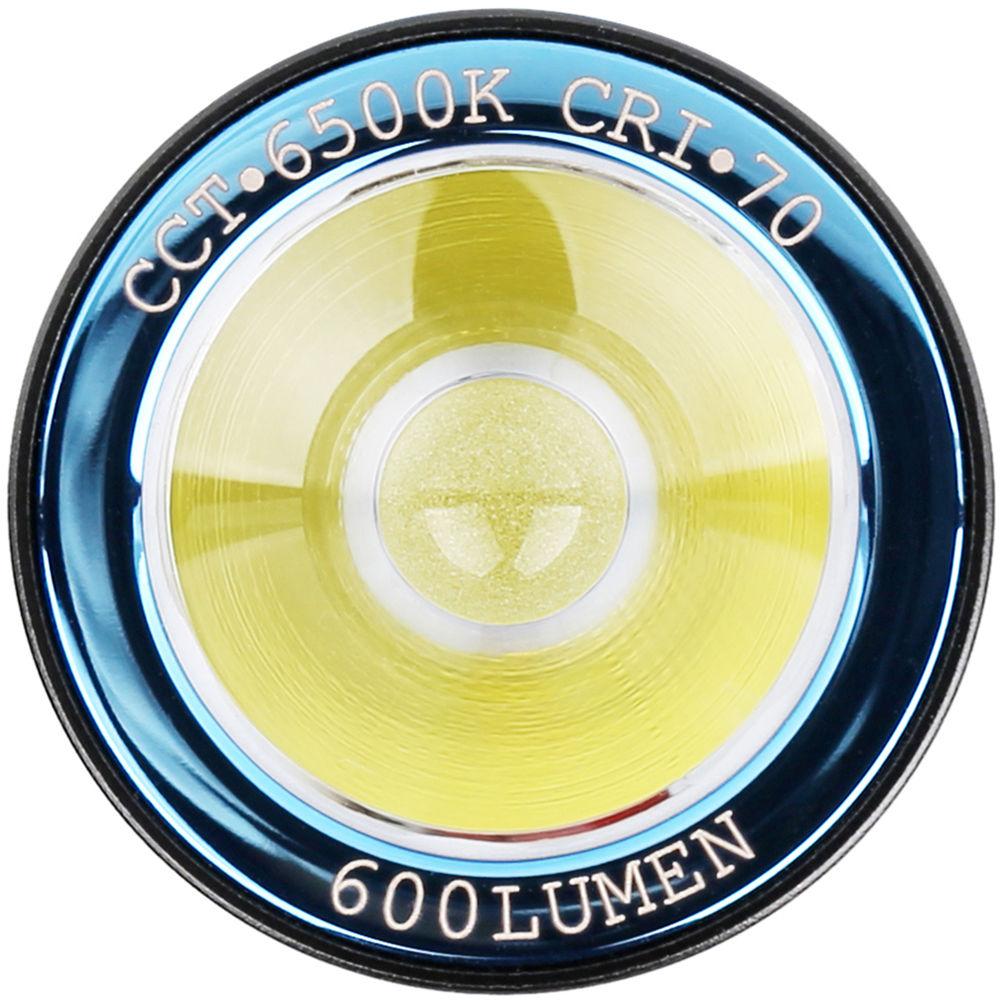

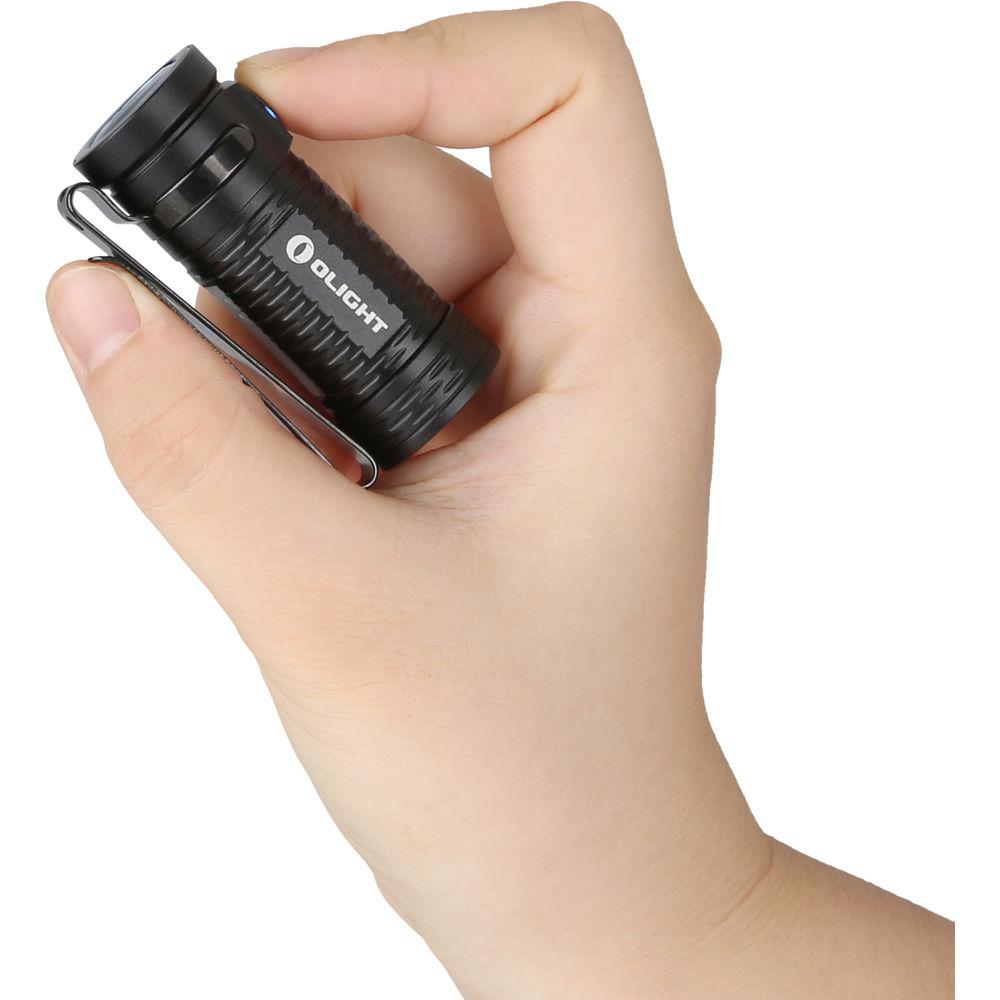

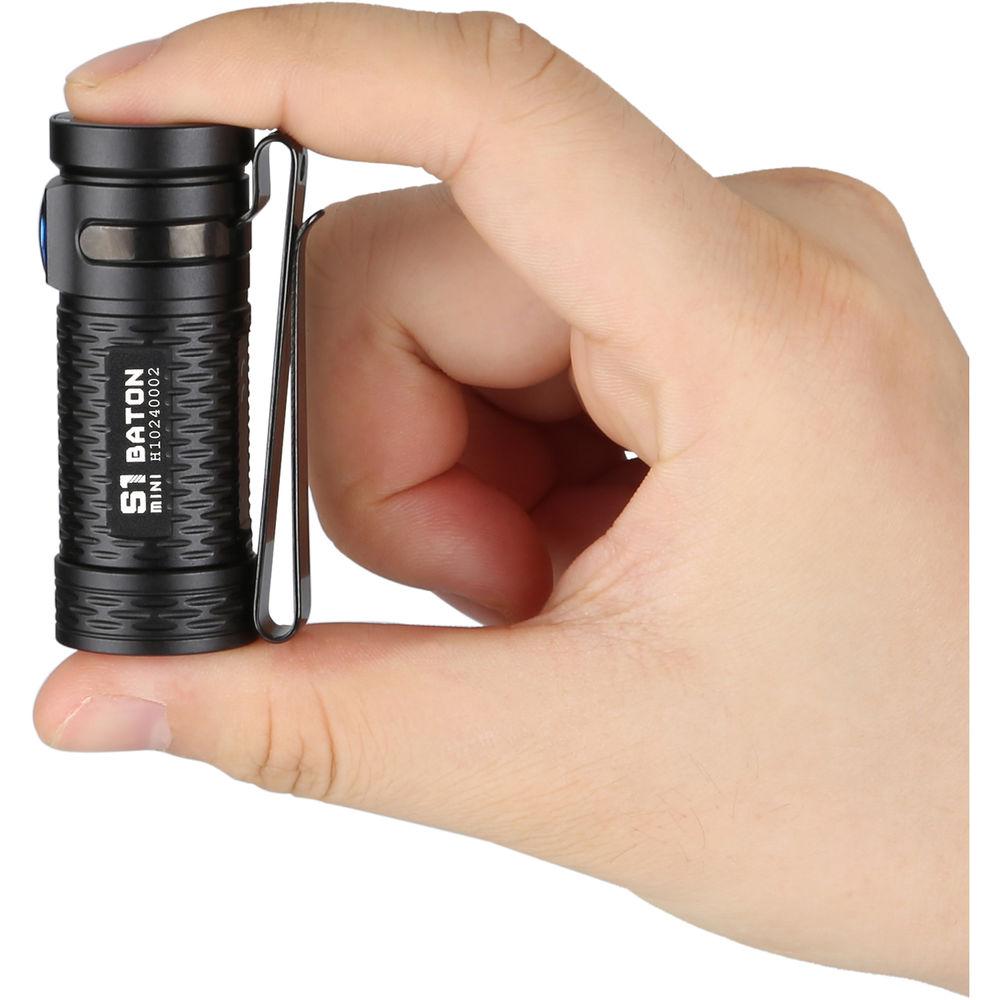

Product description It's the smallest light in Olight's Baton series, yet the S1 Mini Baton puts out more light than some of its larger siblings. This 2.1", 1.5-ounce powerhouse has five brightness levels, with a maximum output of 600 lumens, plus a strobe mode that can disorient an assailant. A stainless steel clip allows you to carry the light on a belt, pocket, strap, etc., and the clip is reversible so you can carry with the bezel up or down. The S1 Mini Baton's Total Internal Reflection (TIR) optic casts a defined wide hotspot. The magnetized tailcap allows you to attach the light to any ferrous surface for hands-free illumination. There's no need to replace batteries – the included 650mAh RCR123A cell recharges inside the light, using the micro-USB cable. The side switch turns the light on and off and scrolls through its settings; the switch button also serves as the light's battery power indicator. IPX8-rated, the light's hard anodized aluminum housing is waterproof, dustproof and impact resistant to 5'. A braided finish gives the light a secure and pleasant grip. Light Performance -
- 0.5/15/60/300/600 lumen
- White Cree XM-L2 LED
- Five light modes and a defense strobe
- Total internal reflection (TIR) optic
Switching and Electronic Details -

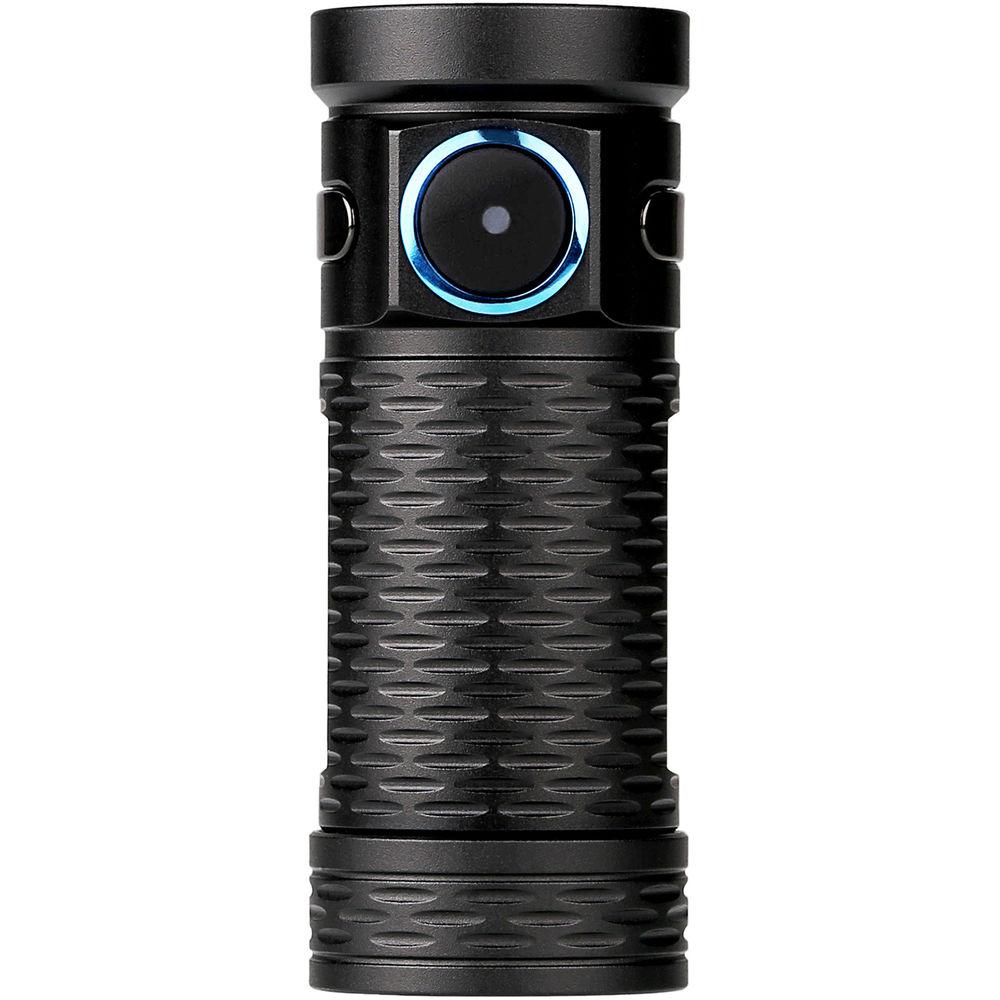

- Side switch for on/off and setting brightness level
- Lockout mode prevents accidental activation
- Operates on one CR123A or RCR123A rechargeable battery
- On-board charging via micro-USB cable
- Last light used mode memory function
Construction Details -
- 6061-T6 aluminum housing with type III anodized finish
- Strong tailcap magnet allows hands-free operation
- Waterproof and impact resistant to 5'
- Braided knurling pattern provides a secure grip

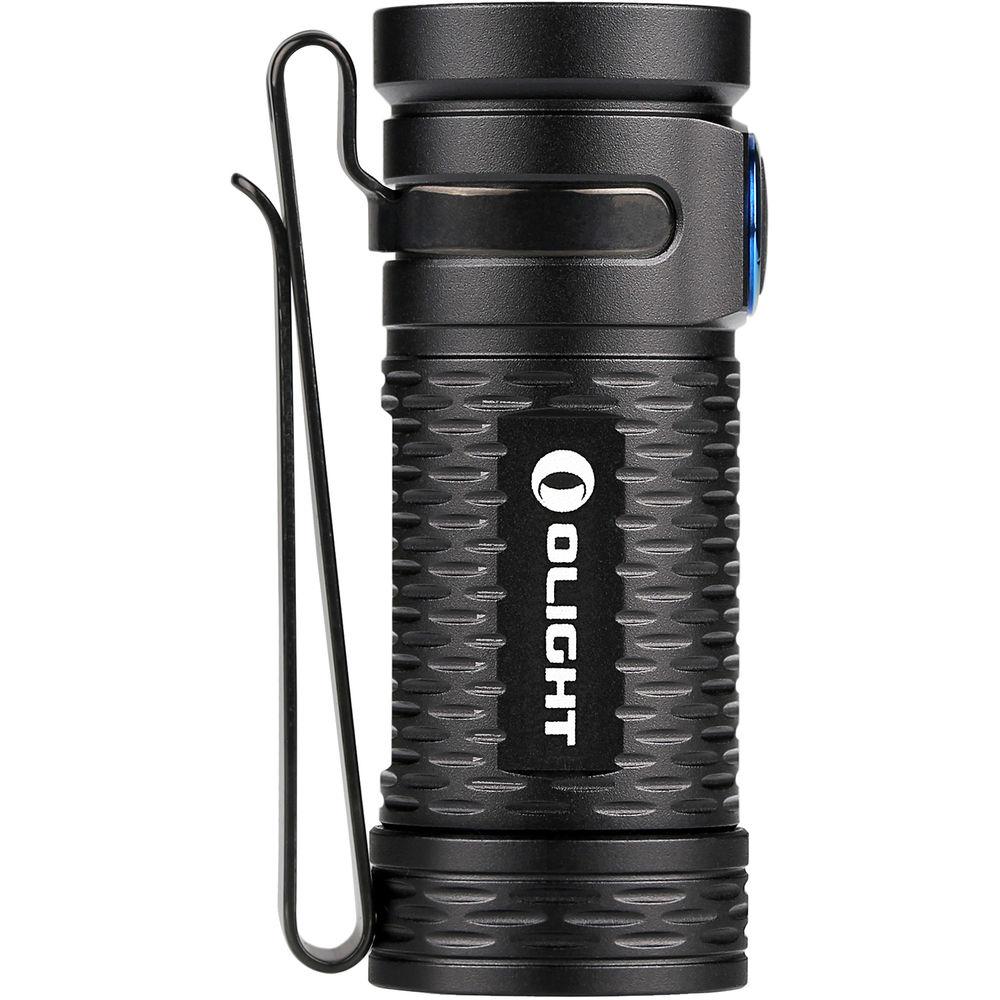

- Stainless steel reversible pocket/belt/strap clip
In the Box Olight S1 Mini Baton Flashlight RCR123A Rechargeable Battery 20" / 50 cm USB-to-Micro-USB Charging Cable Lanyard Steel Clip Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight S1 Mini Baton Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight S1 MINI Specs | | | Lumen Output | High: 330 Lumens
Medium: 60 Lumens
Low: 15 Lumens
Turbo: 600 Lumens
Minimum: 0.5 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1 Hour
Medium: 6 Hours
Low: 30 Hours
Turbo: 2 Hours | | Battery Type | 1 x RCR123A | | Internal Battery Capacity | 650 mAh | | Output Voltage | 3.7 VDC | | | | Material of Construction | Aluminum, Stainless Steel | | Water Resistance | Waterproof, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions |
