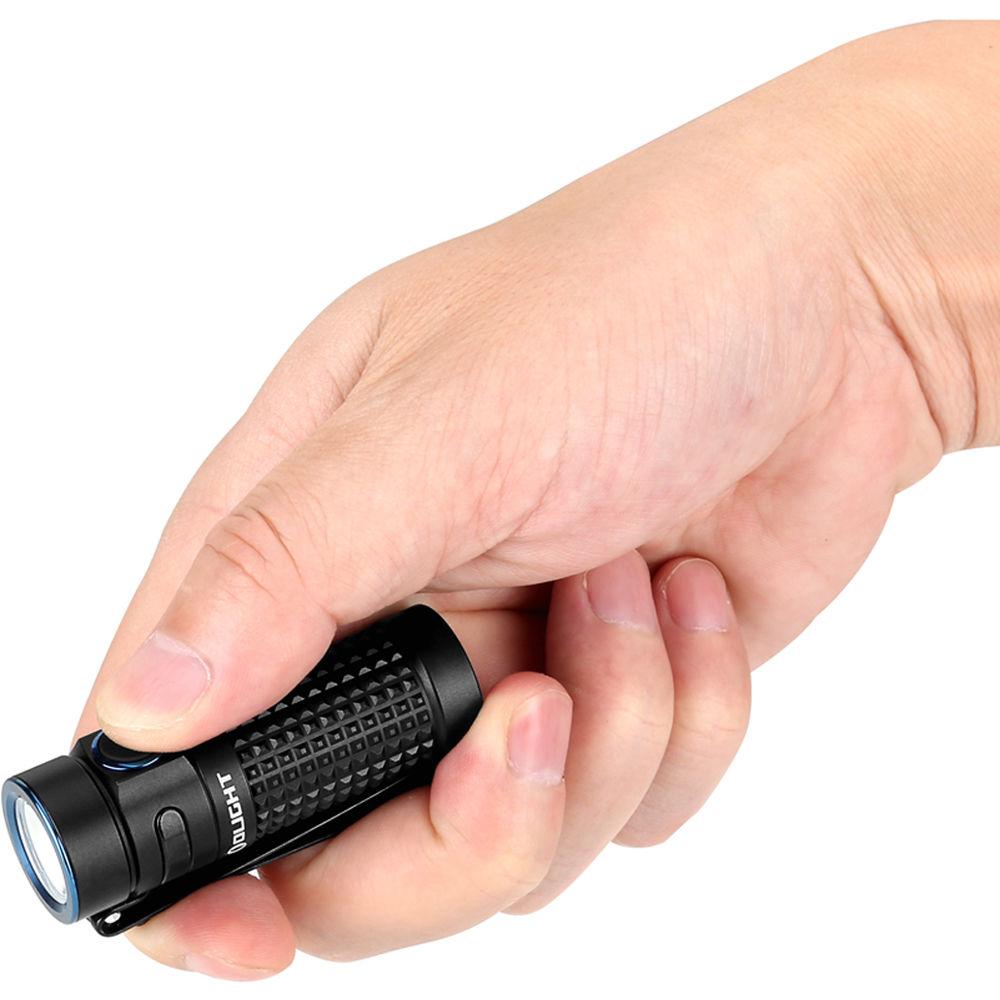

User Manual for Olight S1R Baton II Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight S1R Baton II Rechargeable LED
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight S1R Baton II Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

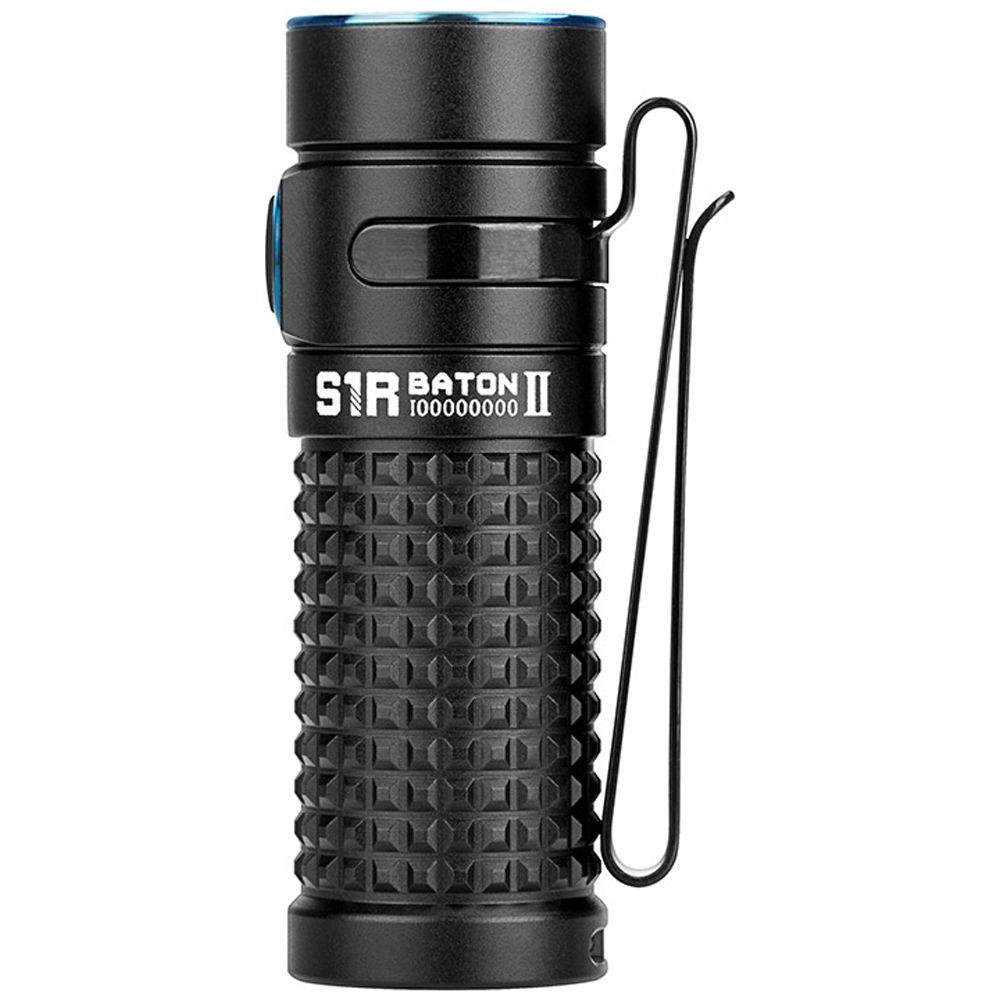

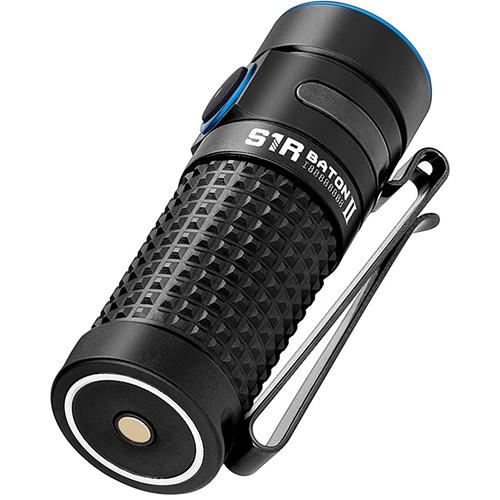

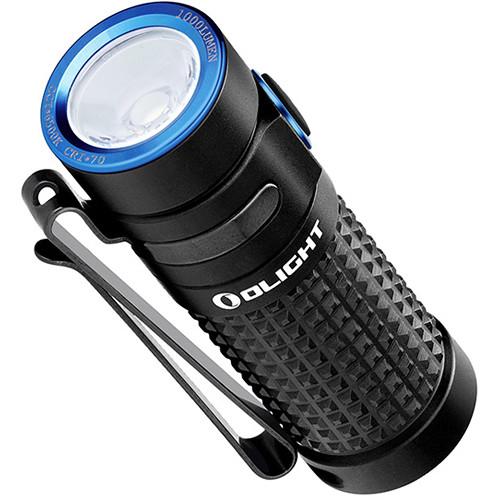

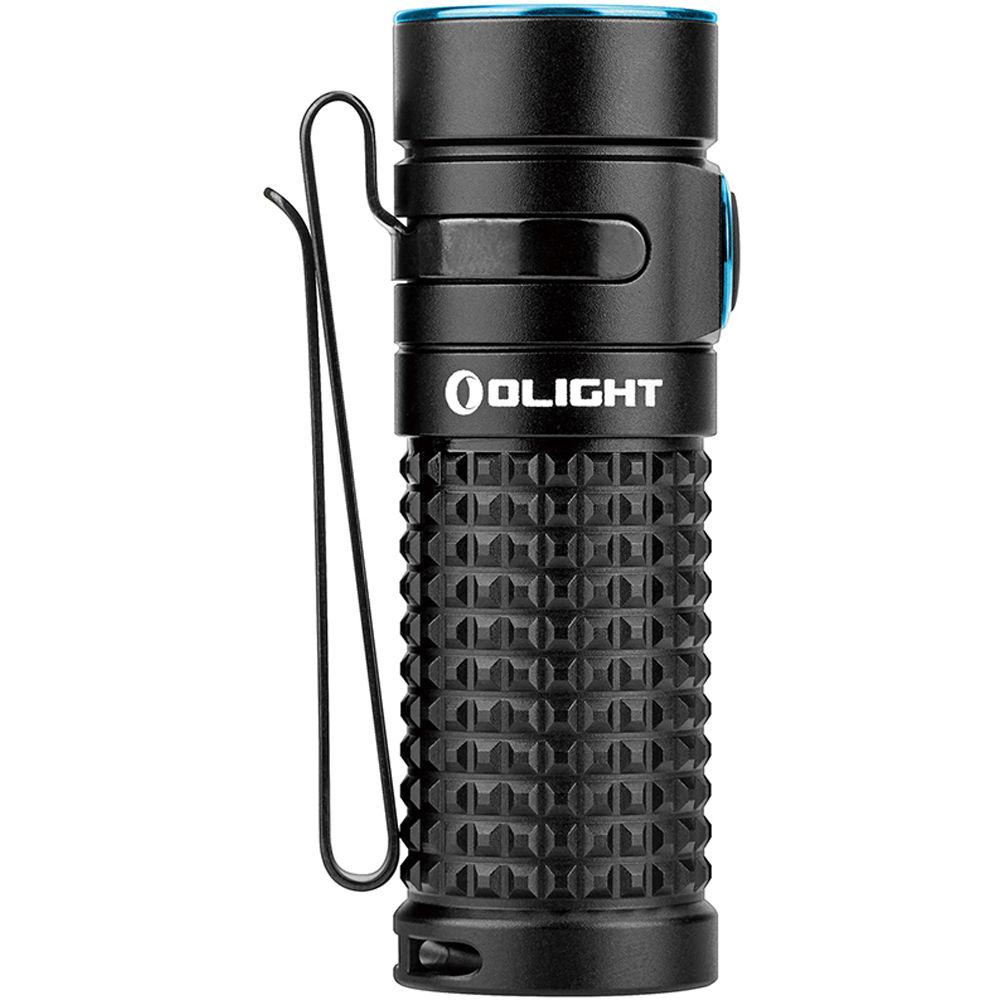

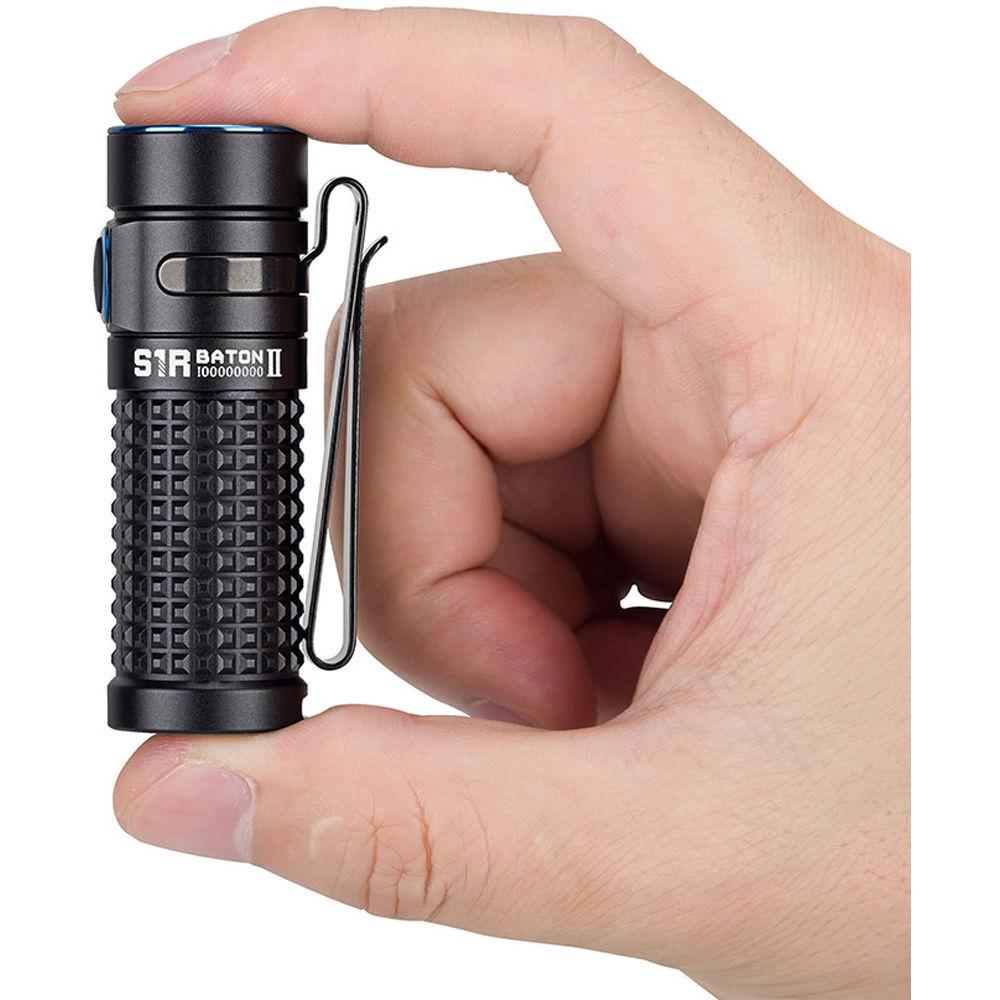

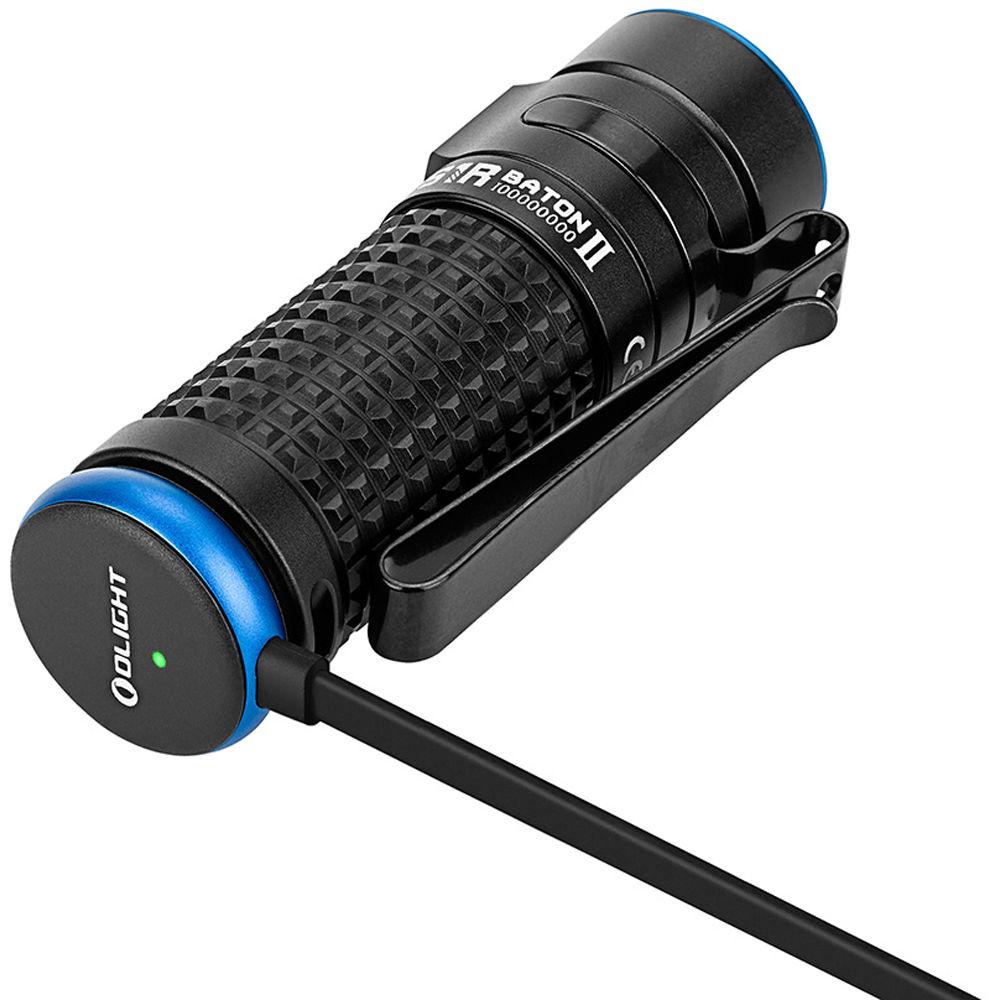

Product description Less than three inches long but capable of throwing a brilliant 1000-lumen beam, the Olight S1R Baton II Rechargeable Flashlight packs a lot of power into a small, everyday-carry package. Use the low-profile side activation switch to cycle through five output levels, from a power-stingy 0.5 lumens to the maximum setting of 1000, plus a strobe mode. A three-color power indicator will warn you when the battery is running low, and recharging couldn't be easier—simply snap on the MCC II magnetic USB charging cable (which is thinner than earlier models and compatible with Olight MCC rechargeable products except the R50 Pro and PL Mini). When stowing the light for travel, press and hold the switch for two seconds for lockout mode—it will prevent the light from being accidentally activated. The S1R Baton II is IPX8-rated water resistant and impact resistant to 5 feet, and its housing features a textured surface for a secure and comfortable grip. - Performance
-
- Ultra-low (Moon): 0.5 lumens
- Low: 12 lumens
- Med: 60 lumens
- High: 600 lumens (drops to 300 lumens after 1.5 minutes)
- Turbo: 1000 lumens (drops to 300 lumens after 1.5 minutes)
- Emergency strobe mode

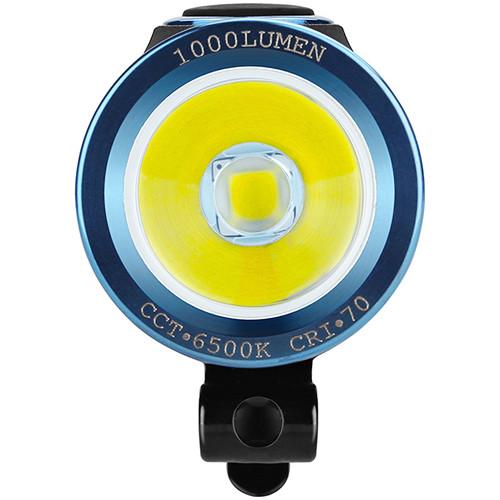

- Cree XM-L2 CW LED
- Three or nine-minute auto shutoff
- Switching
-
- Type: Side switch push button
- Press and hold to cycle through brightness levels
- Construction
-
- IMR 16340 rechargeable battery

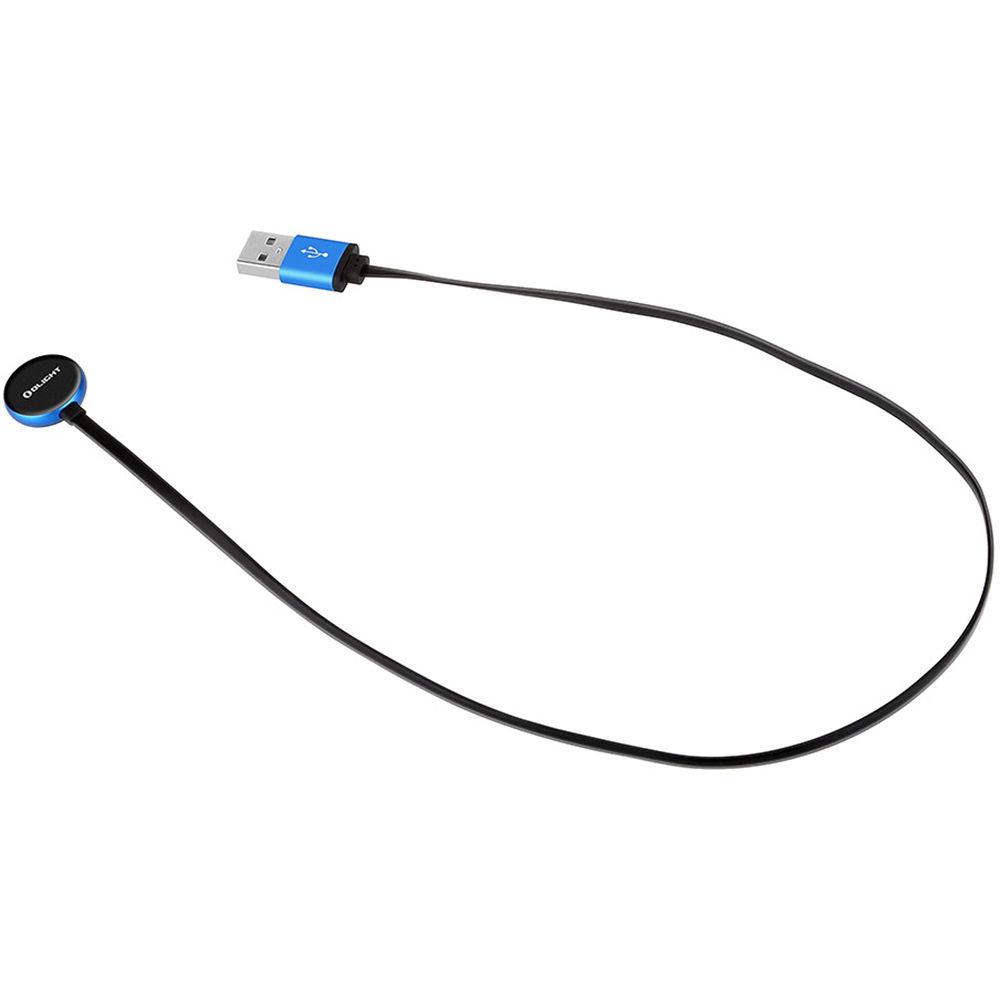

- Magnetic charging cable
- IPX8-rated water resistant
- Impact resistant to 5'
In the Box Olight S1R Baton II Rechargeable LED Flashlight Magnetic Charging Cable IMR 16340 Battery Lanyard Pouch Battery Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight S1R Baton II Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight S1R II Baton Specs | | | Lumen Output | Turbo: 1000 Lumens
High: 600 Lumens
Medium: 60 Lumens
Low: 12 Lumens
Minimum: 0.5 Lumens | | Illumination Source | 1 x White LED | | Input Charging Port | Magnetic Tailcap | | | | Estimated Runtime | Turbo: 37 Minutes
High: 45 Minutes
Medium: 3.6 Hours
Low: 20 Hours
Minimum: 8 Days | | Battery Type | 1 x 16340 Lithium | | | | Material of Construction | Aluminum | | Water Resistance | IPX8 | | Bezel Diameter | 0.8" / 2.0 cm | | Dimensions | L: 2.5" / L: 6.3 cm | | Weight | 1.8 oz / 51 g | | | | Package Weight | 0.26 lb | | Box Dimensions (LxWxH) | 6.85 x 2.05 x 1.55" |
