User Manual for Olight S2 Baton Flashlight Click to enlarge the picture
Contents of the user manual for the Olight S2 Baton Flashlight
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight S2 Baton Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

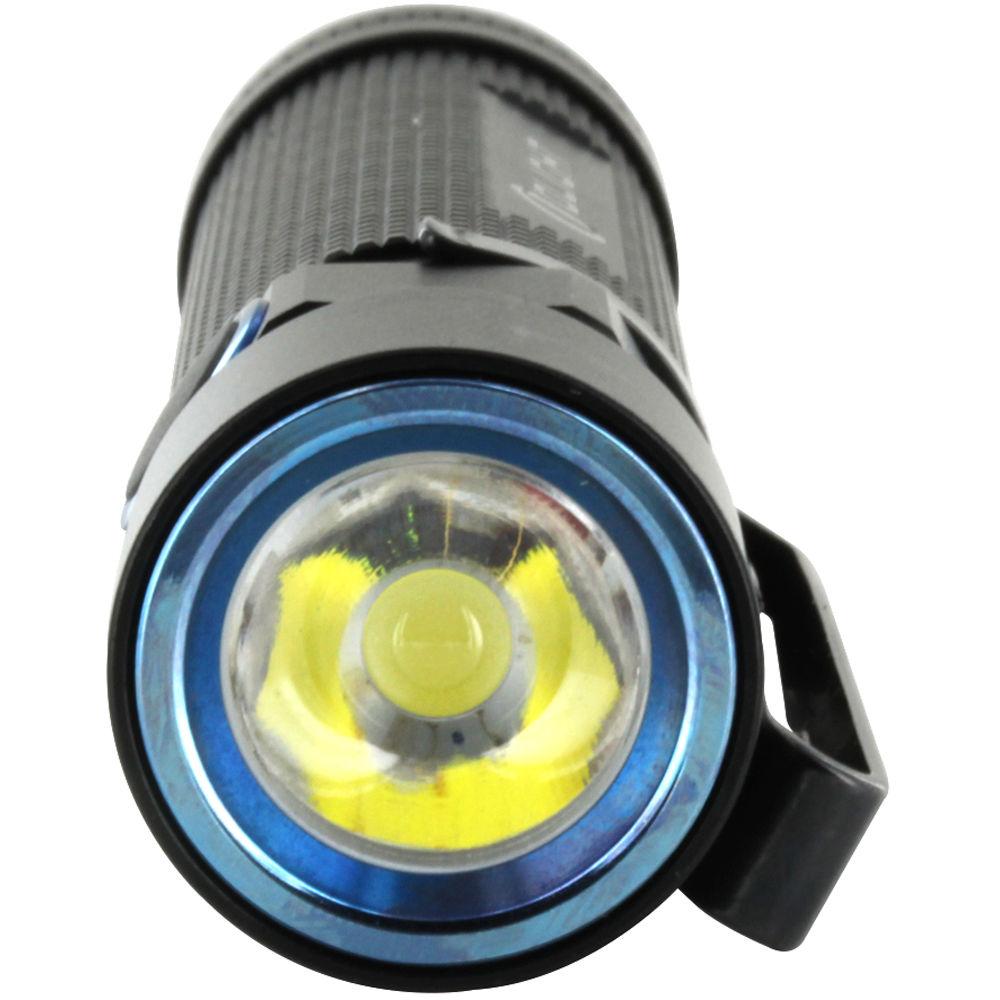

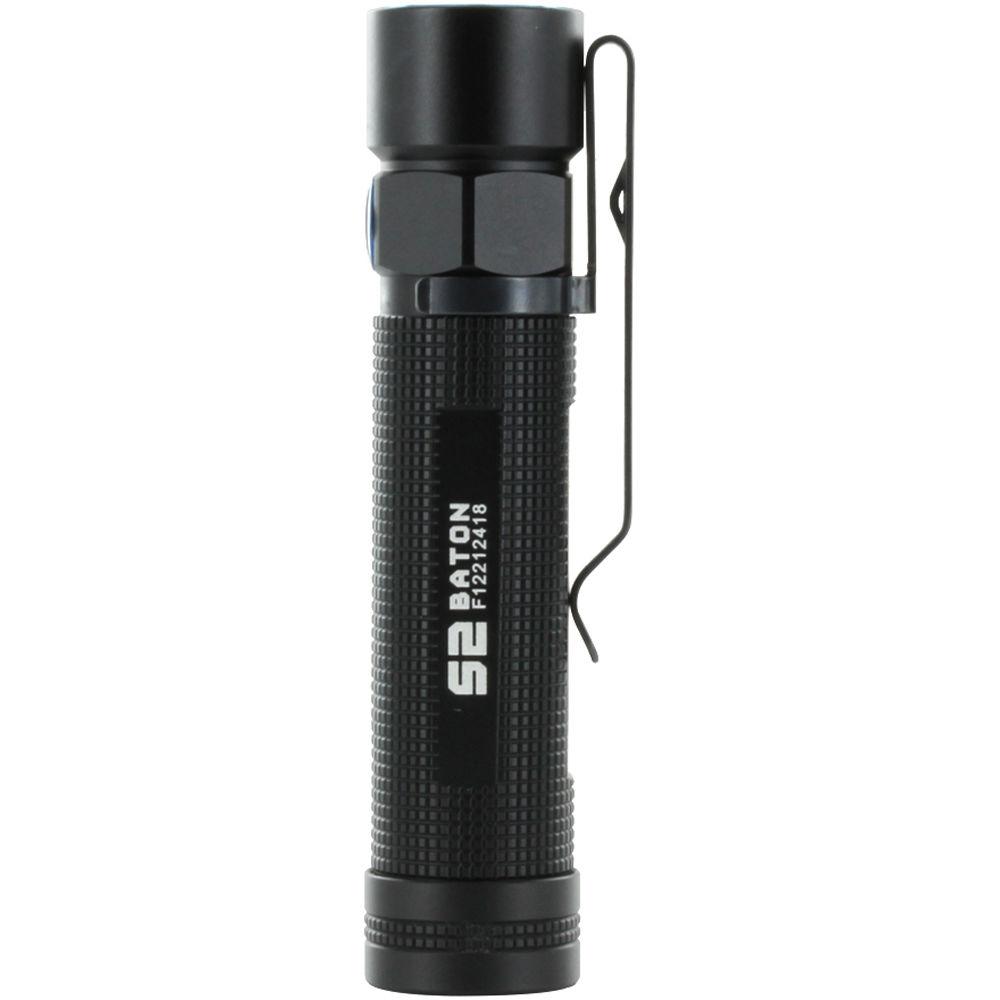

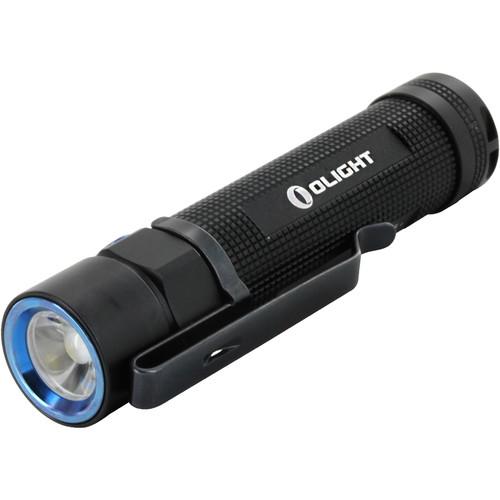

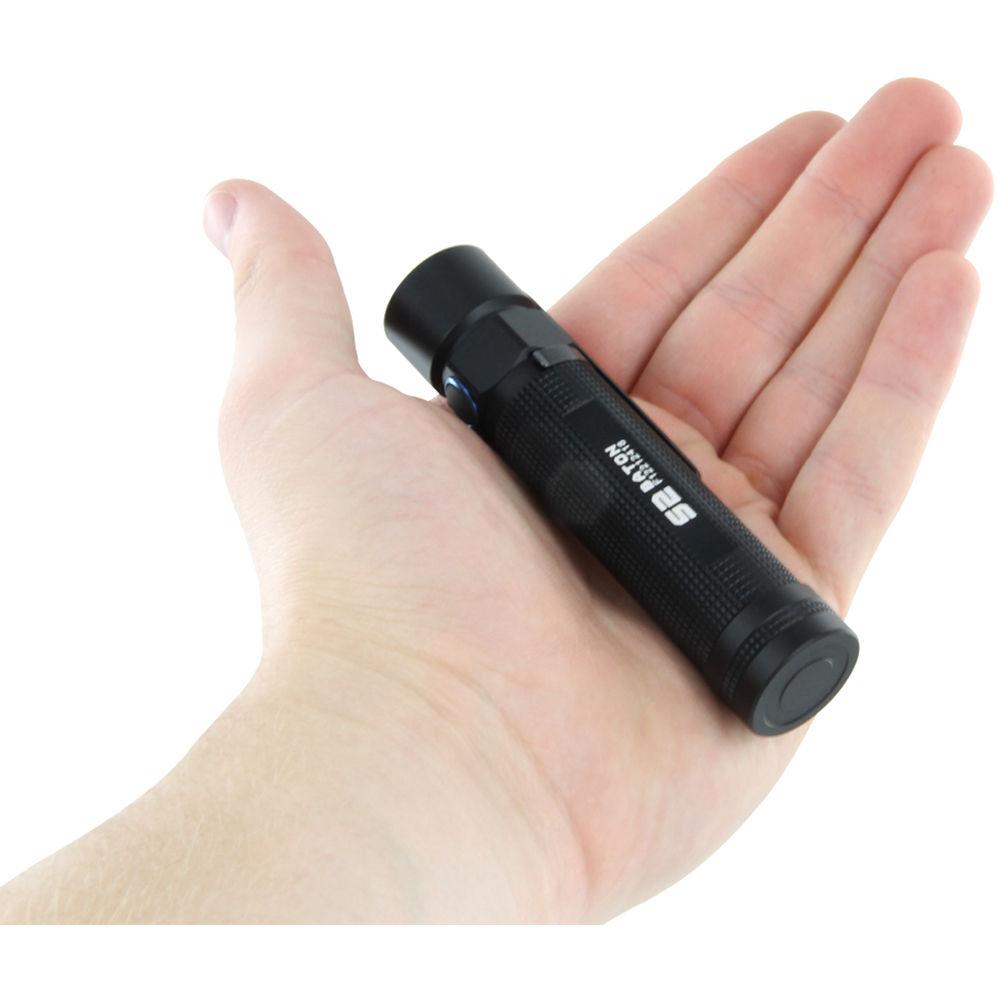

Product description A powerful and compact flashlight, the S2 Baton from Olight comprises a sleek form factor that can accept high-capacity 18650 batteries, and features a Cree XM-L2 / U3 LED to provide a high maximum output of 950 lumens. Four standard brightness levels are accessible, down to 10 lumens, and both a 0.5 lumen moonlight mode and 10 Hz strobe mode are also available. Additionally, a 22° PMMA TIR lens with significant light transmittance is used to produce a cool white spot beam for more controlled handling. Switching is controlled via a low-profile side switch, and both the button-surrounding ring and bezel are constructed from blue PVD-coated stainless steel. The durable housing has an IPX8 rating, rendering it dust and water-resistant, and its flat tailcap incorporates a strong magnet for hands-free use. Built-in timer settings let you limit on-time and a Turbo mode automatically ramps down brightness after two minutes of use to extend battery life. In addition to accepting an 18650 battery, the S2 Baton can also run off of two CR123A batteries. - Performance
-
- Low: 10 lumen
- Med: 80 lumen
- Med: 400 lumen
- High: 950 lumen
- One Cree XM-L2 / U3 LED
- 22° emission angle significant transparent ratio PMMA TIR lens delivers homogeneous, cool white spot light
- 0.5 lumen moonlight mode and 10 Hz strobe mode
- Turbo mode limits constant on to 2 minutes, then ramps output down to 50% within 1 minute
- 3 minute short timer, 9 minute long timer
- Built-in thermal management safety program
- Low standby current below 10uA
- Switching
-
- Side button switch
- Low profile button design prevents accidental turning on when in pocket
- Construction
-
- Blue PVD coating on stainless steel bezel and switch-surrounding ring
- Waterproofing: IPX8-rated; water and dust-resistant
- Waffle-textured handle provides slip-resistant grip
- Runs on one 18650 battery or two CR123A batteries
- Positive polarity end on the battery faces the tail of the flashlight
- Reverse polarity protection and dedicated battery magazine prevents improper battery installation

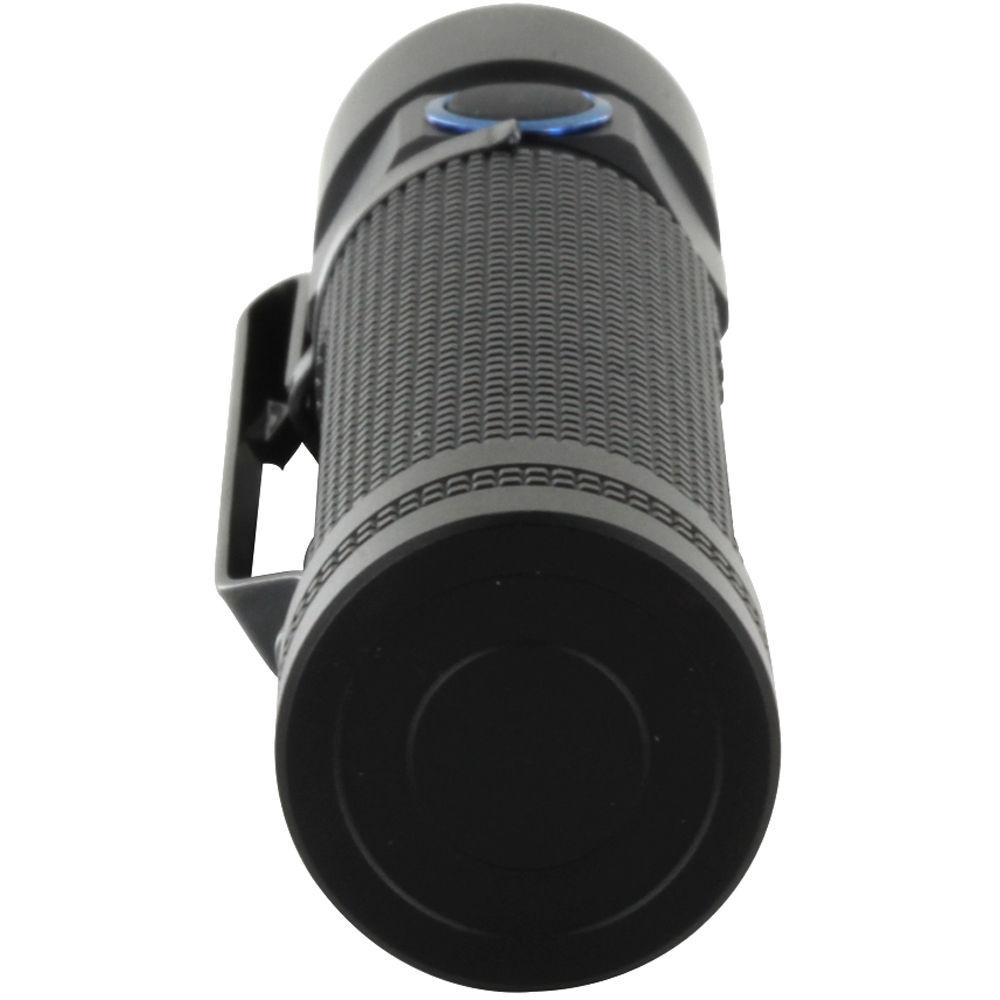

- Flat tailcap incorporates a strong magnet to attach to metallic surfaces for hands-free use
- Removable scratch-resistant stainless steel pocket clip

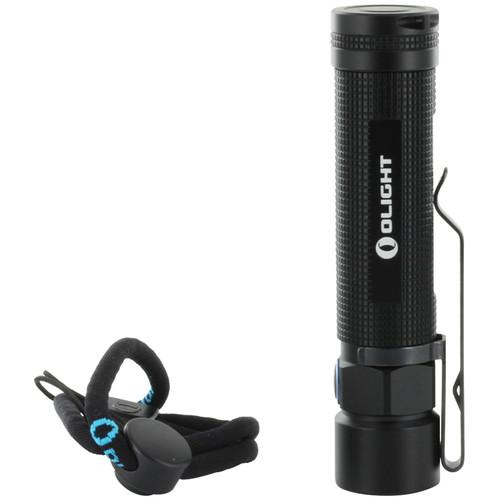

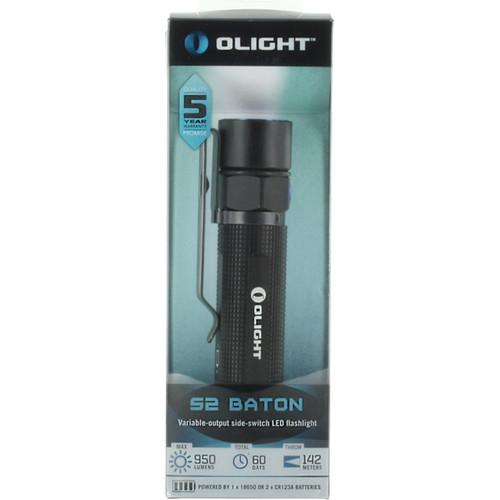

In the Box Olight S2 Baton Flashlight Battery Magazine Lanyard Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight S2 Baton Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight S2 BATON Specs | | | Lumen Output | 950 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | Minimum: 24 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Stainless Steel | | Water Resistance | Waterproof, IPX8 | | Dimensions |
