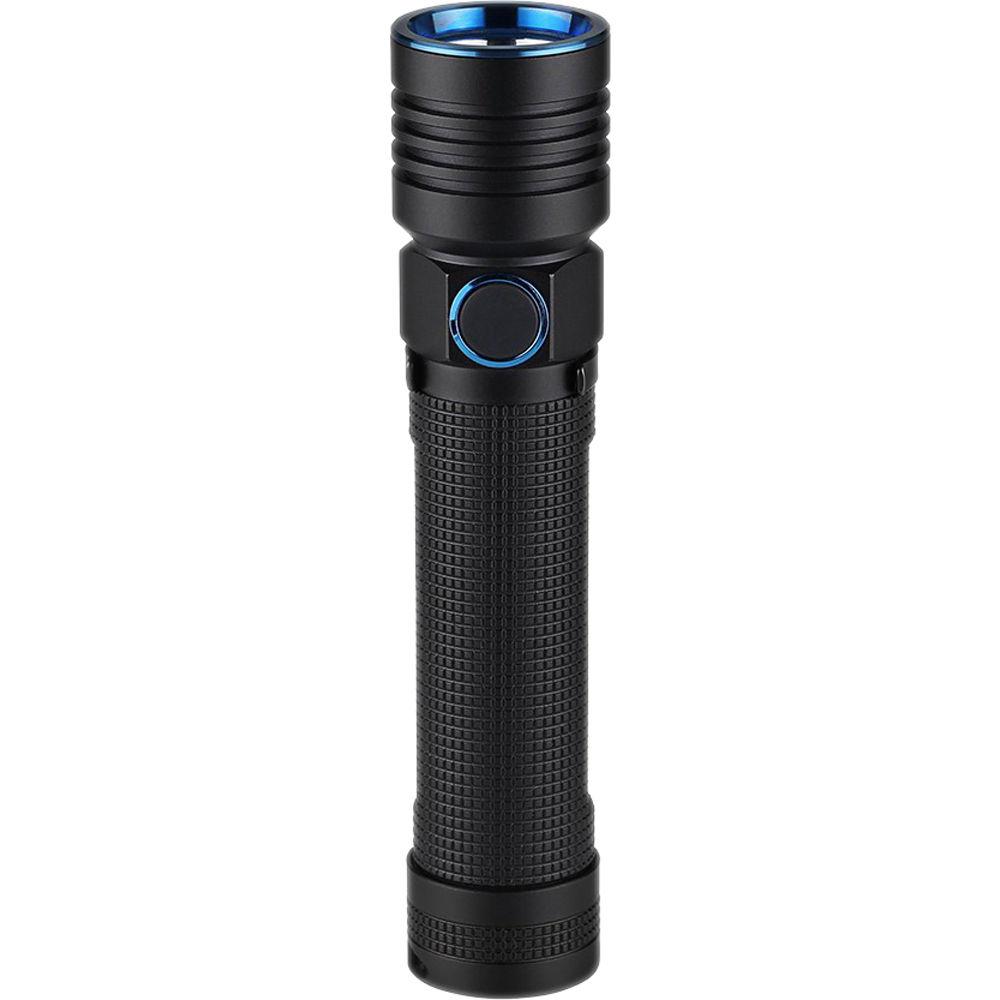

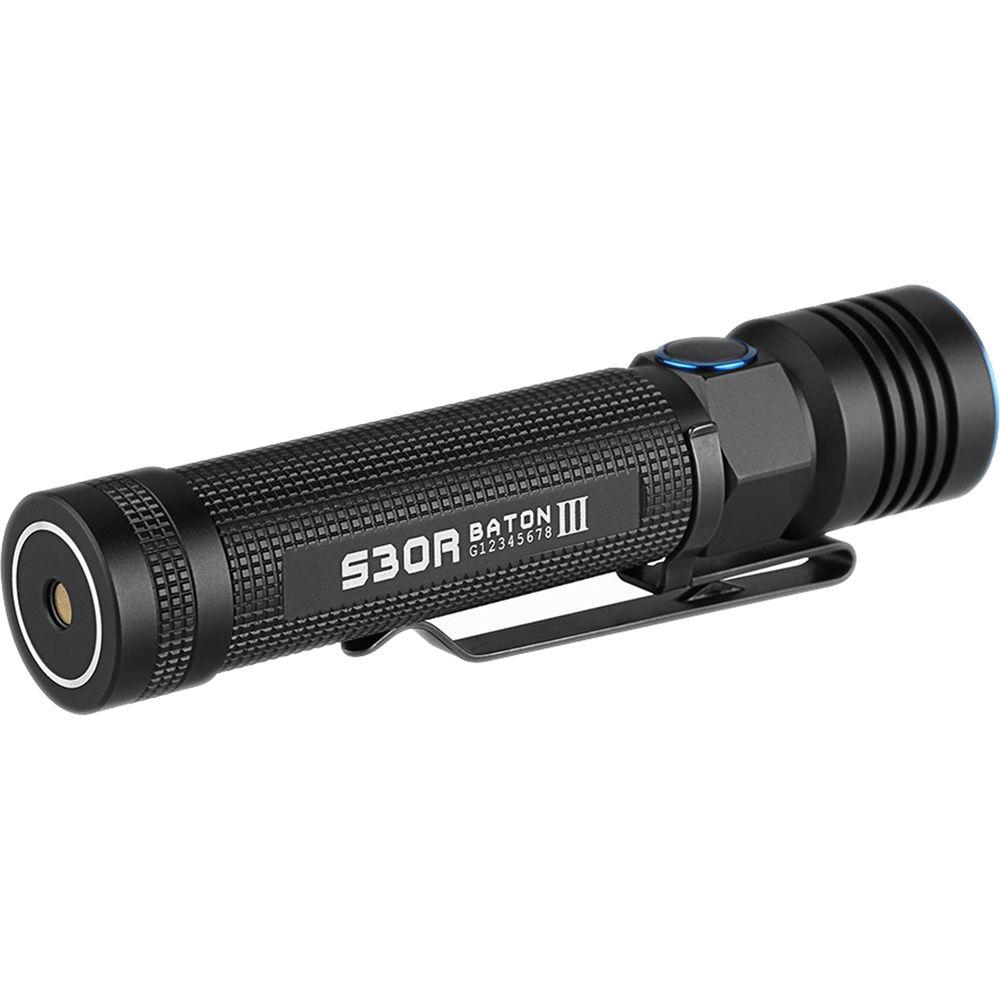

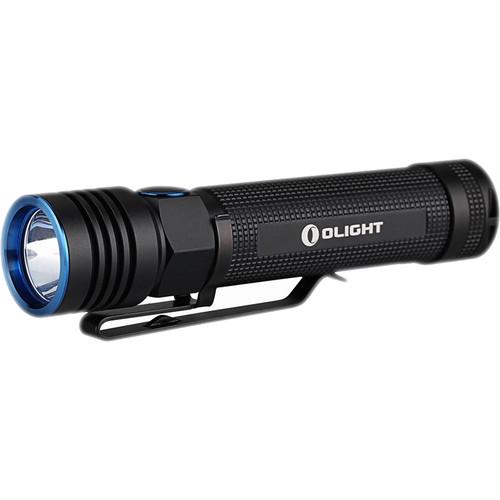

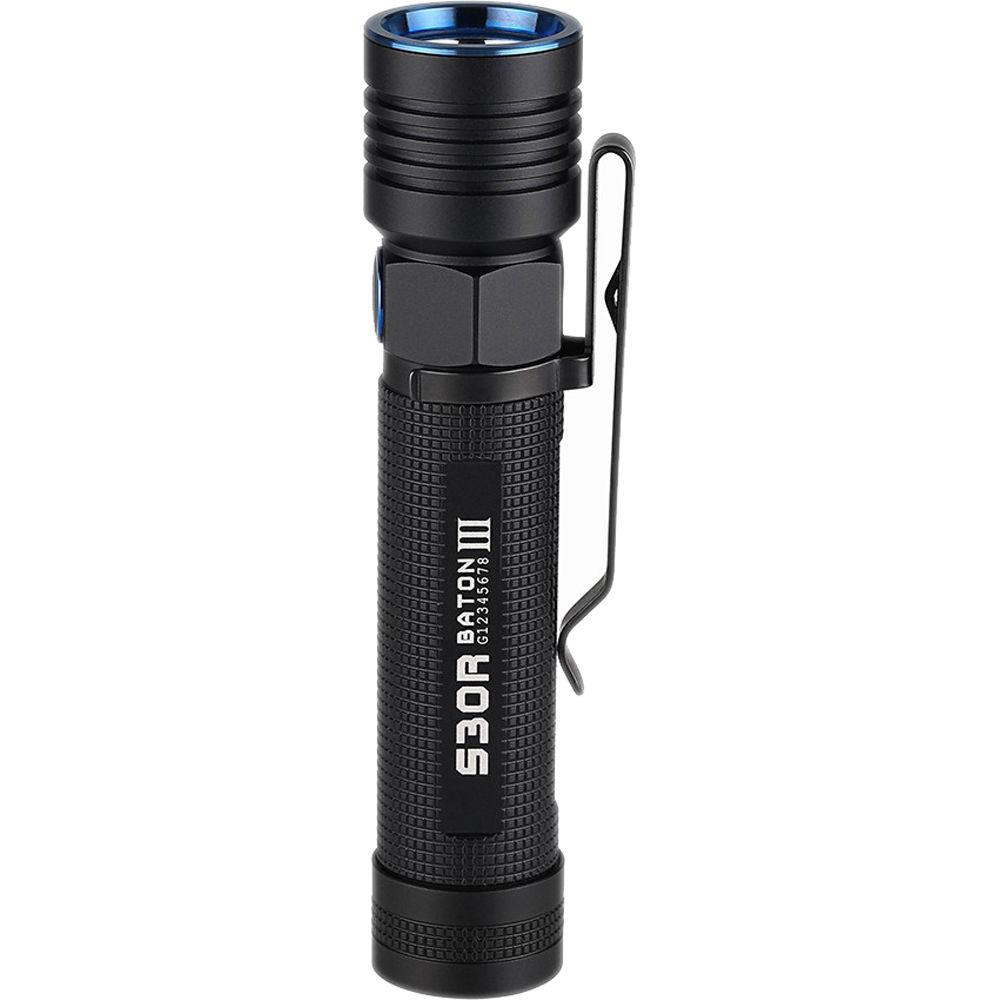

Product description The lightweight, powerful, and durable Olight S30R III Baton Rechargeable LED Flashlight is a useful addition to your home, workplace, or outdoor gear. The flashlight features a powerful Cree XM-L2 LED, with a tempered glass window that has anti-reflection coatings on both sides to improve transmission of light. The LED produces from 0.5 to 1,050 lumens of bright white light, controlled by a side-mounted switch for turning the light on and off and cycling through its five brightness settings. The charging dock has suction cups on its base to keep it in place. Fans of Olight's magnetic charging cable will be happy to know the S30R III is compatible; the cable is sold separately. The housing is made of strong but lightweight 6061-T6 aluminum, with a textured surface for a secure and comfortable grip and a removable, stainless steel pocket clip. Impact-resistant to 5 feet and submersible to 6.6 feet, it is designed to stand up to the rigors of everyday use. The tailcap is magnetized for use as a hands-free trouble light. - Performance
-
- Moonlight: 0.5 lumen
- Low: 12 lumens
- Med: 120 lumens
- High: 500 lumens
- Turbo: 1050 lumens
- Strobe mode
- Cree XM-L2 LED
- Hardened, tempered glass lens with double-sided anti-reflective coating
- Switching
-
- Side push button
- Controls on/off, brightness and strobe settings
- Turns on at most recent output setting
- Low-battery indicator and lockout mode
- Construction
-
- Type III hard anodized 6061-T6 aluminum alloy
- Waterproofing: IPX8-rated; submersible to 6.6"

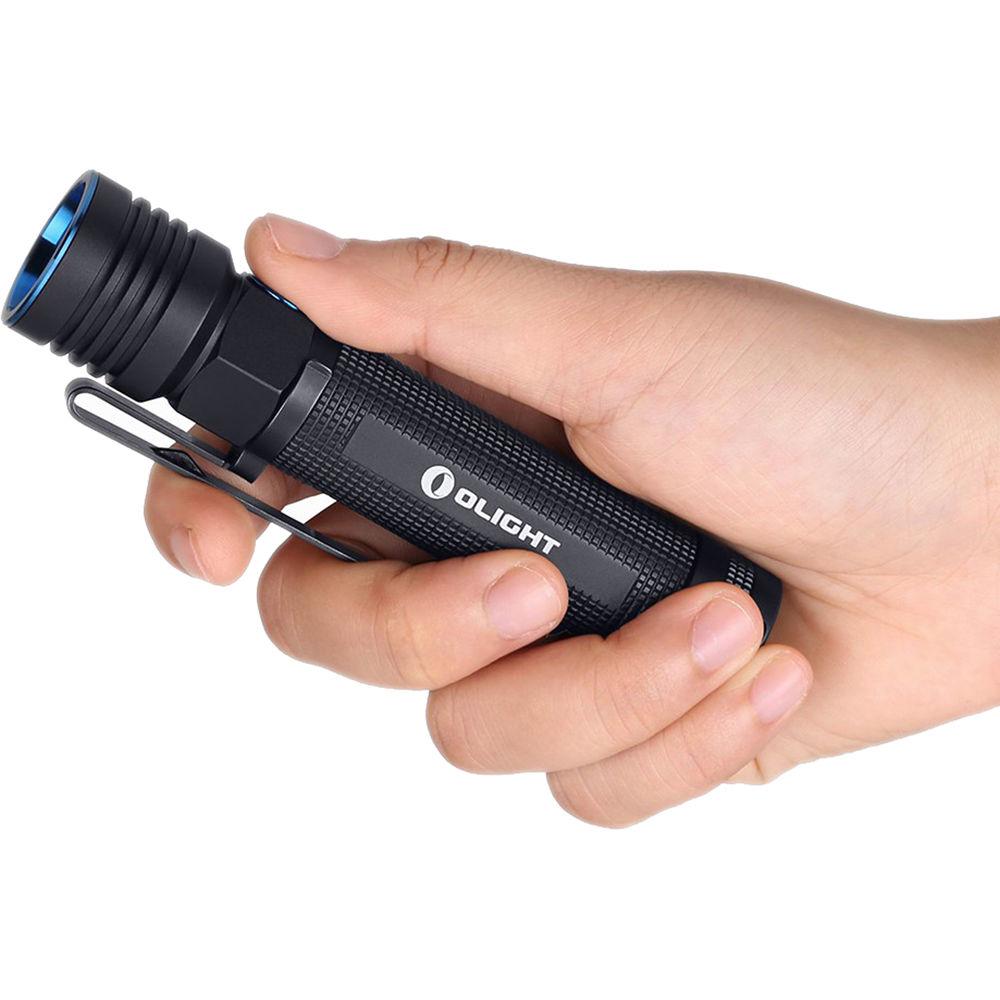

- Textured handle provides slip-resistant grip
- Included 3500mAh 18650 rechargeable battery
- Auto Shutoff Timer: 3 minutes or 9 minutes

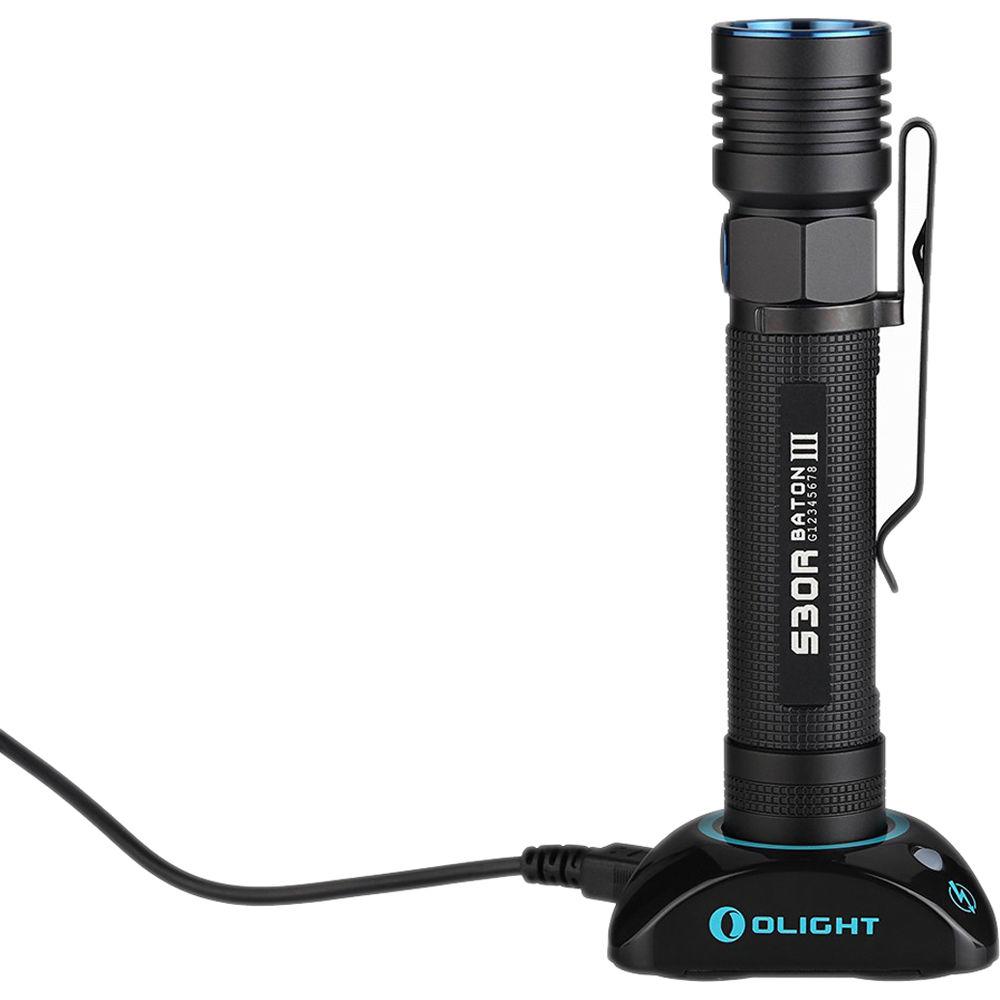

- Desktop charging dock with micro-USB cable and suction cups
- Red LED low battery indicator
- Battery reverse polarity construction

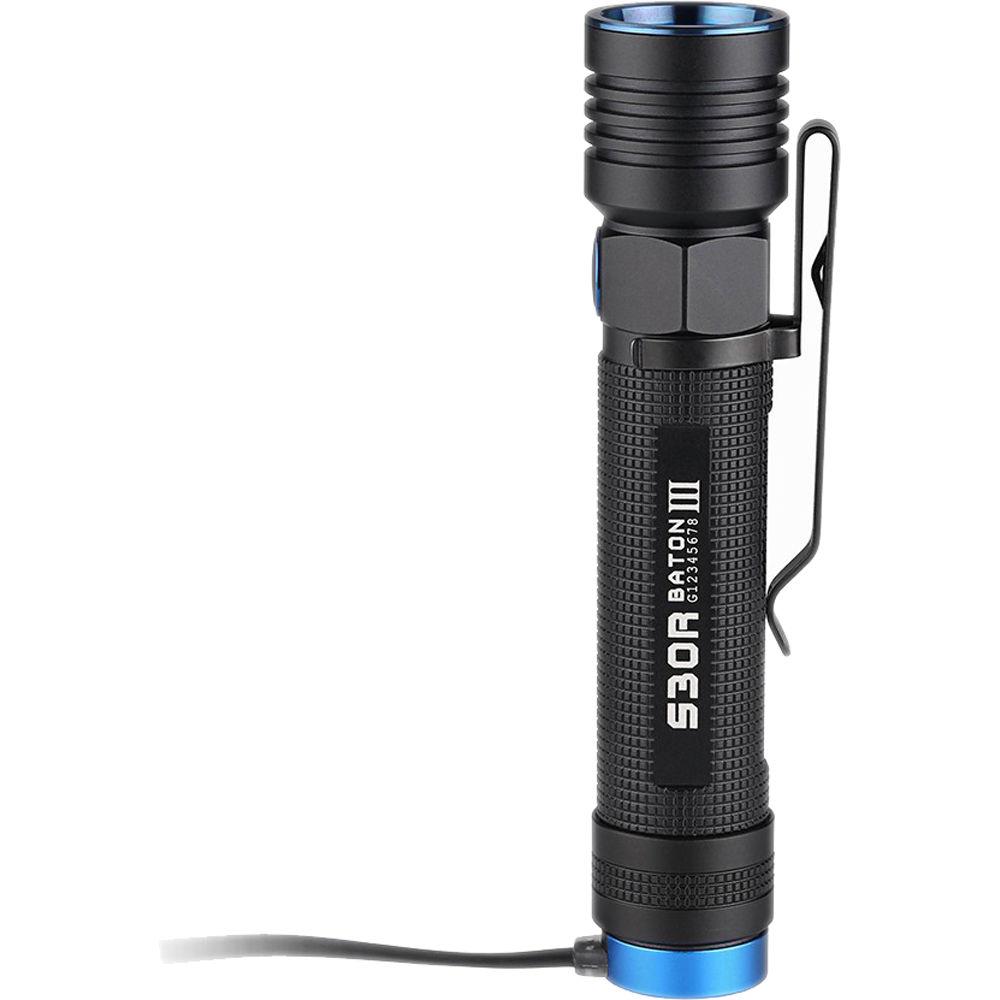

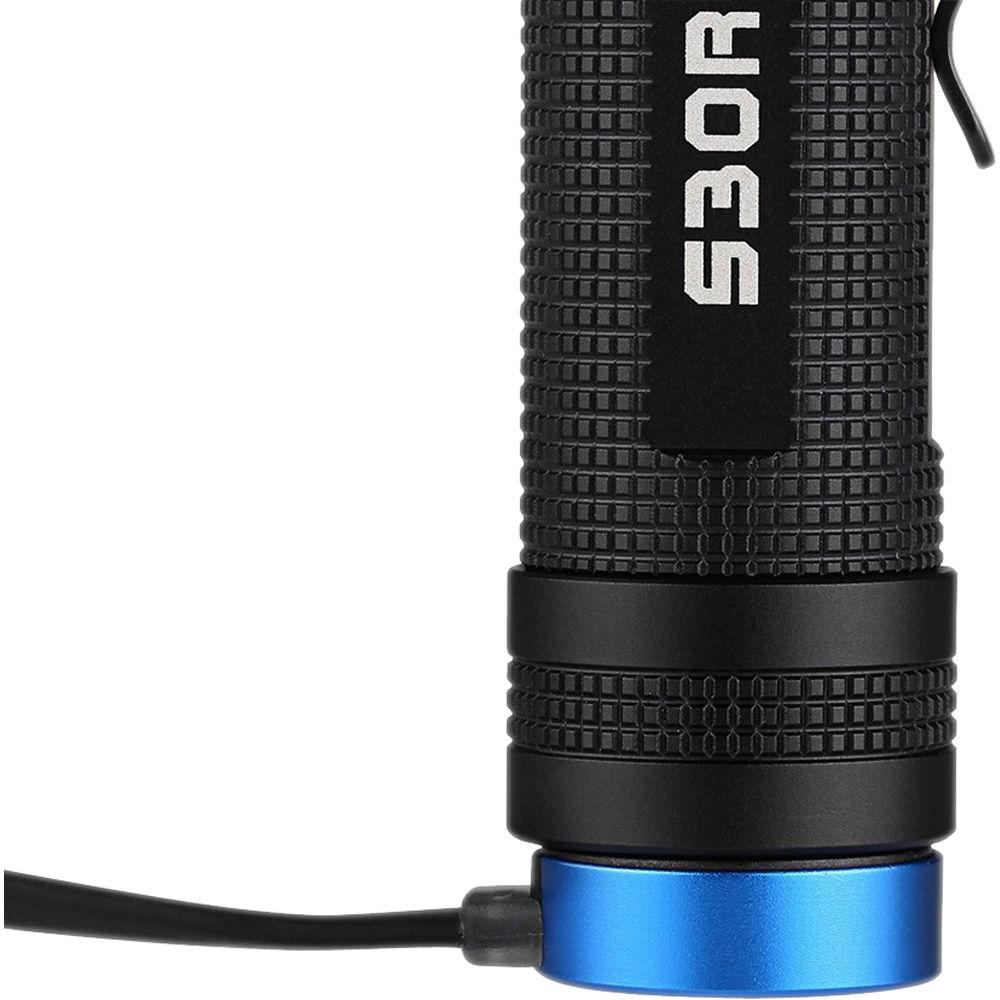

- Flat tailcap incorporates a strong magnet to attach to metallic surfaces for hands-free use

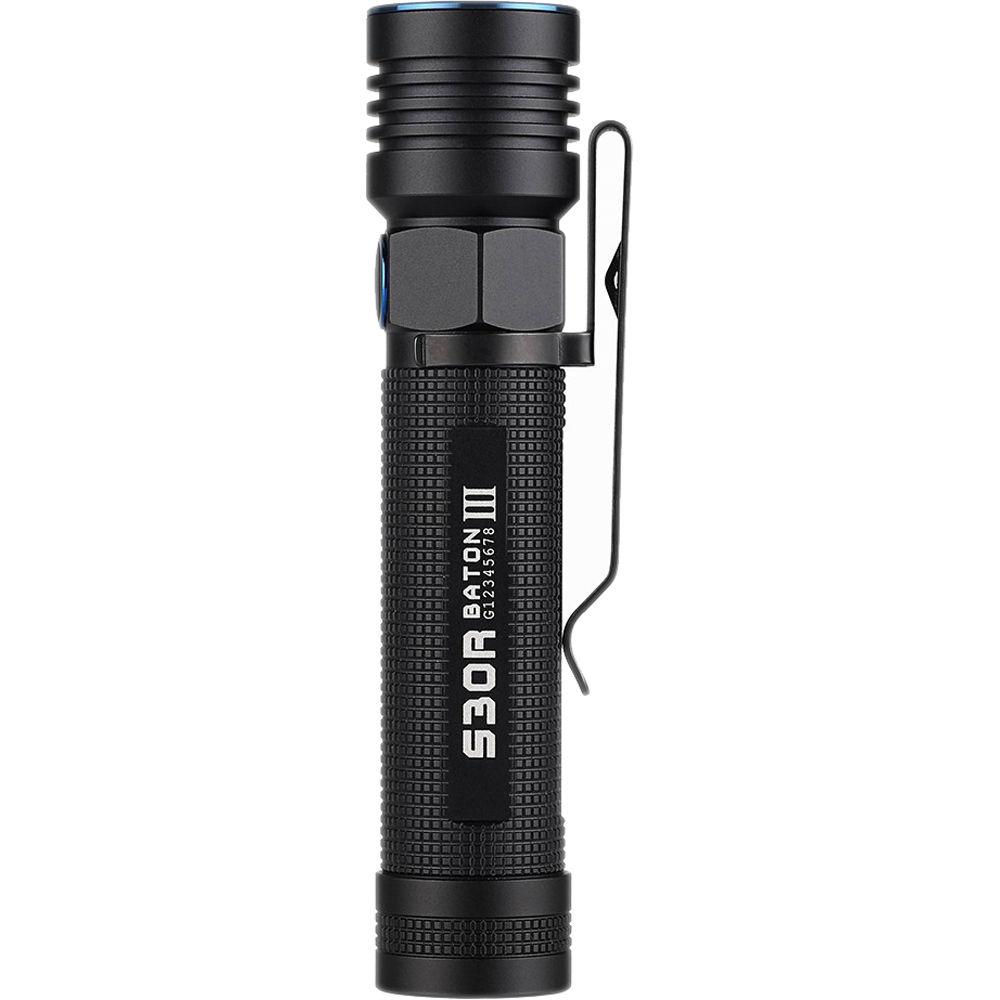

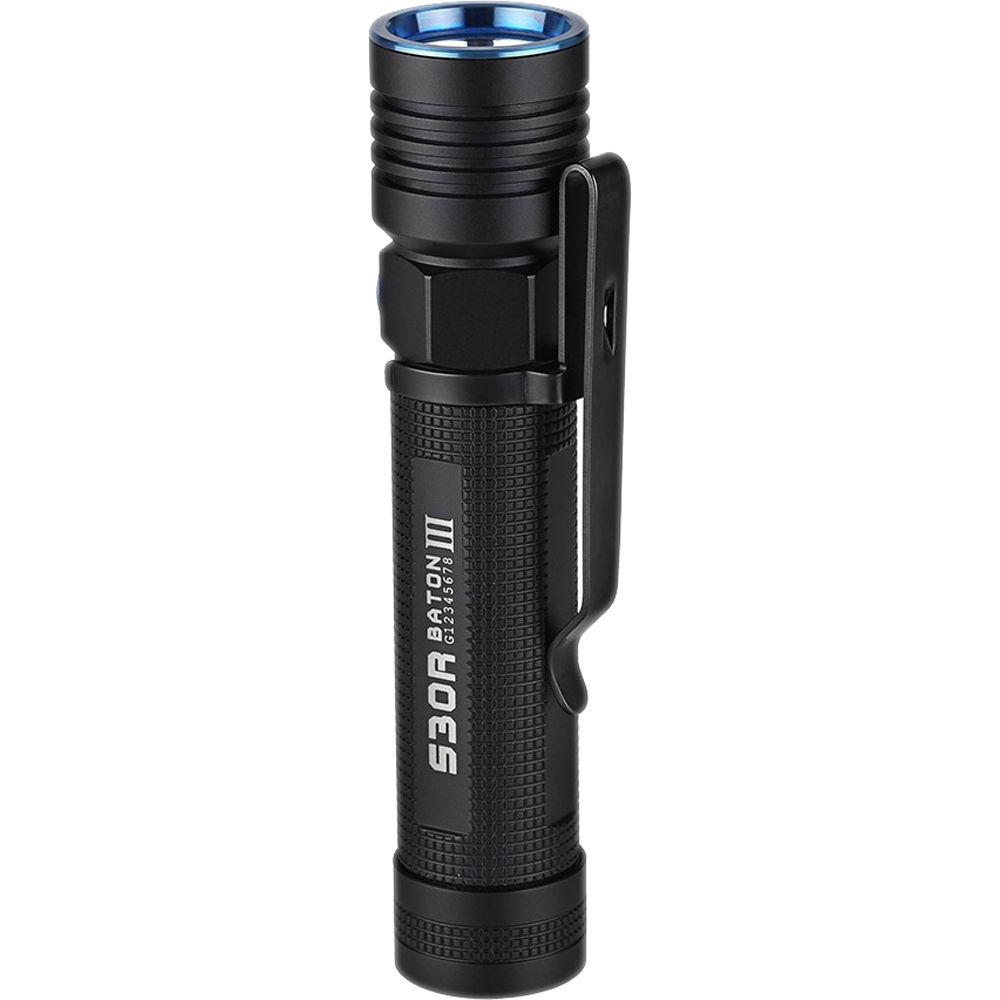

- Removable stainless steel pocket clip
In the Box Olight S30R III Baton Rechargeable LED Flashlight (Black, 3500mAh Battery) 18650 Rechargeable Lithium-Ion Battery (3500mAh) Charging Dock Micro-USB Cable Lanyard Stainless Steel Pocket Clip Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight S30R III Baton Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight S30R Baton III Specs | | | Lumen Output | Minimum: 0.5 Lumen
Low: 12 Lumens
Medium: 120 Lumens
High: 500 Lumens
Turbo: 1050 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 210 Minutes
Medium: 15 Hours
Low: 130 Hours
Turbo: 2 Minutes | | Battery Type | 1 x 18650 | | Internal Battery Capacity | 3500 mAh | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Dimensions |
