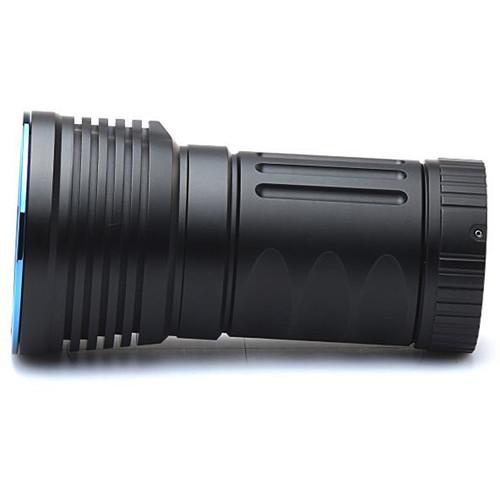

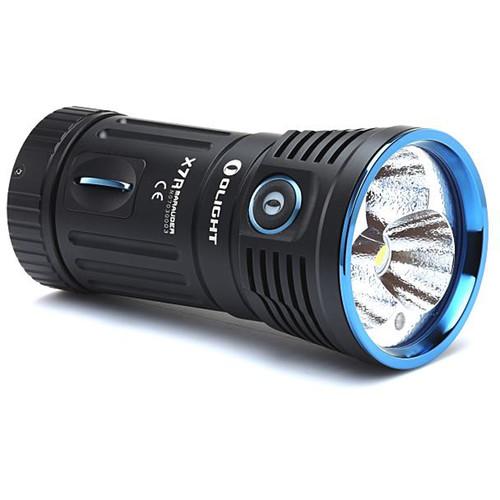

Olight X7R Marauder Rechargeable LED Flashlight

Search your instruction manual in PDF to download

User Manual for Olight X7R Marauder Rechargeable LED Flashlight

Click to enlarge the picture
Olight X7R Marauder Rechargeable LED Flashlight Contents of the user manual for the Olight X7R Marauder Rechargeable LED Flashlight
  • Product category: Handheld Flashlights Olight
  • Brand: Olight
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Olight Handheld Flashlights

Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight Olight X7R Marauder Rechargeable LED Flashlight
User manual for the Olight X7R Marauder Rechargeable LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Olight product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!



Product description

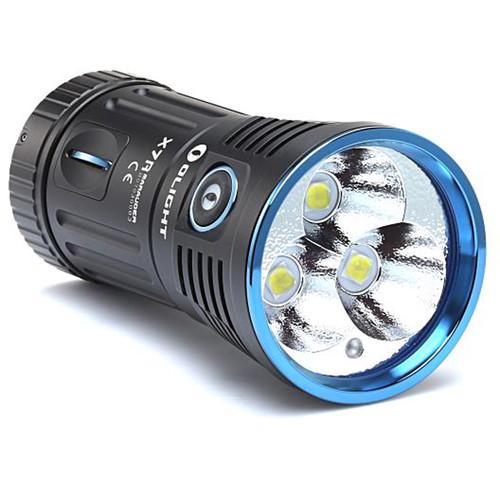

Whether for law enforcement, emergency response, industrial, recreational, or home use, you'll have the illuminating power you need with the X7R Marauder Rechargeable LED Flashlight. Powered by a rechargeable built-in lithium-ion battery pack, the light's three Cree XHP 70 CW LEDs produce up to 12,000 lumens – an output so powerful that the light automatically lowers the output when it is too near an object to avoid causing damage. At lower outputs, the batteries yield impressive runtimes. Olight calls the form factor "soda can" due to the light's short length and relatively thick girth. It offers six output levels, from the 12,000-lumen peak (it drops back to 3000 lumens after three minutes to avoid damage or injury) to a gentle 10-lumen nightlight setting. There's also a debilitating strobe for self-defense. Output levels are controlled by a single side push-button switch, and the lockout function prevents accidental activation. A twist of the tailcap opens the light's waterproof charging cable port, which accepts the included quick-charging USB-C charge cable. The light is operated with the side push-button multi-function switch, which features a battery power indicator. The X7R Marauder's Type III hard anodized 6061-T6 aluminum housing is water-resistant with an IPX7-rating, and can withstand being submerged to a depth of 3.3 feet. It has a retractable lanyard hole with a 5mm diameter that can accommodate sturdy cord.
    Performance
    • Level 6: 10 lumens
    • Level 5: 400 lumens
    • Level 4: 1000 lumens
    • Level 3: 3000 lumens
    • Level 2: 7000 lumens (drops after 12 minutes)
    • Level 1: 12,000 lumens (drops after 3 minutes)
    • 10 Hz strobe mode

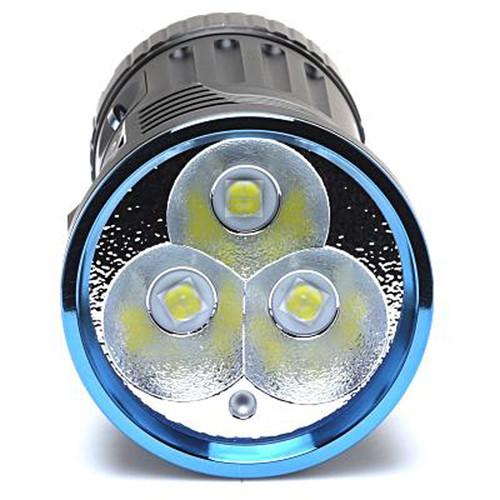

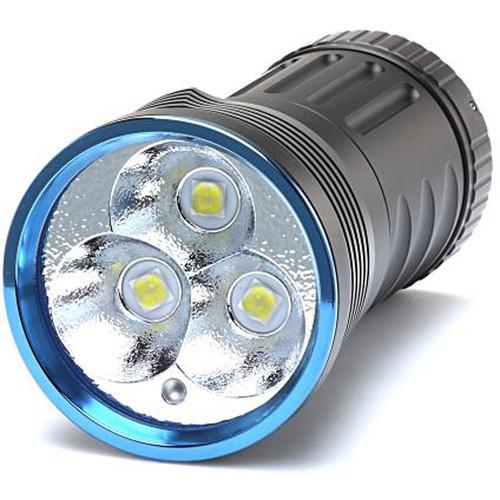

    • 3 x Cree XHP 70 CW LED
    • Charge Time: 4.5 hours
    Switching
    • Side push-button
    • Controls on/off, brightness, and strobe settings
    • Battery power indicator
    • Lockout mode prevents accidental activation
    • Low-battery indicator and lockout mode
    Construction
    • Type III hard anodized 6061-T6 aluminum alloy

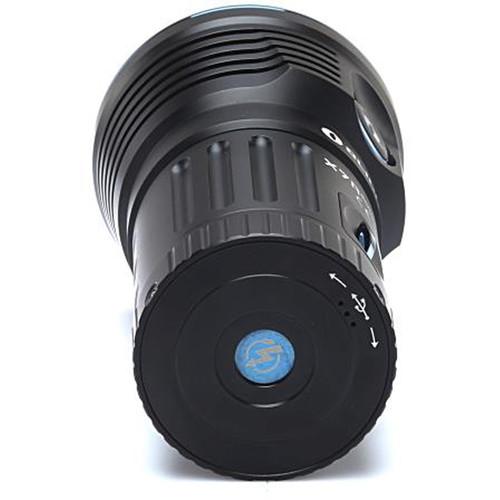

    • Quick-charging, waterproof USB-C charging port on base
    • Waterproofing: IPX7-rated; submersible to 3.3'
    • Impact-resistant to 3.3'
    • Textured handle provides slip-resistant grip
    • Retractable lanyard hole
    • Active Thermal Management prevents overheating
    • Proximity sensor lowers output when near an object to prevent damage
In the Box Olight X7R Marauder Rechargeable LED Flashlight
  • 5V 4A Type-C Wall Power Adapter
  • 31.5" USB-C Charge Cable
  • Holster
  • Lanyard
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Olight X7R Marauder Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Olight X7R Marauder Rechargeable LED Flashlight can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Olight X7R Marauder Rechargeable LED Flashlight can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Olight X7R Marauder Rechargeable LED Flashlight can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Olight X7R Marauder Rechargeable LED FlashlightDownload PDF User Manual - https://www.search-manual.com/ upload/ olight-x7r-marauder-rechargeable-led-flashlight-306724-user-manual.pdf
    (PDF file, 0.85 MB)


    Technical parameters

    Olight X7R Marauder Specs

    Lumen Output High: 7000 Lumens
    Minimum: 10 Lumens
    Turbo: 12,000 Lumens
    Illumination Source 3 x LED
    Battery Type 4 x 18650
    Material of Construction Aluminum
    Water Resistance Waterproof, IPX7
    Bezel Diameter 2.7" / 6.8 cm
    Dimensions
