User Manual for Olight X9R Marauder Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Olight X9R Marauder Rechargeable LED Flashlight
- Product category: Handheld Flashlights Olight
- Brand: Olight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olight Handheld Flashlights
 |
User manual for the Olight X9R Marauder Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olight product will considerably shorten its lifespan!
|

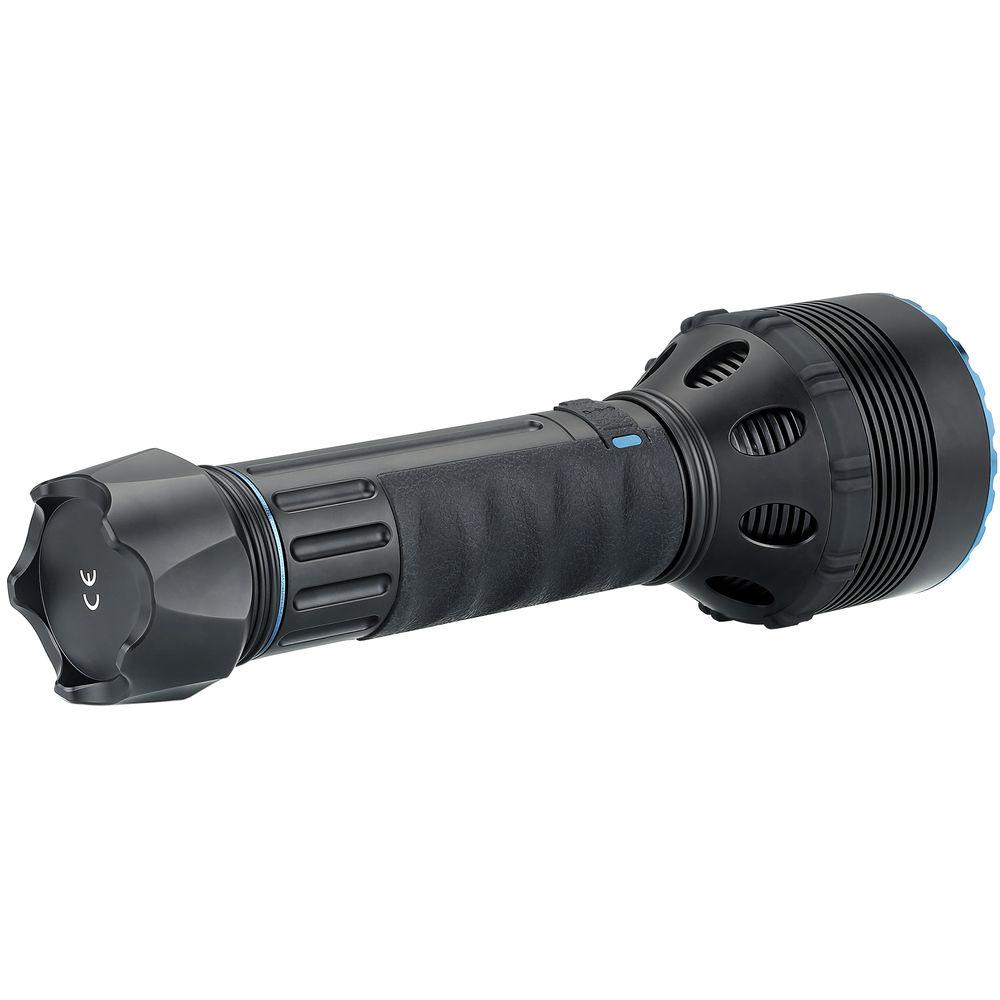

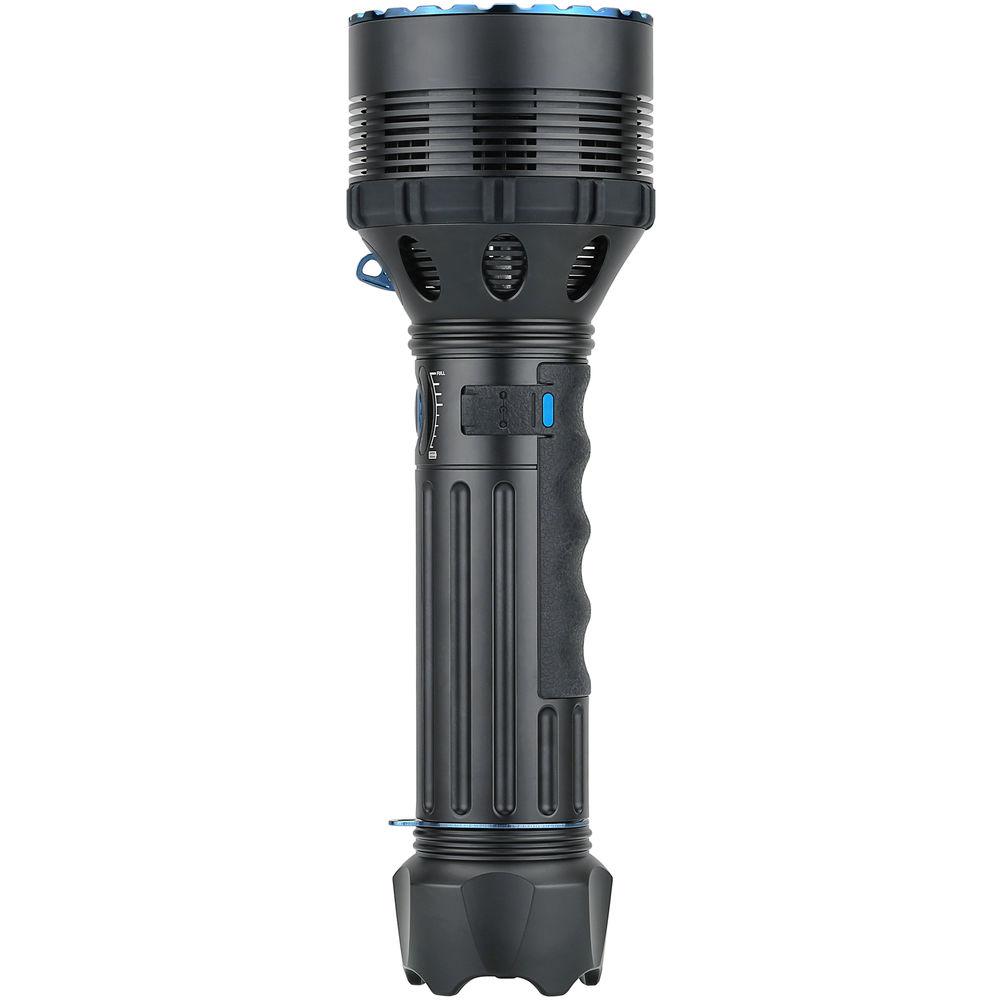

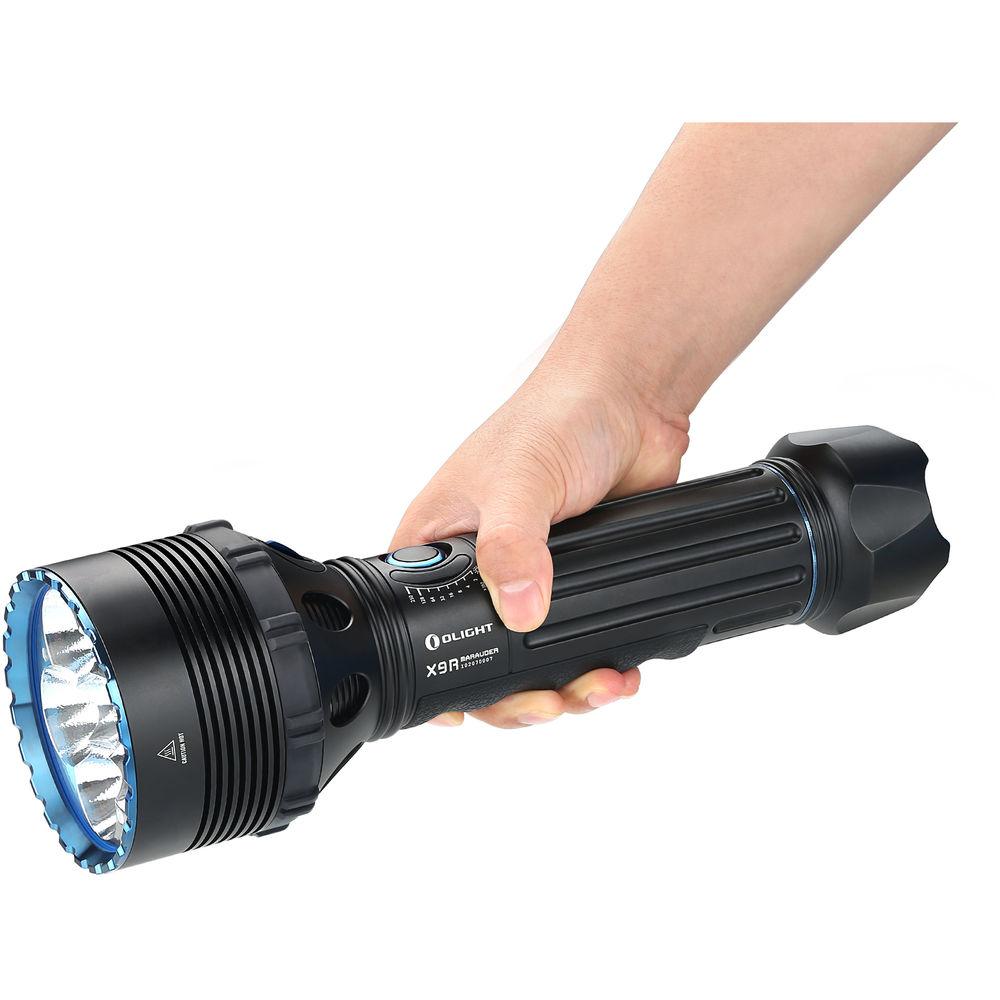

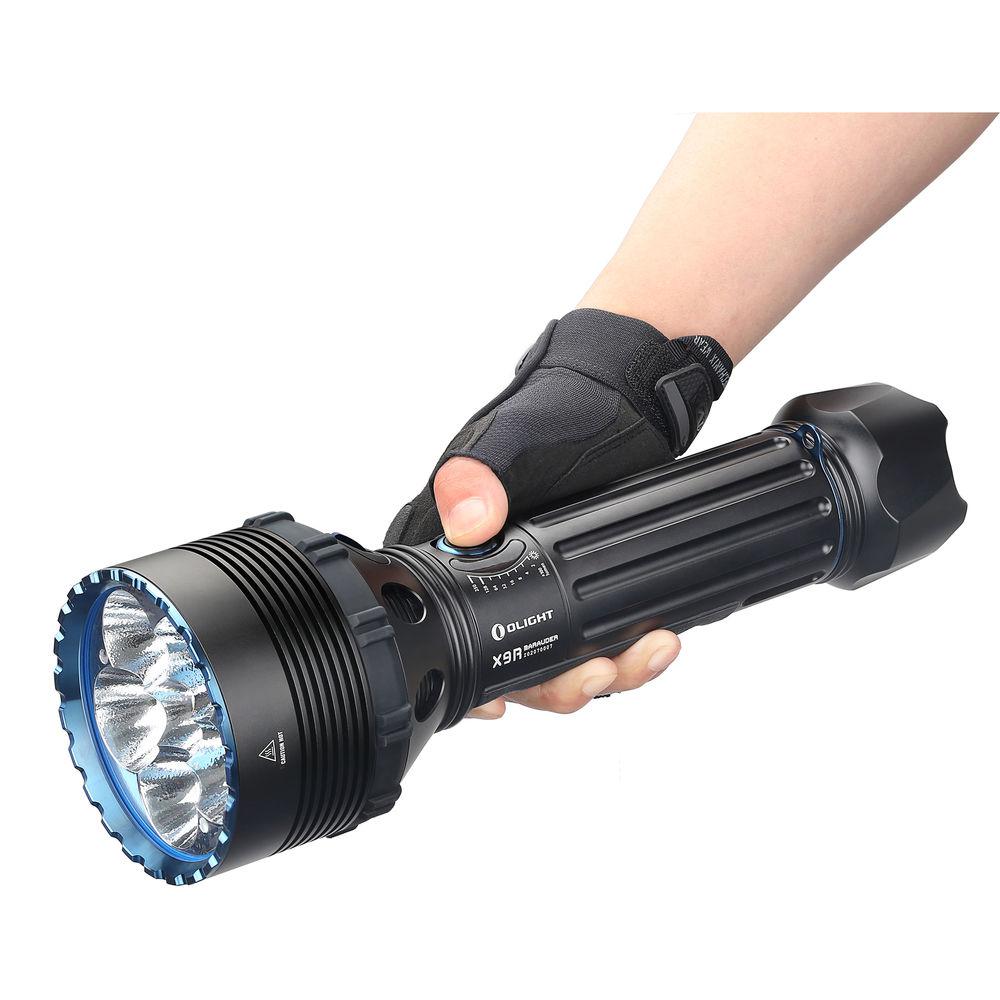

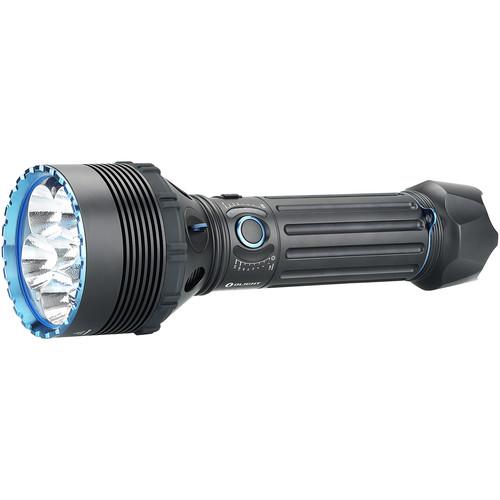

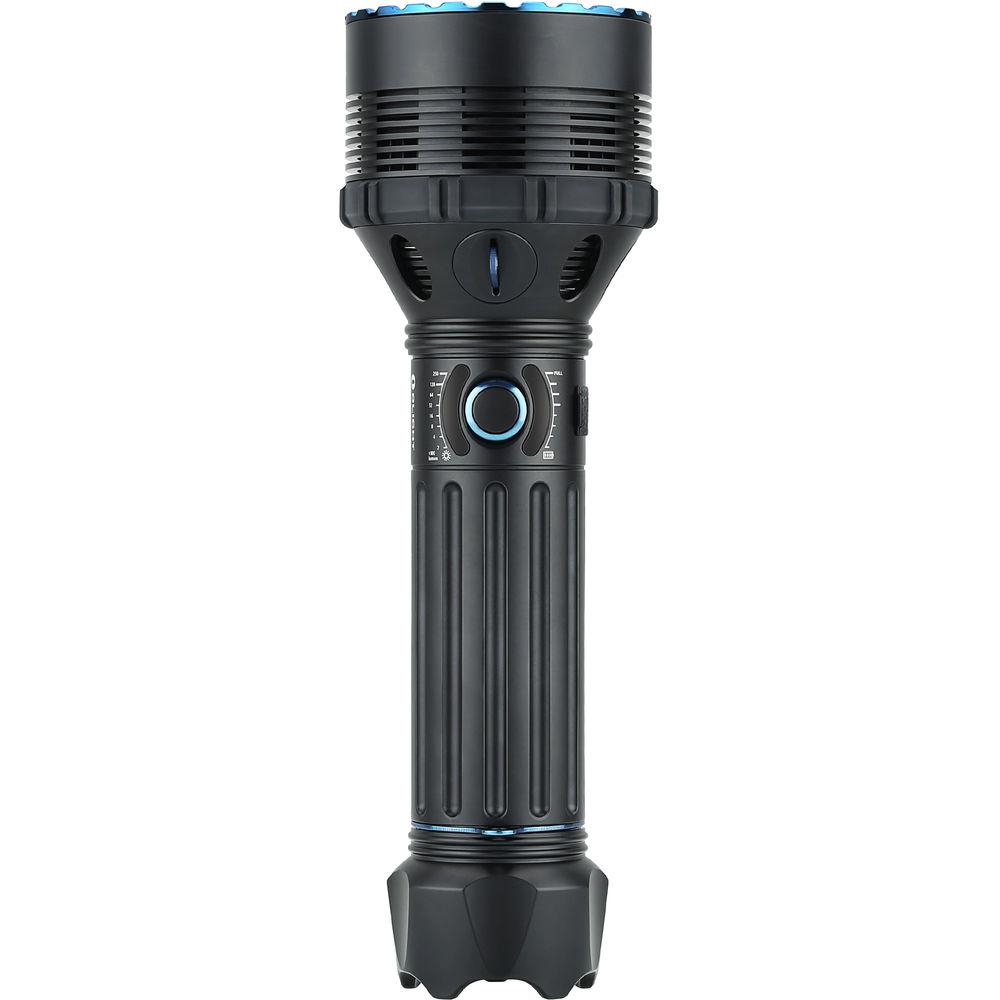

Product description Whether for law enforcement, emergency response, industrial, recreational, or home use, you'll have the illuminating power you need with the Olight X9R Marauder Rechargeable LED Flashlight. Powered by a removable lithium-ion battery pack, the X9R's six Cree XHP70.2 LEDs produce up to 25,000 lumens—an output so powerful that the light automatically reduces brightness when it is too near an object, to avoid causing damage. At lower outputs, the batteries yield impressive runtimes.

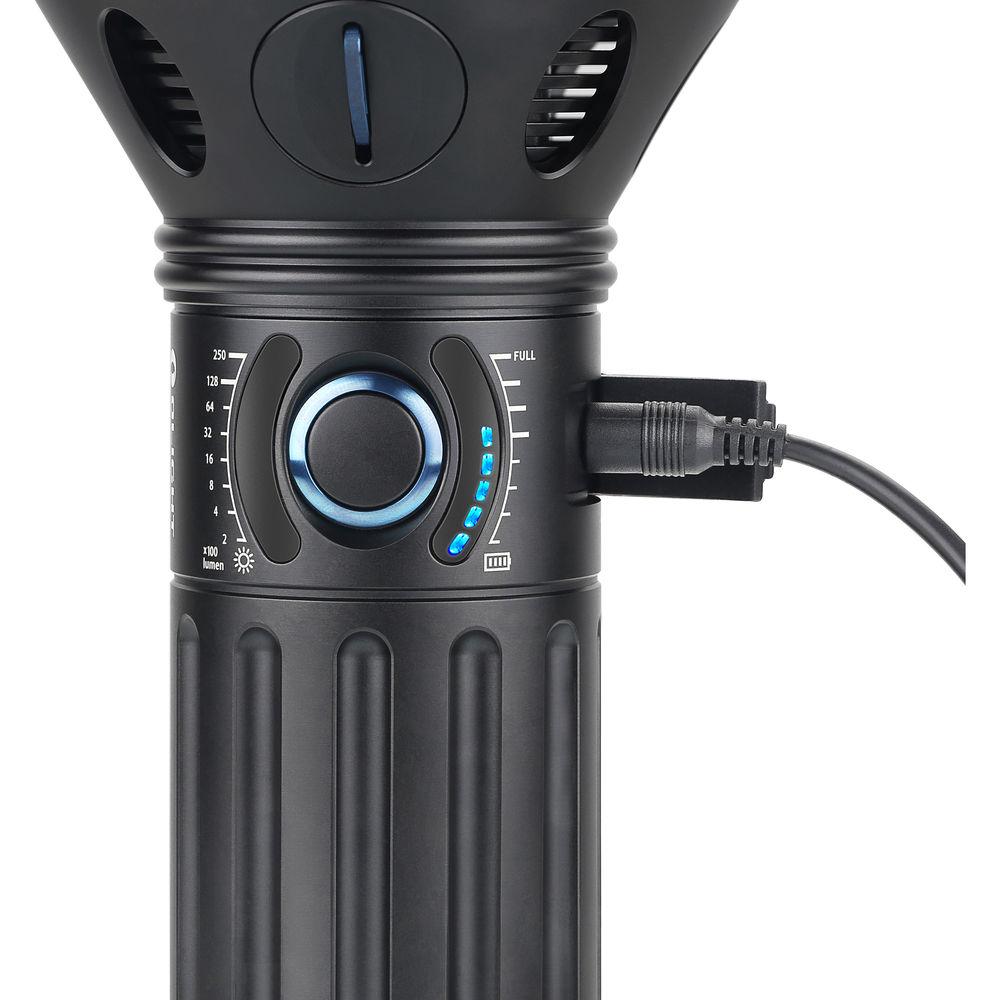

The light functions at eight output levels, from the 25,000-lumen peak (which drops back to 6400 lumens after three minutes to avoid damage or injury) to a 200-lumen low setting with a runtime of 27 hours. There's also a debilitating 12,800-lumen, 13Hz strobe strobe for self-defense. Output levels are controlled by a single side push-button switch, with an eight-stage blue LED on one side that shows the output level and one on the other side that shows remaining battery power.

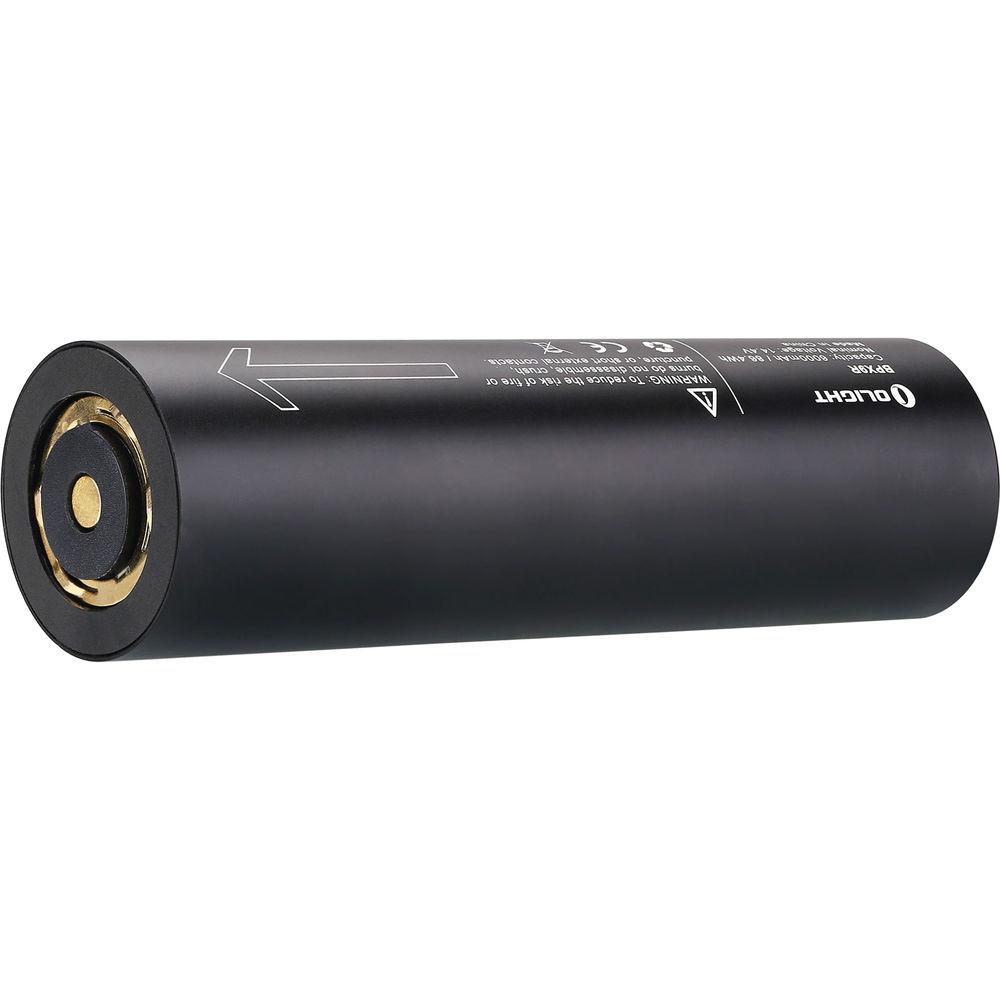

The 8 x 18650 battery pack charges inside the light, via home and car adapters. Made of machined AL6061-T6 aluminum, the X9R is substantial in size (12.6", 4" bezel diameter) and weight (4 pounds) and comes with an anti-roll retainer ring, shoulder strap, and hard-sided carry case. It is IPX7-rated, submersible and impact resistant to 3.3'. - Performance
-
- Level 1: 25,000 lumens (drops to 6400 after 3 minutes)
- Level 2: 12,800 lumens (drops to 6400 after 10 minutes)
- Level 3: 6400 lumens
- Level 4: 3200 lumens
- Level 5: 1600 lumens
- Level 6: 800 lumens
- Level 7: 400 lumens
- Level 8: 200 lumens
- 12,800-lumen, 13 Hz strobe mode

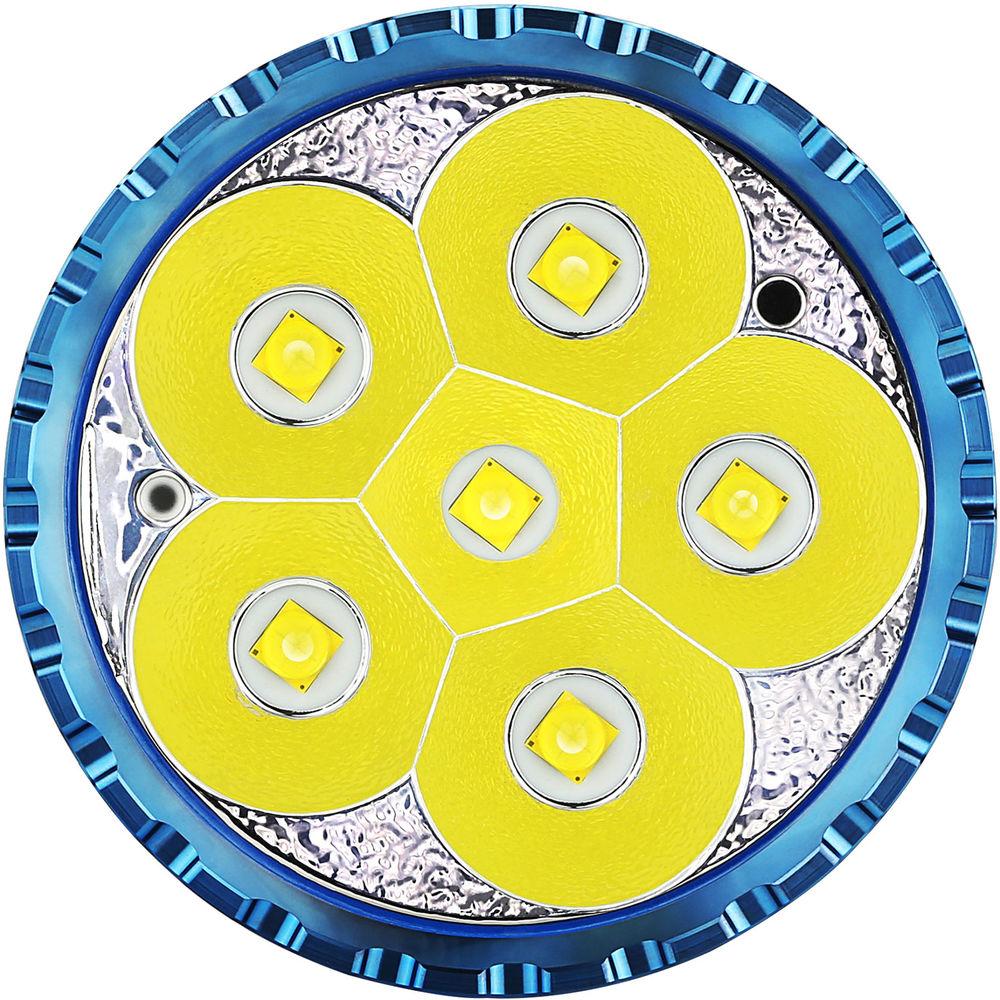

- 6 x Cree XHP70.2 LEDs
- Runtime: 1.6-27 hours
- Charge Time: 4 hours
- Switching
-
- Side push button
- Controls on/off, brightness, and strobe settings
- Battery power and output level indicators
- Lockout mode prevents unintended activation
- Construction
-
- Type III hard anodized 6061-T6 aluminum alloy
- Waterproofing: IPX7 rated; submersible to 3.3'
- Impact resistant to 3.3'
- Milled finger grooves for comfortable grip
- Active Thermal Management prevents overheating
- Proximity sensor lowers output when near an object to prevent damage
- Anti-roll retainer ring
- Shoulder strap and hard-sided case

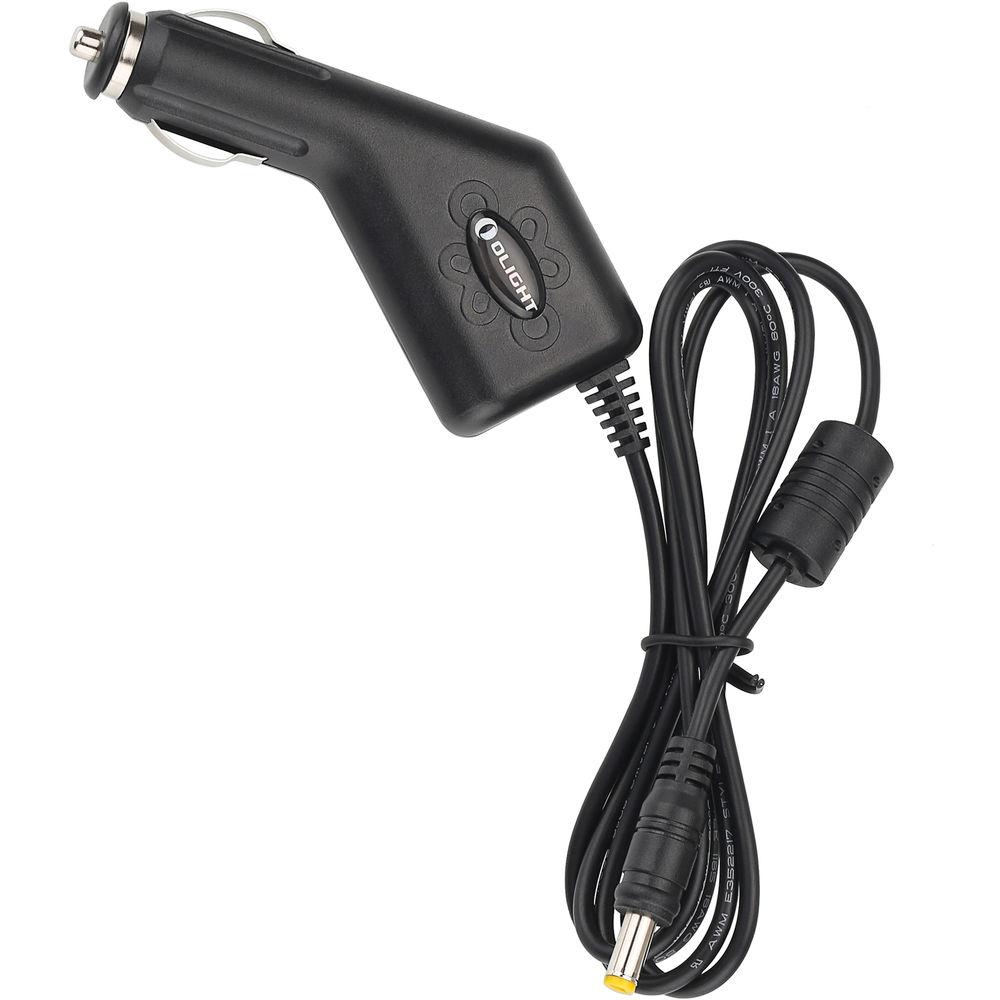

In the Box Olight X9R Marauder Rechargeable LED Flashlight Battery Pack Shoulder Strap AC Adapter Car Charger Anti-Roll Retainer Ring Hard Shell Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olight X9R Marauder Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlight X9R MARAUDER Specs | | | Lumen Output | 8 Levels: 200 to 25,000 Lumens | | Illumination Source | 6 x White LED | | Input Charging Port | Barrel | | Weapon Mountable | No | | | | Estimated Runtime | 1.6 to 27 Hours | | Battery Type | 8 x 18650 | | Charging Time | 4 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX7 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Bezel Diameter | 3.9" / 9.9 cm | | Dimensions |
