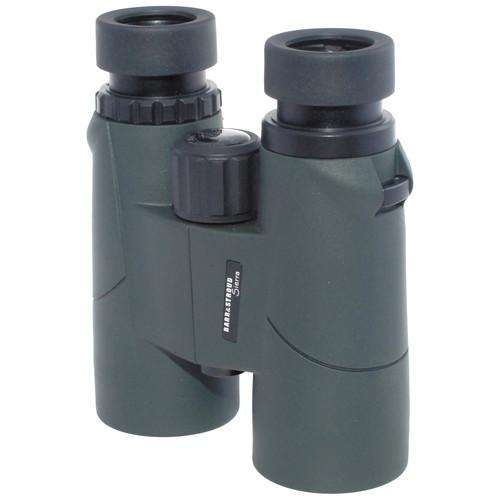

User Manual for Olivon 8x42 Barr & Stroud Sierra Binocular Click to enlarge the picture
Contents of the user manual for the Olivon 8x42 Barr & Stroud Sierra
- Product category: Binoculars Olivon
- Brand: Olivon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olivon Binoculars
|
User manual for the Olivon 8x42 Barr & Stroud Sierra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olivon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olivon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olivon product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 8x42 Barr & Stroud Sierra Binocular from Olivon features fully multicoated optics, BAK4 phase-corrected Roof Prisms, a wide angle of view, and a weather-proof construction with rubber armoring. While the fully multicoated lenses greatly increase light transmission and image brightness, the phase corrected Roof Prisms made of BAK4 optical glass preserve true colors. The wide 7.4° angular field of view allows you to see a linear field of 387' at a distance of 1000 yards, and the center focus with a diopter allow seeing crisp details as close as 6.6'. The binocular also has an interpupillary adjustment range of 56 - 74 mm and a 5.2 mm exit pupil.
In addition to optical performance features, the Barr & Stroud Sierra presents a number of convenience and construction highlights. The binocular housing is waterproof to 5' and has a smooth rubberized armoring to ensure a non-slip grip. For easy focusing, there is a large knurled center focus knob and a ribbed diopter ring on the right eyepiece. To accommodate anyone with glasses, there are 18 mm eye relief and twist-up eyecups.
Also included with the binocular are a strap, ocular lens cups, objective lens cups, and a carrying case with a strap. Optical Performance -
- 42mm objective diameter
- Fully multicoated elements improve image brightness
- BAK4 phase-coated Roof Prisms preserve true color
- Wide angle viewing: 7.4 °
- Close focus: 6.6'
Use and Handling -
- Center focusing adjustment
- Interpupillary range of 56 - 74 mm
- Diopter adjustment ±4
- Eye relief: 18 mm
Construction -
- Waterproof to 5' for three minutes
- Smooth rubberized armoring provides sure grip
- Twist-up eyecups allow viewing with glasses
- Tripod adaptable via an optional mount
In the Box Olivon 8x42 Barr & Stroud Sierra Binocular - Strap
- Case with Strap
- 2 x Ocular Lens Cups
- 2 x Objective Lens Cups
- Cleaning Cloth
- Limited Lifetime Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Olivon 8x42 Barr & Stroud Sierra Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlivon OLBSSI842-US 70172 Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.4° (actual) | | Field of View | 388.5' @ 1000 yd / 129.5 m @ 1000 m | | Minimum Focus Distance | 42.7' / 13 m | | Exit Pupil Diameter | 5.2 mm | | Eye Relief | 17.8 mm | | Interpupillary Adjustment | 8.7 to 11.5 mm / 22 to 29.1" | | Dioptric Correction | ±4 | | Focus Type | Center | | Tripod Mount | Yes | | Dimensions | 5.3 x 4.9 x 2.0" / 135.0 x 125.0 x 52.0 mm | | Weight | 23.00 oz / 652.05 g |
