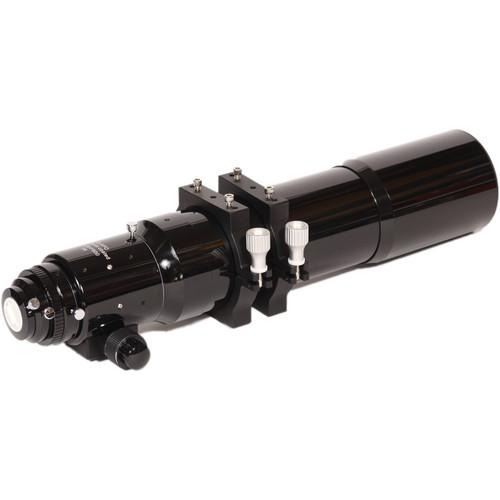

User Manual for Olivon ED-100 100mm f 6.0 APO Refractor Telescope Click to enlarge the picture
Contents of the user manual for the Olivon ED-100 100mm f 6.0 APO
- Product category: Refractors Olivon
- Brand: Olivon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olivon Refractors
|
User manual for the Olivon ED-100 100mm f 6.0 APO contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olivon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olivon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olivon product will considerably shorten its lifespan!
|
Product description Designed for both observation and astrophotography/astroimaging with superior views of our solar system and bright deep-sky objects like stars and nebulae, Olivon's ED-100 100mm f/6.0 APO Refractor Telescope features enhanced optical materials and coatings that improves light transmission through the entire optical path while virtually eliminating the two main causes of distortion common in refractor-style telescopes: chromatic and spherical aberrations. In correcting for these aberrations, images appear bright and clear with true color representation and virtually no distortion across the entire field of view.The scope's lenses are made from S-FPL51 extra-low dispersion (ED) glass in a apochromatic doublet configuration which corrects the chromatic and spherical aberrations. Utilizing anti-reflection fully multicoated optics minimizes light loss and increases light transmission so images appear bright and clear. To obtain the fastest and sharpest focus, Olivon employs their patented 2" 'Rack and Pinion Hybrid-Drive' focuser. This dual speed focuser has a fast coarse focus and a 10:1 ratio fine focus to get images tack-sharp.The ED-100 is offered here without a mount or tripod, but it does include mounting rings to attach a user-supplied saddle or dovetail plate. For transportation and storage, Olivon includes an aluminum carrying case with reinforced corners and edges and pre-cut foam inserts for the OTA and some accessories. - Optical Performance
-
- Aperture: 100mm
- Focal length: 600mm
- Focal ratio: f/6.0
- Refractor-style optical path
- Apochromatic doublet lens configuration corrects for chromatic and spherical aberrations
- Chromatic correction provides true color transmission and allows for sharper images and improved resolution
- Spherical correction produces images without distortion across the entire field of view - especially at the edges of the lens
- S-FPL51 extra-low dispersion (ED) glass further corrects for chromatic aberration for enhanced color, resolution and sharpness
- Anti-reflection fully multicoated optics maximize light transmission through the entire optical path for brighter and clearer images
- Focuser
-
- Accepts 2" eyepieces and accessories
- Patented 'Rack and Pinion Hybrid-Drive' focuser: Coarse and 10:1 fine dual-speed focusing mechanism
- Construction Details
-
- Aluminum OTA with white anodized finish
- Includes mounting rings with 1/4"-20 threads to attach optional saddle/dovetail plate
- Integrated retractable dew shield
- Hard Carrying Case
-
- Aluminum case with reinforced edges and corners
- Pre-cut foam inserts to fit OTA and accessories
- One carrying handle centered between dual locking latches
- Dimensions: 22 x 12 x 8" (55.9 x 30.5 x 20.3 cm)
In the Box Olivon ED-100 100mm f/6.0 APO Refractor Telescope (OTA Only) Aluminum Carrying Case Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olivon ED-100 100mm f 6.0 APO Refractor Telescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlivon OLED100-US Specs | | | Optical Design | Apochromatic Doublet Refractor | | Aperture | 100 mm / 3.9" | | Focal Length | 600 mm | | Focal Ratio | f/6 | | Eyepiece Barrel Diameter | 2" | | Diagonal | None | | Finderscope | None | | Mounting System | Mounting Rings |
