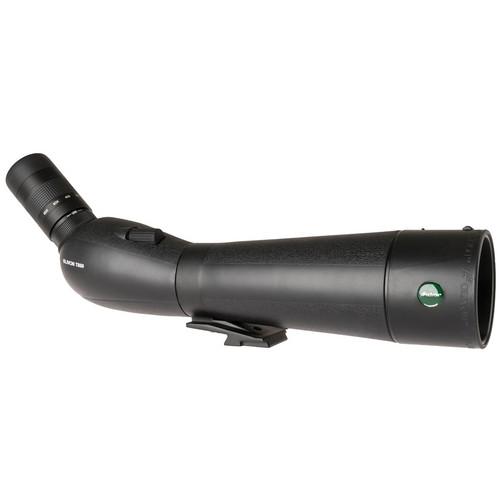

User Manual for Olivon T-800 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Olivon T-800 20-60x80 Spotting Scope
- Product category: Spotting Scopes Olivon
- Brand: Olivon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olivon Spotting Scopes
|
User manual for the Olivon T-800 20-60x80 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olivon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olivon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olivon product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More The angled-viewing T-800 20-60x80 Spotting Scope from Olivon is a fully multi-coated optic that includes a zoom eyepiece. The T-800's 1.25-inch eyepiece mount allows the observer to pair almost any 1.25-inch astronomy eyepiece with the objective. Complementing the T-800's handling features is an integrated retractable sunshade and a rotating tripod collar. For digiscoping with the T-800 spotting scope, the included SLR camera adapter enables observers to capture the view transmitted by their scope using the resolution and functionality of their SLR camera. Combined with the interchangeable eyepiece and fully multi-coated lens system, a nitrogen-filled fogproof and waterproof housing equips the T-800 spotting scope for a wide range of outdoor observations. - Optical Performance
-
- 20-60x magnification eyepiece, 80mm objective
- Fully multi-coated optics, BAK4 prisms
- 2-1° angle of view, 40-60° apparent viewing angle
- 18-15mm eye relief
- Use and Handling
-
- 1.25" eyepiece mount
- Rotating tripod collar
- Built-in retractable sunshade
- SLR camera mount adapter for digiscoping
- Construction Details
-
- Nitrogen-filled fogproof housing
- Rubber-armored body
- Submergible to 1 ft for 5 min
In the Box Olivon T-800 20-60x80 Spotting Scope (Angled Viewing) SLR Camera Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olivon T-800 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlivon T-800 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Angle of View | 20x: 60° (Apparent)
60x: 40° (Apparent) | | Field of View | 20x: 102.0' @ 1000 yd / 31.0 m @ 1000 m
60x: 57.0' @ 1000 yd / 17.4 m @ 1000 m | | Minimum Focus Distance | 20x: 26.0' / 8.0 m
60x: 33.0' / 10.0 m | | Exit Pupil Diameter | 20x: 4.1 mm
60x: 1.4 mm | | Eye Relief | 18.0 to 15.0 mm | | | | Tripod Mounting Thread | 1/4"-20 |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
