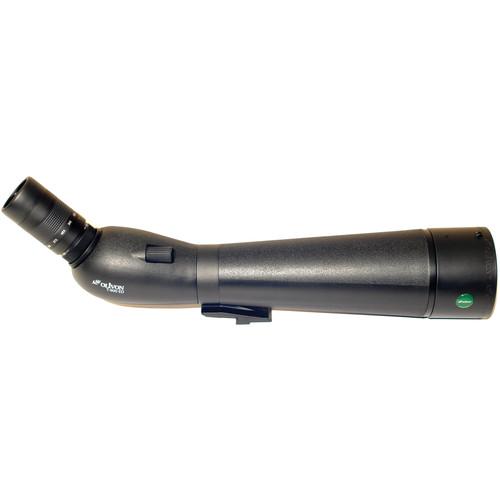

User Manual for Olivon T-900ED Mark II 22-68x90 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Olivon T-900ED Mark II 22-68x90 Spotting
- Product category: Spotting Scopes Olivon
- Brand: Olivon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olivon Spotting Scopes
|
User manual for the Olivon T-900ED Mark II 22-68x90 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olivon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olivon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olivon product will considerably shorten its lifespan!
|
Product description A Guide to Birding with Spotting Scopes Read More Olivon's angled-viewing T-900ED Mark II 22-68x90 Spotting Scope provides an ideal platform for observation or digiscoping, with excellent low-light performance. The large objective is made of extra-low dispersion (ED) glass, which is used to correct chromatic aberration and eliminate off-axis comas to produce true color fidelity. The use of ED glass, combined with the large objective diameter and a multi-coated optical system, produces clear and sharp images with true color transmission. This optical performance complements the included 22-68x zoom eyepiece to give users a versatile observation platform. Adding to the scope's versatility is its ability to accept most 2"- and 1.25"-barrel-diameter eyepieces—astronomical or terrestrial, zoom, or fixed focal length.The eyepiece is set at a 45° angle to the optical tube for enhanced viewing comfort, with a 360° rotating tripod collar that allows the eyepiece to be put in the perfect position whether the user is standing, sitting, or lying down. For mounting options there is an integrated tripod shoe that fits many quick release plates, with the additional option of dual 1/4"-20 and 3/8"-16 mounts to directly attach to a tripod. The aluminum-alloy chassis sports rubber armoring to protect the exterior from potential damage due to drops and impacts, and the optical tube is nitrogen filled and O-ring sealed to be fogproof and waterproof. The combination of performance and construction makes the T-900ED usable in most environments and weather conditions. - Optical Performance
-
- 22-68x zoom eyepiece
- Large 90mm objective lens
- Extra-low dispersion (ED) glass reduces chromatic aberration for true color transmission and sharper image resolution
- Multi-coated optics improve light transmission, color rendition, and contrast
- 93-47' field of view at 1000 yd
- Long 18-15mm eye relief
- 4.1-1.3mm exit pupil
- Use and Handling
-
- Compatible with many 2" and 1.25" spotting scope and telescope eyepieces for versatility
- Angled viewing
- Eyepiece set at a 45° angle to the optical tube
- Provides a more comfortable viewing position whether standing, sitting, or lying down
- Twist-up eyecups for use with or without eyewear
- 360° rotating tripod collar
- Quick release shoe with 1/4"-20 and 3/8"-16 tripod mounts
- Construction Details
-
- Lightweight and durable aluminum-alloy chassis
- Nitrogen-filled fog and waterproof
- Protective rubber armor guards against drops and impacts
- Textured zoom collar, eyepiece lock, and focus wheel for easy non-slip use
- Secure screw-on objective and eyepiece caps
- Integrated retractable sunshade with aiming posts
- Included soft carrying case with shoulder strap
In the Box Olivon T-900ED Mark II 22-68x90 Spotting Scope (Angled Viewing) Eyepiece Cap Objective Lens Cap 22-68x Zoom Eyepiece Soft Carrying Case with Strap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olivon T-900ED Mark II 22-68x90 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlivon OLT900ED-US Specs | | | Magnification | 22 to 68x | | Objective Lens Diameter | 90 mm | | Angle of View | 22x: 40° (Apparent)
68x: 60° (Apparent) | | Field of View | 22x: 93.0' @ 1000 yd / 31.0 m @ 1000 m
68x: 47.0' @ 1000 yd / 15.7 m @ 1000 m | | Exit Pupil Diameter | 22x: 4.1 mm
68x: 1.3 mm | | Eye Relief | 18.0 to 15.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20, 3/8"-16 | | Dimensions | L: 22.5 x H: 7.1 x W: 4.5" / L: 57.2 x H: 18.0 x W: 11.4 cm | | Weight | 4.3 lb / 2.0 kg | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 26.45 x 7.6 x 6.2" |
