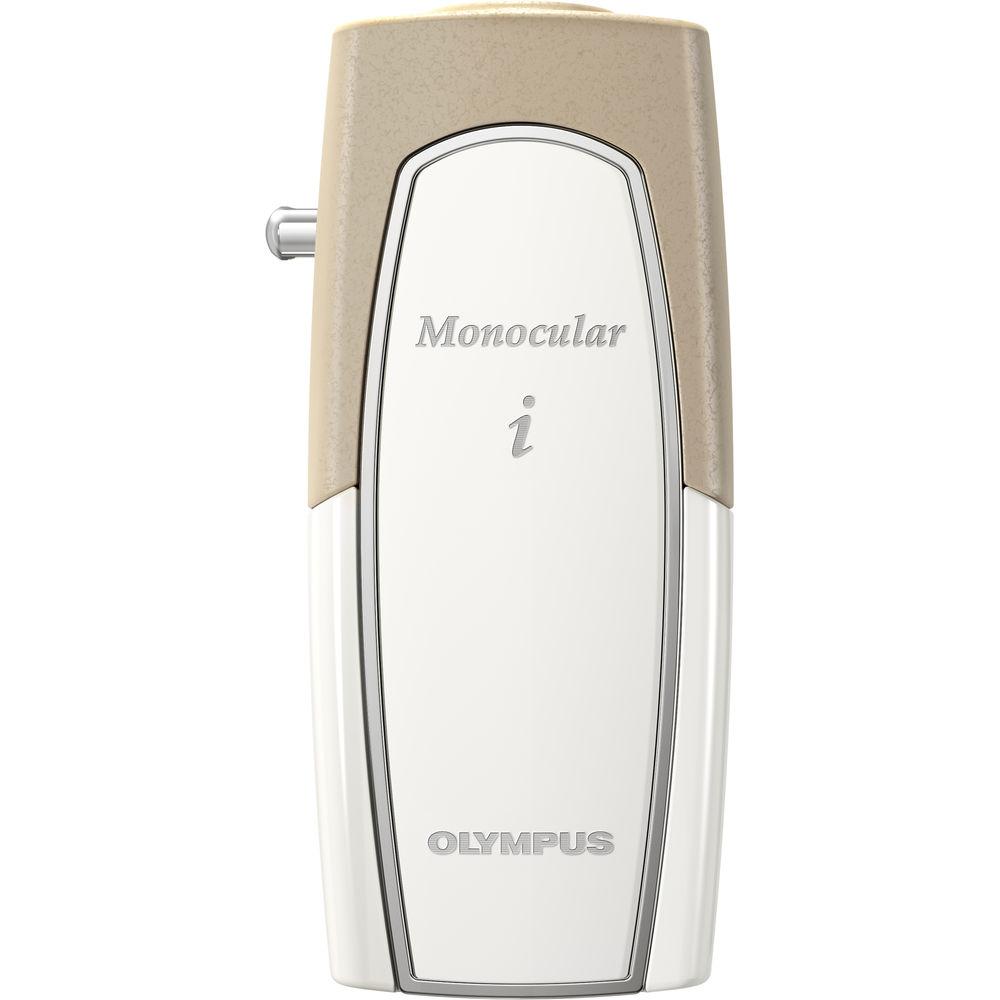

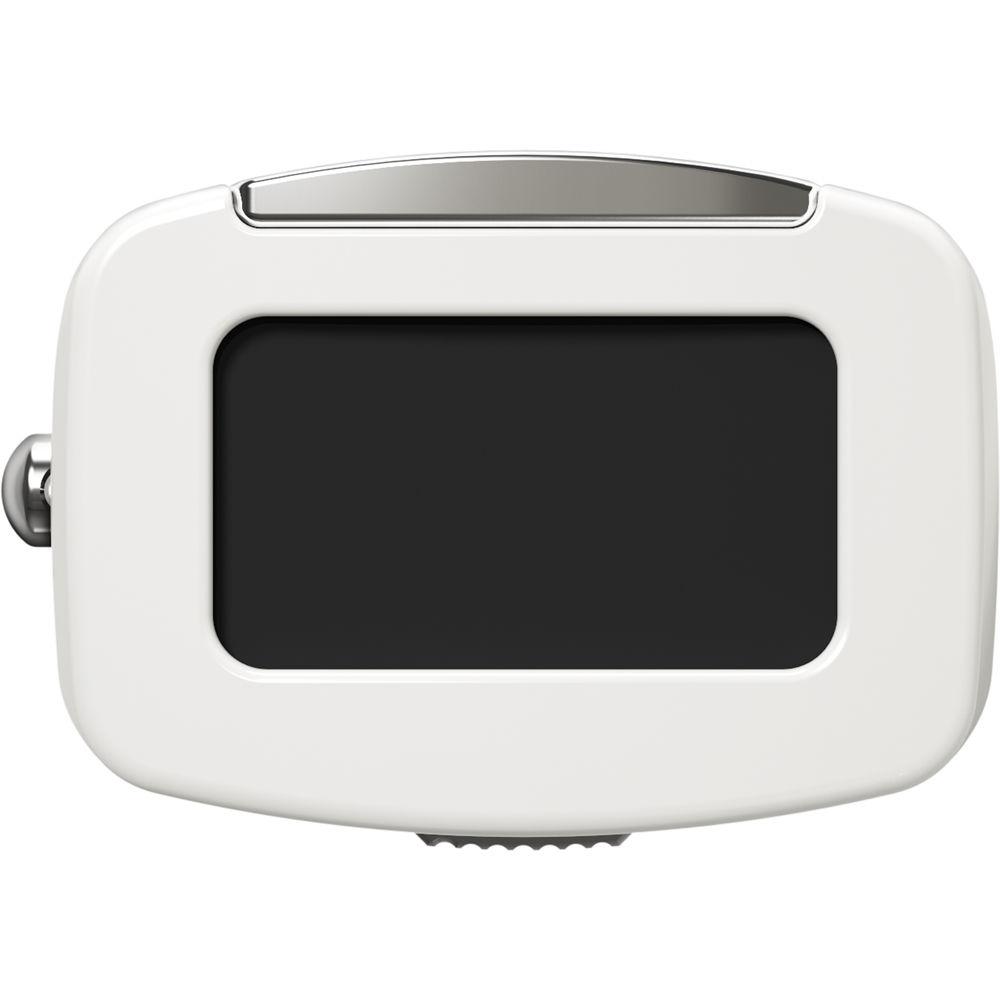

User Manual for Olympus 6x16 Monocular i Roof Prism Monocular Click to enlarge the picture
Contents of the user manual for the Olympus 6x16 Monocular i Roof Prism
- Product category: Monoculars Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Monoculars
 |
User manual for the Olympus 6x16 Monocular i Roof Prism contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|
Product description Compact & lightweight, sleek & stylish, Olympus's white and tan 6x16 Monocular i Roof Prism Monocular puts the useful magnifying ability of a monocular into a housing that is refined and unobtrusive for use at the theater or when you're sightseeing around town. Its moderate magnification brings subjects up close without sacrificing the field of view, so you'll be sure to see the whole scene as it unfolds before your eye. Anti-reflection, multi-coated optics and phase-corrected roof prisms work together to produce high-contrast images that are bright and clear with true color rendition. A sliding focuser on the bottom is ergonomically placed for the thumb and helps to preserve the low-profile theme versus traditional focusing knobs. The monocular is nitrogen-filled to be fogproof, especially when moving from extreme temperatures, and waterproof to 3.3 feet for up to five minutes. - Optical Performance
-
- 6x magnification

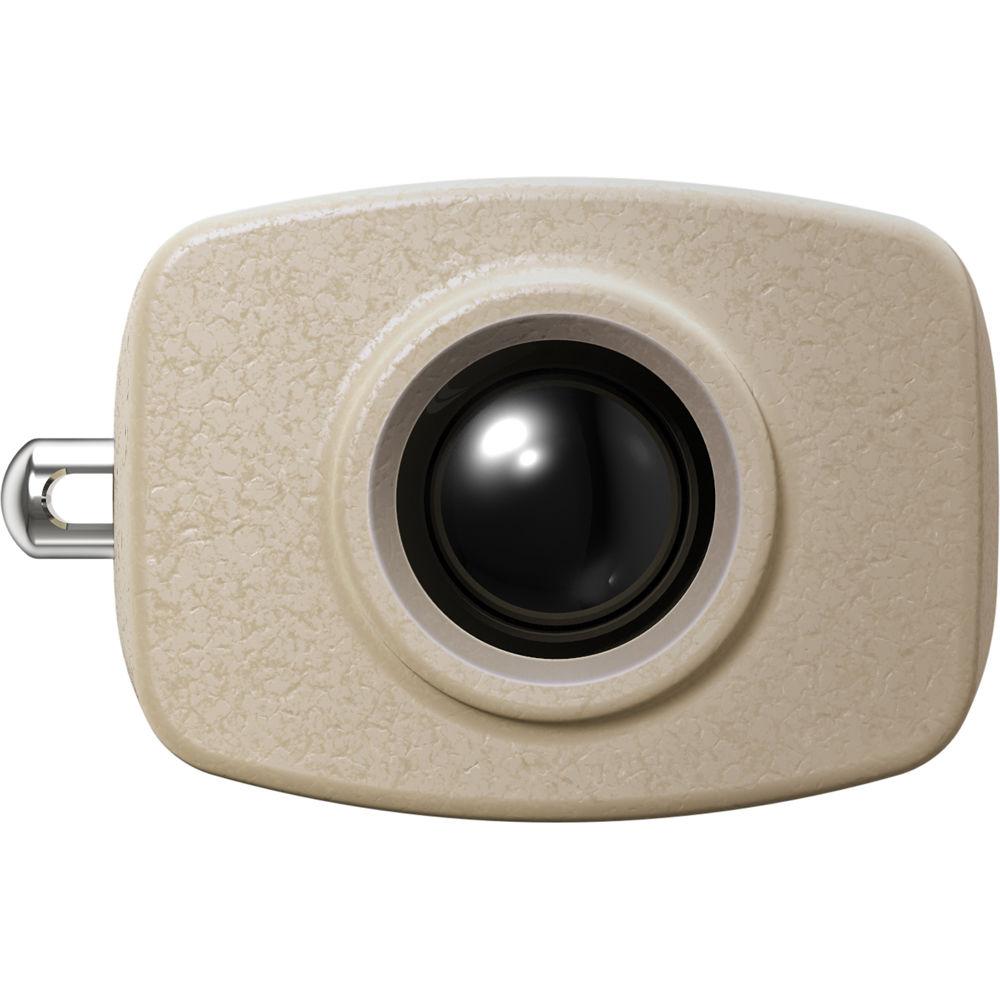

- 16mm objective lens
- Compact roof prism
- Anti-reflection, multi-coated optics improves color rendition, contrast, and image brightness
- Phase-correcting prism coatings increase light transmission, limit light loss due to internal reflection, and improve color fidelity and contrast
- Short 4.9' close focus distance
- 420' field of view at 1000 yards
- 48° apparent angle of view
- Use and Handling
-

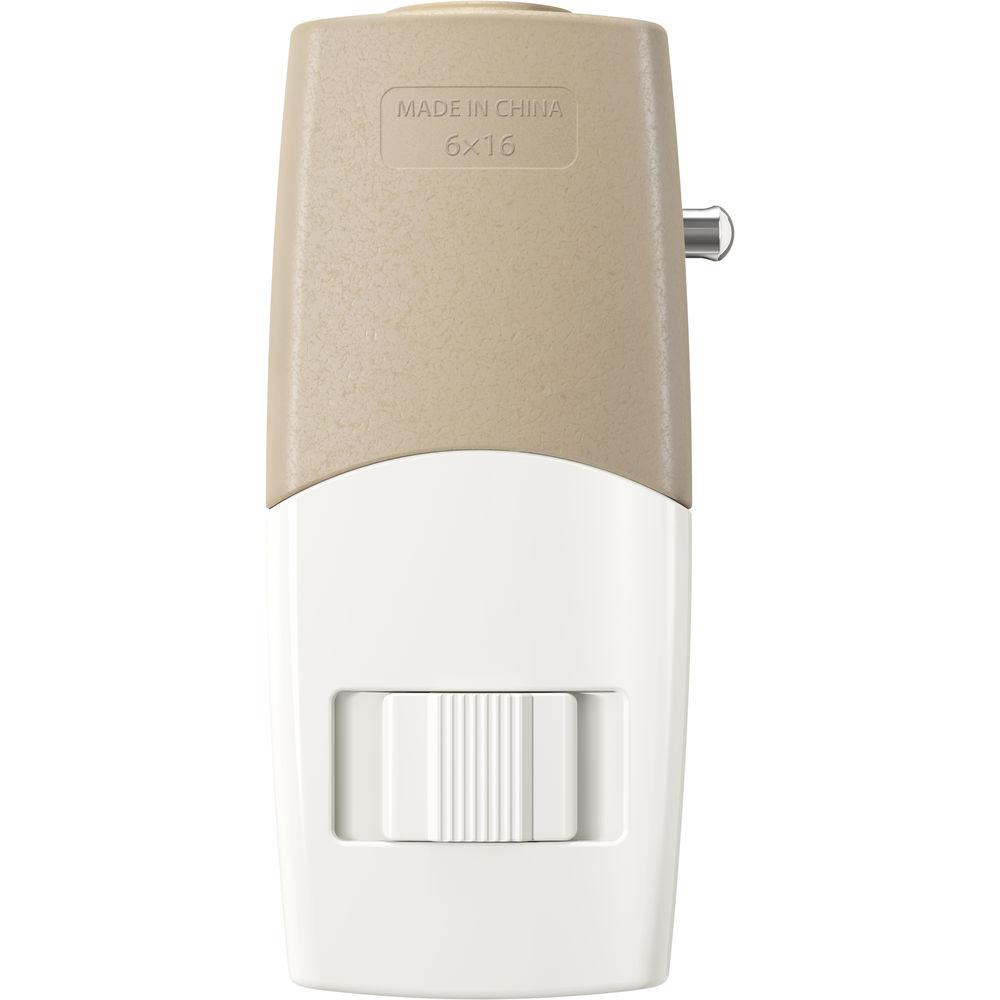

- Sliding focuser on bottom helps to streamline the profile
- 0.5" eye relief
- 2.7mm exit pupil
- Construction Details
-
- Two-tone white and tan housing
- Nitrogen-filled, water and fogproof
- Lightweight: 2.5 ounces
- Compact: 3.4" long

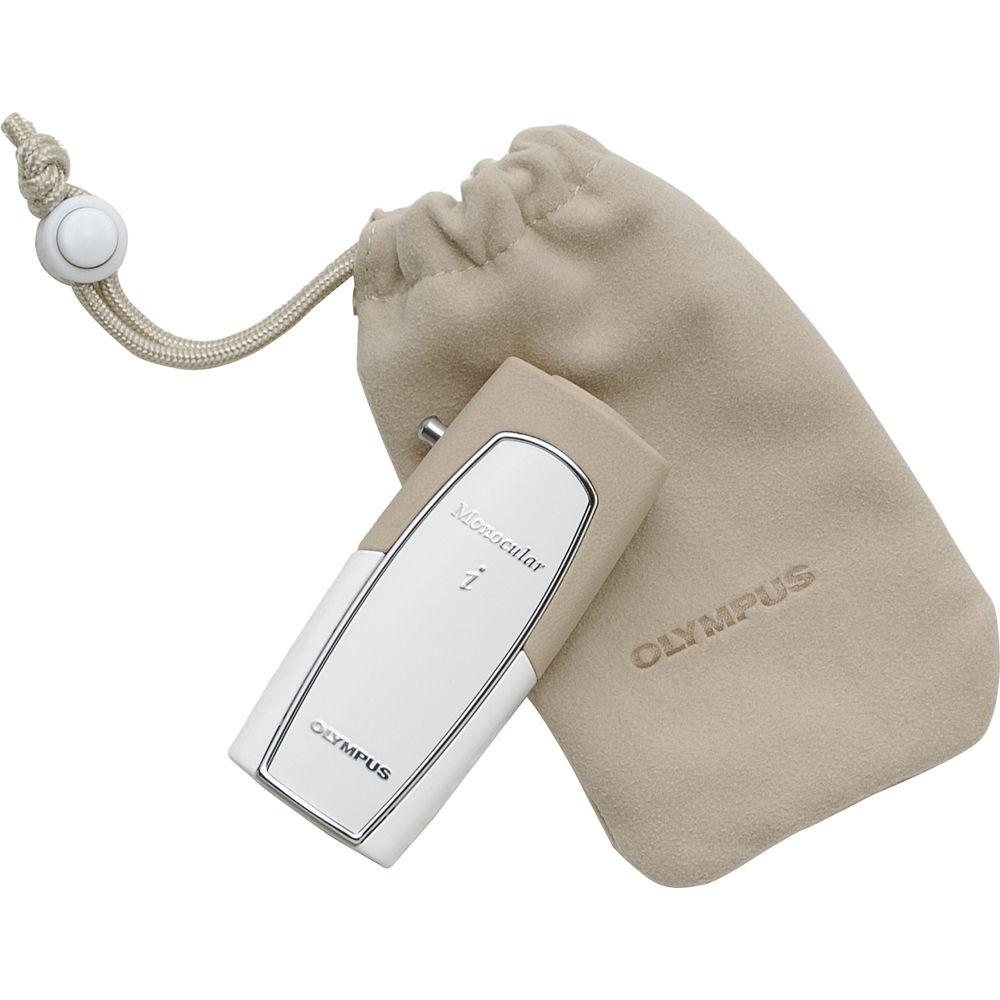

UPC: 050332184480 In the Box Olympus 6x16 Monocular i Roof Prism Monocular Wrist Strap Carrying Pouch Limited 25-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus 6x16 Monocular i Roof Prism Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus Monocular i Specs | Prism Type | Roof | | Magnification | 6x | | Objective Lens | 16 mm | | Angle of View | 8° | | Field of View | 420' @ 1000 yd / 140 m @ 1000 m | | Close Focus Distance | 4.9' / 1.5 m | | Exit Pupil | 2.7 mm | | Eye Relief | 0.5" / 11.5 mm | | Water Resistance | Nitrogen-filled, water and fogproof | | Dimensions | 3.4 x 1.5 x 1.0" / 8.7 x 3.8 x 2.5 cm | | Weight | 2.5 oz / 70 g | | | | Package Weight | 0.27 lb | | Box Dimensions (LxWxH) | 4.9 x 2.4 x 1.95" |
