User Manual for Olympus DM-720 Digital Recorder Click to enlarge the picture
Contents of the user manual for the Olympus DM-720 Digital Recorder
- Product category: Handheld Voice Recorders Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Handheld Voice Recorders
 |
User manual for the Olympus DM-720 Digital Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

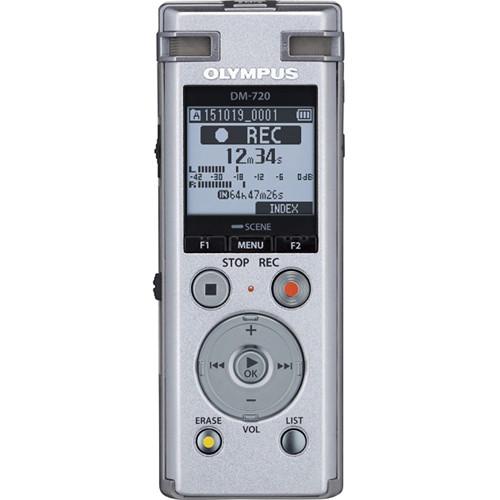

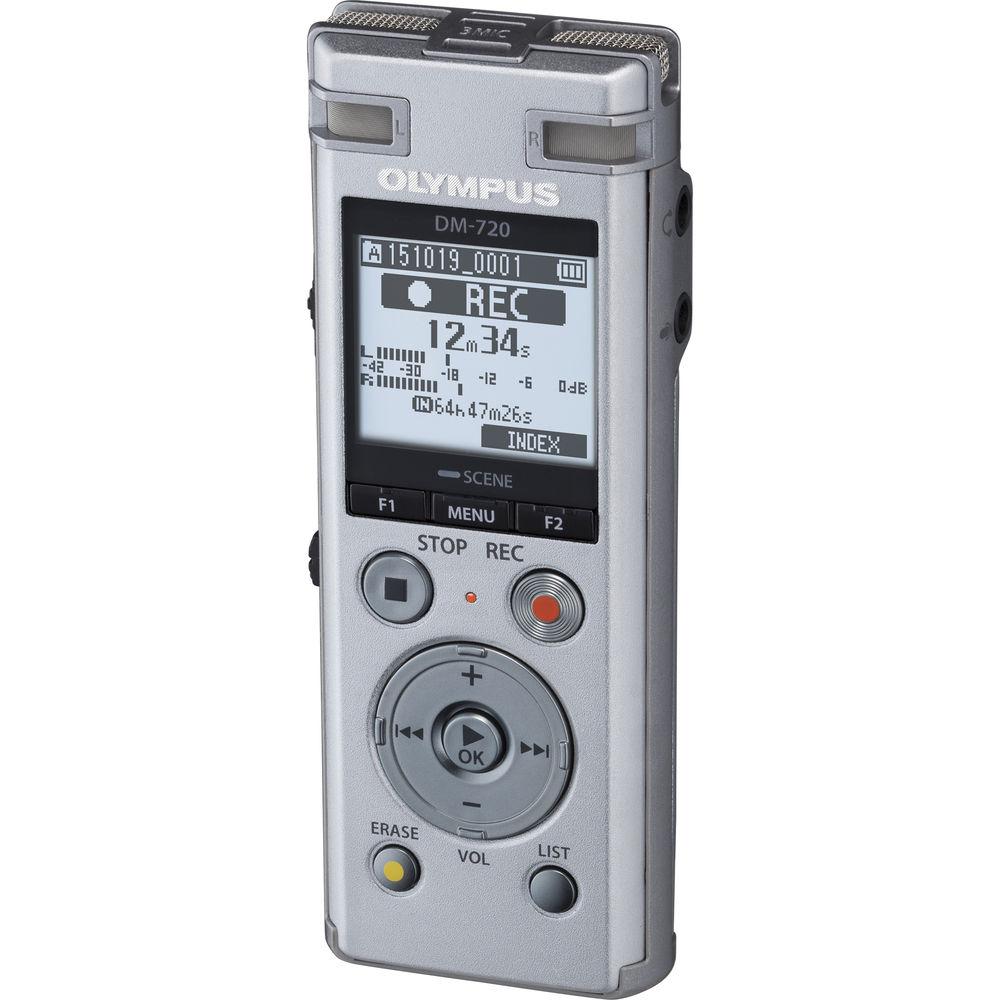

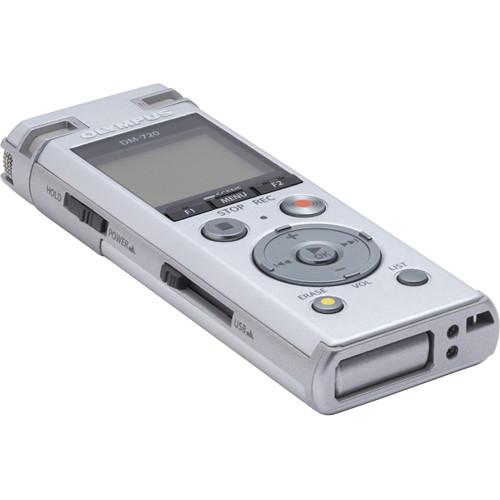

Product description The DM-720 from Olympus is a digital recording device capable of storing files in Linear PCM (WAV) formats as well as MP3. It can operate at sample rates up to 48 kHz and resolutions up to 16-bit. Lightweight at 2.5 oz, it's a compact and portable recorder with a Tresmic three-microphone system for capturing a full and detailed stereo sound. An included USB cable allows you to connect to computers directly and recharge a NiMH AAA battery sitting within its enclosure—should you opt for a rechargeable battery over its included alkaline one. Lastly, its transcription, voice-balancing, and voice-playback modes render the unit quite useful in note-taking situations, such as business meetings or interviews. - Recording Capabilities

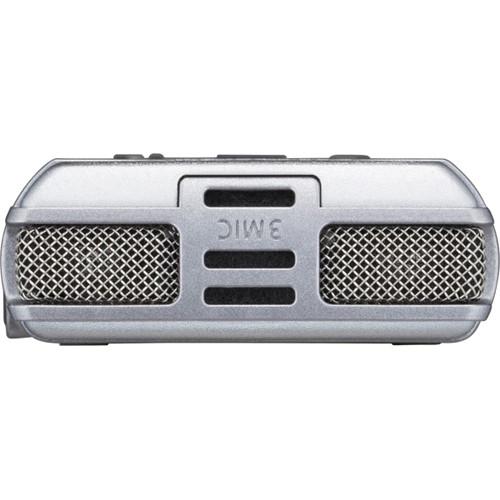

- The DM-720 features a Tresmic three-microphone system to capture depth, fullness, and stereo field.
- 48 kHz / 16-bit Capability
- The DM-720 supports linear PCM recording up to 16-bit and sampling frequencies as high as 48 kHz for CD quality and beyond.
- Intelligent Auto Mode
- This mode automatically adjusts the microphone sensitivity according to the input level in real time.
- On-Board Low-Cut Filter
- This filter effectively reduces frequencies lower than 300 Hz when instantiated.
- Voice Playback Function
- This function allows you to skip non-voice parts during playback and only play the parts of the file where there is vocal content, thus saving time during business-oriented listening sessions.
- Transcription Mode
- In Transcription Mode, the DM-720 will automatically rewind three seconds after you click stop, so you can check the contents of what you just heard before proceeding. Also, the fast forward is preset to 3.5x so you can skip the silence in your recording.
- Auto Voice Balancer
- Balances all recorded voices on playback to make dialogue easier to hear
- Voice Guidance
- The voice guidance feature provides audio announcements of the recorders operations in an easy to understand spoken voice.
- Noise Cancellation
- Powerfully reduce unwanted ambiance during playback

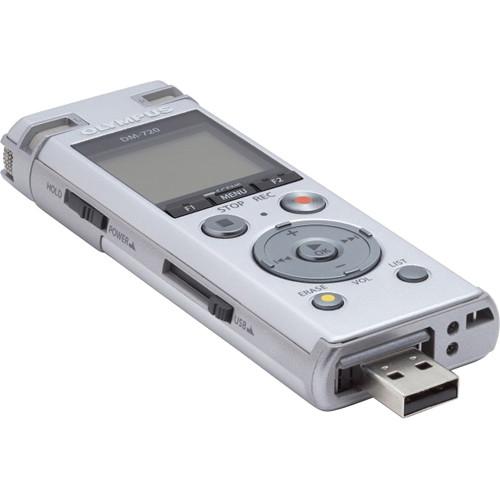

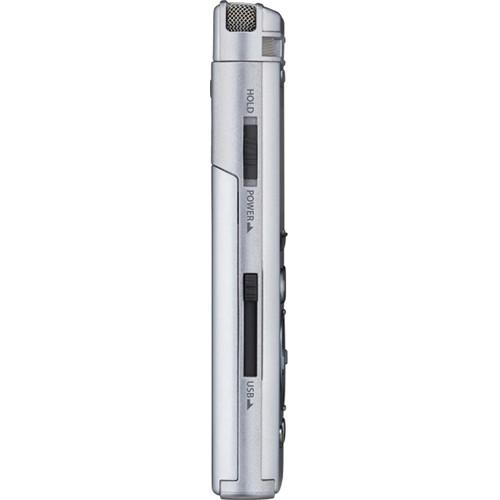

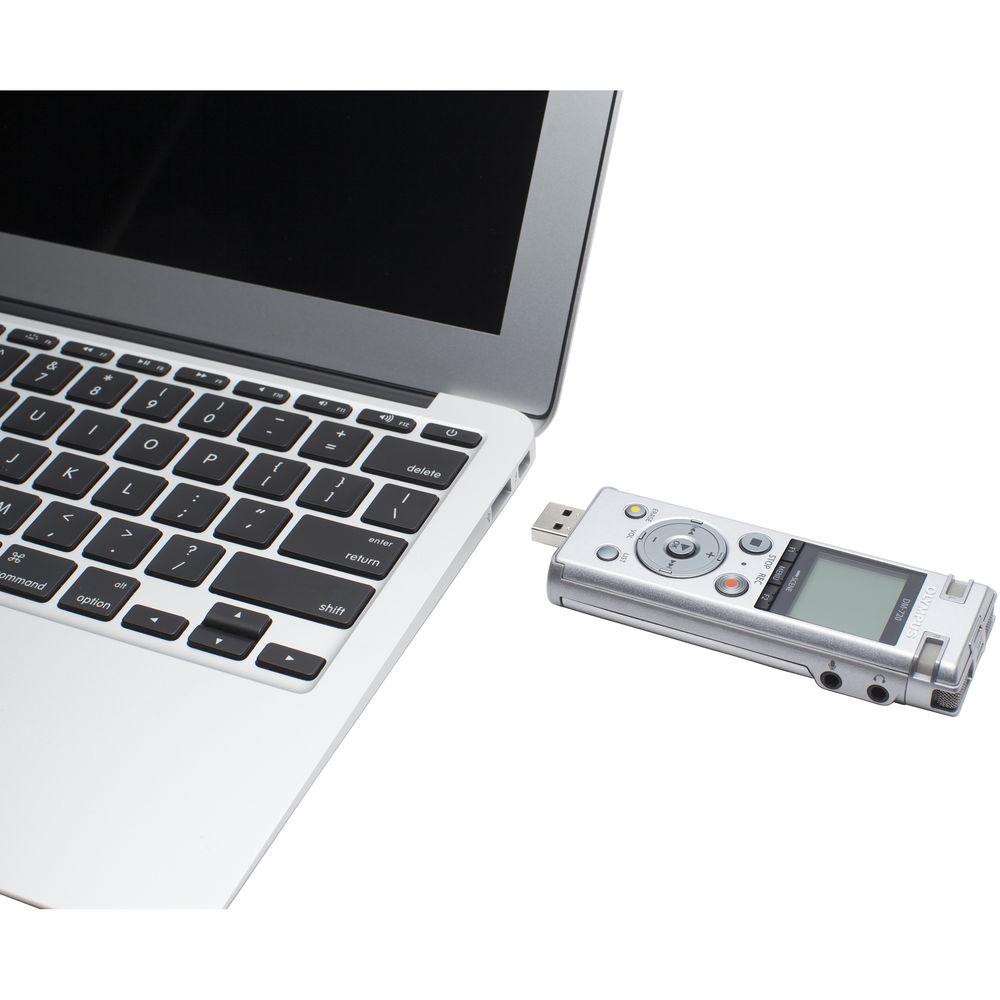

- Direct PC Connection
- The built-in USB connector can be deployed and stored using the slide lever. With this feature, you can connect directly to a computer without using an external cable or software.
- File Editing
- Split files by topic or size for easy file management

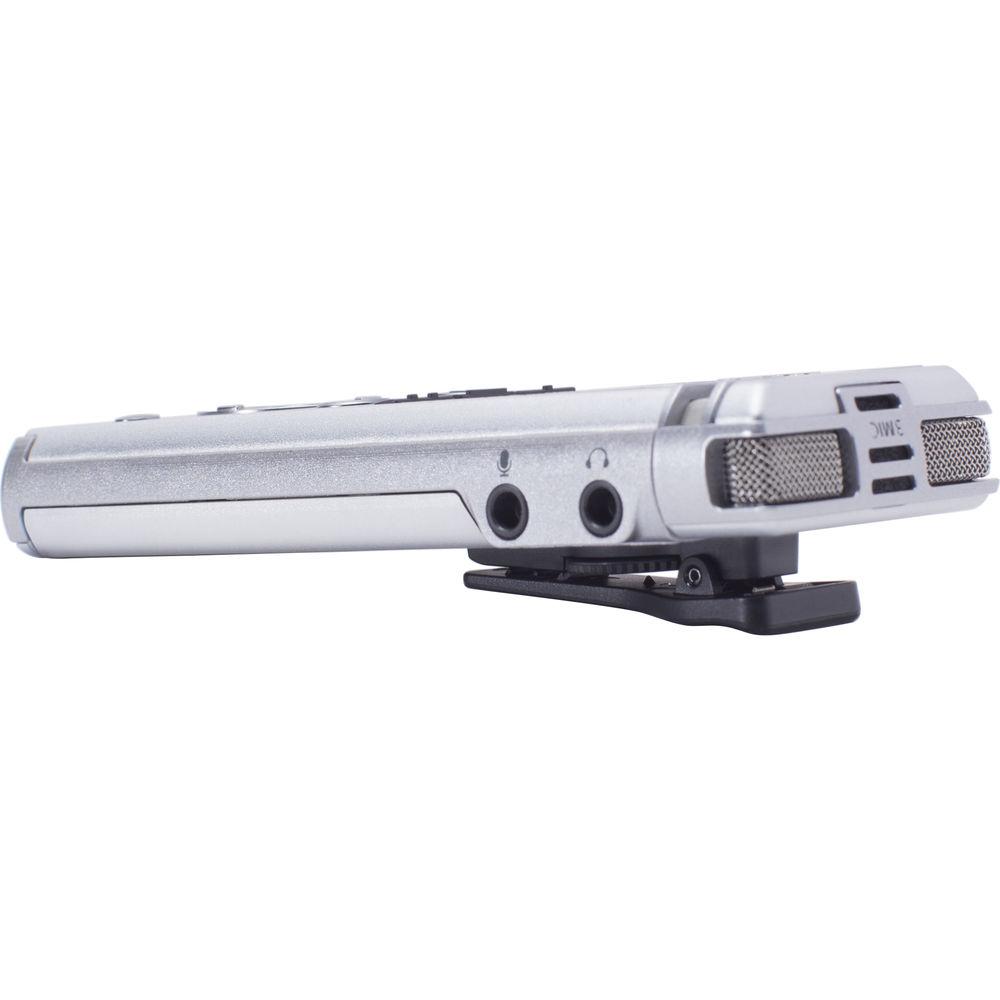

- Clip-Stand Attachment
- The DM-720 comes with an attachment that can be fastened to the back of the recorder for use as a stand or clip. The clip can be attached to your pocket or notebook, or it can be used as a stand to direct the recorder towards a signal source.
UPC: 050332189560 In the Box Olympus DM-720 Digital Recorder AAA Battery Limited 1-Year Warranty User Manual PDF 3.8mbeyvbuwxutxydsfbvas Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus DM-720 Digital Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus DM-720 Specs | | | Type | Digital | | Mode | Stereo | | Recording Format | MP3, PCM (WAV) | | Bit-Depth | 8
16 | | Bit-Rate | 8 kbps - 128 kbps | | Sample Rate | 11.025 kHz - 48 kHz | | Recording Time | HQ Stereo: 61 Hours
HQ Mono: 123 Hours
LP Mono: 985 Hours | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo - 3 Elements | | Microphone Sensitivity | High
Medium
Low
Auto SENS Setting | | Pickup Pattern | Omni-Directional | | Frequency Response | 20 Hz - 20 kHz | | | | Playback Formats | PCM (WAV)
MP3 | | Speaker | Yes | | Power Output | 150 mW | | | | Indicators | Power, Low Battery, Recording, Voice Volume | | | | Battery Type | 1 x AAA | | Battery Life (approx.) | Recording: 52 Hours

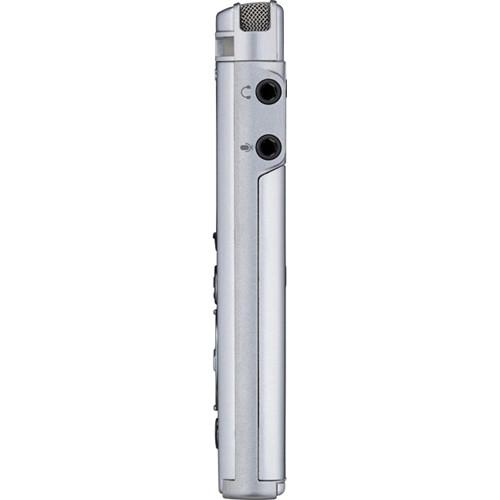

Playback: 35 Hours | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 4 GB | | Compatible Memory Cards | microSD | | Connectors | 1/8" mini Female Microphone In
1/8" mini Female Headphone Out | | USB | USB 2.0 (A) | | Dimensions (WxHxD) | 1.6 x 4.17 x .57" / 4.06 x 10.59 x 1.45 cm | | Weight | 2.5 oz / 71 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 6.1 x 5.2 x 1.8" |
