User Manual for Olympus DS-2600 Digital Voice Recorder Click to enlarge the picture
Contents of the user manual for the Olympus DS-2600 Digital Voice Recorder
- Product category: Handheld Voice Recorders Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Handheld Voice Recorders
 |
User manual for the Olympus DS-2600 Digital Voice Recorder contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

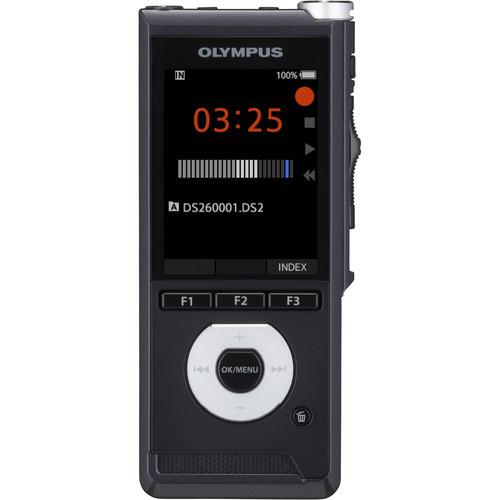

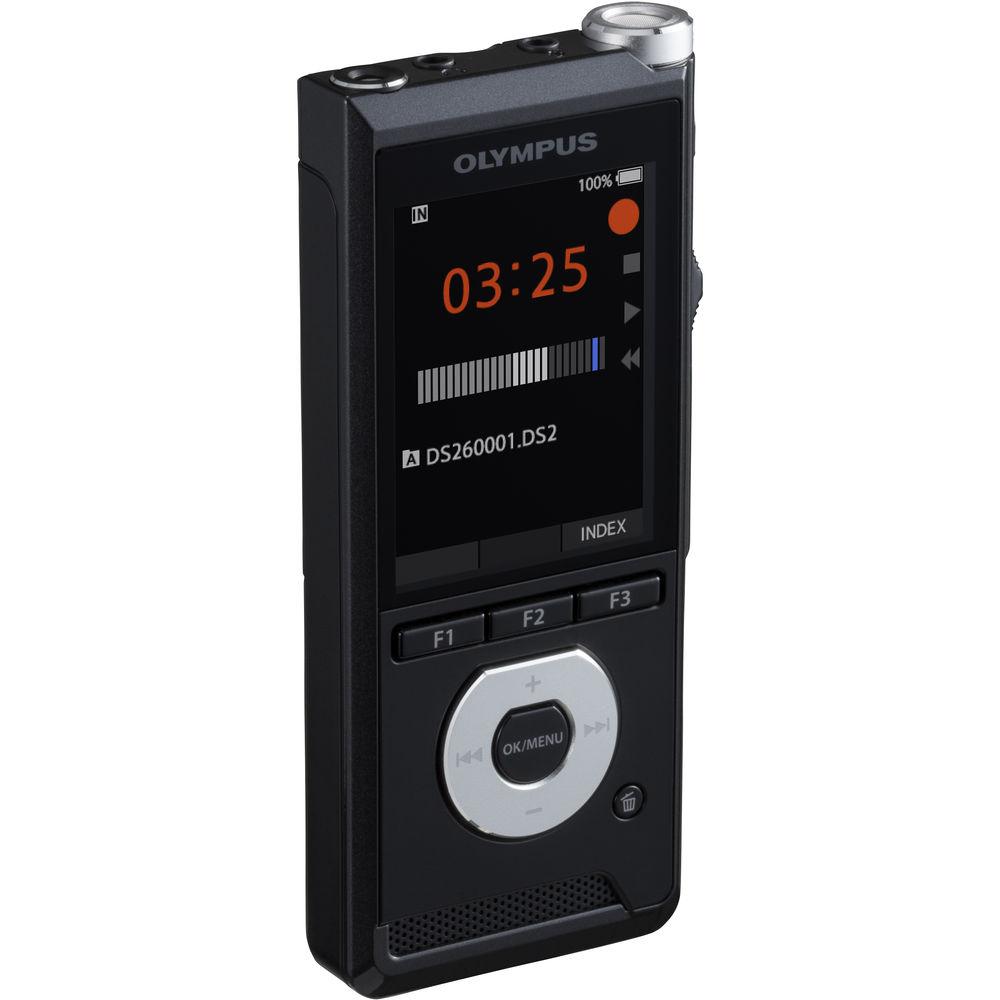

Product description The Olympus DS-2600 is a portable digital voice recorder offering versatile recording modes and resolutions for dictation, interviews, seminars, and more. Record in 16-bit / 22.050 kHz WAV, 64/128 kb/s MP3, or DSS Pro for extended recording time. Record to the internal 2GB flash storage or via separately available SD/SDHC cards up to 32GB in capacity. The built-in rechargeable battery powers the DS-2600 for up to 56 hours of recording time or up to 50 hours of playback time. A 2.4" backlit color TFT LCD displays information such as playback position, file length, battery status, audio level, and recording media.Audio can be sourced from the two onboard directional microphones or via an external microphone connected to the 3.5mm mini jack. An integrated triple-layer pop filter minimizes distracting noise from breaths and wind. Monitor your recordings through the built-in 320mW speaker or your own 3.5mm jack–equipped headphones. Recording can be triggered via the VCVA voice-activated function or by operating the four-position optical slide switch. The DS-2600 includes a micro-USB charging cable, a carrying case, and a license ID for the Olympus DSS Player Standard R2 Dictation Module. - Key Features
-
- Dual directional microphones for stereo recording capability
- Triple-layer pop filter reduces noise from breaths and wind
- Built-in noise cancellation
- Precise 4-position optical slide switch for record, stop, play, and rewind operations
- Color 2.4" TFT LCD
- Built-in rechargeable Li-ion battery
- 2GB internal flash storage
- Supports SD/SDHC cards up to 32GB
- Advanced Recording Features
-
- Motion sensor detects movement of the DS-2600 to automatically wake it from sleep
- Voice-activated recording (VCVA) with 15 sensitivity levels
- Selectable microphone sensitivity modes of high, middle, low, or auto
- Insert, overwrite, append, and partially erase in DSS and DSS Pro
- Insert, overwrite, and append in WAV
- Up to 16 index marks per file in DSS, or up to 32 index marks per file in WAV, MP3, or DSS Pro
- Level meter and VCVA indicator
- Playback Features
-
- Selectable slow, normal, or fast speed
- Adjustable 0 to 30 volume level
- Easy cue/review
- Flexible Audio I/O
-
- 3.5mm input accommodates an external microphone
- 3.5mm output for connection to headphones
- Built-in dynamic speaker with 320mW of output power

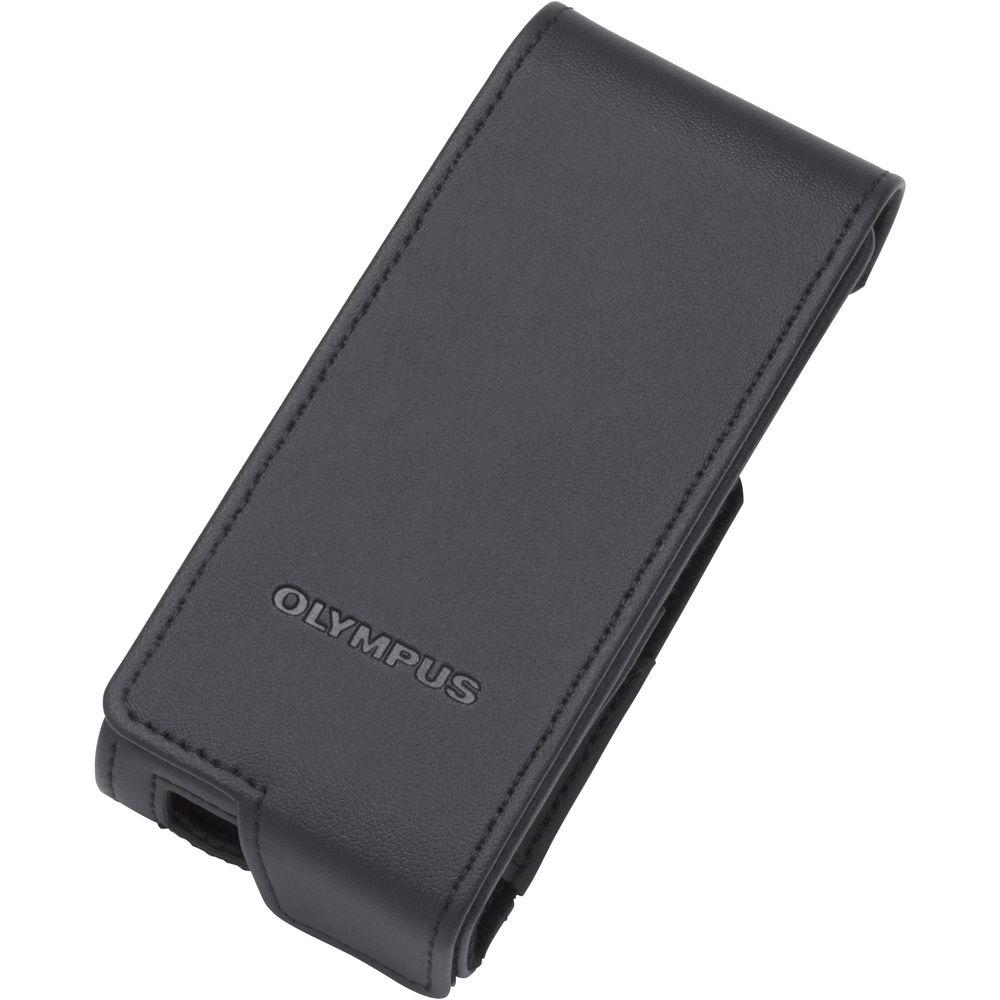

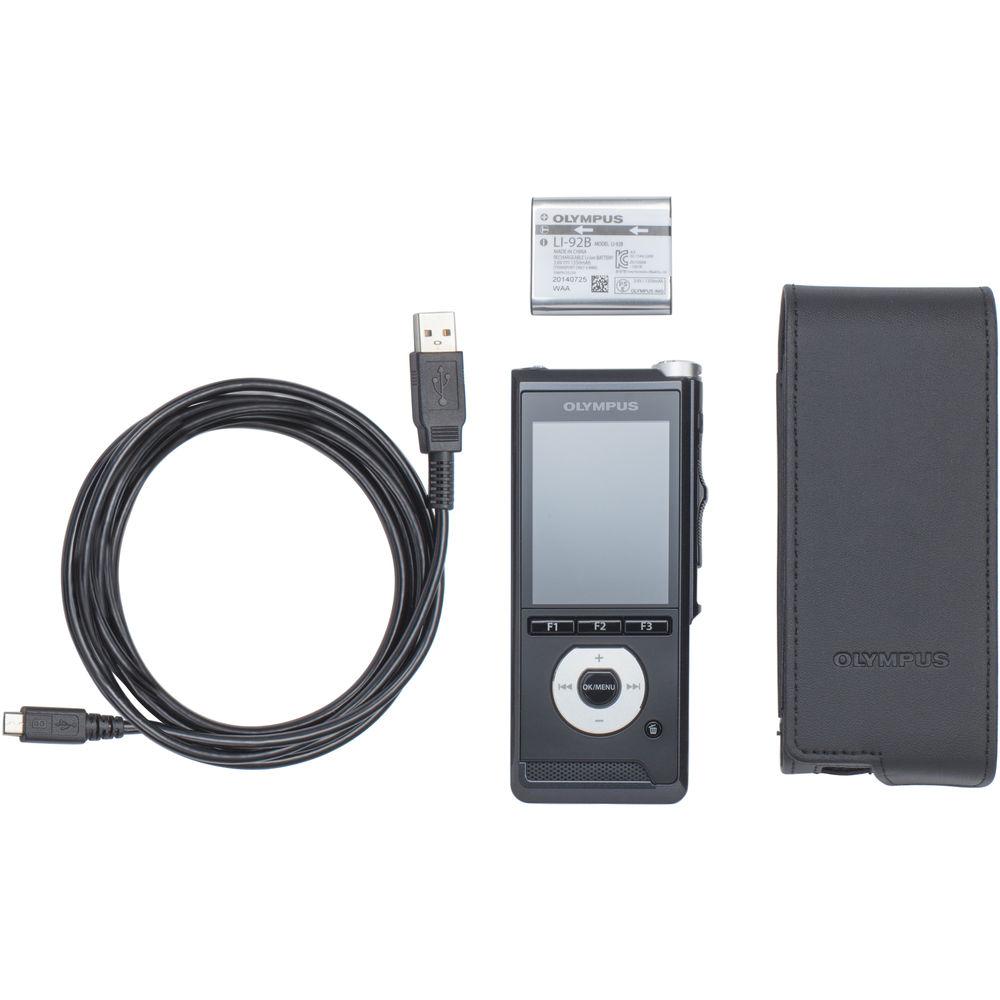

UPC: 050332192126 In the Box Olympus DS-2600 Digital Voice Recorder LI-92B Rechargeable Lithium-Ion Battery (3.6V, 1350mAh) KP30 Micro USB Cable - 6' CS151 Case with Belt Clip for DS-9500 Recorder DSS Player Standard R2 Dictation Module License ID Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus DS-2600 Digital Voice Recorder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus DS-2600 Specs | | | Type | Digital | | Mode | Stereo / Mono | | Recording Format | Digital Speech Standard (DSS), DS2 (Digital Speech Standard Pro), MP3, PCM (WAV) | | Bit-Depth | 16 | | Bit-Rate | 64 kbps - 128 kbps | | Sample Rate | 12 kHz - 44.1 kHz | | Recording Time | QP Stereo: 163 Hours
SP Stereo: 334 Hours
PCM Stereo: 6.5 Hours
PCM Mono: 13 Hours
MP3 Stereo: 36 Hours
MP3 Mono: 72 Hours | | One-Click Recording | Yes | | Voice Activated Recording | Yes | | Microphone Type | Internal Stereo | | Microphone Sensitivity | High
Medium
Low | | Pickup Pattern | Cardioid | | Frequency Response | 50 Hz - 15 kHz | | | | Playback Formats | MP3
WAV | | Bit-Rate | MP3: 64 - 128 Kbps
WAV: 344 - 688 Kbps | | Speaker | Yes | | Speaker Size | 0.43" / 11 mm0.59"15 mm | | Power Output | 320 mW | | | | Tuner | None | | Display Size/Type | 2.4" TFT LCD Backlit with 240 x 320 Resolution | | Equalizer Settings | None | | Indicators | Low Battery, Recording, Voice Volume | | Erase Protect | Yes | | Message Folder | 5 (Maximum) | | Voice E-Mail Function | No | | On Screen Clock | No | | Safety Lock | No | | Search | Cue
Track Mark | | | | Battery Type | 1 x Built-in Rechargeable Lithium-ion Battery | | Battery Life (approx.) | Playback: 50 Hours
Recording: 48 Hours @ 16 kHz 27 Kbps DS2 (Digital Speech Standard Pro)
Recording: 52 Hours @ 12 kHz 13 Kbps DS2 (Digital Speech Standard Pro)
Recording: 54 Hours @ 22 kHz 16 Bit PCM (WAV)
Recording: 52 Hours @ 44.1 kHz 128 Kbps MP3
Recording: 55 Hours @ 44.1 kHz 64 Kbps MP3 | | Power Adapter | No | | | | Internal Memory | Installed: Flash Memory - 2 GB | | Compatible Memory Cards | SD
SDHC | | Connectors | 1/8" mini Female Microphone In
1/8" mini Female Headphone Out | | USB | USB 2.0 (Micro-B) | | Operating System Support | Windows, macOS/OS X | | Dimensions (WxHxD) | 1.96 x 4.76 x .73" / 49.8 x 120.8 x 18.6 mm | | Weight | 4.11 oz / 116.5 g | | Warranty Length | Limited 1-Year Warranty | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 6.5 x 6.05 x 3.25" |
