User Manual for Olympus E-P1 Pen Digital Camera w 14-42mm M.Zuiko Digital Lens - Refurbished Click to enlarge the picture
Contents of the user manual for the Olympus E-P1 Pen Digital Camera w
- Product category: Uncategorized Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Uncategorized
 |
User manual for the Olympus E-P1 Pen Digital Camera w contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

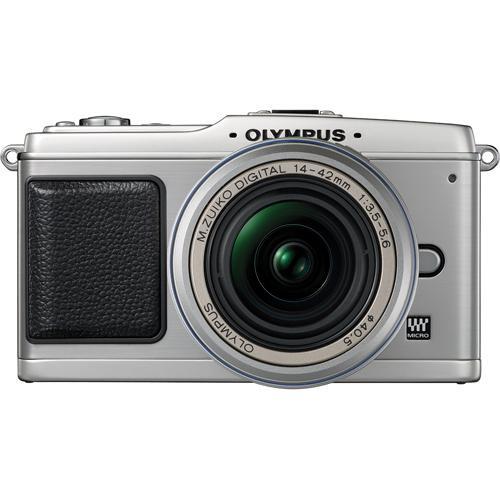

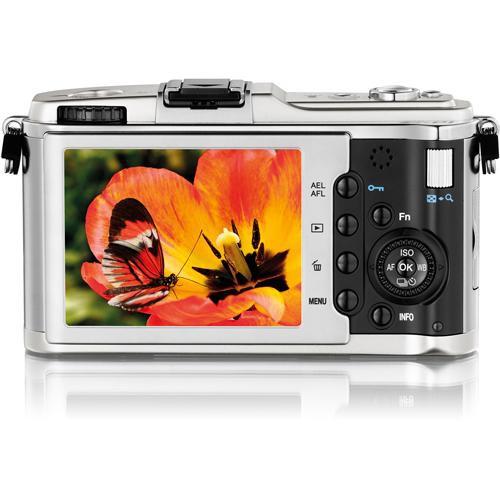

Product description The Olympus E-P1 marks the formal introduction of the Olympus Micro Four Thirds (4/3) camera system in the form of a high-quality, sub-compact digital camera. Designed around a 12.3-megapixel (17.3 x 13mm) Live MOS imaging sensor, the E-P1 enables pro-quality still and video imaging abilities in a small, unassuming package. Along with a new line of compact M.Zuiko Digital lenses, the new system is compatible with all existing 4/3-format fixed-prime and zoom lenses from 7mm through 800mm (114° to 1.5° AOV). Clad in ergonomically-designed stainless-steel body panels, the Olympus E-P1 takes many design queues from the Olympus Pen F, a popular half-frame SLR that made its initial debut in 1959. But unlike the original Pen F, the E-P1 has the ability to produce vividly-detailed still photographs and HD video with stereo sound, both of which can be enhanced post-capture using the E-P1's advanced in-camera retouching and audio dubbing tools. Essentially a 4/3-format DSLR minus the prism and mirror housing (hence the smaller body size), images can be composed and edited using the E-P1's 3" HyperCrystal LCD, which features anti-reflective coatings on its surface to enable Live viewing of 100% of the image area under the brightest of lighting conditions. When shooting in manual focus, a 5x magnification of the center of the frame pops up as a focusing aid each time you adjust the focusing ring. (This magnification can be can be manually increased up to 10x) This kit includes a compact 14-42mm M.Zuiko Digital zoom lens, which with an angle-of-view of 74-28.5 degrees, is an equivalent to a 28-85mm lens on a full-frame DSLR. Other features found on the Olympus E-P1 include Dust Reduction technology, in-camera Image Stabilization, which enables low-light hand-held shooting with all 4/3-system lenses, advanced shooting modes, and creative post-capture editing tools. - Compact Design with Pro-system Capabilities
- The Olympus E-P1 combines the casual, easy-to-use persona of a pocket-size point-and-shoot camera with the imaging capabilities of a pro-level DSLR. As an extension of Olympus' proven 4/3 imaging system, the E-P1 can shoot casual stills and video as well as complex imagery with equal ease and precision
- High-Definition Stills and Video
- The Olympus E-P1 enables high-definition capture of still and video images while maintaining full auto-focus functionality and image stabilization with all 4/3-format optics. And unlike video-enabled DSLRs, the Olympus E-P1 maintains full AF in video mode
- 12.3 MP 4/3-Format Live MOS Sensor
- The E-P1 utilizes the same 12.3-megapixel Live MOS imaging sensor used in Olympus' 4/3-format DSLRs. Measuring 17.3 x 13mm, this sensor is half the size of 'full-frame' DSLR sensors (2x crop factor), but far larger than comparably-sized digital cameras, all of which lack the option of lens interchangeability
- Compatible with all 4/3-System Lenses
- Aside from the physically smaller M.Zuiko Digital lenses, the Olympus E-P1 is also compatible with all FourThird-format lenses, which enables you to take advantage of one of the widest angle-of-view (AOV) selections available today (114° to 1.5° AOV, or 14 to 800mm)
- Live View Mode
- Live View enables real-time viewing of your still and video images as you compose and capture them
- Advanced, Pro-Quality Autofocus & Metering System
- The camera's 11-point Imager AF autofocusing system ensures quick and accurate focusing under all lighting conditions. For equally accurate metering, the Olympus E-P1 utilizes a 324 segment ESP metering system. There's also the option of selecting Spot or Center-weighted metering as desired
- In-Body Image Stabilization
- An in-camera stabilization system allows for up to 4-stops EV of movement compensation with all 4/3 and Micro-4/3 format lenses
- Dust Reduction
- Olympus' Dust Reduction, which runs an ultrasonic cleaning cycle each time you power up the camera, helps keep dust particles out of the image path
- Advanced Shooting and Post-Capture Editing Modes
- Advanced shooting modes, including ePortrait for optimized portrait photography, iAUTO for decision-free shooting under most common shooting conditions, Shadow Adjustment Technology (SAT) for optimizing highlight and shadow details, and Art Filters (Soft Focus, Pale & Light Color, Light Tone, Grainy Film, and Pin Hole) are easily employed as needed. Other post-capture editing features include sound dubbing (in stereo) for still and video images
- High-Quality Stereo PCM Audio
- You can record video with linear, non-compressed sound, as well as add sound to images post-capture
- Manual Focus Assist
- When shooting in Manual Focus mode (MF) a 5x close-up of the center of the image is superimposed into a box at the center of the screen to aid in fine focusing. This magnification can be increased up to 10x magnification

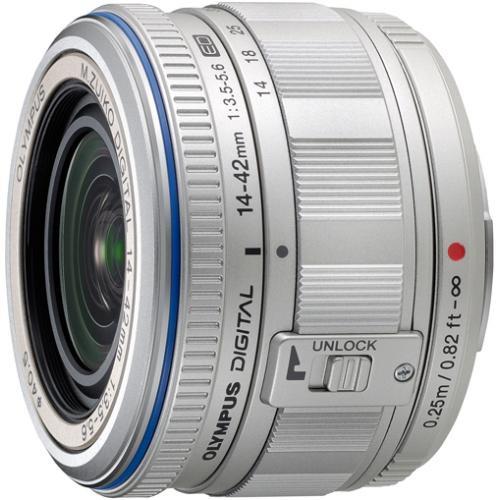

In the Box Olympus E-P1 Pen Digital Camera (Silver) w/ 14-42mm M.Zuiko Digital Lens (Silver) M.Zuiko Digital ED 14-42/3.5-5.6 Lens w/ Front & Rear Caps BLS-1 Battery BSCS-1 Battery Charger USB/Video Multi Cable Shoulder Strap Olympus Master CD-Rom Manual 90-Day Manufacture Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus E-P1 Pen Digital Camera w 14-42mm M.Zuiko Digital Lens - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus 262818B Specs | Camera Type | Advanced Digital Camera | | | | Resolution | 12.3 megapixel (Effective) | | Sensor | 4/3-format Live MOS | | Bit Depth | 24-Bit Color | | File Formats | JPEG, RAW, RAW+JPEG, DPOF compatible/Exif | | File Size | RAW (4032x3024) JPEG (4032x3024, 2560x1920, 1024x768 & 640x480) | | Color Spaces | sRGB, Adobe RGB | | Creative Color Modes | Vivid, Natural, Portrait, Muted, Monotone (Modes) Yellow, Orange, Red, Green (Filters) and Pop Art, Soft Focus, Pale & Light Color, Light Tone, Grainy Film, and Pin Hole (Art Filters) | | Image Stabilization | Built-in Imager Shift Image Stabilizer | | Crop Factor | 2x | | | | Lens | 14-42mm/f3.5-5.6 M.ZUIKO | | Zoom | 3x | | Lens Mount | Micro FourThirds | | Focus Type | Imager Contrast Detection AF (Single AF, Continuous AF, Manual) | | Focus Range | 0.82' to infinity | | Accessory Lens/Filter Mount | 40.5mm | | | | Sensitivity | ISO 200 - 6400 | | Shutter Speeds | 60-seconds to 1/4000 plus Bulb | | Metering | 324-segment Digital ESP, Center-weighted, Spot | | Exposure Modes | iAUTO, Program, Aperture priority, Shutter priority, Manual, Art Filter, Scene Select | | White Balance | Auto, Tungsten (3000K), Fluorescent 1 (4000K), Fluorescent 2 (4500K), Fluorescent 3 (6600K), Daylight (5300K), Flash (5500K), Cloudy (6000K), shade (7500K), Custom | | Mirror Lock-Up | Not Applicable | | Burst Capability | 3 Frames/Second (approx) | | Self Timer | 12-seconds / 2-seconds | | Interval Recording | NA | | Remote Control | NA | | | | Built-in Flash | None | | Effective Flash Range | Not Applicable | | External Flash Connection | Hotshoe | | Dedicated Flash System | Olympus E-System TTL Flash | | Max Sync Speed | 1/180 | | | | Built-in Memory | None | | Memory Card Type | SD/SDHC (Class 6 recommended for Video capture) | | Still Images per GB | Not Specified by Manufacturer | | | | Video Recording | AVI Motion JPEG | | Video Resolution | 1280x720 & 640x480 @ 30fps | | Video Clip Length | 30-seconds w/ Sound | | Audio Recording | NA | | | | Viewfinder Type | 3" HyperCrystal LCD | | Viewfinder Coverage | 100% Image Area | | Display | LCD | | | | Connectivity | USB 2.0, Mini HDMI | | System & Software Requirements | Windows/Mac | | | | Operating/Storage Temperature | Temperature - 0-40°C Humidity - 30-90% | | Weatherproofing | None | | Durability | None | | | | Battery Type | BLS-1 Lithium Ion | | Power Adapter | Not Applicable | | | | Dimensions | 4.74 x 2.75 x 1.38" (WxHxD) | | Weight | 335g (body only) | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 7.0 x 5.5 x 4.0" |
