User Manual for Olympus FL-700WR Electronic Flash Click to enlarge the picture
Contents of the user manual for the Olympus FL-700WR Electronic Flash
- Product category: On Camera Flashes Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus On Camera Flashes
 |
User manual for the Olympus FL-700WR Electronic Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

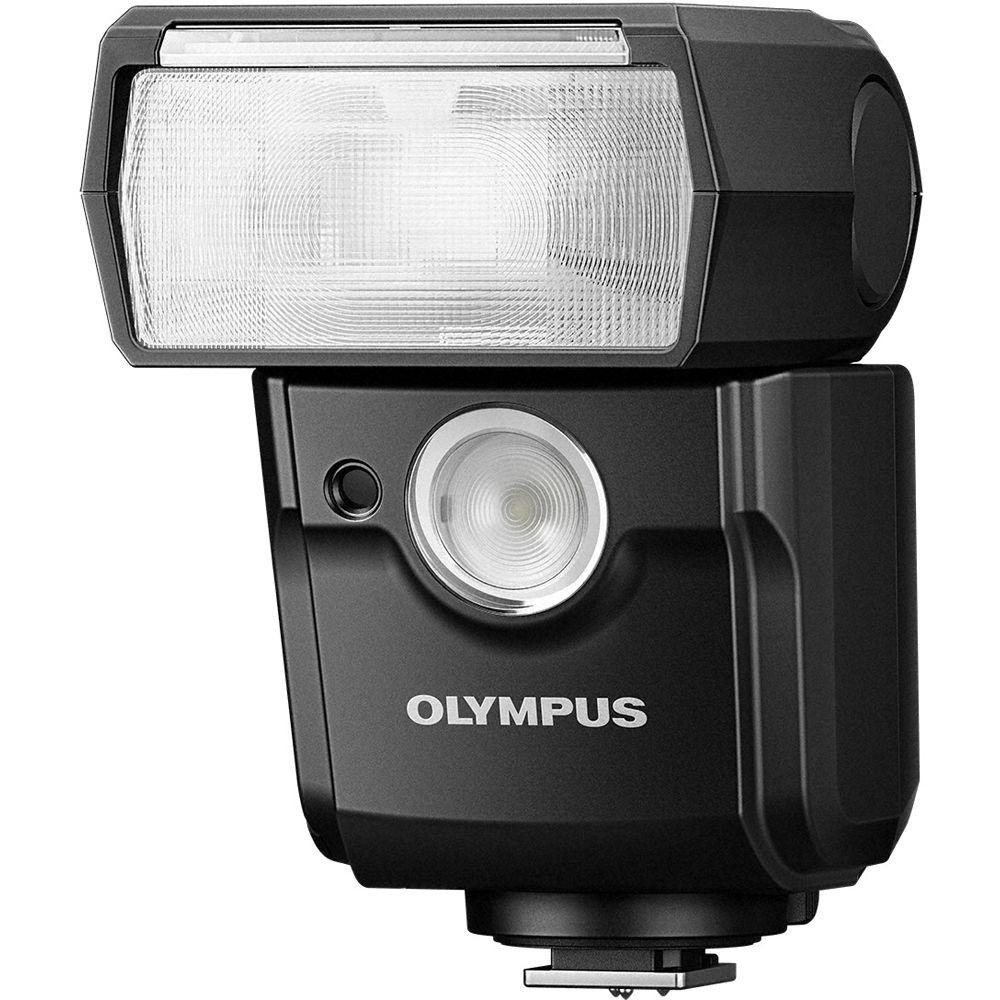

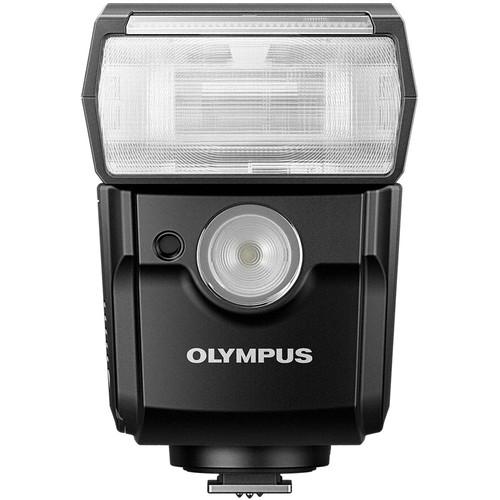

Product description A Guide to On-Camera Flash Read More Sleek yet powerful, Olympus FL-700WR Electronic Flash is a wireless TTL-enabled strobe characterized by its weather-sealed design and 2.4 GHz radio control capabilities. The flash features a guide number of 137.8' at ISO 100, is fully compatible with the Olympus TTL system, and can function as a radio commander or receiver for wireless remote flash setups. Additionally, hybrid stills/video shooters can benefit from this flash as well thanks to a built-in LED video light for constant illumination.
The flash head's design permits up to 90° upward tilt and 180° rotation in both directions for full bounce flash control. The flash's design offers seamless operation via rear dials and an LCD screen, and it conveniently accepts four AA batteries as its power source. Additionally, matching Olympus OM-D-series cameras, the body is splash, dust, and freeze-resistant for working in trying conditions. - Can operate as either a 2.4 GHz radio commander or remote as part of Olympus's radio wireless system, including the FR-WR Receiver and FC-WR Commander. This system has an operating range of 98.4' and does not require line-of-sight.
- Flash mode switching is possible via wireless radio communication and automatic channel detection is possible when used as a commander.
- Supports Olympus TTL system for use with special camera functions, such as High Res Shot and Focus Stacking, as well as automatic exposure and high-speed sync.
- Guide number of 137.8' at ISO 100 and 75mm provides exceptional illumination in dark locations, and covers a focal length range of 12-75mm, or as wide as 7mm when using the built-in wide-angle panel.

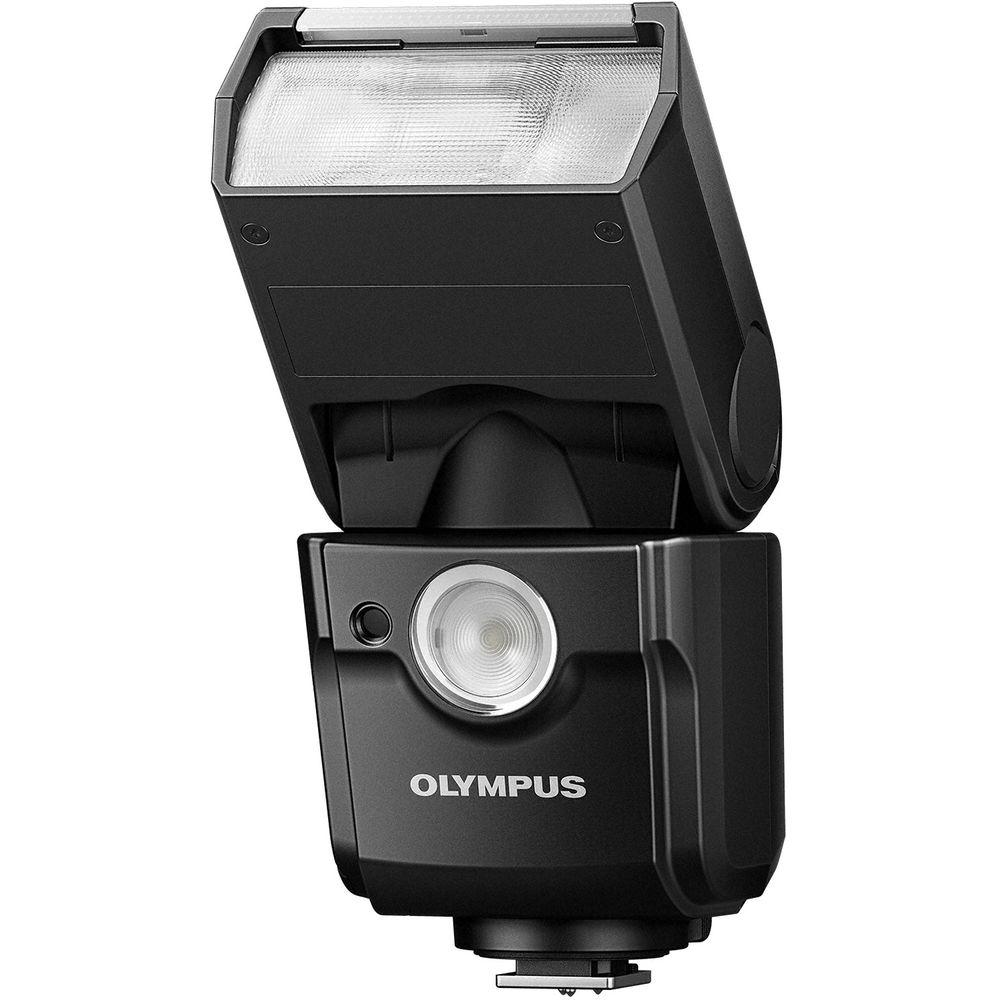

- Flash head tilts upward to 90° and rotates left and right 180° for full bounce capabilities.
- LED video light provides constant illumination source as well as AF assist in dim lighting. It offers power adjustment from 1/1 to 1/32 and can output a max of 100 lux at 3.3'.

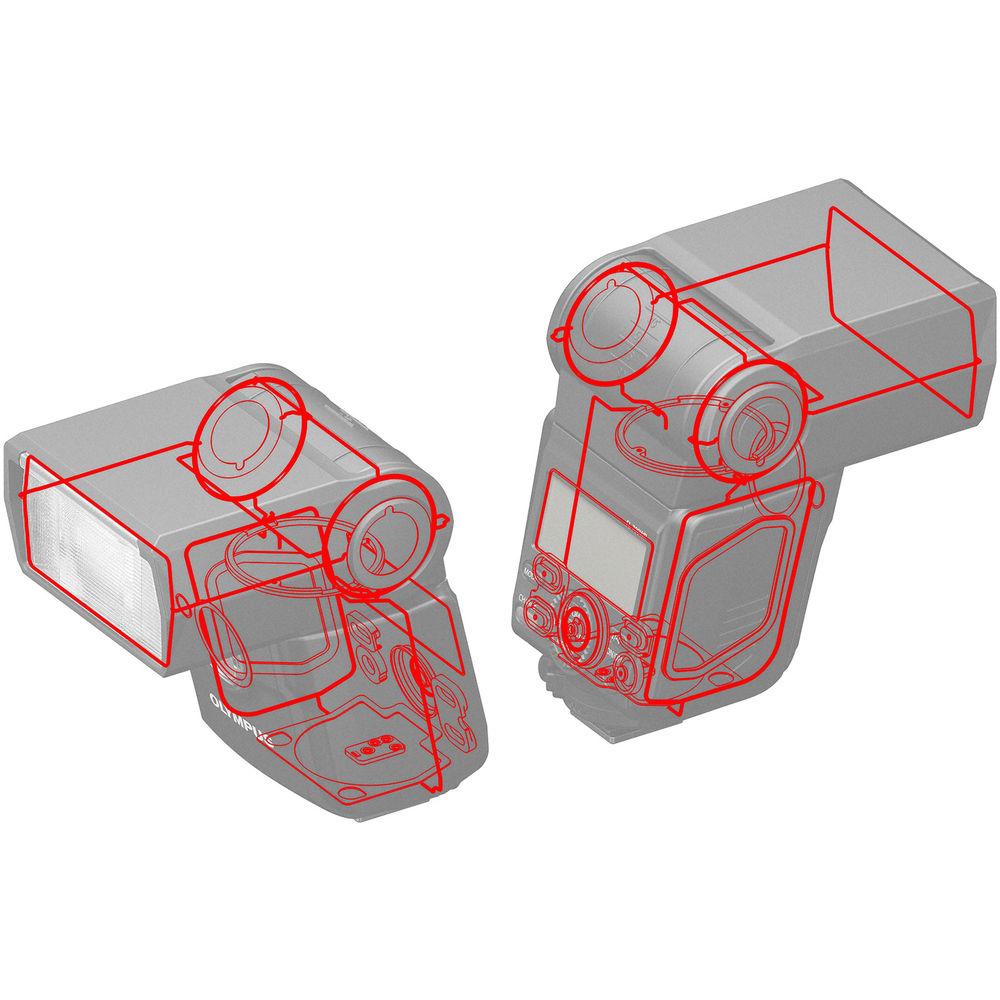

- IPX1-rated, dust- and splash-resistance along with an operating temperature range of 14-104°F provide this flash with the same level of sealing as Olympus's high-end mirrorless cameras, permitting use in a variety of inclement weather conditions.
- Flash supports rapid continuous shooting up to 10 fps at 1/16 power for approximately 50 consecutive frames when used with the OM-D E-M1X or E-M1 Mark II cameras.
- Super FP flash sync, first curtain, second curtain, and slow sync modes are available.
- Recycle time of just 1.5 seconds with NiMH batteries or 2.5 seconds with alkaline batteries.
UPC: 050332192317 In the Box Olympus FL-700WR Electronic Flash FS-FLST1 Flash Stand Flash Case Limited 1-Year Warranty User Manual PDF 5.6mbusqxcbrffctayyuavrebccbqcz Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus FL-700WR Electronic Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus FL-700WR Specs | Mount | Shoe | | Guide No. | 137.8' / 42 m ISO 100 at 75 mm Position | | Exposure Control | Manual, TTL | | Vari-Power | 1/1 to 1/128 | | Bounce Head | 0 to +90° | | Swivel Head | 360° | | Coverage | 12 - 75 mm | | Recycle Time | Approximately 1.5 to 2.5 Seconds | | Flash Duration | 1/20000 to 1/950 sec | | Flash-Ready Indicator | Yes | | Compensation | -5 EV to +5 EV (in .3 and .5 EV steps) | | Wireless Operation | Method: RF
Distance: Up to 98.43' / 30 m
Mode: Commander, Slave | | Wireless Communication Channels | 15 Channels | | Wireless Groups | 3 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 2.8 x 4.2 x 3.9" / 70.4 x 106.3 x 100.2 mm | | Weight | 10.69 oz / 303 g without batteries | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 7.0 x 4.9 x 4.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
