User Manual for Olympus FL-900R Electronic Flash Click to enlarge the picture
Contents of the user manual for the Olympus FL-900R Electronic Flash
- Product category: On Camera Flashes Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus On Camera Flashes
 |
User manual for the Olympus FL-900R Electronic Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|

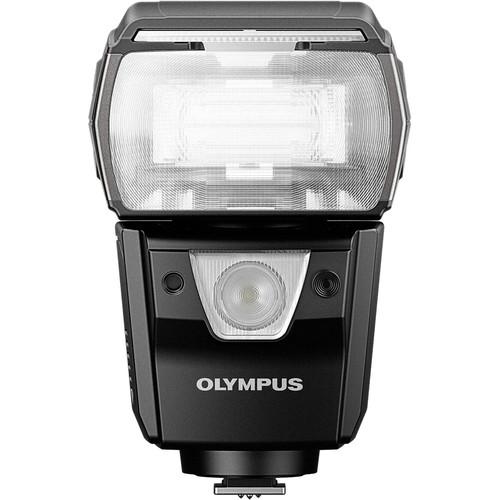

Product description Unveiled: Olympus MFT E-PL8 Camera, Three Lenses, FL-900R Flash Read More Illuminate your scene with the powerful FL-900R Electronic Flash from Olympus which boasts outstanding IPX1-rated weather resistance and a guide number of 190' at ISO 100 and the 100mm setting. Fully compatible with Olympus TTL, the FL-900R offers support for many advanced camera functions, such as High Res Shot and Focus Stacking, which are benefited by faster recycle times that speed up the process. Also, for the video shooters out there this flash is equipped with an LED light with a maximum output of 100 lux at 3.3' for constant illumination.
Designed to pair perfectly with Micro Four Thirds system cameras, the FL-900R offers a versatile zoom range of 12-100mm, which is equivalent to 24-200mm in 35mm terms. This can be easily expanded to cover 7-10mm lenses, 14-20mm equivalent, through the use of the built-in diffusion panel. Also, the ability to tilt from -7 to 90° and rotate 180° left and right permits for numerous bounce flash setups. Another advantage of this flash are full wireless TTL features, including master, slave, and commander modes with 4 flash groups. Additionally, it offers your standard slow, high-speed, 1st and 2nd curtain sync options as well as a stroboscopic mode. - Supports Olympus TTL system for use with special camera functions, such as High Res Shot and Focus Stacking, as well as automatic exposure and high-speed sync.
- Guide number of 190' at ISO 100 and 100mm (200mm equivalent) provides exceptional illumination in dark locations.

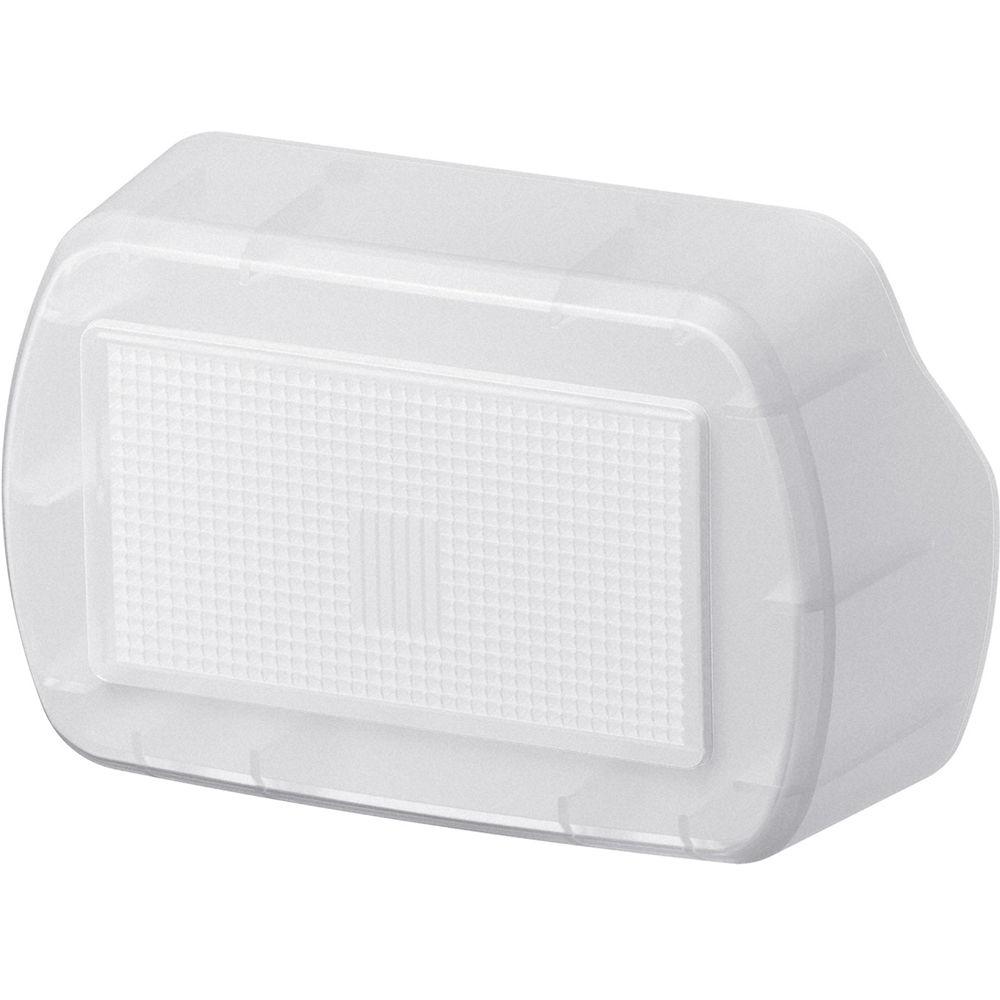

- Zoom range of 12-100mm (24-200mm) enables use of a wide variety of lens types. Also, a pull-out diffuser permits the use of ultra-wide 7-10mm (14-20mm equivalent) lenses.
- Flash head tilts from -7 to 90° and rotates left and right 180° for full bounce capabilities.
- LED video light provides constant illumination source as well as AF assist in dim lighting. It offers six output levels and can output a max of 100 lux at 3.3'.
- Wireless master, slave, and commander functionality expands the possibilities of the flash system. The FL-900R offers an improved commander mode via the included IR filter that offers control over up to four groups of flashes on one of four channels.

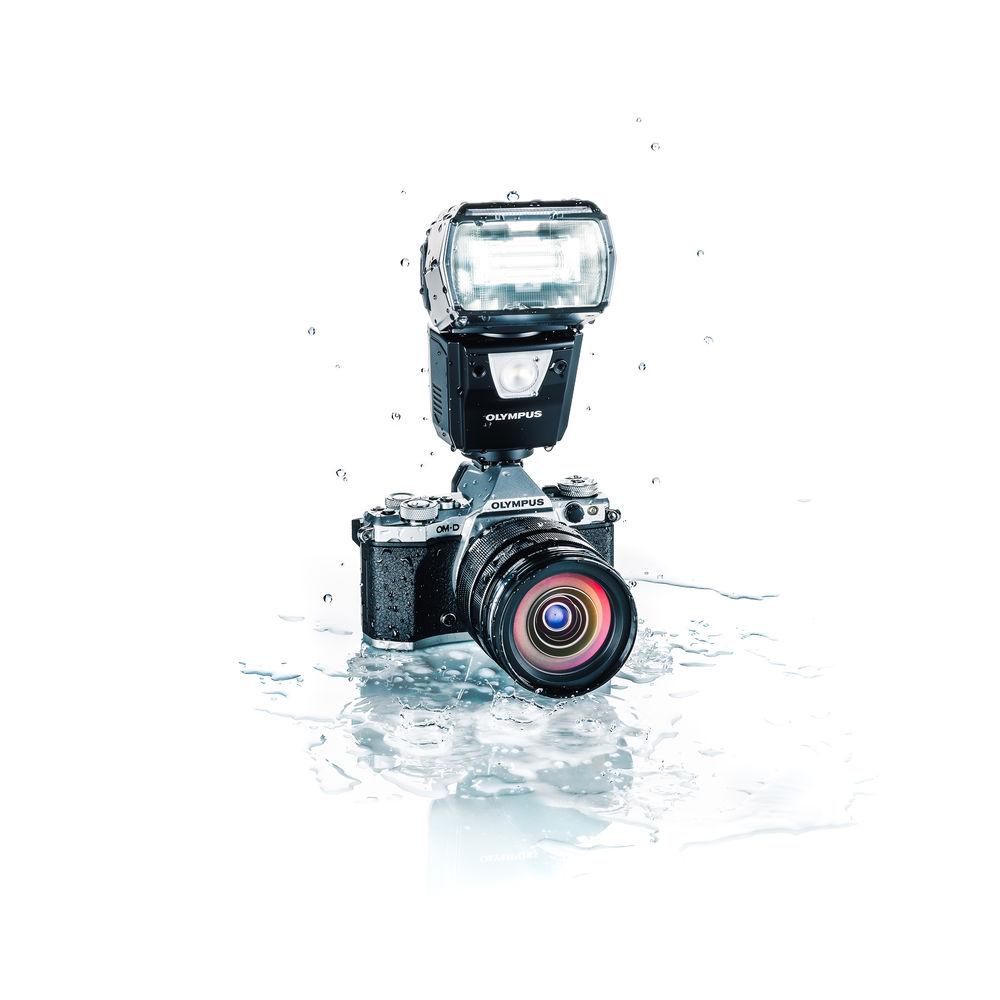

- IPX1-rated weather resistance and an operating temperature of 14-104°F provide this flash with the same level of sealing as Olympus' high-end mirrorless cameras, permitting use in a variety of inclement weather conditions.
- High-speed sync flash range has been expanded to 1/128 power.
- Flash supports rapid sequential firing and is rated to fire over 30 times at 1/32 power.

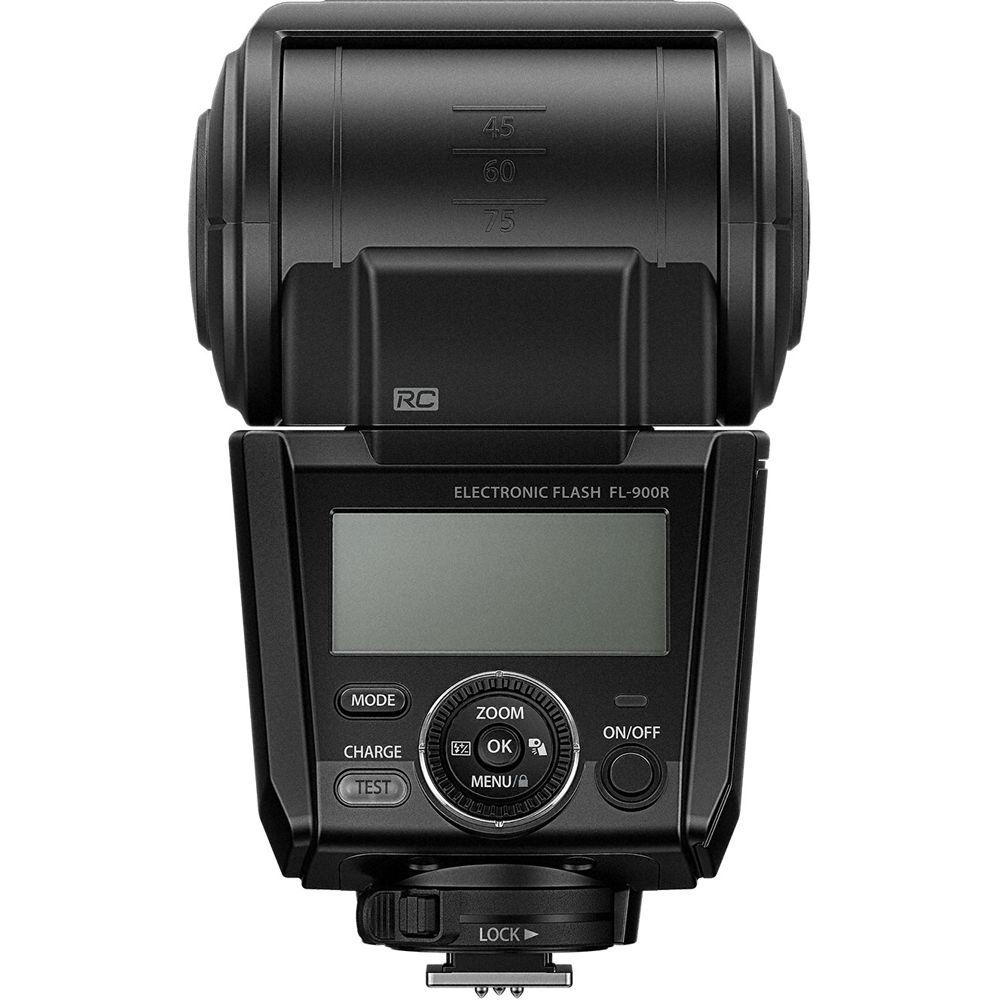

- Enlarged rear dial as well as improved graphical user interface for more intuitive control.
- Recycle time of just 2.5 seconds at full power with NiMH batteries.

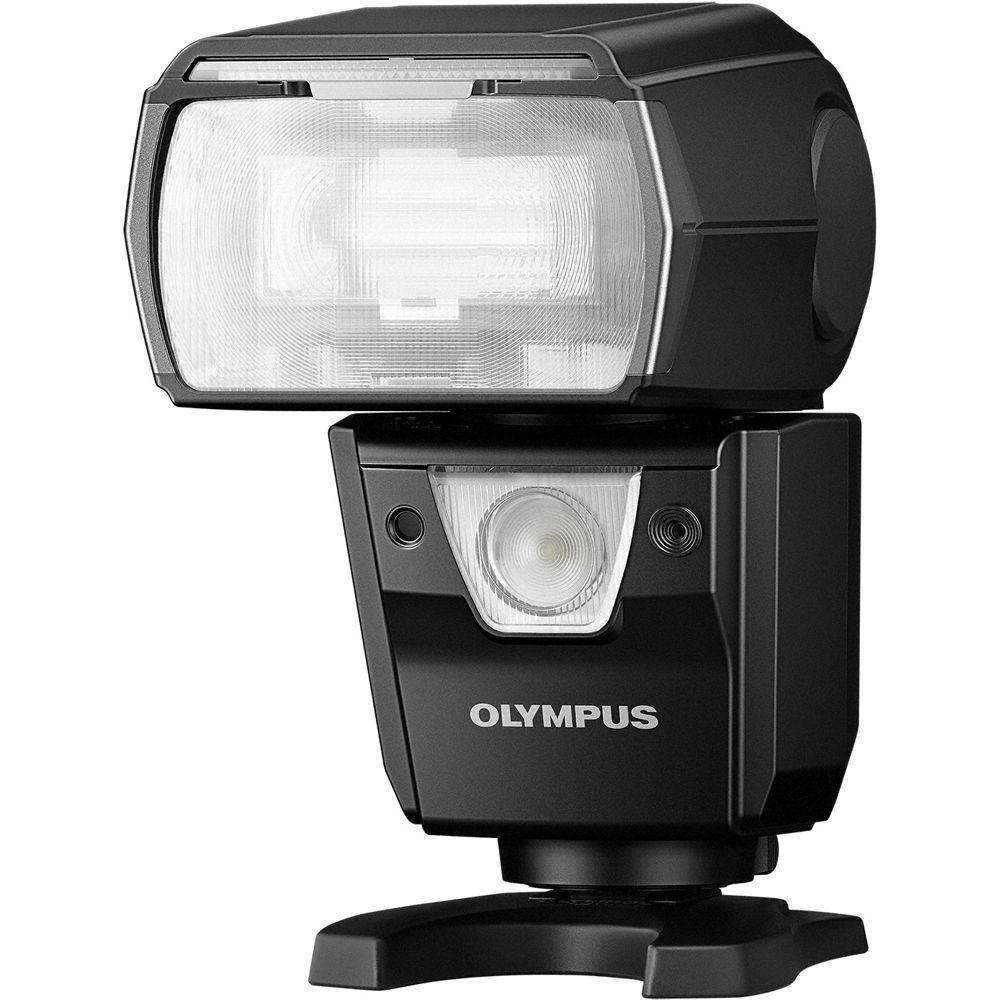

UPC: 050332191259 In the Box Olympus FL-900R Electronic Flash Bounce Diffuser IR Filter FS-FLST1 Flash Stand Soft Case Limited 1-Year Warranty A Guide to On-Camera Flash Bjorn Petersen 04/12/2019 Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus FL-900R Electronic Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus FL-900R Specs | Mount | Shoe | | Guide No. | 190.29' / 58 m ISO 100 at 100 mm Position | | Exposure Control | Manual, TTL | | Bounce Head | -7 to +90° | | Swivel Head | 360° | | Coverage | 14 - 200 mm (Full Frame) | | Zoom Head | Full Frame: 24 - 200 mm | | Recycle Time | Approximately 2.5 to 4.5 Seconds | | Flash Duration | 1/20000 to 1/500 sec | | Flash-Ready Indicator | Yes | | Wireless Operation |
Distance: Up to /
Mode: Commander, Slave | | Wireless Communication Channels | 4 Channels | | Wireless Groups | 4 Groups | | Power Source | 4 x AA Alkaline, Rechargeable NiMH Batteries | | Dimensions (W x H x D) | 3.2 x 4.8 x 4.9" / 81.2 x 121.4 x 125.2 mm | | Weight | 13.47 oz / 382 g without batteries | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.5 x 6.1 x 4.5" |
