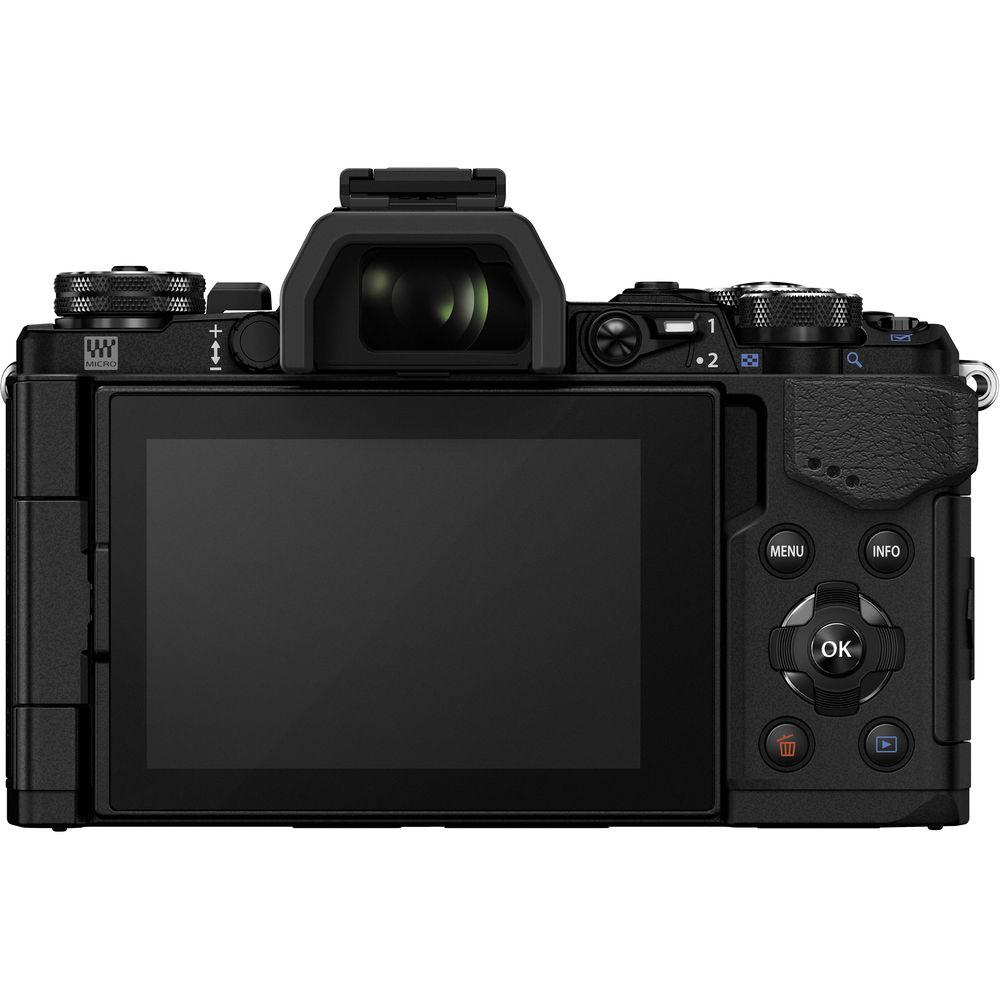

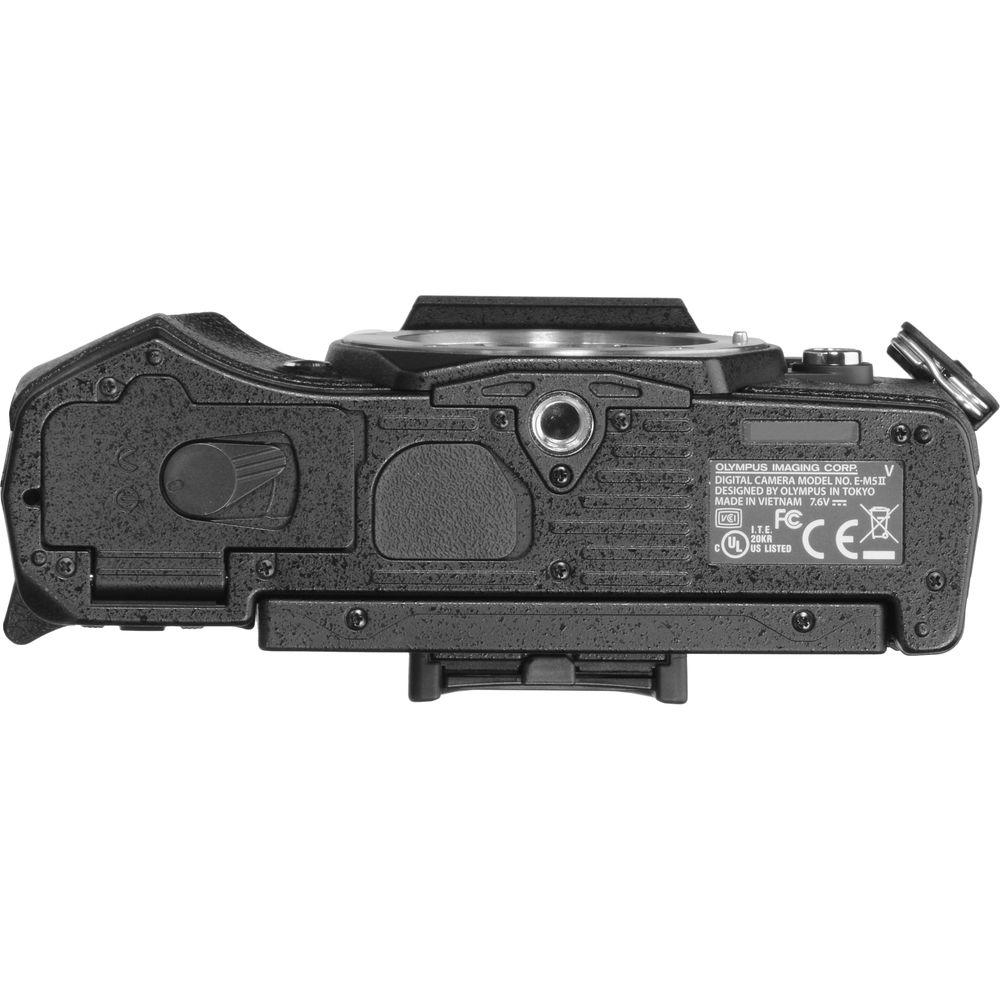

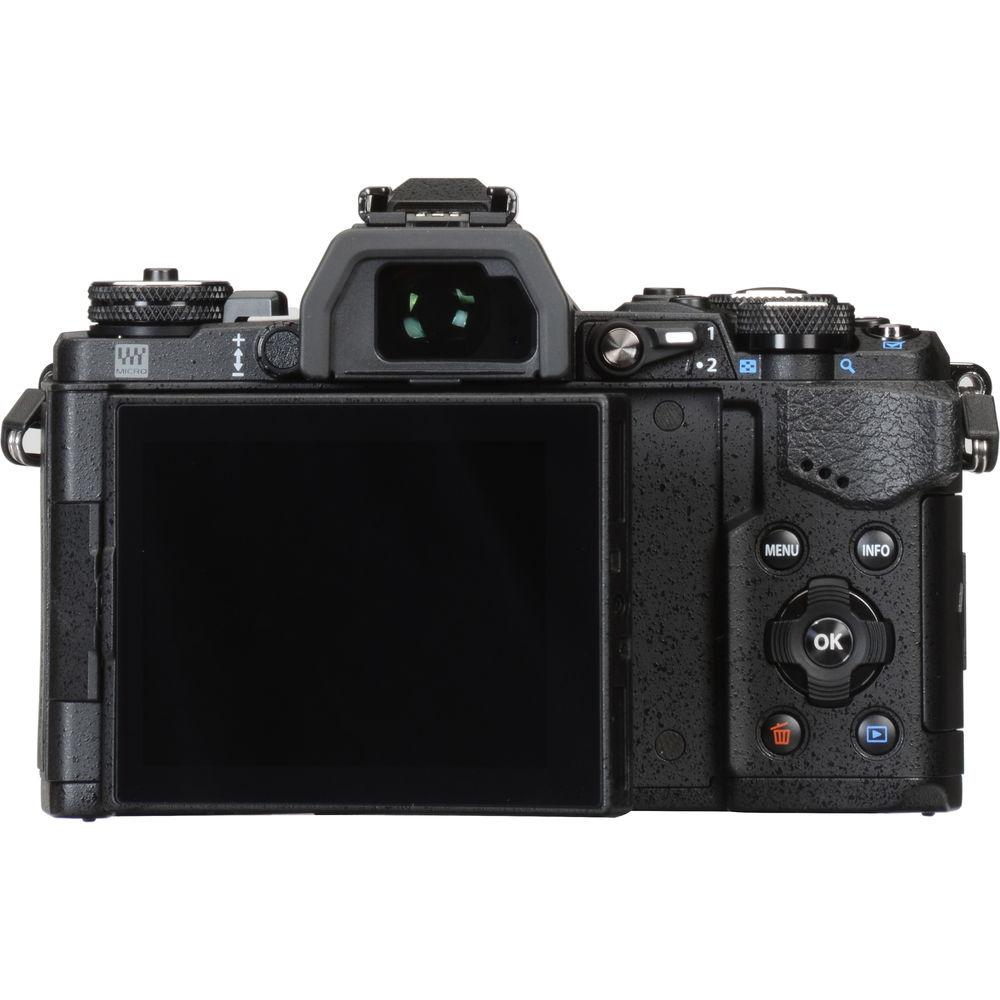

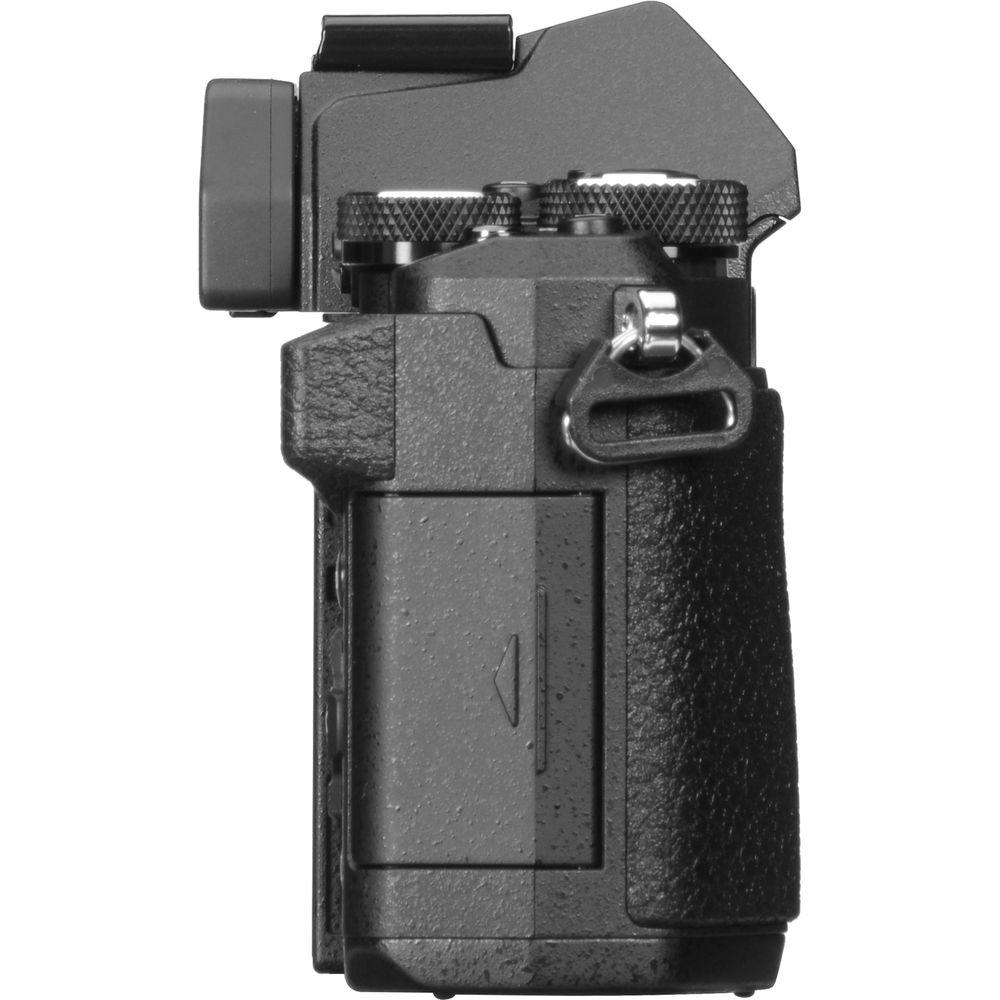

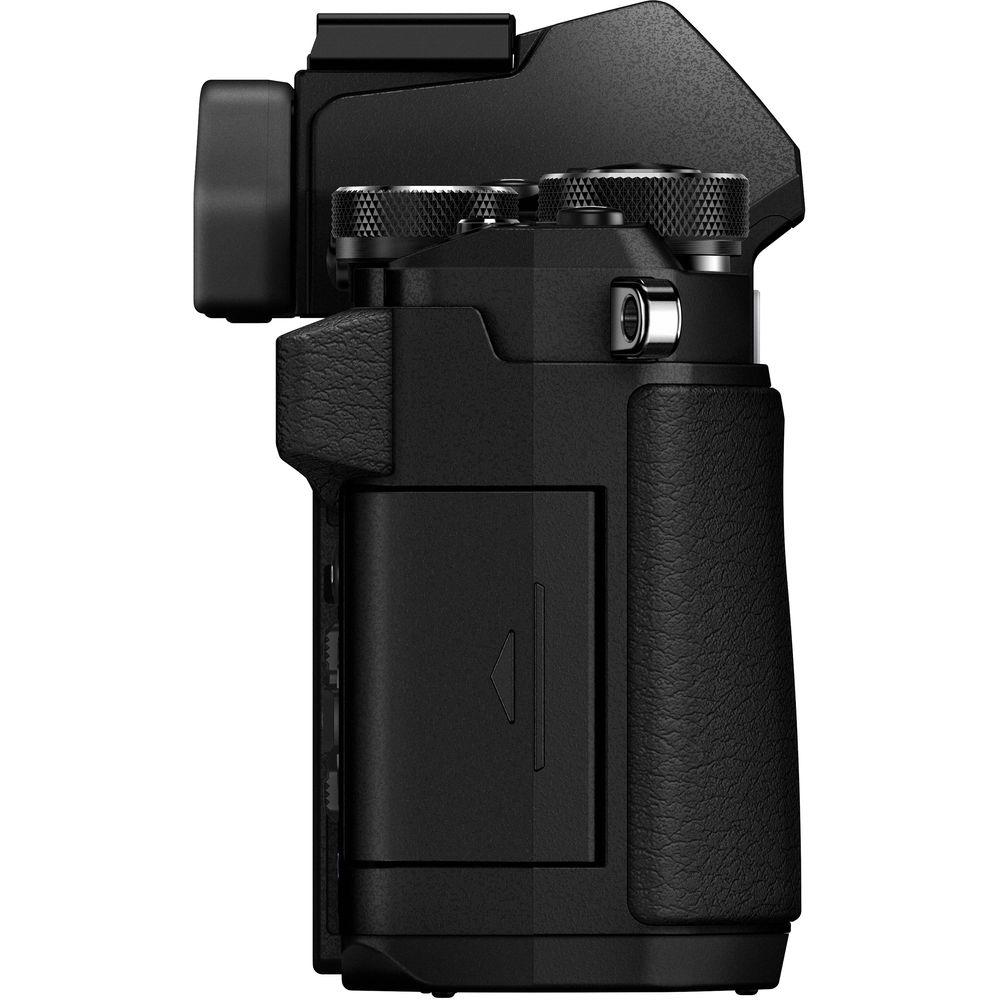

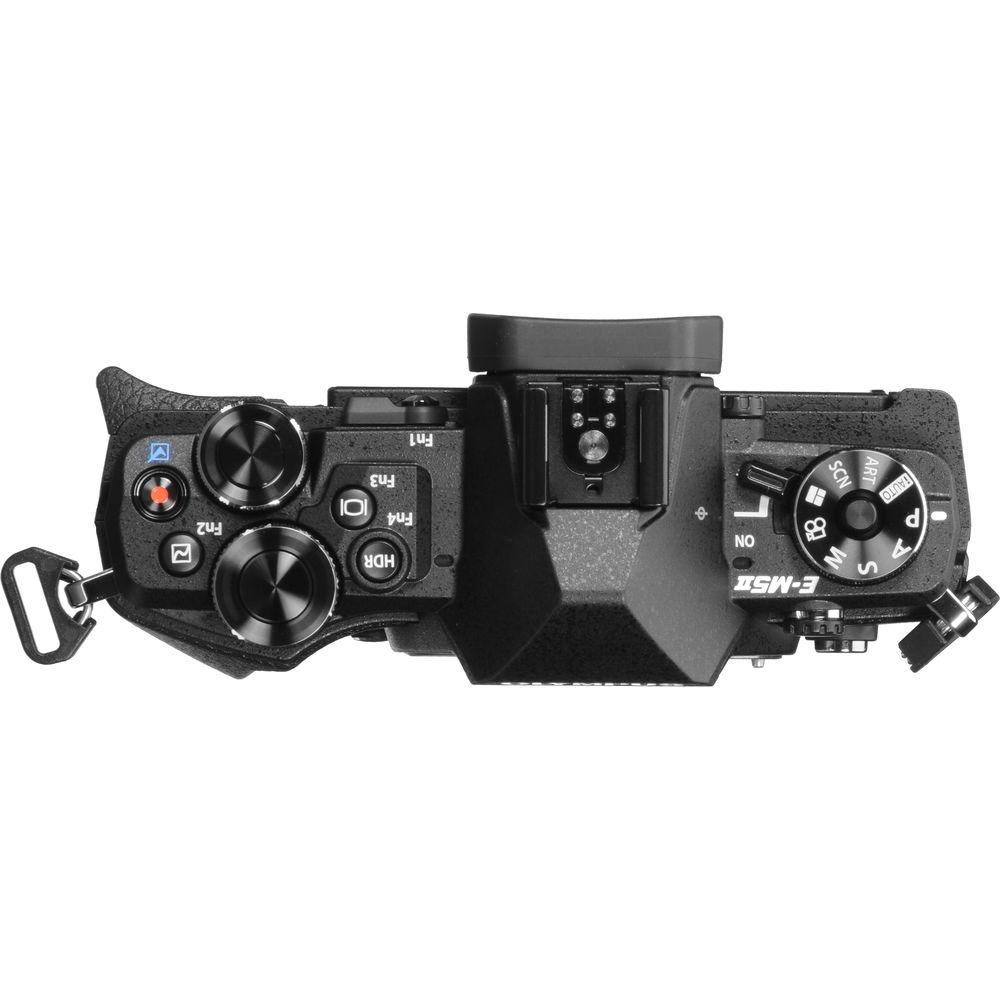

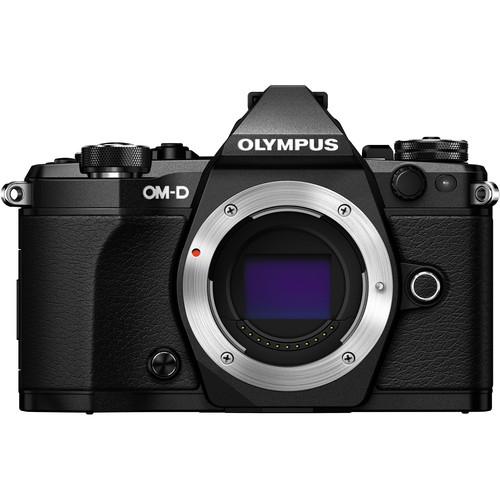

User Manual for Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera Click to enlarge the picture
Contents of the user manual for the Olympus OM-D E-M5 Mark II Mirrorless
- Product category: Mirrorless System Cameras Olympus
- Brand: Olympus
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Olympus Mirrorless System Cameras
 |
User manual for the Olympus OM-D E-M5 Mark II Mirrorless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Olympus product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Olympus user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Olympus product will considerably shorten its lifespan!
|
Product description - First Look: Olympus OM-D E-M5 MK. II
- E M5 Mark II Commercial Video
- E M5 Mark II Product Overview Video
The black Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera combines a 16MP Live MOS sensor with a TruePic VII Image Processor for increased performance speed and reduced noise throughout the ISO range as compared to TruePic VI. The Mark II also improves upon its predecessor by utilizing a 5-axis VCM Image Stabilization that provides up to 5 stops of compensation. Full HD 1080p video recording is now available on the Mark II with a higher bitrate of up to 77 Mb/s and various codecs. Built into the E-M5 Mark II is a unique feature that utilizes sensor shift to produce a 40MP image by combining 8 images in-camera.

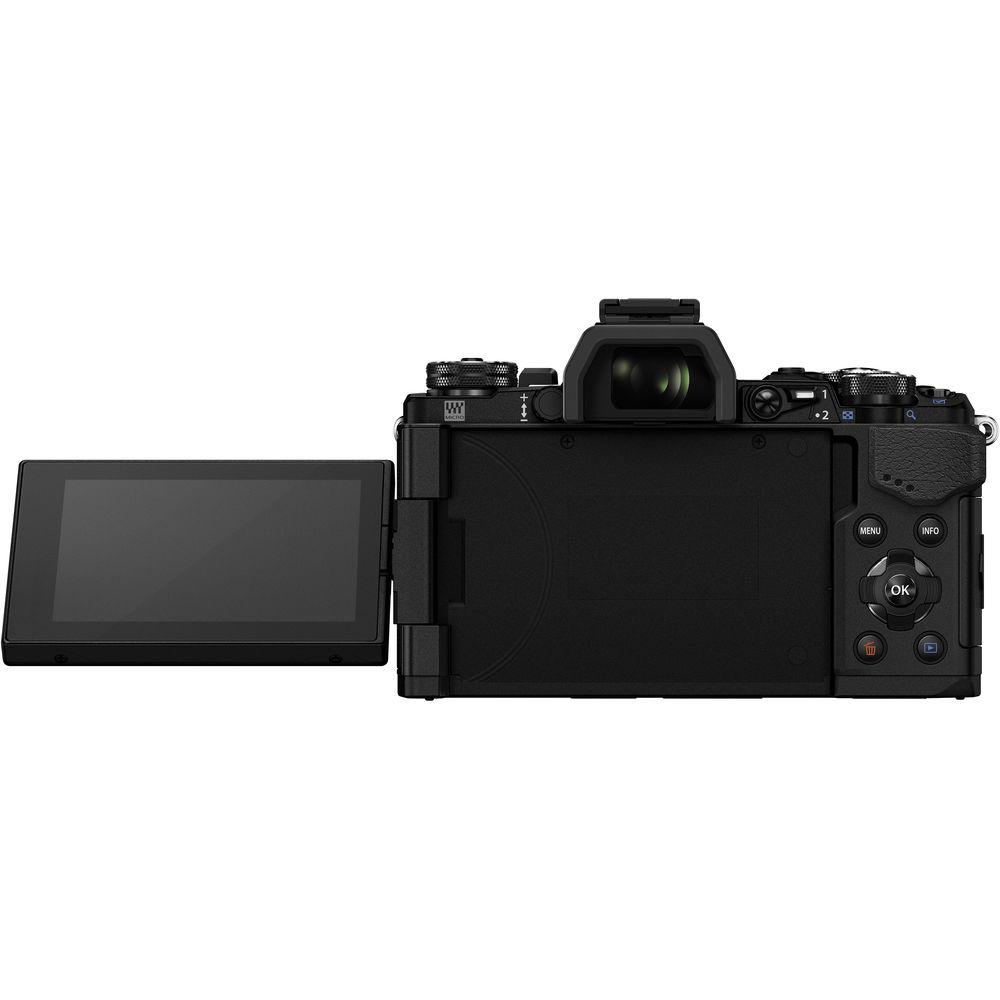

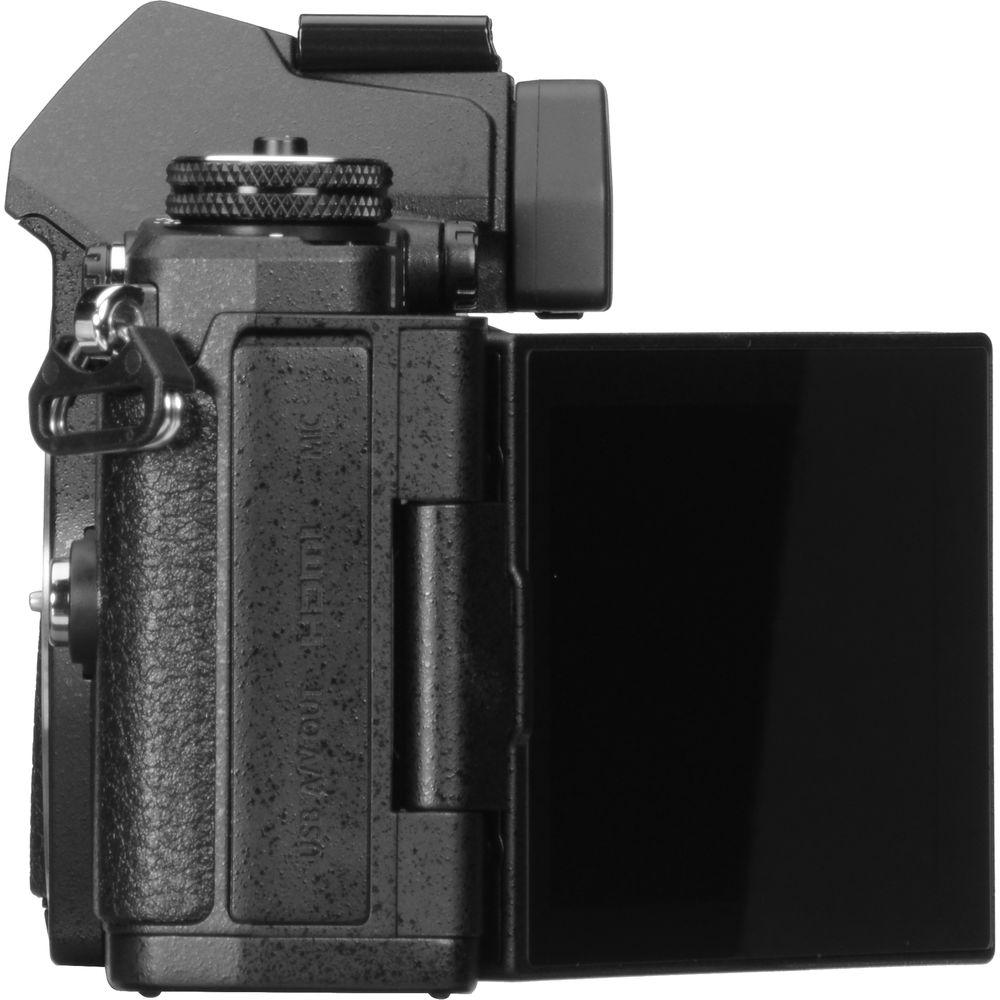

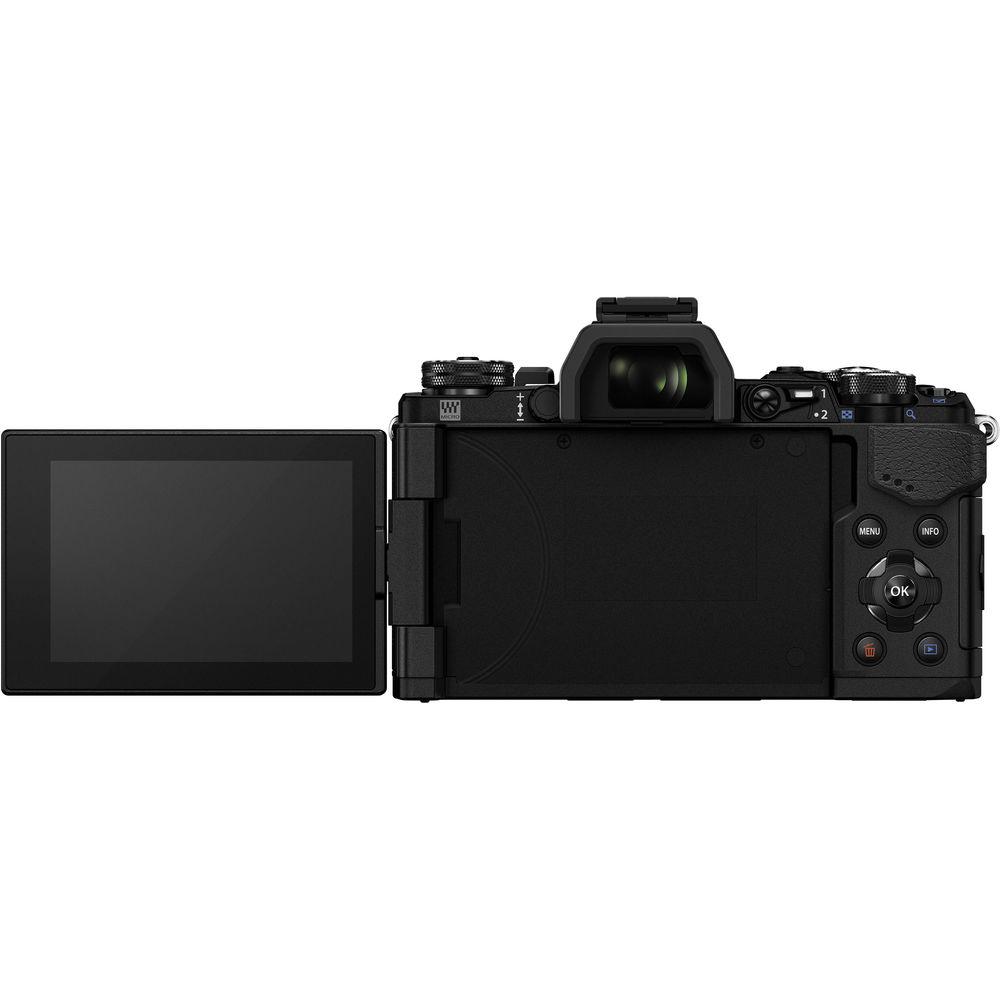

The camera's fully articulated 3" touchscreen LCD monitor makes taking self portraits easy, and the built-in WiFi lets you quickly share your images. When not using the LDC monitor for live view, the 2,360k-dot EVF provides a virtually lag-free view with a 1.48x magnification. - Superior Image Quality
- The Olympus E-M5 Mark II uses a 16-megapixel High-Speed Live MOS Sensor offering improved performance and exceptional clarity and speed in all aspects of image capture. Olympus' TruePic VII image-processing engine improves image quality in low-light environments. The camera's sensor allows for a maximum ISO of 25,600, and the dynamic range has been expanded for more faithful color reproduction.
- 5-Axis Image Stabilization
- The ultra-sensitive 5-axis VCM (voice coil motor) employs updated gyro sensors for a full 5 exposure steps of compensation. The E-M5 Mark II delivers sharp, clear still images in low light or steady HD video when capturing movies.
- Intuitively Designed Electronic Viewfinder
- The camera's electronic viewfinder has an eye sensor to seamlessly switch the display between the tilting 3.0" touch screen OLED and the electronic viewfinder for ease-of-use. Camera setting information, such as shutter speed, is displayed at the bottom of the viewfinder so photographers can concentrate on framing shots and take full advantage of an EVF's ability to display the effects of various exposure adjustments and Art Filter effects - all without having to take the eye away from the viewfinder
- Additional Features
- Interactive, high-resolution and high-magnification electronic viewfinder. 3" touch-screen LCD monitor, with variable angle positioning. Built-in Wi-Fi for instant connectivity. Live Composite, which automatically blends multiple exposures for incredibly detailed night scenes, and compatibility with Olympus Capture camera control software, which creates a seamless interface between camera and computer for studio work.
- Weather Resistance
- The magnesium alloy body is sealed to help protect against dust and liquid. The camera can operate in cold-weather conditions down to 14°F.
UPC: 050332189188 In the Box Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black) FL-LM3 Flash Unit BLN-1 Rechargeable Lithium-ion Battery czdtuwduzfbuezdxtaqevezscettusae BCN-1 Battery Charger Body Cap USB Cable A/V Cable Shoulder Strap Olympus Viewer 2 CD-ROM Limited 1-Year Warranty Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOlympus E-M5 Mark II Specs | | | Lens Mount | Micro Four Thirds | | Camera Format | Micro Four Thirds (2x Crop Factor) | | Pixels | Actual: 17.2 Megapixel
Effective: 16.1 Megapixel | | Maximum Resolution | 4608 x 3456 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | MOS | | Sensor Size | 18 x 13.5 mm | | Image File Format | JPEG, MPO, RAW | | Bit Depth | 12-Bit | | Image Stabilization | Sensor-Shift, 5-Axis | | | | ISO Sensitivity | Auto, 200 to 3200 (Extended: 100 to 25600) | | Shutter Speed | 1/8000 to 60 Seconds | | Metering Method | Center-Weighted Average, Multi-Zone, Spot Multi-zone=Digital ESP | | Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3 EV Steps) | | White Balance | Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater | | Continuous Shooting | Up to 10 fps at 16 MP | | Interval Recording | Yes | | Self Timer | 2/12-Second Delay | | | | Recording Modes | MOV/H.264
Full HD (1920 x 1080) at 24p/25p/29.97p [18 to 77 Mb/s]
Full HD (1920 x 1080) at 50p/59.94p [18 to 52 Mb/s]
HD (1280 x 720) at 24p/25p/29.97p/50p/59.94p [18 to 77 Mb/s]
AVI/M-JPEG
HD (1280 x 720) at 29.97p
SD (640 x 480) at 29.97p | | External Recording Modes | 4:2:2
Full HD (1920 x 1080)
HD (1280 x 720) | | Recording Limit | Up to 29 Minutes | | Audio Recording | Built-In Microphone (Stereo) | | Audio File Format | WAV | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | 81 | | | | Viewfinder Type | Electronic | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Eye Point | 21 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 1.3x | | Diopter Adjustment | -4 to +2 m | | Monitor Size | 3" | | Monitor Resolution | 1,037,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | None | | Flash Modes | Auto, Fill Flash, Off, Red-Eye Reduction | | Maximum Sync Speed | 1/250 Second | | Flash Compensation | -3 to +3 EV | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI D (Micro), USB 2.0 | | Wireless | Wi-Fi | | GPS | None | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 30 to 90% | | | | Battery | 1 x BLN-1 Rechargeable Lithium-Ion Battery Pack, 7.6 VDC, 1220 mAh | | Dimensions (W x H x D) | 4.9 x 3.3 x 1.8" / 12.4 x 8.4 x 4.6 cm | | Weight | 14.4 oz / .4 kg (Body Only) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.4 x 9.1 x 3.9" |
