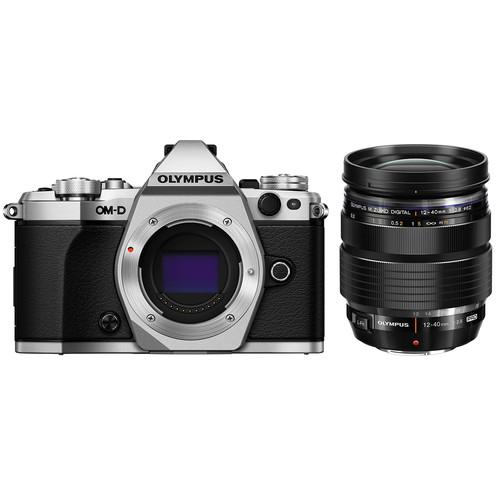

User Manual for Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera with 12-40mm f 2.8 Lens Kit

• Product category: Mirrorless System Cameras Olympus
• Brand: Olympus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Olympus Mirrorless System Cameras

Product description

• Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Silver)
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The silver Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera combines a 16MP Live MOS sensor with a TruePic VII Image Processor for increased performance speed and reduced noise throughout the ISO range as compared to TruePic VI. The Mark II also improves upon its predecessor by utilizing a 5-axis VCM Image Stabilization that provides up to 5 stops of compensation. Full HD 1080p video recording is now available on the Mark II with a higher bitrate of up to 77 Mb/s and various codecs. Built into the E-M5 Mark II is a unique feature that utilizes sensor shift to produce a 40MP image by combining 8 images in-camera.

  The camera's fully articulated 3" touchscreen LCD monitor makes taking self portraits easy, and the built-in WiFi lets you quickly share your images. When not using the LDC monitor for live view, the 2,360k-dot EVF provides a virtually lag-free view with a 1.48x magnification.
  Superior Image Quality
  • The Olympus E-M5 Mark II uses a 16-megapixel High-Speed Live MOS Sensor offering improved performance and exceptional clarity and speed in all aspects of image capture. Olympus' TruePic VII image-processing engine improves image quality in low-light environments. The camera's sensor allows for a maximum ISO of 25,600, and the dynamic range has been expanded for more faithful color reproduction.
  5-Axis Image Stabilization
  • The ultra-sensitive 5-axis VCM (voice coil motor) employs updated gyro sensors for a full 5 exposure steps of compensation. The E-M5 Mark II delivers sharp, clear still images in low light or steady HD video when capturing movies.
  Intuitively Designed Electronic Viewfinder
  • The camera's electronic viewfinder has an eye sensor to seamlessly switch the display between the tilting 3.0" touch screen OLED and the electronic viewfinder for ease-of-use. Camera setting information, such as shutter speed, is displayed at the bottom of the viewfinder so photographers can concentrate on framing shots and take full advantage of an EVF's ability to display the effects of various exposure adjustments and Art Filter effects - all without having to take the eye away from the viewfinder
  Additional Features
  • Interactive, high-resolution and high-magnification electronic viewfinder. 3" touch-screen LCD monitor, with variable angle positioning. Built-in Wi-Fi for instant connectivity. Live Composite, which automatically blends multiple exposures for incredibly detailed night scenes, and compatibility with Olympus Capture camera control software, which creates a seamless interface between camera and computer for studio work.
  Weather Resistance
  • The magnesium alloy body is sealed to help protect against dust and liquid. The camera can operate in cold-weather conditions down to 14°F.
  UPC: 050332189201
• Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO Lens
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  A flexible zoom covering a popular focal length range, the M.Zuiko Digital ED 12-40mm f/2.8 PRO from Olympus is a wide-to-portrait-length 24-80mm equivalent lens for Micro Four Thirds mirrorless cameras. Its sophisticated optical design, which includes a variety of aspherical, low dispersion, and high refractive index elements, reduces both chromatic and spherical aberrations throughout the zoom range for notable clarity, sharpness, and color accuracy. A ZERO lens coating has also been applied to improve contrast when working in strong lighting conditions. Beyond the advanced lens design, this zoom is also characterized by its constant f/2.8 maximum aperture, as well as its durable weather-sealed construction for working in a variety of conditions. Additionally, a Movie & Still Compatible autofocus system achieves fast, smooth, and silent focusing performance, and a manual focus clutch affords instant switching between focusing methods.
  • Standard wide-angle to portrait-length zoom lens is designed for Micro Four Thirds mirrorless cameras and provides a 24-80mm equivalent focal length range.
  • Constant f/2.8 maximum aperture enables consistent low-light performance and selective focus control throughout the zoom range.
  • The lens construction integrates one aspherical ED (extra-low dispersion) element, two aspherical elements, one DSA (Dual Super Aspherical) element, two extra-low dispersion elements, one HD element, and two HR (high-refractive index) elements into its design to minimize aberrations, distortion, and color fringing throughout the zoom range while also contributing to overall image sharpness, clarity, and color accuracy.
  • A ZERO (Zuiko Extra-low Reflection Optical) coating has been applied to individual elements to minimize lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Movie & Still Compatible (MSC) autofocus system benefits both photo and video applications due to its smooth, quiet, and fast performance.
  • Manual focus clutch lets you quickly pull the focusing ring into place for direct, intuitive focus control.
  • Programmable L-Fn (lens function) button for easily accessible settings adjustment.
  • Dust-, freeze-, and drip-proof design ensure the lens' performance in inclement and harsh conditions.
  • Rounded seven-blade diaphragm produces a smooth bokeh quality.
  UPC: 050332186835

• OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Silver) yvvqbdrbxyuacvxeua
• FL-LM3 Flash Unit
• BLN-1 Rechargeable Lithium-ion Battery
• BCN-1 Battery Charger
• Body Cap
• USB Cable
• A/V Cable
• Shoulder Strap
• Olympus Viewer 2 CD-ROM
• Limited 1-Year Warranty

• M.Zuiko Digital ED 12-40mm f/2.8 PRO Lens

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Silver)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 17.2 Megapixel Effective: 16.1 Megapixel
  Maximum Resolution	4608 x 3456
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	MOS
  Sensor Size	18 x 13.5 mm
  Image File Format	JPEG, MPO, RAW
  Bit Depth	12-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 3200 (Extended: 100 to 25600)
  Shutter Speed	1/8000 to 60 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot Multi-zone=Digital ESP
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  White Balance	Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater
  Continuous Shooting	Up to 10 fps at 16 MP
  Interval Recording	Yes
  Self Timer	2/12-Second Delay

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p [18 to 77 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [18 to 52 Mb/s] HD (1280 x 720) at 24p/25p/29.97p/50p/59.94p [18 to 77 Mb/s] AVI/M-JPEG HD (1280 x 720) at 29.97p SD (640 x 480) at 29.97p
  External Recording Modes	4:2:2 Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 29 Minutes
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	WAV

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	81

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.3x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,037,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Auto, Fill Flash, Off, Red-Eye Reduction
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	30 to 90%

  Battery	1 x BLN-1 Rechargeable Lithium-Ion, 7.6 VDC, 1220 mAh
  Dimensions (W x H x D)	4.9 x 3.3 x 1.8" / 12.4 x 8.4 x 4.6 cm
  Weight	14.4 oz / .4 kg (Body Only)

  Box Dimensions (LxWxH)	9.4 x 9.0 x 3.9"

• Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO Lens

  Focal Length	12 to 40mm (35mm Equivalent Focal Length: 24 to 80mm)
  Maximum Aperture	f/2.8
  Minimum Aperture	f/22
  Lens Mount	Micro Four Thirds
  Format Compatibility	Micro Four Thirds
  Angle of View	84 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 59 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
