Olympus OM-D E-M5 Mark II Mirrorless

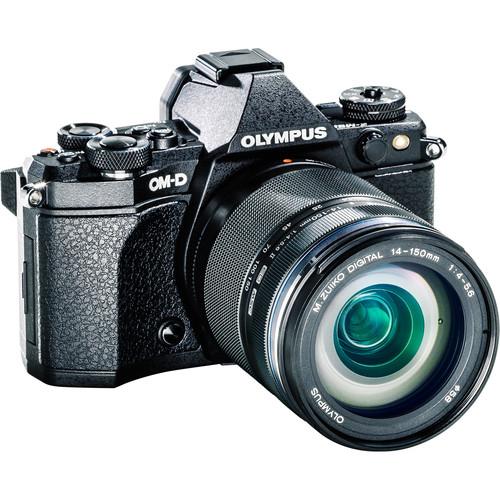

User Manual for Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera with 14-150mm f 4-5.6 Lens Kit

• Product category: Mirrorless System Cameras Olympus
• Brand: Olympus
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Olympus Mirrorless System Cameras

Product description

• OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black) The black Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera combines a 16MP Live MOS sensor with a TruePic VII Image Processor for increased performance speed and reduced noise throughout the ISO range as compared to TruePic VI. The Mark II also improves upon its predecessor by utilizing a 5-axis VCM Image Stabilization that provides up to 5 stops of compensation. Full HD 1080p video recording is now available on the Mark II with a higher bitrate of up to 77 Mb/s and various codecs. Built into the E-M5 Mark II is a unique feature that utilizes sensor shift to produce a 40MP image by combining 8 images in-camera.

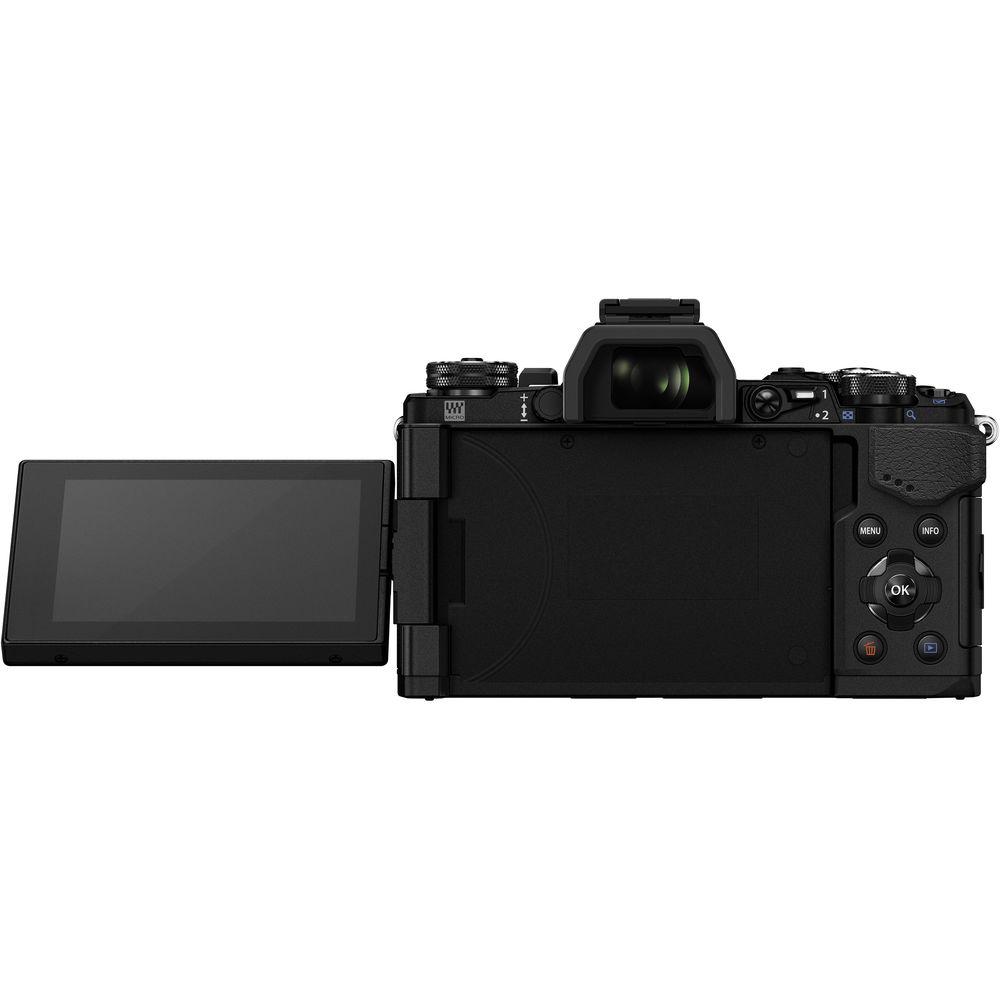

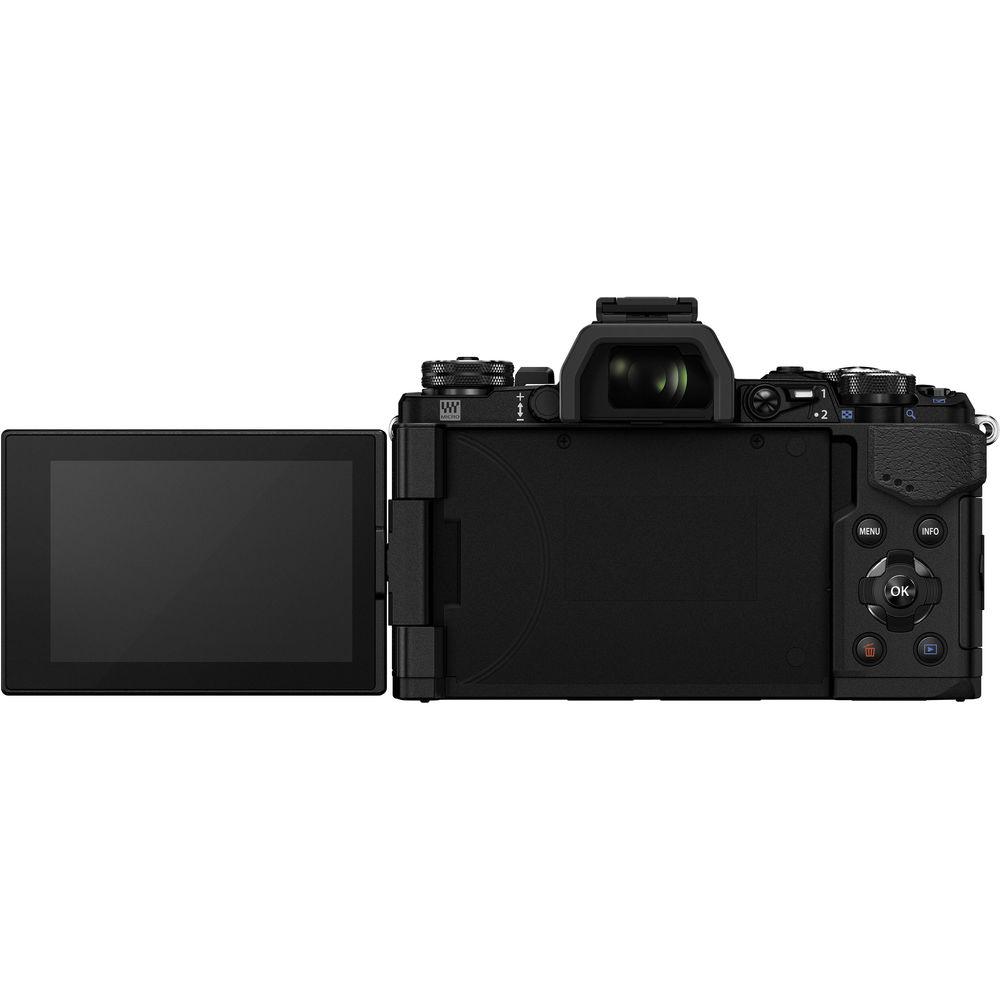

  The camera's fully articulated 3" touchscreen LCD monitor makes taking self portraits easy, and the built-in WiFi lets you quickly share your images. When not using the LDC monitor for live view, the 2,360k-dot EVF provides a virtually lag-free view with a 1.48x magnification.
  Superior Image Quality
  • The Olympus E-M5 Mark II uses a 16-megapixel High-Speed Live MOS Sensor offering improved performance and exceptional clarity and speed in all aspects of image capture. Olympus' TruePic VII image-processing engine improves image quality in low-light environments. The camera's sensor allows for a maximum ISO of 25,600, and the dynamic range has been expanded for more faithful color reproduction.

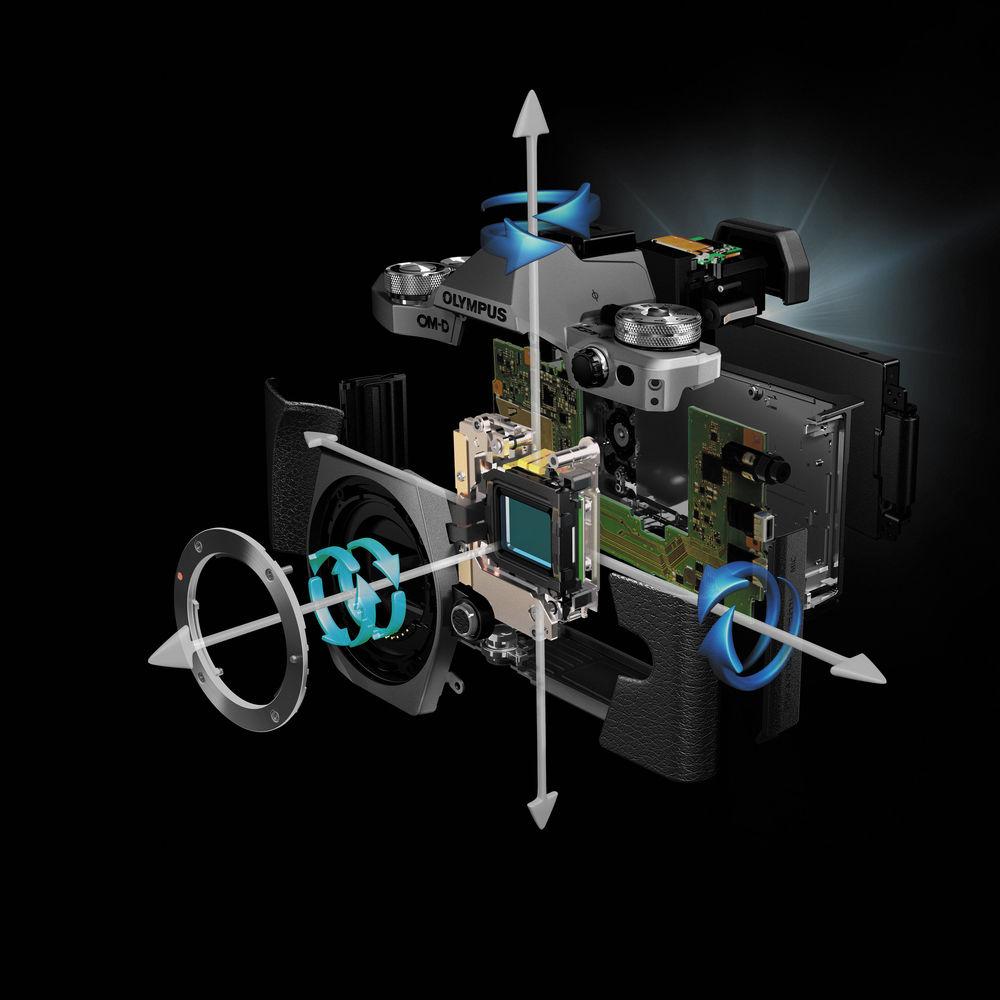

  5-Axis Image Stabilization
  • The ultra-sensitive 5-axis VCM (voice coil motor) employs updated gyro sensors for a full 5 exposure steps of compensation. The E-M5 Mark II delivers sharp, clear still images in low light or steady HD video when capturing movies.
  Intuitively Designed Electronic Viewfinder
  • The camera's electronic viewfinder has an eye sensor to seamlessly switch the display between the tilting 3.0" touch screen OLED and the electronic viewfinder for ease-of-use. Camera setting information, such as shutter speed, is displayed at the bottom of the viewfinder so photographers can concentrate on framing shots and take full advantage of an EVF's ability to display the effects of various exposure adjustments and Art Filter effects - all without having to take the eye away from the viewfinder
  Additional Features
  • Interactive, high-resolution and high-magnification electronic viewfinder. 3" touch-screen LCD monitor, with variable angle positioning. Built-in Wi-Fi for instant connectivity. Live Composite, which automatically blends multiple exposures for incredibly detailed night scenes, and compatibility with Olympus Capture camera control software, which creates a seamless interface between camera and computer for studio work.

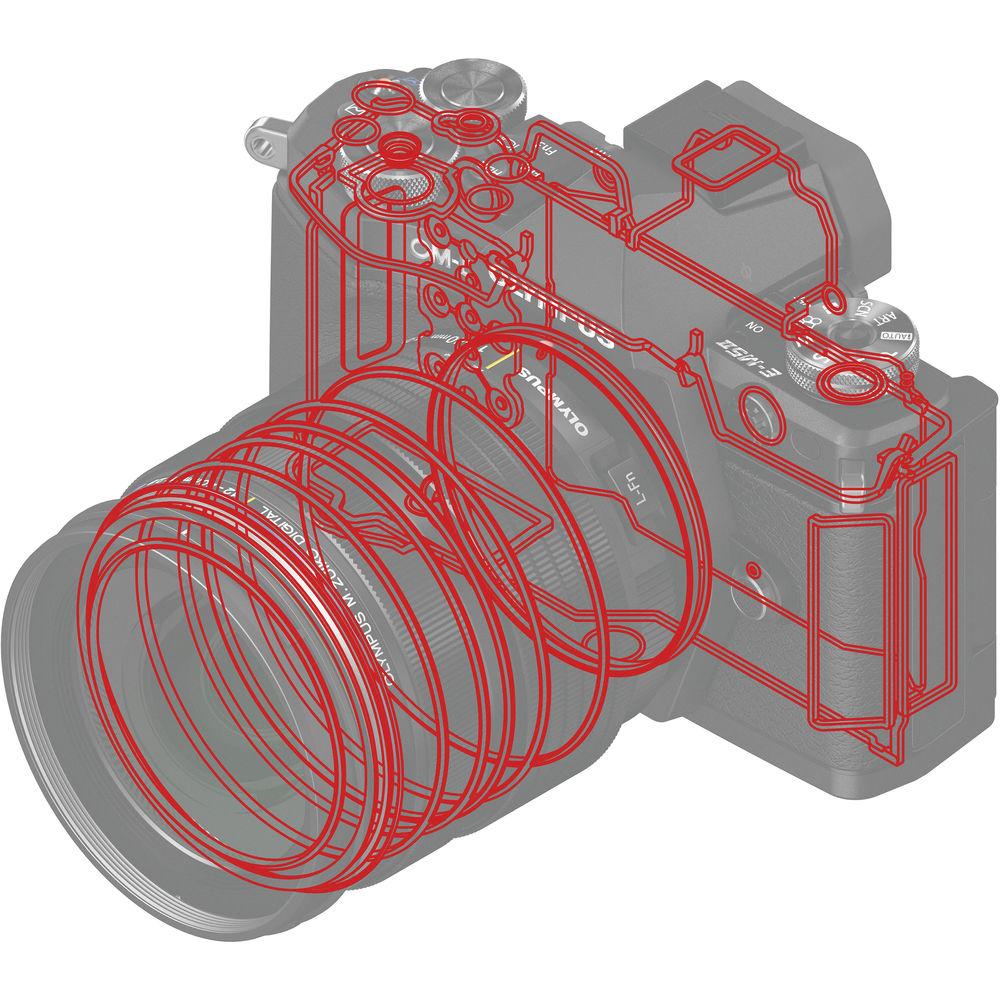

  Weather Resistance
  • The magnesium alloy body is sealed to help protect against dust and liquid. The camera can operate in cold-weather conditions down to 14°F.
  UPC: 050332189188
• M.Zuiko Digital ED 14-150mm f/4-5.6 II Lens Designed as a one-lens solution, the M.Zuiko Digital ED 14-150mm f/4-5.6 II Lens from Olympus is an extremely versatile all-in-one zoom for Micro Four Thirds mirrorless cameras. Providing a 28-300mm equivalent focal length range, this lens spans a wide-angle to telephoto reach to suit photographing in nearly any situation. Despite its reach, the lens still remains compact for easy portability, and it utilizes a sophisticated optical design, comprised of various aspherical, low dispersion, and high refractive index glass elements, to reduce aberrations and distortion for high sharpness, clarity, and color accuracy. A ZERO coating has also been applied to suppress flare and ghosting for improved contrast when working in strong lighting conditions. Additionally, this 14-150mm lens also sports a Movie & Still Compatible (MSC) AF system that is quick and quiet, and has a weather-resistant construction to suit working in inclement weather conditions.
  • Spanning a wide-angle to telephoto range, this all-in-one zoom is designed for Micro Four Thirds mirrorless cameras and provides a 28-300mm equivalent focal length.
  • One Dual Super Aspherical element, one aspherical element, two E-HR (Extra-High Refractive Index) elements, and one high refractive index element are used to reduce spherical aberrations and distortion throughout the zoom range for increased sharpness and resolution. An EDA (Extra-Low Dispersion Aspherical) element and one extra-low dispersion element are also used to reduce chromatic aberrations and color fringing for improved clarity and color accuracy.
  • A ZERO (Zuiko Extra-low Reflection Optical) coating has been applied to individual elements to minimize lens flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
  • Movie & Still Compatible (MSC) autofocus system benefits both photo and video applications due to its smooth, quiet, and fast performance.
  • Dust-, freeze-, and splash-proof design ensure the lens' performance in inclement and harsh conditions.
  UPC: 050332188754

• FL-LM3 Flash Unit

• BLN-1 Rechargeable Lithium-ion Battery

• BCN-1 Battery Charger

• Body Cap

• USB Cable

• A/V Cable

• Shoulder Strap

• Olympus Viewer 2 CD-ROM

• Limited 1-Year Warranty

• LH-61C Lens Hood

• LC-58F Lens Cap for 14-150mm f/3.5-5.6 II Lens

• LR-2 Rear Lens Cap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 17.2 Megapixel Effective: 16.1 Megapixel
  Maximum Resolution	4608 x 3456
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	MOS
  Sensor Size	18 x 13.5 mm
  Image File Format	JPEG, MPO, RAW
  Bit Depth	12-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 3200 (Extended: 100 to 25600)
  Shutter Speed	1/8000 to 60 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot Multi-zone=Digital ESP
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  White Balance	Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater
  Continuous Shooting	Up to 10 fps at 16 MP
  Interval Recording	Yes
  Self Timer	2/12-Second Delay

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p [18 to 77 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [18 to 52 Mb/s] HD (1280 x 720) at 24p/25p/29.97p/50p/59.94p [18 to 77 Mb/s] AVI/M-JPEG HD (1280 x 720) at 29.97p SD (640 x 480) at 29.97p
  External Recording Modes	4:2:2 Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 29 Minutes
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	WAV

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	81

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.3x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,037,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Auto, Fill Flash, Off, Red-Eye Reduction
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	30 to 90%

  Battery	1 x BLN-1 Rechargeable Lithium-Ion, 7.6 VDC, 1220 mAh
  Dimensions (W x H x D)	4.9 x 3.3 x 1.8" / 12.4 x 8.4 x 4.6 cm
  Weight	14.4 oz / .4 kg (Body Only)

  Box Dimensions (LxWxH)	9.4 x 9.1 x 3.9"

• M.Zuiko Digital ED 14-150mm f/4-5.6 II Lens

  Focal Length	14 to 150mm (35mm Equivalent Focal Length: 28 to 300mm)
  Maximum Aperture	f/4 to 5.6
  Minimum Aperture	f/22
  Lens Mount	Micro Four Thirds
  Format Compatibility	Micro Four Thirds
  Angle of View	75 Rating 74% users recommend this product to others. And what about you? This product has already been rated by 26 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
