Product description

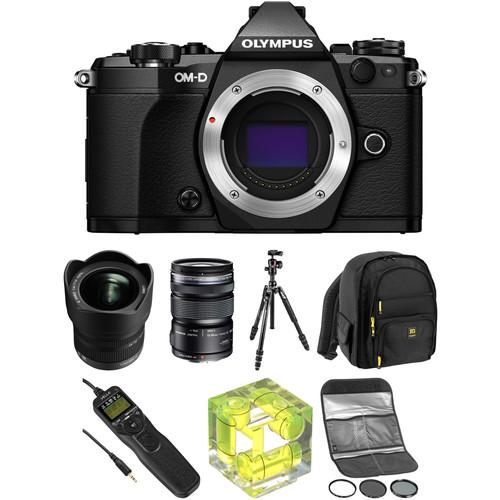

• Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black)
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The black Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera combines a 16MP Live MOS sensor with a TruePic VII Image Processor for increased performance speed and reduced noise throughout the ISO range as compared to TruePic VI. The Mark II also improves upon its predecessor by utilizing a 5-axis VCM Image Stabilization that provides up to 5 stops of compensation. Full HD 1080p video recording is now available on the Mark II with a higher bitrate of up to 77 Mb/s and various codecs. Built into the E-M5 Mark II is a unique feature that utilizes sensor shift to produce a 40MP image by combining 8 images in-camera.

  The camera's fully articulated 3" touchscreen LCD monitor makes taking self portraits easy, and the built-in WiFi lets you quickly share your images. When not using the LDC monitor for live view, the 2,360k-dot EVF provides a virtually lag-free view with a 1.48x magnification.
  Superior Image Quality
  • The Olympus E-M5 Mark II uses a 16-megapixel High-Speed Live MOS Sensor offering improved performance and exceptional clarity and speed in all aspects of image capture. Olympus' TruePic VII image-processing engine improves image quality in low-light environments. The camera's sensor allows for a maximum ISO of 25,600, and the dynamic range has been expanded for more faithful color reproduction.
  5-Axis Image Stabilization
  • The ultra-sensitive 5-axis VCM (voice coil motor) employs updated gyro sensors for a full 5 exposure steps of compensation. The E-M5 Mark II delivers sharp, clear still images in low light or steady HD video when capturing movies.
  Intuitively Designed Electronic Viewfinder
  • The camera's electronic viewfinder has an eye sensor to seamlessly switch the display between the tilting 3.0" touch screen OLED and the electronic viewfinder for ease-of-use. Camera setting information, such as shutter speed, is displayed at the bottom of the viewfinder so photographers can concentrate on framing shots and take full advantage of an EVF's ability to display the effects of various exposure adjustments and Art Filter effects - all without having to take the eye away from the viewfinder
  Additional Features
  • Interactive, high-resolution and high-magnification electronic viewfinder. 3" touch-screen LCD monitor, with variable angle positioning. Built-in Wi-Fi for instant connectivity. Live Composite, which automatically blends multiple exposures for incredibly detailed night scenes, and compatibility with Olympus Capture camera control software, which creates a seamless interface between camera and computer for studio work.
  Weather Resistance
  • The magnesium alloy body is sealed to help protect against dust and liquid. The camera can operate in cold-weather conditions down to 14°F.
  UPC: 050332189188
• Panasonic Lumix G Vario 7-14mm f/4 ASPH. Lens
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  Spanning a useful range of wide-angle focal lengths, the Lumix G Vario 7-14mm f/4 ASPH. from Panasonic is a versatile wide zoom for Micro Four Thirds cameras, and offers a 14-28mm equivalent focal length. Well-suited for landscape, nature, and architectural applications, the wide field of view is complemented by a constant f/4 maximum aperture for consistent illumination throughout the zoom range. The optical design makes use of low dispersion and aspherical glass elements to control a variety of aberrations and color fringing for notable sharpness, clarity, and color accuracy, and individual elements are also multi-coated to control flare and ghosting for improved contrast. Additionally, the lens features a built-in petal-shaped lens hood to guard the front element from stray light to further reduce flaring and surface reflections.
  • Ultra-wide zoom for Micro Four Thirds mirrorless cameras provides a 14-28mm equivalent focal length range.
  • Constant f/4 maximum aperture delivers consistent performance and illumination throughout the zoom range.
  • Four extra-low dispersion elements help reduce chromatic aberrations and color fringing in order to achieve high clarity and color accuracy. Additionally, a pair of aspherical elements are featured in the optical design to control spherical aberrations and distortion for notable sharpness.
  • Individual elements have been multi-coated to effectively reduce lens flare and ghosting for improved contrast when working in strong lighting conditions.
  • Autofocus motor supports camera's contrast detection for precise focusing performance. AF can also be manually overridden for more fine-tuned control.
  • Built-in petal-shaped lens hood shields the front element from stray light and helps reduce flare.
  UPC: 037988989584
• Manfrotto Befree Advanced Travel Aluminum Tripod with 494 Ball Head (Twist Locks, Black)
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  Sporting a 17.6 lb load capacity at a weight of only 3.4 lb, this black Befree Advanced Travel Tripod from Manfrotto is a robust support option that can serve as a convenient travel companion for professional photographers and passionate hobbyists alike. It is made of aluminum alloy and reaches a maximum height of 59.1" with its column extended, folding down to 15.7" in length for simplified transport in its included carrying case. Each leg of the Befree Advanced is composed of four sections, which can be adjusted and secured in seconds thanks to the M-lock twist locks that operate with a simple 90° turn. A side-pull selector allows you to set up the tripod at three different angle configurations, enabling low angle shooting with the simple push of a button. Complementing the legs is an equally sturdy center ball head, which offers a dedicated knob for panoramic movement as well as a friction control knob for precise control over the tension during use. The final element is a quick release plate, which offers dual compatibility for RC2 and Arca-type compatible systems, except for the Manfrotto 804-3W and MH804-3W tripod heads. An Easy Link attachment is available at the top portion of the leg section, and allows you to connect compatible accessories such as flashes or reflectors. This enables you to use the tripod as a support system and reduce the amount of gear you need to carry while travelling. Rubberized feet are used to avoid skidding and help keep the Befree Advanced stable in most types of terrain. Finally, an integrated hook found at the bottom can be used to add a weight and increase the stability of your tripod when shooting in more difficult conditions.
  • • Weighs 3.4 lb, can hold up to 17.6 lb of gear
    • Four leg sections which extend and fasten via its twist locks
    • Maximum height of 59.1", folds down to 15.7" in length for storage
    • Aluminum-alloy construction
    • Side button allows you to select between three different leg angles
    • Ball head with separate pan lock and friction control knobs
    • Quick release plate compatible with both RC2 and Arca-type systems, excluding the 804-3W and MH804-3W tripod heads
    • Rubberized feet provide increased stability on most surfaces
    • Easy Link attachment for use with optional accessories
    • Integrated hook for weighing down and stabilizing tripod during use
  UPC: 719821419303
• Ruggard Outrigger 45 Backpack (Black)
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The black Outrigger 45 Backpack from Ruggard holds a standard DSLR system and an iPad. The front pocket measures 8.0 x 7.25" and contains five small, pen-sized slip-in slots as well as a mesh stash pocket. The second compartment is dedicated for your iPad. The third compartment measures 14.5 x 8.5" and contains three memory card pockets, two slash stretch pockets and a key ring. The spacious main compartment for your camera gear includes seven removable dividers that can be configured to accommodate whatever gear you carry.

  For carrying comfort, the back of the backpack is made from a breathable, small-mesh, padded material and features a padded shoulder harness. You can also carry the backpack using the nylon grip handle at the top. The backpack has a sternum strap and a hideaway waist strap. An attached rain cover for inclement weather can be hidden away at the base of the backpack.

  Pockets

  • Small, exterior, front, zippered pouch has interior mesh slip pocket and an organizer that includes two slip pockets and three pen slots
  • Large, exterior, front, zippered pouch has two slip pockets, three touch-fastened memory card pockets, and a key leash
  • Two, exterior, expandable side pockets with a touch-fastened closure
  • Two, interior, large, zippered mesh pockets on front flap

  Construction

  • Two, large, rigid, padded interior dividers and five small ones can create up to eight sections inside the main compartment
  • Elastic touch-fastened band inside main compartment secures larger lenses
  • Tough 600D polyester exterior and 200D polyester interior lining
  • Front, zippered flap opens all the way down for full access to main compartment
  UPC: 847628561557
• Vello ShutterBoss II Timer Remote Switch for Canon with Sub Mini Connection
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The ShutterBoss II Timer Remote Switch for Canon with Sub Mini Connection from Vello is a remote shutter release that provides photographers with enhanced levels of exposure control. Featuring specialized functionality such as continuous shooting, self-timer, long time exposures, and interval shooting, the ShutterBoss II is a huge asset to keep in your camera bag. This particular ShutterBoss is compatible with cameras that have a sub-mini connection, for example: Canon EOS Digital Rebels and EOS R, M6, G3 X, G5 X, Contax N and 645, Pentax K series, Sigma SD, and Samsung GX series. With the ShutterBoss you can set timer delays, exposure times and intervals up to 99 hours, 59 minutes, 59 seconds in one-second increments. You can also select from 1 to 399 continuous shots or set the device to take an unlimited number of photos. Since you can set exposures without touching the camera you will capture clear, blur-free images. This remote has a 4-line backlit LCD status display for easy viewing of timer and exposure settings. The backlight can be locked to remain on when shooting in low light conditions. The ShutterBoss is great for time lapse series of blooming flowers, sunsets or the night sky. It can also function without batteries as a simple manual remote shutter release. Simply establish the camera's settings and push the remote's shutter button halfway to focus and fully to shoot. In bulb mode, slide the shutter release button forward to lock and the shutter will stay open until you release it. The ShutterBoss II has added two features that will offer easier control over the remote's settings. First is a Power Off option which gives you the ability to power down the remote to conserve battery life and also a Reset option allows the ShutterBoss' settings to be completely reset to default settings with just the hold of two buttons. A default reset is a time-saver to avoid changing each setting individually. Whether it's for simple shutter release, extended self-timer options, continuous shooting, long exposures, or time-lapse shooting, the ShutterBoss II Remote puts creative camera control in the palm of your hand.
  Compatible Cameras
  • Canon EOS: R, RP, M6, M5, 80D, 70D, 60D, 77D (9000D), T7i (800D), T7 (2000D), T6s (760D), T6i (750D), T6 (1300D), T5i (700D), T5 (1200D), T4i (650D), T3i (600D), T3 (1100D), T2i (550D), T1i (500D), XSi (450D), XTi (400D), XT (350D), XS (1000D), Digital Rebel (300D), SL2 (200D), SL1 (100D), Elan series
    PowerShot G1 X Mark III, G1 X Mark II, G1 X, G16, G15, G12, G11, G10, G3 X, G5 X, SX70 HS, SX60 HS, SX50 HS
    Contax: N and 645
    Fujifilm: X-T3, X-T1, X-T30, X-E2, X-E1, X100T, X30
    Hasselblad: H series
    Olympus: OM-D E-M1 Mark II
    Pentax: K10D, K20D, K100D, K110D, K200D, K-3, K-5, K-5 II, K-7, K30, K-50, K-500, *istDS, DS2, DS, DL2, DL, and D
    Samsung: NX10 & NX100; GX-1S, GX-1L, GX-10 & GX-20
    Sigma: SD1, SD9, SD10, SD14 & SD15
  Timer Functions
  • You can set the timer delays, exposure times, and intervals up to 99 hours, 59 minutes, 59 seconds in one second increments.
  Exposure Functions
  • The ShutterBoss enables you to select anywhere from one to 399 continuous shots, or you can set the device to take an unlimited number of photos.
  LCD Display
  • The four-line backlit LCD display panel gives you a visual reference so you can enable the following functions: self-timer, exposure, interval, and number of shots. It also is a status indicator for battery life, timer functions, lock indicator, number of shots, and more.
  Audible Beep
  • The ShutterBoss will give you an audible beep for the last three seconds of a countdown delay or interval. It will also beep to confirm your settings. The beep can be turned off if necessary.
  Power Off and Reset Options
  • The ShutterBoss II has been updated with two new features, the Power Off option which gives the ability to power the device off to conserve battery life and the Reset option which allows the ShutterBoss to be reset to the default settings, so that each setting does not need to be reset individually.
  Long Battery Life
  • Powered by two AAA batteries, it can last for about 60 days of continuous shooting with intervals of five minutes and exposures of 4 minutes, 56 seconds. When left on standby, it can last for up to 2 years.
  UPC: 847628547223
• Gepe Pro 3-Way Accessory Shoe Mount Bubble Level
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The Gepe Pro 3-Way Accessory Shoe Mount Bubble Level features acrylic construction and fits a standard photo accessory shoe. Three individual spirit/bubble levels are encased in clear acrylic, and the unit incorporates a molded accessory shoe mount. The design ensures that at least two of the three levels will read no matter how you orient your camera, so you don't have to remove the bubble level and flip it as you may with some other bubble levels. Each level is filled with bright yellow neon colored fluid, with black markings to help you level your equipment.
  • Fits standard accessory shoe mounts.
  • Design allows for use no matter the camera's orientation.
  • Neon yellow fluid and black markings provide strong contrast for easy viewing.
• Hoya 52mm Digital Filter Kit II
  • First Look: Olympus OM-D E-M5 MK. II
  • E M5 Mark II Commercial Video
  • E M5 Mark II Product Overview Video
  The Hoya 52mm Digital Filter Kit II includes a UV (C) HMC filter, a circular polarizer filter, and a 3-stop neutral density filter in a convenient filter pouch. This kit provides everything necessary to get started with filtration for your digital camera. The UV (C) filter is a multi-coated filter with a slim mounting ring. This makes it useful for wide-angle lenses to avoid potential vignetting. Also, the UV filter itself is a general use, clear filter that helps to absorb ultraviolet light. No additional coloration or contrast is provided, allowing you to pair this filter with others. It is also useful as a general protective filter to leave on lenses at all times. Filters help to reduce dust and moisture from reaching your lens element and provide additional protection in case of drops or situations where scratching could occur. Hoya HMC filters are multi-coated for reducing flare, ghosting, and reflections on the filter surface. As a result, over 97% light transmission is possible, providing you with additional contrast and high color fidelity.

  A circular polarizer filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage. A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions. A neutral density filter has several uses and offers the possibility to achieve otherwise unachievable results. ND filters appear gray and reduce the amount of light reaching the film. They have no effect on color balance. This filter offers a filter factor of 0.9, equivalent to 3 stops of light.

  UV Filter

  • Absorbs UV light, which can cause outdoor photos to appear hazy and indistinct
  • Clear filter provides no additional coloration or contrast, allowing you to pair this filter with others
  • Works as general protection filter to reduce dust, moisture, and scratches from reaching lens elements.
  • HMC multi-coating help to reduce flare, ghosting, and reflections on the filter surface for greater contrast and color fidelity. Greater than 97% light transmission is possible, providing additional contrast and high color fidelity.

  Circular Polarizer Filter

  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light
  • Clears up haze in distant landscapes and provides more saturated, vivid colors
  • Strongest effect when used at a 90° angle from the sun
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features

  Neutral Density Uses

  • To enable slow shutter speeds to be used, especially with high speed films, to record movement in subjects such as waterfalls, clouds, or cars
  • To decrease depth of field by allowing wider apertures to be used, which helps separate subjects from their background
  • To decrease the effective ISO of high speed film (above ISO 400) and allow it to be used outdoors in bright situations
  • To allow cine and video cameras (which have fixed shutter speeds) to film subjects such as snow, sand or other bright scenes which could cause overexposure
  • 8x = ND 0.9 (exposure adjustment = 3 stops, reduces ISO 1/8)
  UPC: 024066058966

• OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black) ztwzzwyuxcxbesbttwrsbzxvyqeqwswdavbzwy
• FL-LM3 Flash Unit
• BLN-1 Rechargeable Lithium-ion Battery
• BCN-1 Battery Charger
• Body Cap
• USB Cable
• A/V Cable
• Shoulder Strap
• Olympus Viewer 2 CD-ROM
• Limited 1-Year Warranty

• Panasonic - Lumix G Vario 7-14mm f/4 ASPH. Lens

• Manfrotto - Befree Advanced Travel Aluminum Tripod with 494 Ball Head (Twist Locks, Black)

• Ruggard - Outrigger 45 Backpack (Black)

• Vello - ShutterBoss II Timer Remote Switch for Canon with Sub Mini Connection

• Gepe - Pro 3-Way Accessory Shoe Mount Bubble Level

• Hoya - 52mm Digital Filter Kit II

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Olympus OM-D E-M5 Mark II Mirrorless Micro Four Thirds Digital Camera (Body, Black)

  Lens Mount	Micro Four Thirds
  Camera Format	Micro Four Thirds (2x Crop Factor)
  Pixels	Actual: 17.2 Megapixel Effective: 16.1 Megapixel
  Maximum Resolution	4608 x 3456
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	MOS
  Sensor Size	18 x 13.5 mm
  Image File Format	JPEG, MPO, RAW
  Bit Depth	12-Bit
  Image Stabilization	Sensor-Shift, 5-Axis

  ISO Sensitivity	Auto, 200 to 3200 (Extended: 100 to 25600)
  Shutter Speed	1/8000 to 60 Seconds
  Metering Method	Center-Weighted Average, Multi-Zone, Spot Multi-zone=Digital ESP
  Exposure Modes	Aperture Priority, Auto, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  White Balance	Auto, Cloudy, Custom, Flash, Fluorescent, Incandescent, Shade, Sunlight, Underwater
  Continuous Shooting	Up to 10 fps at 16 MP
  Interval Recording	Yes
  Self Timer	2/12-Second Delay

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p [18 to 77 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [18 to 52 Mb/s] HD (1280 x 720) at 24p/25p/29.97p/50p/59.94p [18 to 77 Mb/s] AVI/M-JPEG HD (1280 x 720) at 29.97p SD (640 x 480) at 29.97p
  External Recording Modes	4:2:2 Full HD (1920 x 1080) HD (1280 x 720)
  Recording Limit	Up to 29 Minutes
  Audio Recording	Built-In Microphone (Stereo)
  Audio File Format	WAV

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	81

  Viewfinder Type	Electronic
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 1.3x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3"
  Monitor Resolution	1,037,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Auto, Fill Flash, Off, Red-Eye Reduction
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	14 to 104°F / -10 to 40°C
  Operating Humidity	30 to 90%

  Battery	1 x BLN-1 Rechargeable Lithium-Ion, 7.6 VDC, 1220 mAh
  Dimensions (W x H x D)	4.9 x 3.3 x 1.8" / 12.4 x 8.4 x 4.6 cm
  Weight	14.4 oz / .4 kg (Body Only)

  Box Dimensions (LxWxH)	9.4 x 9.1 x 3.9"

• Panasonic Lumix G Vario 7-14mm f/4 ASPH. Lens

  Lens Mount	Micro Four Thirds
  Angle of View	114 Rating 70% users recommend this product to others. And what about you? This product has already been rated by 28 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
